MSQWL138GV2R2ASUS WLAN PCI CARD

R ASUS WLAN Card WL-138g V2 (For 802.11g and 802.11b Wireless Networks) User’s Manual System Requirements To begin using the ASUS WLAN Card, you must have the following minimum requirements: - Windows XP/2000/ME/98SE - Standard 32-bit PCI Slot - 32MB system memory or larger - 300MHz processor or higher The Product Package When you receive the ASUS WLAN Card package, it should contain the following items: - ASUS WLAN PCI Card - ASUS WLAN Card Quick Start Guide - CD-ROM Disc (Drivers, Utilities, Documentation) If any of the above items are not included or damaged, contact your local dealer for instructions. 2. Installation Installing the ASUS WLAN Card Driver 1. Have an experienced person install the ASUS WLAN Card into a free PCI slot. Replace your chassis door, panels, screws, and cables when completed. 2. Turn ON your computer and enter Windows. 2 ASUS WLAN Card ASUS WLAN Card 3 Installing the ASUS WLAN Card Utilities After you have installed the ASUS WLAN Card driver, you can install the WLAN Adapter utilities as shown below. 1. Insert the ASUS WLAN Card support CD and an autorun menu will appear. If your autorun is disabled, double click SETUP.EXE in the root directory of the support CD. 2. From the autorun menu, select your language and click Install ASUS WLAN Card Utilities. 4 ASUS WLAN Card Installing the ASUS WLAN Card Utilities (Cont.) Reading the ASUS WLAN Status Indicators The ASUS WLAN card consists of one LED that indicates the status of the ASUS WLAN Card. OFF: No wireless activity. Blinking: Transmitting or receiving wireless data. Orientating the Antenna The ASUS WLAN Card has one external antenna. It is recommended that you adjust the external antenna straight up for maximum range and higher link quality. ASUS WLAN Card 5 ASUS WLAN Utility Quick Start After installing the ASUS WLAN driver and utility, you may need to make some settings before being able to use your wireless connection. 6 ASUS WLAN Card 7 ASUS WLAN Card Additional Information FCC Warning Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: －Reorient or relocate the receiving antenna. －Increase the separation between the equipment and receiver. －Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. －Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Prohibition of Co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter Safety Information To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. 8 ASUS WLAN Card Declaration of Conformity for R&TTE directive 1999/5/EC Essential requirements – Article 3 Protection requirements for health and safety – Article 3.1a Testing for electric safety according to EN 60950-1 has been conducted. These are considered relevant and sufficient. Protection requirements for electromagnetic compatibility – Article 3.1b Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301 489-17 has been conducted. These are considered relevant and sufficient. Effective use of the radio spectrum – Article 3.2 Testing for radio test suites according to EN 300 328 has been conducted. These are considered relevant and sufficient. CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: : Confidentiality Request regarding application for certification of FCC ID: MSQWL138GV2R2 Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: z Schematics z Part List z Block diagram z Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: z External Photos z Internal Photos z Test Setup Photos z User’s Manual Sincerely, Lawrence Yu / Manager, ASUSTek Computer Inc.

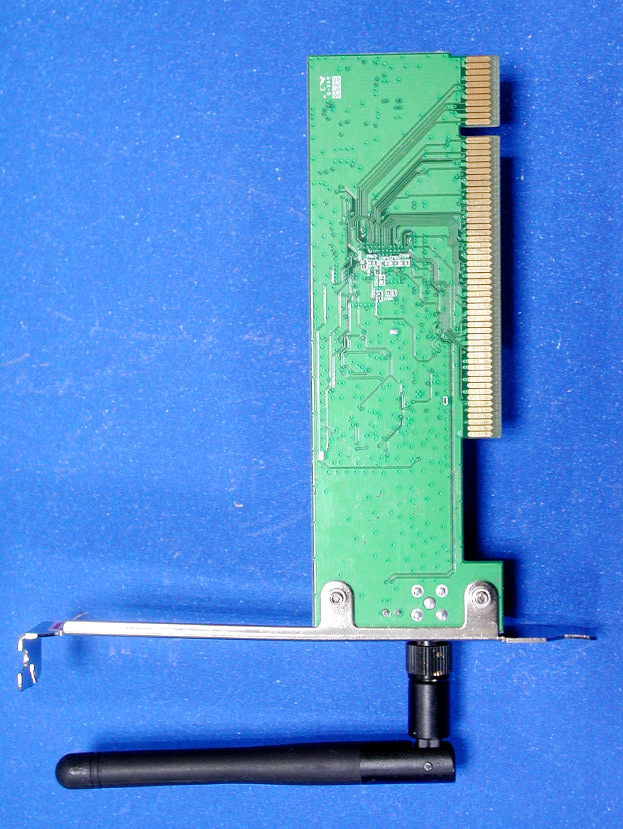

External Photos of Wireless LAN PCI Card 1/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN PCI Card 2/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN PCI Card 3/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information -------------------------------------------------- 1/1 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL

Label Drawing 1.) Label Material: #50 SILVER POLYESTER 2.) Glue Material: PET MAT POLYPROPYLENE 3.) Label Color: SILVER 4.) Font Color: BLACK 5.) Diameter of certification mark: 3.5mm X 3.5mm Model: WL-138g V2 ASUSTek COMPUTER INC. PCI WLAN Module FCC ID: MSQWL138GV2R2 MADE IN TAIWAN

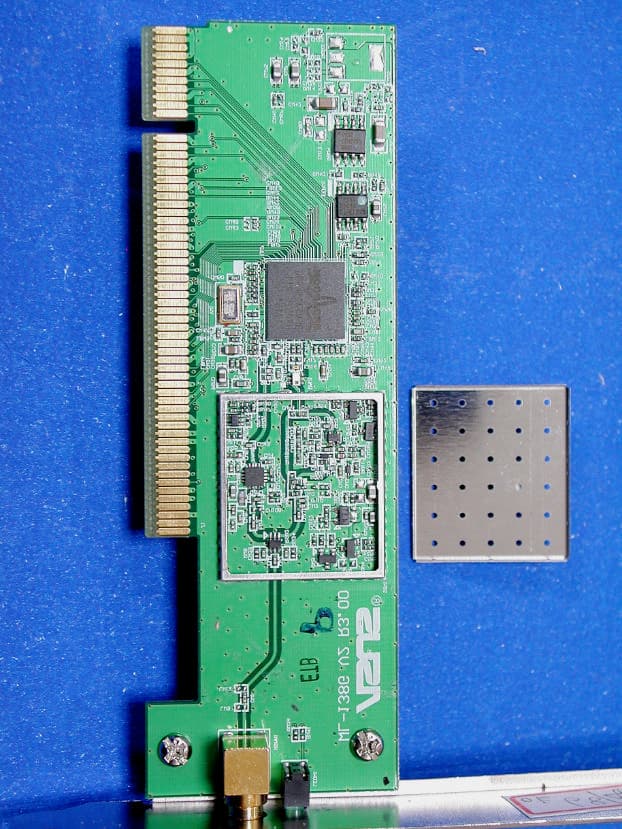

External Photos of Wireless LAN PCI Card 1/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN PCI Card 2/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN PCI Card 3/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Measurement of Maximum Permissible Exposure ------------------------------------------ 1/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : MSQWL138GV2R2 Product name : ASUS WLAN PCI Card Model name : WL-138g V2 Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by PCI of client’s device Measurement of Maximum Permissible Exposure ------------------------------------------ 2/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /029.0 )20(4 58489.125714.92 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R411.3 4 58489.125714.92 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 3.41cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (2.0 / 10) = 1.58489 Measurement of Maximum Permissible Exposure ------------------------------------------ 3/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix Antenna Specification PRODUCT NAME 2.4G ANTENNA WITH RP SMA PART NUMBER □ W205-108-D200 Signed By Customers Approved By: 供應商: 垠 旺 精 密 股 份 有 限 公 司 TEL:02-2917-7528;FAX:02-2912-1659 台北縣新店市寶興路37號 3樓 NInput Output Enterprise Corp. PRODUCT SPECIFICATION DOC. No: WL-TL-17 DATE: 25-MAR-02 REV. : C 7 銷仔 Br a s s 鍍鎳 6 帽套 TPRBlack 5 底座 ABSBlack 4 天線座 ABSBlack 3 RP SMA 扭殼 Br a s s 鍍黑鉻 2 Contacter 端子 Be . Co p p e r 鍍金 30u" 1 RP SMA 主體 Br a s s 鍍金 4u" ITEMDESCRIPTIONMATERIALSFINISHED NInput Output Enterprise Corp. PRODUCT SPECIFICATION 2.4 G ANTENNA WITH RP-SMA PLUG DOC. No: WL-TL-17 DATE: 25-MAR-02 REV. : C NInput Output Enterprise Corp. PRODUCT SPECIFICATION RP-SMA R/A JACK PCB RECEPTACLE DOC. No: WL-TL-17 DATE: 25-MAR-02 REV. : C W205-108-D200 2.4G ANTENNA SPECIFICATION 1. Electrical Properties 1-1 Frequency Range .........................2.4~2.5GHz 1-2 Impedance..................................50 Ohms nominal 1-3 V.S.W.R.....................................2.0 (Max.) 1-4 Return Loss...............................-10.0 dB(Max.) 1-5 Max. Gain..................................2.0dBi 1-6 Polarization......................... Vertical 1-7 Admitted Power...........................1W 1-8 Electrical Wave............................1/4 ג Dipole 2. Mechanical Properties 2-1 Connector........................Reverse SMA Plug Cable......................................RG178 2-3 Antenna Body...........................T.P.R. 2-4 Operating Temperature Range........-20°C ~ +50°C 2-5 Storage Temperature Range.......... -20°C ~ +50°C NInput Output Enterprise Corp. PRODUCT SPECIFICATION 2.4 G ANTENNA WITH RP-SMA PLUG DOC. No: WL-TL-17 DATE: 25-MAR-02 REV. : C NInput Output Enterprise Corp. PRODUCT SPECIFICATION 2.4 G ANTENNA WITH RP-SMA PLUG DOC. No: WL-TL-17 DATE: 25-MAR-02 REV. : C

Test Report ------------------------------------------------------------------------------- 1/54 Report No.: A5415050647, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless LAN PCI Card Applicant : ASUSTek Computer Inc. EUT : Wireless LAN PCI Card Model : WL-138g V2 FCC ID : MSQWL138GV2R2 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------- 2/54 Report No.: A5415050647, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and Subpart C Section 15.247. Applicant : ASUSTek Computer Inc. Applicant address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Product Name : ASUS WLAN PCI Card Model Name : WL-138g V2 Report No. : A5415050647 Test Date : September 6, 2005 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. ́ NVLAP LAB CODE: 200174-0 Test Report ------------------------------------------------------------------------------- 3/54 Report No.: A5415050647, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity for the following equipment: Product name : ASUS WLAN PCI Card Model name : WL-138g V2 Trade name : ASUS Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : A5415050647 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Manufacturer USA local representative Company name: ASUSTeK Computer Inc. To be determined Computer address: 4/F, 150, Li-Te Rd., Peitou, Taipei, Taiwan ZIP / Postal code 112 Contact person: Lawrence Yu Title: Manager Internet e-mail address: [email protected] Tel / Fax: 886-2-28943447 / 886-2-28950113 Test Report ------------------------------------------------------------------------------- 4/54 Report No.: A5415050647, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ...................................................................................................................... 6 1.1 Introduction .............................................................................................................. 6 1.2 Description of EUT ................................................................................................... 6 1.3 Test method ............................................................................................................. 6 1.4 Description of Support Equipment ............................................................................. 7 1.5 Configuration of System Under Test ......................................................................... 10 1.6 Verify the Frequency and Channel ............................................................................ 12 1.7 Test Procedure ........................................................................................................ 13 1.8 Location of the Test Site .......................................................................................... 13 1.9 General Test Condition ............................................................................................ 13 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators.................... 14 III. Section 15.203 : Antenna Requirement.......................................................................... 15 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ................ 16 4.1 Test Condition & Setup ........................................................................................... 16 4.2 List of Test Instruments ............................................................................................ 17 4.3 Test Result of Conducted Emissions ......................................................................... 18 Standby mode .......................................................................................................... 18 IEEE 802.11b ........................................................................................................... 19 IEEE 802.11g ........................................................................................................... 20 V. Section 15.247(a) : Technical Description of the EUT................................................... 22 VI. Section 15.247(a)(2) : Bandwidth for Direct Sequence System ................................... 23 6.1 Test Condition & …

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------ 1/2 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/2 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL138GV2R2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: Front View of the Test Configuration Rear View of the Test Configuration
