MSQWL160NSUPER SPEED N WIRELESS USB ADAPTER

ASUS Super Speed N Wireless USB Adapter  English Quick Start Guide Installation Procedures Important: Install the WLAN Adapter utilities before inserting the WLAN Adapter into your computer. Installing the WLAN utilities and driver Follow these instructions to install the WLAN Adapter utilities and driver. Insert the support CD into your optical drive. If autorun is enabled in your computer, the CD automatically displays the utilitymatically displays the utility menu. Click Install ASUS WLAN Card Utilities/Driver . If autorun is disabled, double-click SETUP.EXE in the root directory of the CD. Insert the WLAN Adapter into your computer ’s USB port using the correct orientation. Windows will automatically detect and configure the WLAN Adapter using the utilities and drivers installed in the previous steps. Windows XP users: When the program is launched for the first time (during Windows restart), you are asked to choose one utility to configure the WLAN Adapter. Select "Only use our WLAN utilities and disable Windows wireless function". Reading the WLAN status indicators The device comes with two LEDs that indicate the status of the WLAN Adapter. ACT LED Blinking: Transmitting data; the blinking speed indicates the link speed. OFF: Radio off or Adapter is disabled. LINK LED ON: Connected to wireless device. OFF: No wireless connection. LINK ACT ASUS Super Speed N Wireless USB Adapter English Quick Start Guide Windows ® XP Wireless Options The wireless options window shown below is only available for Windows ® XP. It appears when you run the Control Center utility at the first time. Select the utility you want to use for configuring your WLAN Adapter. Only use Windows wireless function – Only use Windows ® XP Wireless Zero Configuration service to configure the WLAN Adapter. Only use our WLAN utilities and disable XP wireless function – Only use ASUS WLAN utilities to configure the WLAN Adapter. (recommended) You can open the Wireless Option setting window at any time by left- clicking the control center icon and choosing Wireless Option . Taskbar Left-Click Menu Configuring with Windows ® Wireless Zero Configuration service If you want to configure your WLAN Adapter via Windows ® Wireless Zero Configuration (WZC) service, follow the instruction below to make the settings. 2. A window prompts out asking you for the key if you have set up encryption on your wireless router, input the keys and click Connect . The connection is complete. 1. Double-click the wireless network icon on the task bar to view available networks.Select the AP and click Connect . ASUS Super Speed N Wireless USB Adapter 3 English Quick Start Guide To set up the wireless connection properties, right-click the wireless icon on the taskbar and select Open Network Connection . Then right-click the network connection icon and select Property to open the Wireless Network Connection Status page. 1. The General page shows status, duration, s p e e d , a n d s i g n a l s t r e n g t h . S i g n a l strength is represented by green bars with 5 bars indicating excellent signal and 1 bar meaning poor signal. 2. Select “Wireless Networks” tab to show Preferred networks . Use the Add button to add the “SSID” of available networks and set the connection preference order w i t h t h e M o v e u p a n d M o v e d o w n buttons. The radio tower with a signal icon identifies the currently connected access point. Click Properties to set the authentication of the wireless connection. 3. The Authentication page allows you to add security settings. Read Windows help for more information. 4. The Advanced page allows you to set firewall and sharing. Read Windows help for more information. ASUS Super Speed N Wireless USB Adapter English Quick Start Guide FCC Warning Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Prohibition of Co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter Safety Information To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Testing for electric safety according to EN 60950-1 has been conducted. These are considered relevant and sufficient. Protection requirements for electromagnetic compatibility – Article 3.1b Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301 489-17 has been conducted. These are considered relevant and suffi…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: : Confidentiality Request regarding application for certification of FCC ID: MSQWL160N Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics - WL-160N Schem.pdf l Part List - WL-160N ParLst.pdf l Block diagram - WL-160N BlkDia.pdf l Operational description - WL-160N OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: l External Photos - WL-160N ExtPho.pdf l Internal Photos - WL-160N IntPho.pdf l Test Setup Photos - WL-160N TSup.pdf l User’s Manual - WL-160N UserMan.pdf Sincerely, Lawrence Yu / Manager, ASUSTek Computer Inc.

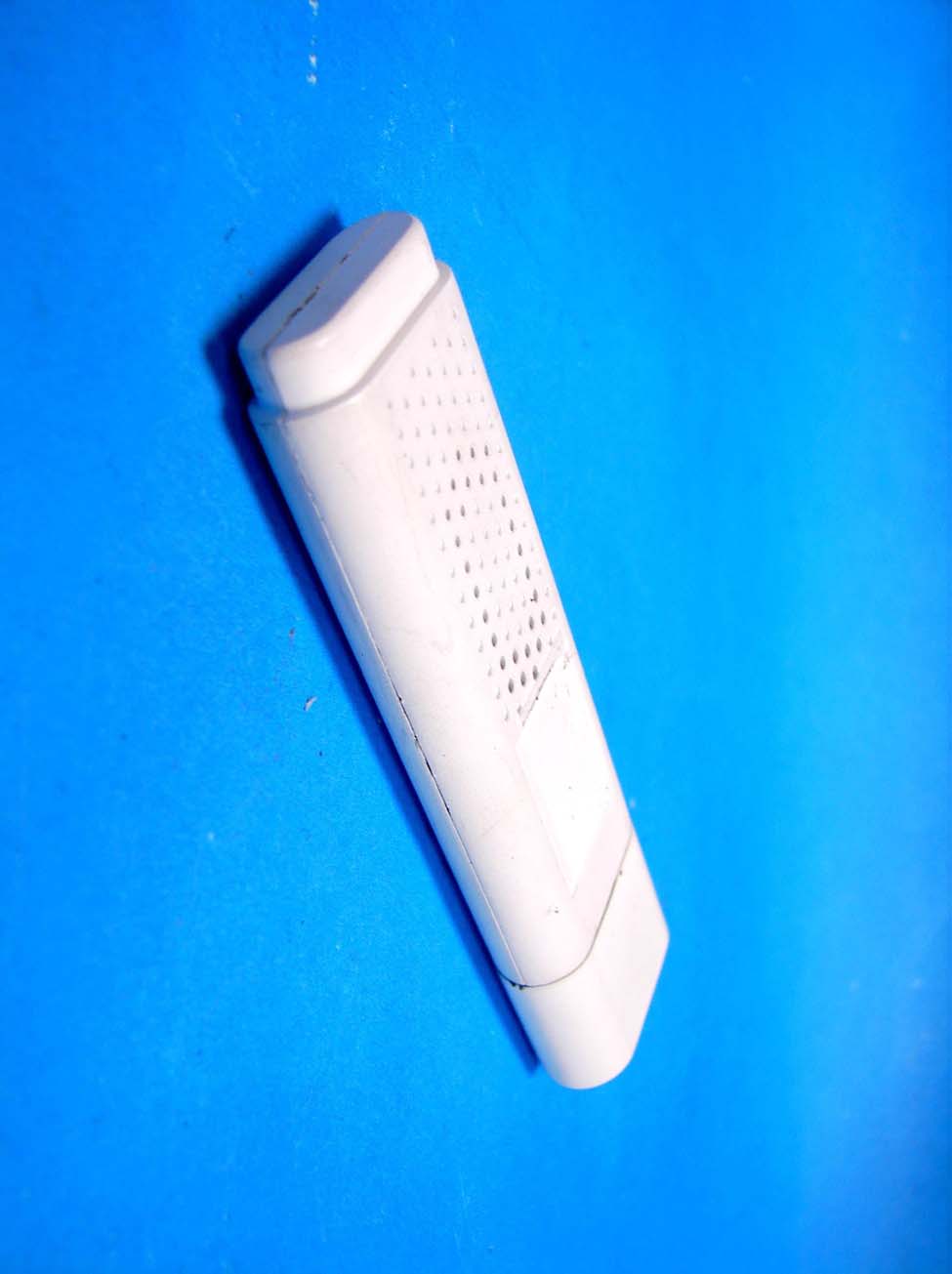

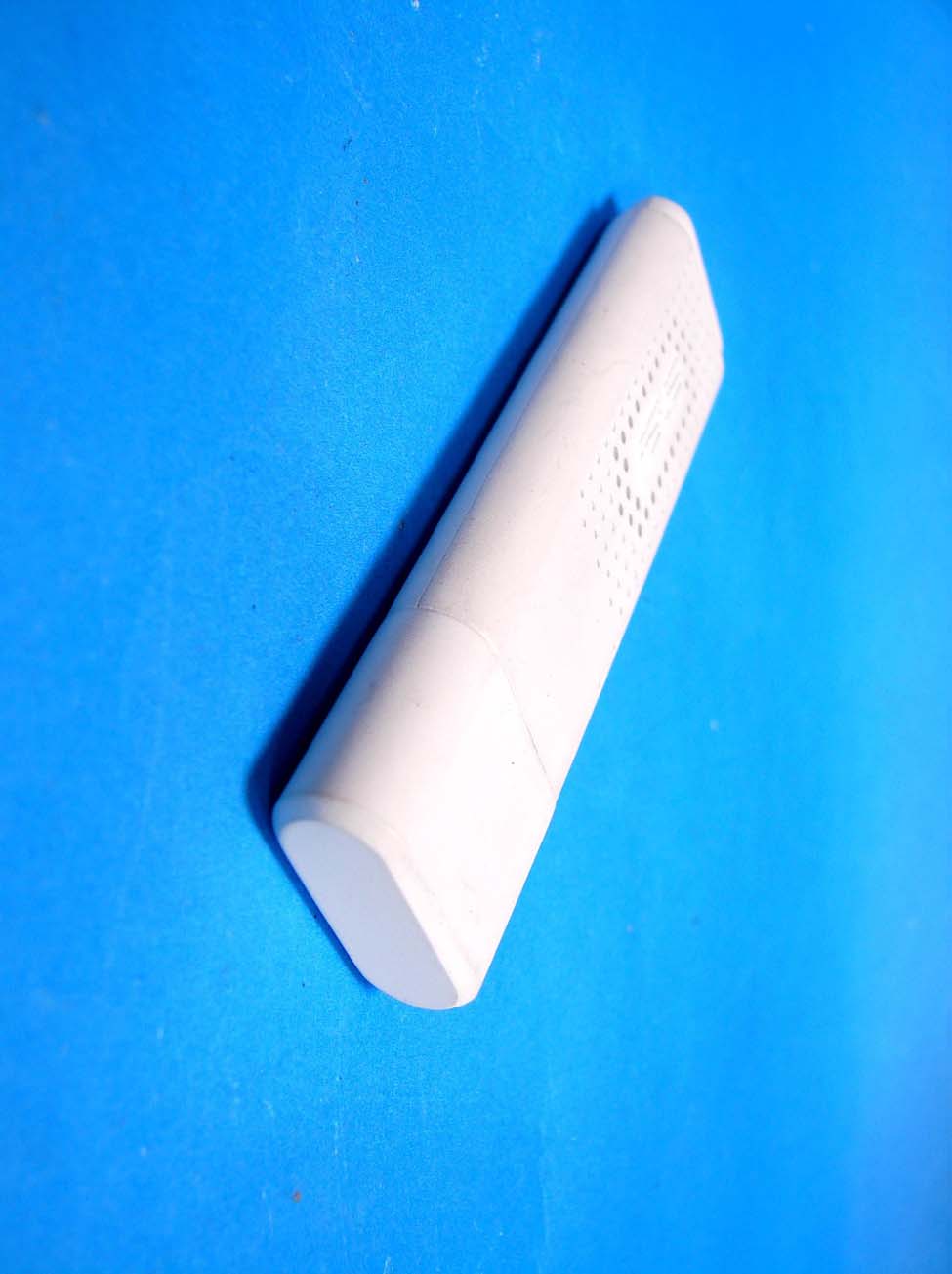

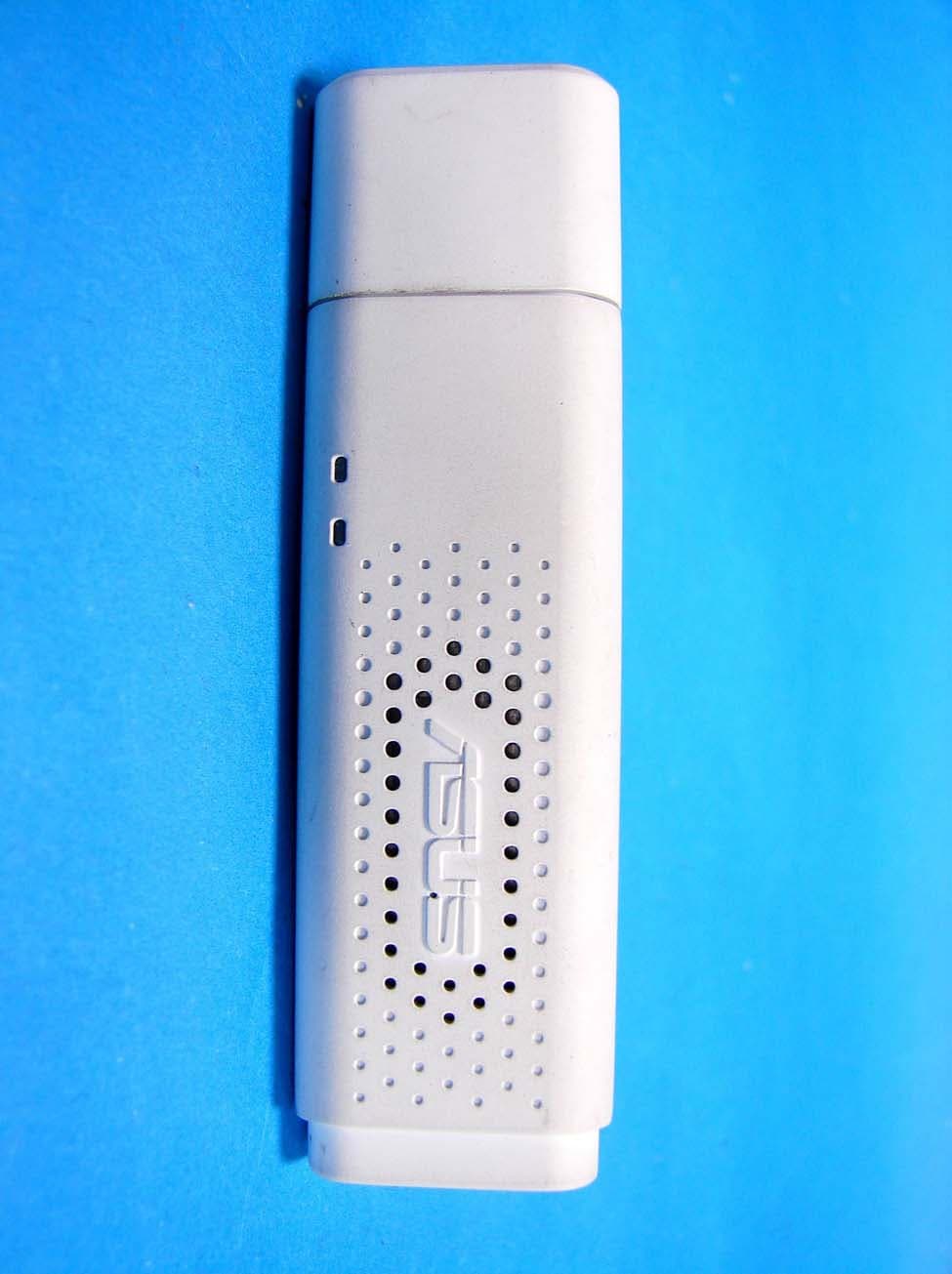

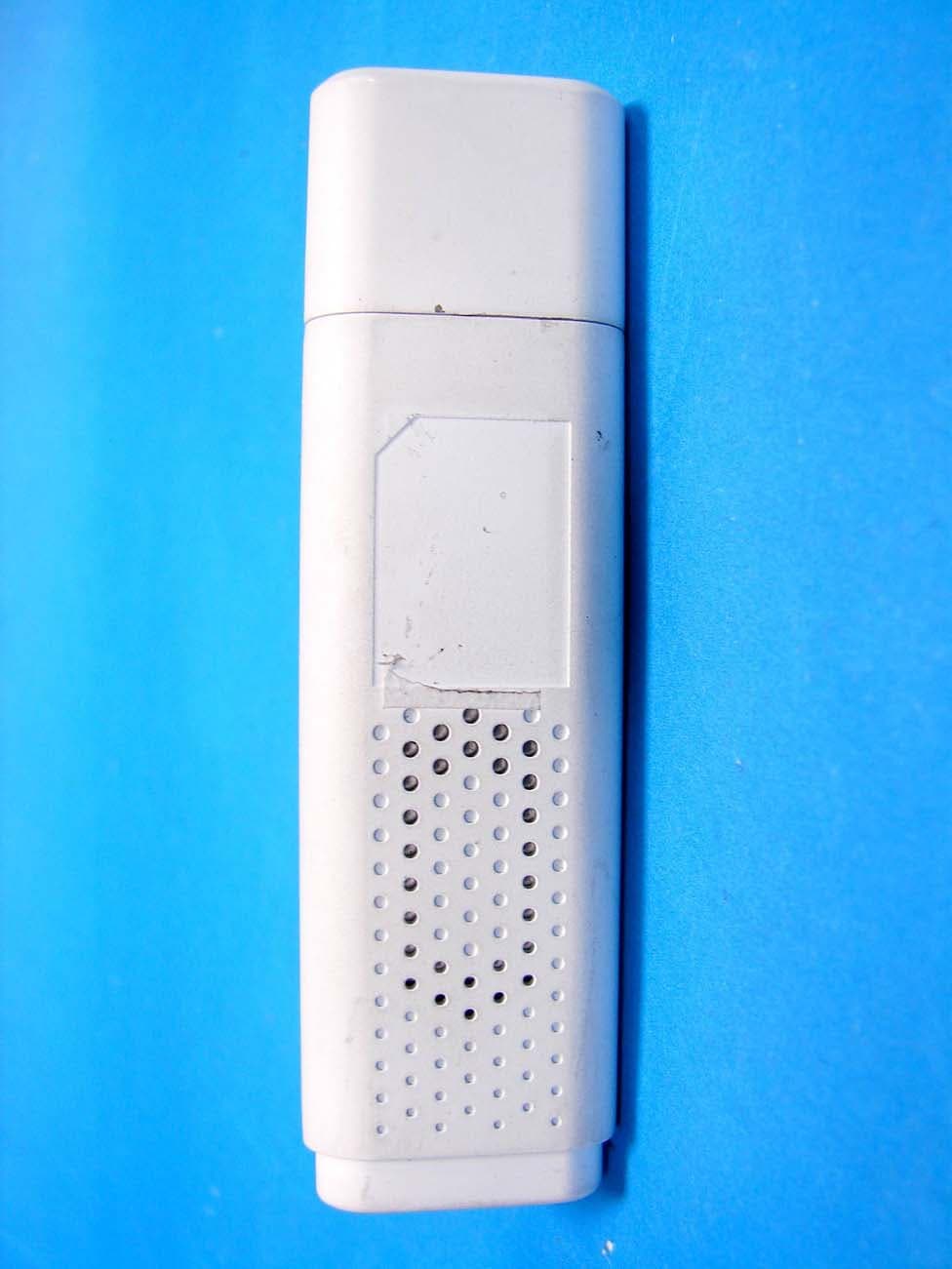

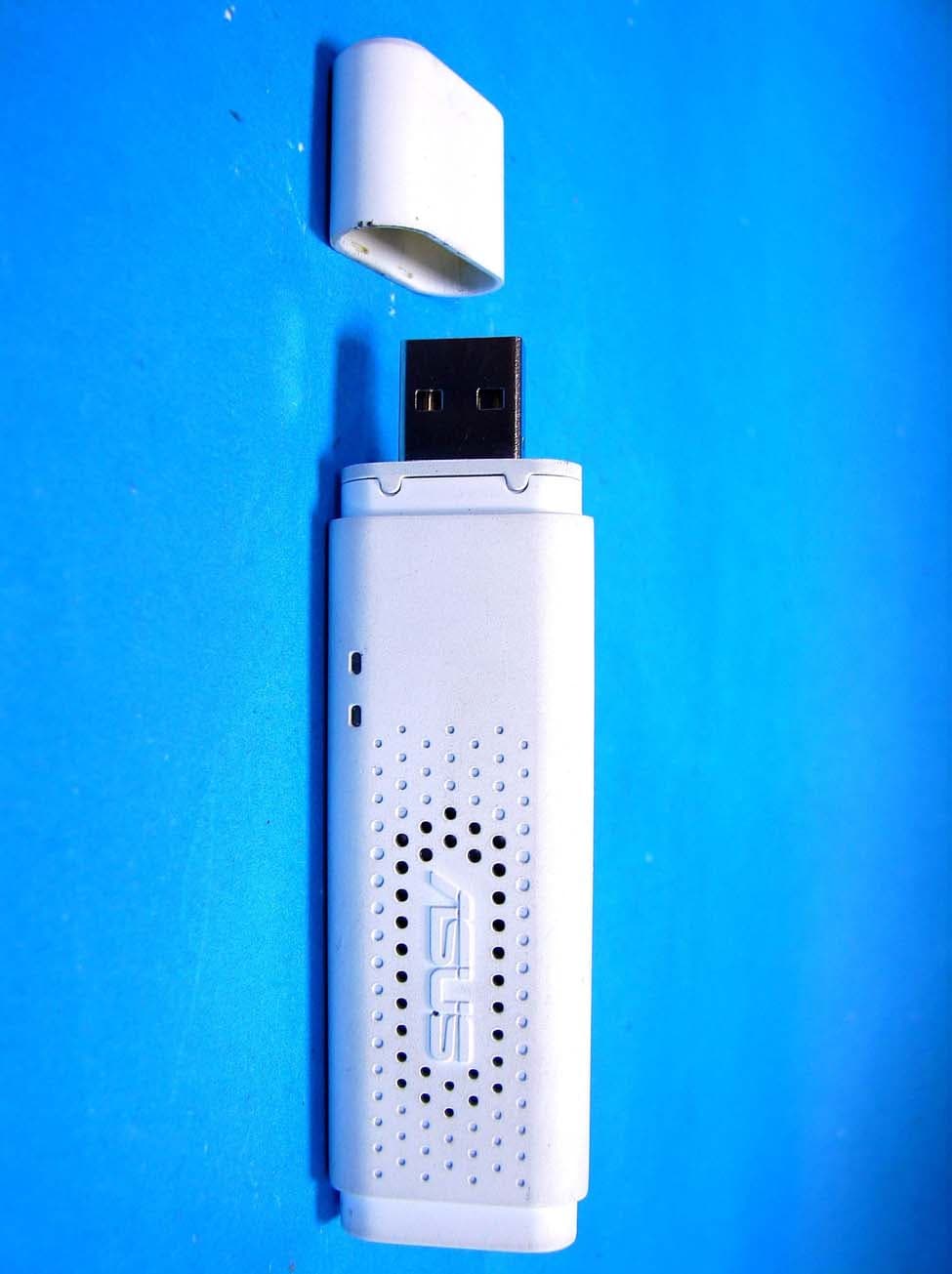

External Photos of EUT --------------------------------------------------------------- 1/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 2/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 3/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 4/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 5/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information ------------------------------------------------ 1/1 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL Size: 20 x 15 mm

Internal Photos of EUT ---------------------------------------------------------------- 6/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 7/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 8/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 9/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 10/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 11/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 12/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 13/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 14/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 15/15 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160N Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Appendix B of Report Number: ISL-07LR012SAR-F International Standards Laboratory Appendix B Photographs of EUT of Product Name Super Speed N Wireless USB Adapter Model WL-160N Appendix B of Report Number: ISL-07LR012SAR-F International Standards Laboratory -1- EUT-1. EUT-2. Appendix B of Report Number: ISL-07LR012SAR-F International Standards Laboratory -2- EUT-3. EUT-4.

Appendix B of Report Number: ISL-07LR012SAR-F International Standards Laboratory Appendix B Photographs of EUT of Product Name Super Speed N Wireless USB Adapter Model WL-160N Appendix B of Report Number: ISL-07LR012SAR-F International Standards Laboratory -1- EUT-1. EUT-2. Appendix B of Report Number: ISL-07LR012SAR-F International Standards Laboratory -2- EUT-3. EUT-4.

Appendix C of Report Number: ISL-07LR012SAR-F International Standards Laboratory Appendix C SAR System Validation Data of Product Name Super Speed N Wireless USB Adapter Model WL-160N Appendix C of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 1 - 1 2450 MHz System Validation Data Report Date : 19-Mar-2007 Measurement Date : 19-Mar-2007 Product Data Device Name : Dipole-2450 Serial No. : Validation Type : Dipole Model : Standard Frequency : 2450.00 MHz Max. Transmit Pwr : 1 W Drift Time : 0 min(s) Length : 51.5 mm Width : 3.6 mm Depth : 30.4 mm Antenna Type : Internal Power Drift-Start : 71.118 W/kg Power Drift-Finish: 70.697 W/kg Power Drift (%) : -0.598 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : HEAD Serial No. : 2450HEAD Frequency : 2450.00 MHz Last Calib. Date : 19-Mar-2007 Temperature : 21.40 °C Ambient Temp. : 21.50 °C Humidity : 48.00 RH% Epsilon : 39.81 F/m Sigma : 1.77 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.9 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Tissue Temp. : 21.40 °C Ambient Temp. : 21.50 °C Area Scan : 6x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Channel : Mid Appendix C of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 2 - 1 gram SAR value : 52.024 W/kg 10 gram SAR value : 24.981 W/kg Area Scan Peak SAR : 68.991 W/kg Zoom Scan Peak SAR : 121.431 W/kg Appendix C of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 3 - Area Scan Plot Appendix C of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 4 -

Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory Appendix D SAR measurement Data of Product Name Super Speed N Wireless USB Adapter Model WL-160N Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 1 - 1 802.11b 2450MHz SAR measurement Data SAR Test Report Report Date : 19-Mar-2007 Measurement Date : 19-Mar-2007 Product Data Device Name : WL-160n Serial No. : Type : Other Frequency : 2450.00 MHz Max. conducted Transmit Pwr : 18.82dBm Drift Time : 0 min(s) Length : 80 mm Width : 25 mm Depth : 2 mm Antenna Type : Internal Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 19-Mar-2007 Temperature : 21.40 °C Ambient Temp. : 21.50 °C Humidity : 48.00 RH% Epsilon : 53.66 F/m Sigma : 1.89 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 1800.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.4 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 2 - 1.1 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Low Power Drift-Start : 1.033 W/kg Power Drift-Finish: 1.048 W/kg Power Drift (%) : 1.431 1 gram SAR value : 0.880 W/kg 10 gram SAR value : 0.360 W/kg Area Scan Peak SAR : 1.023 W/kg Zoom Scan Peak SAR : 2.001 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 3 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 4 - 1.2 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid Power Drift-Start : 1.581 W/kg Power Drift-Finish: 1.532 W/kg Power Drift (%) : -3.198 1 gram SAR value : 1.008 W/kg 10 gram SAR value : 0.410 W/kg Area Scan Peak SAR : 1.412 W/kg Zoom Scan Peak SAR : 2.472 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 5 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 6 - 1.3 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : High Power Drift-Start : 1.886 W/kg Power Drift-Finish: 1.881 W/kg Power Drift (%) : -0.269 1 gram SAR value : 1.343 W/kg 10 gram SAR value : 0.581 W/kg Area Scan Peak SAR : 1.854 W/kg Zoom Scan Peak SAR : 3.362 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 7 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 8 - 1.4 2450 MHz, EUT Position: Front Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid Power Drift-Start : 0.091 W/kg Power Drift-Finish: 0.094 W/kg Power Drift (%) : 3.191 1 gram SAR value : 0.083 W/kg 10 gram SAR value : 0.051 W/kg Area Scan Peak SAR : 0.091 W/kg Zoom Scan Peak SAR : 0.120 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 9 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 10 - 1.5 2450 MHz, EUT Position: Top Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid Power Drift-Start : 0.458 W/kg Power Drift-Finish: 0.459 W/kg Power Drift (%) : 0.152 1 gram SAR value : 0.339 W/kg 10 gram SAR value : 0.126 W/kg Area Scan Peak SAR : 0.473 W/kg Zoom Scan Peak SAR : 0.880 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 11 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 12 - 1.6 2450 MHz Z-Axis plot Frequency: 802.11b 2450 MHz, EUT Bottom Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 13 - 2 802.11g 2450 SAR measurement Data SAR Test Report Report Date : 19-Mar-2007 Measurement Date : 19-Mar-2007 Product Data Device Name : WL-160n Serial No. : Type : Other Frequency : 2450.00 MHz Max. conducted Transmit Pwr : 21.36dBm Drift Time : 0 min(s) Length : 80 mm Width : 25 mm Depth : 2 mm Antenna Type : Internal Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 19-Mar-2007 Temperature : 21.40 °C Ambient Temp. : 21.50 °C Humidity : 48.00 RH% Epsilon : 53.66 F/m Sigma : 1.89 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 1800.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.4 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 14 - 2.1 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Low Power Drift-Start : 1.721 W/kg Power Drift-Finish: 1.738 W/kg Power Drift (%) : 0.978 1 gram SAR value : 1.390 W/kg 10 gram SAR value : 0.562 W/kg Area Scan Peak SAR : 1.633 W/kg Zoom Scan Peak SAR : 3.352 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards…

Text truncated - open the document above for the full version.

Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 30 - 3.3 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : High Power Drift-Start : 1.457 W/kg Power Drift-Finish: 1.424 W/kg Power Drift (%) : -2.387 1 gram SAR value : 1.233 W/kg 10 gram SAR value : 0.507 W/kg Area Scan Peak SAR : 1.423 W/kg Zoom Scan Peak SAR : 2.782 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 31 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 32 - 3.4 2450 MHz, EUT Position: Front Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid Power Drift-Start : 0.122 W/kg Power Drift-Finish: 0.119 W/kg Power Drift (%) : -2.521 1 gram SAR value : 0.102 W/kg 10 gram SAR value : 0.057 W/kg Area Scan Peak SAR : 0.123 W/kg Zoom Scan Peak SAR : 0.170 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 33 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 34 - 3.5 2450 MHz, EUT Position: Top Measurement Data Crest Factor : 1 Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid Power Drift-Start : 0.578 W/kg Power Drift-Finish: 0.576 W/kg Power Drift (%) : -0.320 1 gram SAR value : 0.409 W/kg 10 gram SAR value : 0.154 W/kg Area Scan Peak SAR : 0.580 W/kg Zoom Scan Peak SAR : 1.070 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 35 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 36 - 3.6 2450 MHz Z-Axis plot Frequency: 802.11n_20M, 2450 MHz, EUT Bottom Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 37 - 4 802.11n_40M 2450HMz SAR measurement Data SAR Test Report Report Date : 19-Mar-2007 Measurement Date : 19-Mar-2007 Product Data Device Name : WL-160n Serial No. : Type : Other Frequency : 2450.00 MHz Max. conducted Transmit Pwr : 24.74dBm Drift Time : 0 min(s) Length : 80 mm Width : 25 mm Depth : 2 mm Antenna Type : Internal Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 19-Mar-2007 Temperature : 21.40 °C Ambient Temp. : 21.50 °C Humidity : 48.00 RH% Epsilon : 53.66 F/m Sigma : 1.89 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 1800.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.4 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 38 - 4.1 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Low Power Drift-Start : 1.211 W/kg Power Drift-Finish: 1.215 W/kg Power Drift (%) : 0.326 1 gram SAR value : 1.187 W/kg 10 gram SAR value : 0.552 W/kg Area Scan Peak SAR : 1.203 W/kg Zoom Scan Peak SAR : 2.312 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 39 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 40 - 4.2 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid Power Drift-Start : 1.157 W/kg Power Drift-Finish: 1.198 W/kg Power Drift (%) : 3.577 1 gram SAR value : 0.986 W/kg 10 gram SAR value : 0.417 W/kg Area Scan Peak SAR : 1.205 W/kg Zoom Scan Peak SAR : 2.321 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 41 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 42 - 4.3 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : High Power Drift-Start : 1.601 W/kg Power Drift-Finish: 1.587 W/kg Power Drift (%) : -0.864 1 gram SAR value : 1.317 W/kg 10 gram SAR value : 0.548 W/kg Area Scan Peak SAR : 1.605 W/kg Zoom Scan Peak SAR : 3.112 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 43 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 44 - 4.4 2450 MHz, EUT Position: Front Measurement Data Crest Factor : 1 Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid Power Drift-Start : 0.116 W/kg Power Drift-Finish: 0.114 W/kg Power Drift (%) : -1.770 1 gram SAR value : 0.106 W/kg 10 gram SAR value : 0.061 W/kg Area Scan Peak SAR : 0.106 W/kg Zoom Scan Peak SAR : 0.180 W/kg Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 45 - Area Scan Plot Appendix D of Report Number: ISL-07LR012SAR-F International Standards Laboratory - 46 - 4.5 2450 MHz, EUT Position: Top Measurement Data Crest Factor : 1 Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid Power Drift-Start : 0.566 W/kg Power Drift-Finish: 0.545 W/kg Power Drift (%) : -3.477 1 gram SAR value : 0.381 W/kg 10 gram SAR value : 0.147 W/kg Area Scan Peak SAR : 0.526 W/kg Zoom Scan Peak SAR : 0.960 W/kg Appendix D of Report Nu…

Text truncated - open the document above for the full version.

Report Number: ISL-07LR012SAR-F Issue Date: 2007/03/21 HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;TAF:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;TAF:0997; IC:IC4164-1 ISL-T10-R4-14 SAR Test Report of Product Name Super Speed N Wireless USB Adapter Model WL-160N Applied by: ASUSTek Computer Inc. 4Fl., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Test Performed by: International Standards Laboratory No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325 Taiwan, R.O.C. Tel:(03)407-1718 Fax:(03)407-1738 - i - International Standards Laboratory Report Number: ISL-07LR012SAR-F HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;TAF:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;TAF:0997; IC:IC4164-1 Contents of Report 1. General..................................................................................................................................1 1.1 Certification of Accuracy of Test Data.........................................................................1 2. Description of Equipment Under Test (EUT).......................................................................2 2.1 Test Environment..........................................................................................................2 3. SAR Measurement System...................................................................................................3 3.1 ALSAS-10U System Description.................................................................................3 3.1.1 Applications..........................................................................................................3 3.1.2 Area Scans............................................................................................................3 3.1.3 Zoom Scan (Cube Scan Averaging).....................................................................4 3.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty..................................4 3.2 Isotropic E-Field Probe.................................................................................................5 3.2.1 Isotropic E-Field Probe Specification...................................................................6 3.3 Boundary Detection Unit and Probe Mounting Device................................................6 3.4 Daq-Paq (Analog to Digital Electronics)......................................................................7 3.5 Axis Articulated Robot.................................................................................................7 3.6 ALSAS Universal Workstation....................................................................................8 3.7 Universal Device Positioner........................................................................................8 3.8 Phantom Types.............................................................................................................9 3.8.1 APREL Laboratories Universal Phantom.............................................................9 4. Tissue Simulating Liquid....................................................................................................10 4.1 The composition of the tissue simulating liquid.........................................................10 4.2 Tissue Calibration Result............................................................................................10 4.3 Tissue Dielectric Parameters for Head and Body Phantoms......................................11 5. SAR Measurement Procedure.............................................................................................12 5.1 SAR System Validation..............................................................................................12 5.1.1 Validation Dipoles..............................................................................................12 5.1.2 Validation Result................................................................................................12 5.2 Arrangement Assessment Setup.................................................................................13 5.2.1 Test Positions of Device Relative to Head.............................................................13 5.2.2 Definition of the “Cheek” Position..........................................…
