MSQWL160WWIRELESS LOCAL AREA NETWORK ADAPTER

Quick Start Guide Wireless Local Area Network Adapter WL-160W (For 802.11n draft, 80211g & 80211b Networks) ® QE2920/ Nov. 2006 2ASUS WLAN Adapter English Quick Start Guide Installation Procedures Important: Install the WLAN Adapter utilities before inserting the WLAN Adapter into your computer. Installing the WLAN utilities and driver Follow these instructions to install the WLAN Adapter utilities and driver. Insert the support CD into your optical drive. If autorun is enabled in your computer, the CD automatically displays the utilitymatically displays the utility menu. Click Install ASUS WLAN Adapter Utilities/Driver . If autorun is disabled, double-click SETUP.EXE in the root directory of the CD. Carefully insert the WLAN Adapter into your computer’s PCMCIA slot. Windows ZLOODXWRPDWLFDOO\GHWHFWDQGFRQÀJXUHWKH :/$1$GDSWHUXVLQJWKHXWLOLWLHVDQGGULYHUV installed in the previous steps. :LQGRZV;3XVHUV:KHQWKHSURJUDPLV ODXQFKHGIRUWKHÀUVWWLPH GXULQJ:LQGRZV restart), you are asked to choose one utility WRFRQILJXUHWKH:/$1$GDSWHU6HOHFW "Only use our WLAN utilities and disable Windows wireless function". Reading the WLAN status indicators The device comes with two LEDs that indicate the status of the WLAN Adapter. ACT LED Blinking: 7UDQVPLWWLQJGDWDWKHEOLQNLQJ speed indicates the link speed. OFF: Radio off or Adapter is disabled. LINK LED ON: Connected to wireless device. OFF: No wireless connection. LINK ACT ASUS WLAN Adapter3 English Quick Start Guide One Touch Wizard 8VH2QH7RXFK:L]DUGWRVHWXS\RXUZLUHOHVVFRQQHFWLRQZLWKDQH[LVWLQJ wireless LAN. 1. Launch One Touch Wizard from Start menu and click Next to set up your wireless network. 2. Select an AP from the Available Networks then click Next . 3. Connection is complete. Click Next to setup the IP address for the WLAN Adapter. 4. Choose to obtain an IP address or to DVVLJQVWDWLFDGGUHVVPDQXDOO\IRU\RXU :/$1$GDSWHU:KHQ,3VHWWLQJLV complete, click Finish to exit the One Touch Wizard. Note: If the access point you want to connect has set up encryption SROLFLHV\RXPXVWFRQÀJXUHWKHVDPHHQFU\SWLRQRQ\RXU:/$1$GDSWHU Select "Configure your wireless LAN settings" radio button in step 2 and make the settings accordingly. When the encryption settings are complete, you can launch the One Touch Wizard once again from the Start menu to set up the connection with your AP. 4ASUS WLAN Adapter English Quick Start Guide &RQÀJXULQJZLWKWKH:/$1XWLOLW\ ,QIUDVWUXFWXUH 8VH$686:/$1XWLOLW\WRJHWFRQQHFWHGZLWKDQH[LVWLQJZLUHOHVVQHWZRUN 6. Check the Connection tab to see the VLJQDOVWUHQJWK&OLFN OK to exit the utility. 5. Check the Status SDJHWRVHHWKH association state. If connection is established, the box shows “Connected - xx:xx:xx:xx:xx:xx”. 3. Use Site Survey if you don’t know the 66,'RI\RXUDFFHVVSRLQW V  (QFU\SWLRQVHWWLQJVPXVWPDWFKWKRVH at the access point. Ask your network DGPLQLVWUDWRUDERXWVHWWLQJVLIQHFHVVDU\ Click Apply WRDFWLYDWHWKHVHWWLQJV 5LJKWFOLFNWKHZLUHOHVVFRQQHFWLRQLFRQ and select Wireless Settings. 2. Check the Config SDJHWRVHWWKH SSID QHWZRUNQDPH WRWKDWRI\RXUZLUHOHVV$3 ASUS WLAN Adapter5 English Quick Start Guide &RQÀJXULQJZLWKWKH:/$1XWLOLW\ $G+RF The WLAN adapter supports Ad Hoc mode which allows communication between wireless stations without an AP. &OLFNWKH&RQILJEXWWRQDQGVHWWKH WLAN Card to$G+RF connection mode. 3. Click the Survey button to scan for Ad Hoc nodes. Select the node you want to communicate with and press Connect . ,IWKHHQFU\SWLRQVHWWLQJVRI\RXU:/$1 Adapter are different from those of the other Ad Hoc nodes, you are prompted to make the encryption of the two nodes identical. Click Apply to activate the VHWWLQJV 5LJKWFOLFNWKHZLUHOHVVFRQQHFWLRQLFRQ and select Wireless Settings. 5. Check the Status SDJHWRVHHWKHDVVRFLDWLRQ state. If connection is established, the box shows “Connected - xx:xx:xx:xx:xx:xx”. 6. Check the Connection tab to see the VLJQDOVWUHQJWK&OLFN OK to exit the utility. 6ASUS WLAN Adapter English Quick Start Guide Using the Control Center 7KH&RQWURO&HQWHUWDVNEDULFRQGLVSOD\VWKHIROORZLQJLQIRUPDWLRQ ‡ /LQNTXDOLW\RIWKH:/$1$GDSWHU ([FHOOHQW*RRG)DLU3RRU1RW Linked) ‡ :KHWKHUWKH:/$1$GDSWHULVFRQQHFWHGWRDQHWZRUN %OXH &RQQHFWHG*UD\1RW&RQQHFWHG Taskbar Icon and Status Wireless Status Icons (on the taskbar) Excellent link quality and connected to Internet ,QIUDVWUXFWXUH Good link quality and connected to Internet ,QIUDVWUXFWXUH  Fair link quality and connected to Internet ,QIUDVWUXFWXUH  Poor link quality and connected to Internet ,QIUDVWUXFWXUH  Not linked but connected to Internet ,QIUDVWUXFWXUH  Excellent link quality but not connected to Internet ,QIUDVWUXFWXUH Good link quality but not connected to Internet ,QIUDVWUXFWXUH Fair link quality but not connected to Internet ,QIUDVWUXFWXUH Poor link quality but not connected to Internet ,QIUDVWUXFWXUH Not linked and not connected to Internet ,QIUDVWUXFWXUH  ASUS WLAN Control Center ASUS WLAN Control Center is an application which makes it easier to launch :/$1DSSOLFDWLRQVDQGDFWLYDWHQHWZRUNORFDWLRQVHWWLQJV7KH:/$1&RQWURO Center starts automatically when system boots. When WLAN Control Center is UXQQLQJ\RXFDQVHHD&RQWURO&HQWHULFRQRQWKH:LQGRZVWDVNEDU Starting the Control Center •Select ASUS WLAN Control Center in Windows Start menu, or •Double-click the ASUS WLAN Control Center icon on the desktop. ASUS WLAN Adapter7 English Quick Start Guide Taskbar icon - Left-click menu Left-click the taskbar icon to show the IROORZLQJPHQXLWHPV • Wireless Radio On – Turns the wireless radio ON. • Wireless Radio Off – Turns the wireless radio OFF. • Search & Connect – View the properties of available access points. • Wireless Option :LQGRZV ® XP only) – Choose Windows ® Wireless =HUR&RQÀJXUDWLRQ :=& VHUYLFHRU$686XWLOLWLHVWRFRQÀJXUH\RXU WLAN Adapte…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: : Confidentiality Request regarding application for certification of FCC ID: MSQWL160W Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics - WL-160W Schem.pdf l Part List - WL-160W ParLst.pdf l Block diagram - WL-160W BlkDia.pdf l Operational description - WL-160W OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: l External Photos - WL-160W ExtPho.pdf l Internal Photos - WL-160W IntPho.pdf l Test Setup Photos - WL-160W TSup.pdf l User’s Manual - WL-160W UserMan.pdf Sincerely, Lawrence Yu / Manager, ASUSTek Computer Inc.

KDB Inquiry Tracking Number - 317259

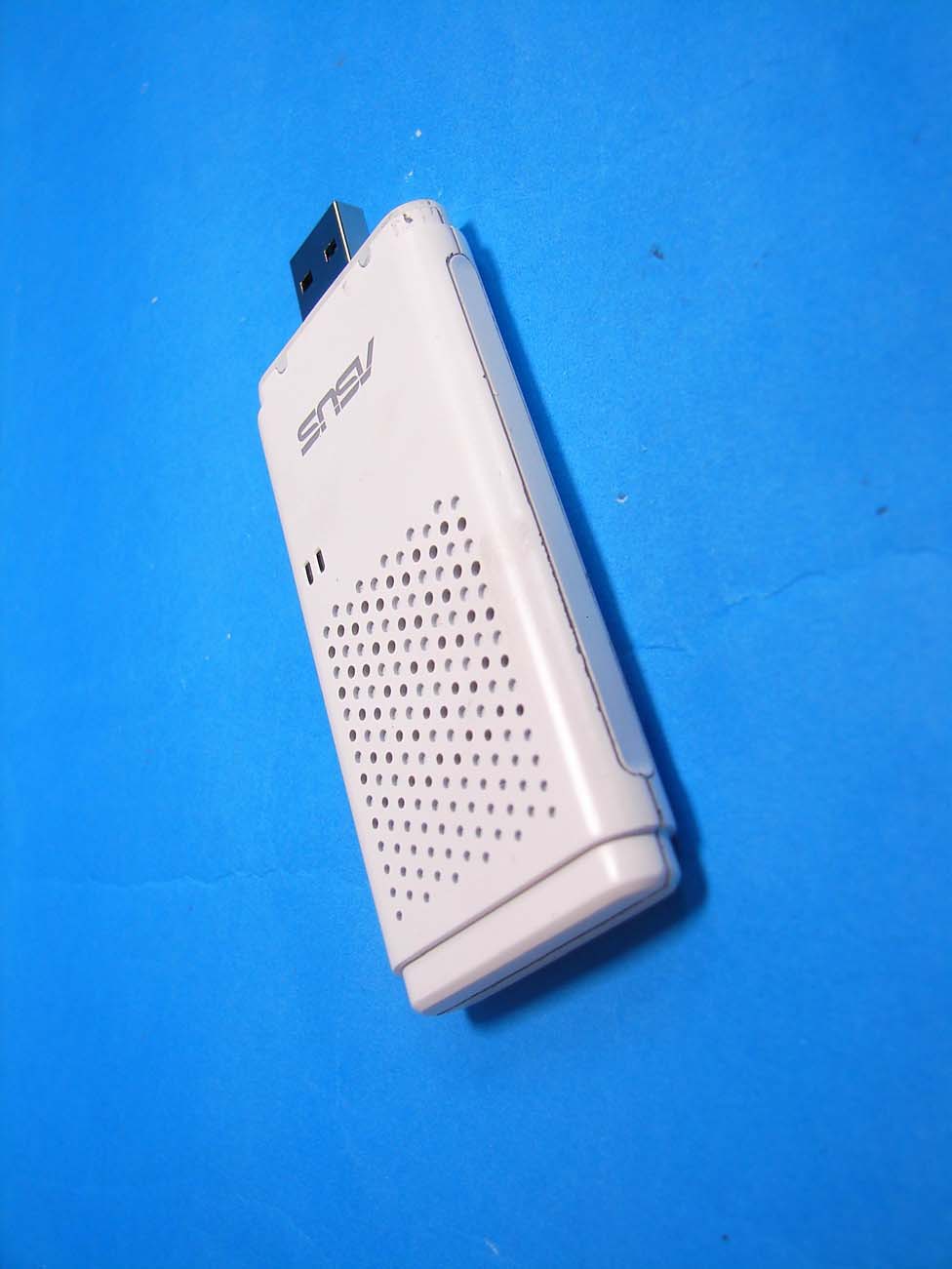

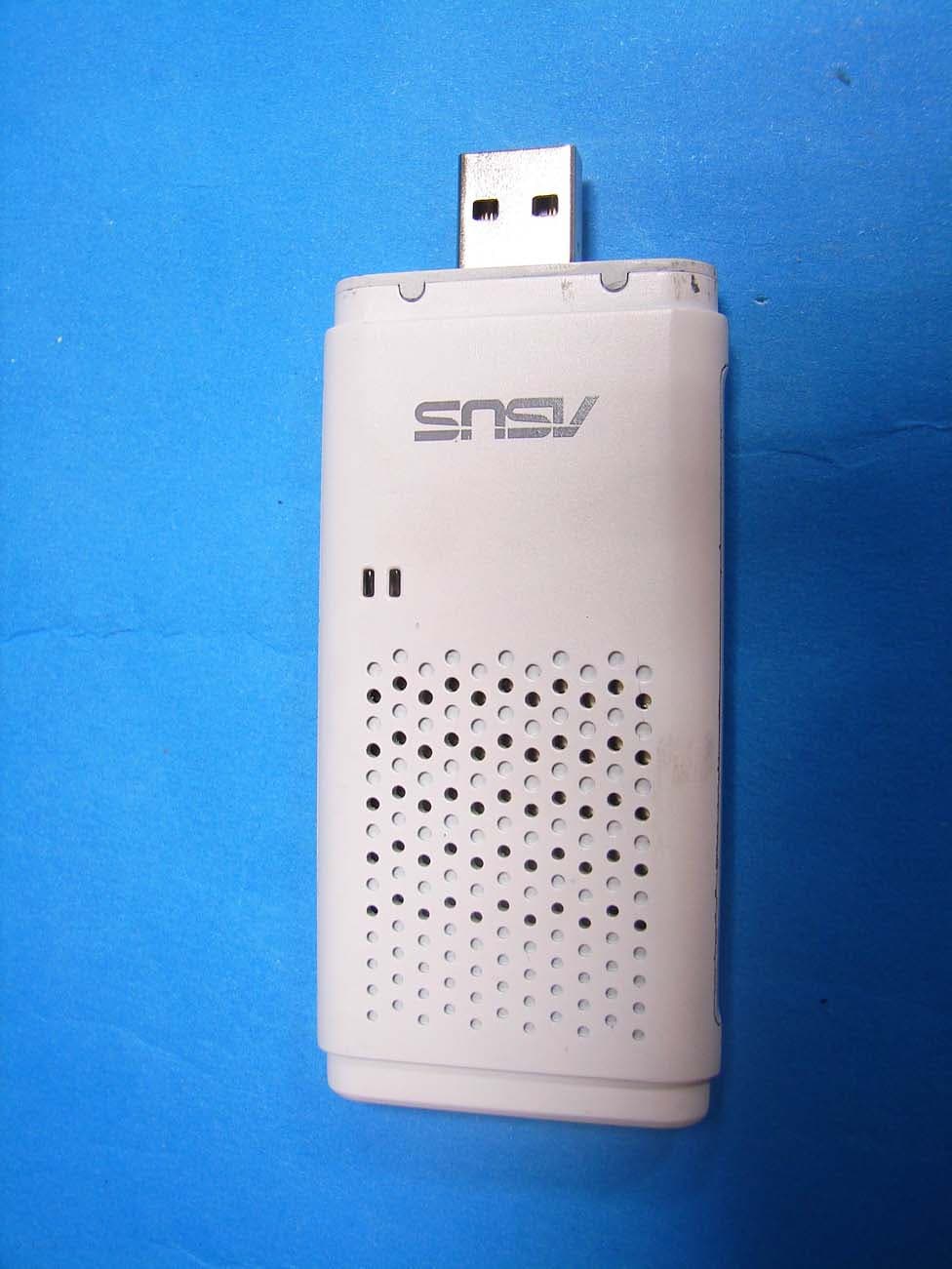

External Photos of EUT --------------------------------------------------------------- 1/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 2/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 3/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 4/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information ------------------------------------------------- 1/1 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL Size: 26.2 x 19.8 mm

Internal Photos of EUT ---------------------------------------------------------------- 5/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 6/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 7/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 8/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 9/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 10/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 11/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL160W Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

WL-160W Antenna Radiation Pattern H - polarization V - polarization To t a l XZ – cut 2.4G2.45G 2.5G Gain (dBi)2.231242.66171 1.42852 Super Speed N Wireless USB Adapter Brand: ASUS Model: WL-160W6 H V To t a l XY - cut 2.4G2.45G 2.5G Gain (dBi)-1.24916-0.111308 -1.109 Super Speed N Wireless USB Adapter Brand: ASUS Model: WL-160W6 H V To t a l YZ – cut 2.4G2.45G 2.5G Gain (dBi)2.691762.80033 1.02632 Super Speed N Wireless USB Adapter Brand: ASUS Model: WL-160W6 3D Pattern H V To t a l Tot. Rad. Pwr. (dBm) -1.82265-1.52567 -2.94417 Efficiency (dB) -1.82265-1.52567 -2.94417 Efficiency (%) 65.725670.3774 50.7672 Gain (dBi)3.027353.43202 2.20308 Super Speed N Wireless USB Adapter Brand: ASUS Model: WL-160W6

Appendix A of Report Number: ISL-06LR035SAR-F International Standards Laboratory Appendix A Photographs of Test Setup of Product Name Wireless Local Area Network Adapter Model WL-160W Appendix A of Report Number: ISL-06LR035SAR-F International Standards Laboratory -1- Setup-1. Setup-2. Appendix A of Report Number: ISL-06LR035SAR-F International Standards Laboratory -2- Setup-3.

Appendix B of Report Number: ISL-06LR035SAR-F International Standards Laboratory Appendix B Photographs of EUT of Product Name Wireless Local Area Network Adapter Model WL-160W Appendix B of Report Number: ISL-06LR035SAR-F International Standards Laboratory -1- EUT-1. Appendix B of Report Number: ISL-06LR035SAR-F International Standards Laboratory -2- EUT-2. Appendix B of Report Number: ISL-06LR035SAR-F International Standards Laboratory -3- EUT-3.

Appendix C of Report Number: ISL-06LR035SAR-F International Standards Laboratory Appendix C SAR System Validation Data of Product Name Wireless Local Area Network Adapter Model WL-160W Appendix C of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 1 - 1 MHz System Validation Data Report Date : 08-Dec-2006 Measurement Date : 08-Dec-2006 Product Data Device Name : Dipole-2450 Serial No. : Validation Type : Dipole Model : Standard Frequency : 2450.00 MHz Max. Transmit Pwr : 1 W Drift Time : 0 min(s) Length : 51.5 mm Width : 3.6 mm Depth : 30.4 mm Antenna Type : Internal Power Drift-Start : 65.463 W/kg Power Drift-Finish: 65.947 W/kg Power Drift (%) : 0.740 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : HEAD Serial No. : 2450HEAD Frequency : 2450.00 MHz Last Calib. Date : 08-Dec-2006 Temperature : 23.20 °C Ambient Temp. : 23.50 °C Humidity : 50.00 RH% Epsilon : 40.27 F/m Sigma : 1.78 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.9 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Tissue Temp. : 23.20 °C Ambient Temp. : 23.50 °C Area Scan : 5x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Appendix C of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 2 - Channel : Mid - 2450MHz 1 gram SAR value : 53.926 W/kg 10 gram SAR value : 24.821 W/kg Area Scan Peak SAR : 64.539 W/kg Zoom Scan Peak SAR : 110.960 W/kg Appendix C of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 3 -

Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory Appendix D SAR measurement Data of Product Name Wireless Local Area Network Adapter Model WL-160W Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 1 - 1 802.11b SAR measurement Data SAR Test Report Report Date : 08-Dec-2006 Measurement Date : 08-Dec-2006 Product Data Device Name : WL-160W Type : Other Frequency : 2450.00 MHz Max. Transmit Pwr : 0.071W Drift Time : 0 min(s) Length : 80 mm Width : 40 mm Depth : 10 mm Antenna Type : Internal Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 2450BODY Frequency : 2450.00 MHz Last Calib. Date : 08-Dec-2006 Temperature : 23.10 °C Ambient Temp. : 23.50 °C Humidity : 50.00 RH% Epsilon : 51.02 F/m Sigma : 1.97 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.02 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 2 - 1.1 2450 MHz, EUT Position: Front Measurement Data Crest Factor : 1 Area Scan : 7x7x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid - 2437MHz Power Drift-Start : 0.072 W/kg Power Drift-Finish: 0.075 W/kg Power Drift (%) : 4.000 1 gram SAR value : 0.083 W/kg 10 gram SAR value : 0.048 W/kg Area Scan Peak SAR : 0.093 W/kg Zoom Scan Peak SAR : 0.150 W/kg Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 3 - 1.2 2450 MHz, EUT Position: Top Measurement Data Crest Factor : 1 Area Scan : 5x7x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid - 2437MHz Power Drift-Start : 0.331 W/kg Power Drift-Finish: 0.326 W/kg Power Drift (%) : -1.510 1 gram SAR value : 0.231 W/kg 10 gram SAR value : 0.105 W/kg Area Scan Peak SAR : 0.300 W/kg Zoom Scan Peak SAR : 0.490 W/kg Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 4 - 1.3 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x7x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Low - 2412MHz Power Drift-Start : 0.215 W/kg Power Drift-Finish: 0.219 W/kg Power Drift (%) : 1.826 1 gram SAR value : 0.366 W/kg 10 gram SAR value : 0.165 W/kg Area Scan Peak SAR : 0.459 W/kg Zoom Scan Peak SAR : 0.820 W/kg Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 5 - 1.4 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x7x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid - 2437MHz Power Drift-Start : 0.212 W/kg Power Drift-Finish: 0.208 W/kg Power Drift (%) : -1.886 1 gram SAR value : 0.312 W/kg 10 gram SAR value : 0.150 W/kg Area Scan Peak SAR : 0.448 W/kg Zoom Scan Peak SAR : 0.650 W/kg Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 6 - 1.5 2450 MHz, EUT Position: Bottom Measurement Data Crest Factor : 1 Area Scan : 7x7x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : High - 2462MHz Power Drift-Start : 0.332 W/kg Power Drift-Finish: 0.338 W/kg Power Drift (%) : 1.775 1 gram SAR value : 0.628 W/kg 10 gram SAR value : 0.326 W/kg Area Scan Peak SAR : 0.545 W/kg Zoom Scan Peak SAR : 1.251 W/kg Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 7 - 1.6 Z-Axis plot Frequency: 802.11b 2450 MHz, EUT Bottom Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 8 - 2 802.11g SAR measurement Data SAR Test Report Report Date : 08-Dec-2006 Measurement Date : 08-Dec-2006 Product Data Device Name : WL-160W Serial No. : Front Type : Other Frequency : 2450.00 MHz Max. Transmit Pwr : 0.248W Drift Time : 0 min(s) Length : 80 mm Width : 40 mm Depth : 10 mm Antenna Type : Internal Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 2450BODY Frequency : 2450.00 MHz Last Calib. Date : 08-Dec-2006 Temperature : 23.10 °C Ambient Temp. : 23.50 °C Humidity : 50.00 RH% Epsilon : 51.02 F/m Sigma : 1.97 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.02 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 9 - 2.1 2450 MHz, EUT Position: Front Measurement Data Crest Factor : 1 Area Scan : 7x7x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid - 2437MHz Power Drift-Start : 0.110 W/kg Power Drift-Finish: 0.108 W/kg Power Drift (%) : -1.818 1 gram SAR value : 0.106 W/kg 10 gram SAR value : 0.060 W/kg Area Scan Peak SAR : 0.100 W/kg Zoom Scan Peak SAR : 0.210 W/kg Appendix D of Report Number: ISL-06LR035SAR-F International Standards Laboratory - 10 - 2.2 2450 MHz, EUT Position: Top Measurement Data Crest Factor : 1 Area Scan : 5x7x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm DUT Position : Touch Channel : Mid - 2437MHz Power Drift-Start : 0.286 W/kg Power Drift-Finish: 0.299 W/kg Power Drift (%) : 4.345 1 gram SAR value : 0.230 W/kg 10 gram SAR value : 0.104 W/kg Area Scan Peak SAR : 0.279 W/kg Zoom Scan Peak SAR : 0.500 W/kg Appendix D of Report Number: ISL-06LR035SAR-F Internationa…

Text truncated - open the document above for the full version.

Report Number: ISL-06LR035SAR-F Issue Date: 2006/12/12 HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;TAF:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;TAF:0997; IC:IC4164-1 ISL-T10-R4-14 SAR Test Report of Product Name Wireless Local Area Network Adapter Model WL-160W Applied by: ASUSTek Computer Inc. 4Fl., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Test Performed by: International Standards Laboratory No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325 Taiwan, R.O.C. Tel:(03)407-1718 Fax:(03)407-1738 - i - International Standards Laboratory Report Number: ISL-06LR035SAR-F HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;TAF:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;TAF:0997; IC:IC4164-1 Contents of Report 1. General ................................................................................................................................. 1 1.1 Certification of Accuracy of Test Data ........................................................................ 1 2. Description of Equipment Under Test (EUT)...................................................................... 2 2.1 Test Environment......................................................................................................... 2 3. SAR Measurement System .................................................................................................. 3 3.1 ALSAS-10U System Description ................................................................................ 3 3.1.1 Applications ......................................................................................................... 3 3.1.2 Area Scans ........................................................................................................... 3 3.1.3 Zoom Scan (Cube Scan Averaging) .................................................................... 4 3.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty.................................. 4 3.2 Isotropic E-Field Probe ................................................................................................ 5 3.2.1 Isotropic E-Field Probe Specification .................................................................. 6 3.3 Boundary Detection Unit and Probe Mounting Device ............................................... 6 3.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 7 3.5 Axis Articulated Robot ................................................................................................ 7 3.6 ALSAS Universal Workstation.................................................................................... 8 3.7 Universal Device Positioner ....................................................................................... 8 3.8 Phantom Types............................................................................................................. 9 3.8.1 APREL Laboratories Universal Phantom ............................................................ 9 4. Tissue Simulating Liquid ................................................................................................... 10 4.1 The composition of the tissue simulating liquid ........................................................ 10 4.2 Tissue Calibration Result ........................................................................................... 10 4.3 Tissue Dielectric Parameters for Head and Body Phantoms ..................................... 11 5. SAR Measurement Procedure............................................................................................ 12 5.1 SAR System Validation ............................................................................................. 12 5.1.1 Validation Dipoles ............................................................................................. 12 5.1.2 Validation Result ............................................................................................... 13 5.2 Arrangement Assessment Setup ................................................................................ 14 5.2.1 Test Positions of Device Relative to Head ............................................................ 14 5.2.2 Definition of the “Cheek” Position ........................................................................ 14 5.2.3 Definition of the “Tilted” Position......................................................................... 16 5.2.4 Test Positions for body-worn................................................................................. 16 5.3 SAR Measurement Procedure.................................................................................... 17 6. SAR Exposure Limits ........................................................................................................ 18 7. Test Equipment List ........................................................................................................... 19 8. Measurement Uncertainty .................................................................................................. 20 9. Test Result Summary .........................................................................................................21 9.1 802.11b Test Result ................................................................................................... 21 9.2 802.11g Test Result ................................................................................................... 21 9.3 802.11n 20M(2412MHz ~ 2462Mhz) Test Result .................................................... 22 9.4 802.11n 40M(2422MHz ~ 2452MHz) Test Result.................................................... 22 10. Appendix A: Photographs of Test Setup ....................................................................... 23 11. Appendix B: Photographs of EUT .....…

Text truncated - open the document above for the full version.

Test Report ---------------------------------------------------------------------------------- 1/87 Report No.: A5415060762, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless Local Area Network Adapter Applicant : ASUSTek Computer Inc. EUT : Wireless Local Area Network Adapter Model No. : WL-160W FCC ID : MSQWL160W Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ---------------------------------------------------------------------------------- 2/87 Report No.: A5415060762, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant : ASUSTek Computer Inc. Applicant Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name : Wireless Local Area Network Adapter Model : WL-160W Report No. : A5415060762 Test Date : November 20, 2006 ~ November 27, 2006 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. Test Report ---------------------------------------------------------------------------------- 3/87 Report No.: A5415060762, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity for the following equipment: Product name : Wireless Local Area Network Adapter Trade name : ASUS Model name : WL-160W Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : A5415060762 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Manufacturer USA local representative Company name: ASUSTeK Computer Inc. To be determined Computer address: 4/F, 150, Li-Te Rd., Peitou, Taipei, Taiwan ZIP / Postal code 112 Contact person: Lawrence Yu Title: Manager Internet e-mail address: [email protected] Tel / Fax: 886-2-28943447 / 886-2-28950113 Test Report ---------------------------------------------------------------------------------- 4/87 Report No.: A5415060762, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ................................................................................................................... 6 1.1 Introduction ......................................................................................................... 6 1.2 Description of EUT ............................................................................................. 6 1.3 Test method ......................................................................................................... 6 1.4 Description of Support Equipment ...................................................................... 7 1.5 Configuration of System Under Test ................................................................... 9 1.6 Verify the Frequency and Channel ..................................................................... 11 1.7 Test Procedure .................................................................................................... 12 1.8 Location of the Test Site ..............................................…

Text truncated - open the document above for the full version.
