MSQWL161802.11b USB Pen Type WLAN Adapter

1 2 3 Table of Contents Information to User...................................... 3 1 Introduction................................................ 5 2 Wireless LAN basics.................................... 6 3 Windows Installation.................................... 7 3.1 Install Driver/Utility...................................... 8 3.2 Configuration Utility................................................. 10 3.2.1 Configured at “Windows XP configuration”........ 10 3.2.2 Configured at “ASUS advanced configuration”... 11 4 Technical Specifications of ASUS WL-161 WLAN Adapter ... 15 Troubleshooting.......................................... 17 Glossary................................................... 18 Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. 4 INFORMATION TO USER FCC INFORMATION FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. "ASUSTeK COMPUTER INC. declare that WL-161 (802.11b USB Pen Type WLAN Adapter) is limited in CH1~CH11 by specified firmware controlled in USA." 5 REGULATORY INFORMATION ASUS WL-161 WLAN Adapter must be installed and used in strict accordance with the instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. Europe - R&TTE Directive This device complies with the specifications listed below • ETS 300-826 General EMC requirements for Radio equipment. • ETS 300-328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) Japan ETSI North America Israel France Mexico 1 2412 ˇ ˇ ˇ 2 2417 ˇ ˇ ˇ 3 2422 ˇ ˇ ˇ ˇ 4 2427 ˇ ˇ ˇ ˇ 5 2432 ˇ ˇ ˇ ˇ 6 2437 ˇ ˇ ˇ ˇ 7 2442 ˇ ˇ ˇ ˇ 8 2447 ˇ ˇ ˇ ˇ 9 2452 ˇ ˇ ˇ ˇ 10 2457 ˇ ˇ ˇ ˇ ˇ 11 2462 ˇ ˇ ˇ ˇ ˇ 12 2467 ˇ ˇ ˇ 13 2472 ˇ ˇ ˇ 14 2484 ˇ 6 1. Introduction Thank you for purchasing ASUS WL-161 WLAN Adapter. You are about to install a networking system that is not only fast and powerful, but also easy to set up and simple to maintain. In a short time you and those in your network will be able to share a local printer and files, access the Internet, and roam about the office wire-free. Using radio frequency (RF) technology, WLANs transmit and receive data over the air, mizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. This wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features as your business grows. This manual will assist you in the installing ASUS WL-161 WLAN Adapter. 7 2. Wireless LAN basics Wireless LAN network defined by IEEE 802.11b standard committee could be configured as: • Ad Hoc wireless LAN, or • Infrastructure wireless LAN. Ad Hoc network is a group of notebooks with wireless LAN PC card called a BSS (Basic Service Set). These notebooks use their wireless LAN PC cards to communicate with each other, and notebooks cannot connect to the Internet. Figure 2-1 Ad Hoc wireless network The most obvious differentiation between Infrastructure wireless network and Ad Hoc wireless network is that the notebooks in Infrastructure wireless network can make use of the resource in the Internet through Access Point. STA 3 STA 1 STA 2 Access Point Internet Figure 2-2 Infrastructure wireless network To set up your notebook’s network as the type of “Ad Hoc” or “Infrastructure” wireless network depends completely on your requirement. Generally, if your network environment has an Access Point, we recommend that you set it as “Infrastructure” to connect to the Internet. STA 1 STA 2 STA 3 8 3. Windows Installation Before You Start To use the ASUS WL-161 WLAN Adapter with a computing device, the ASUS WL-161 WLAN Adapter must be equipped with an USB 1.1 or 2.0 Interface. All drivers and supporting software for the ASUS WL-161 WLAN Adapter must be loaded and configured. Ask your system abstractor for the following information, which you may need to provide …

Text truncated - open the document above for the full version.

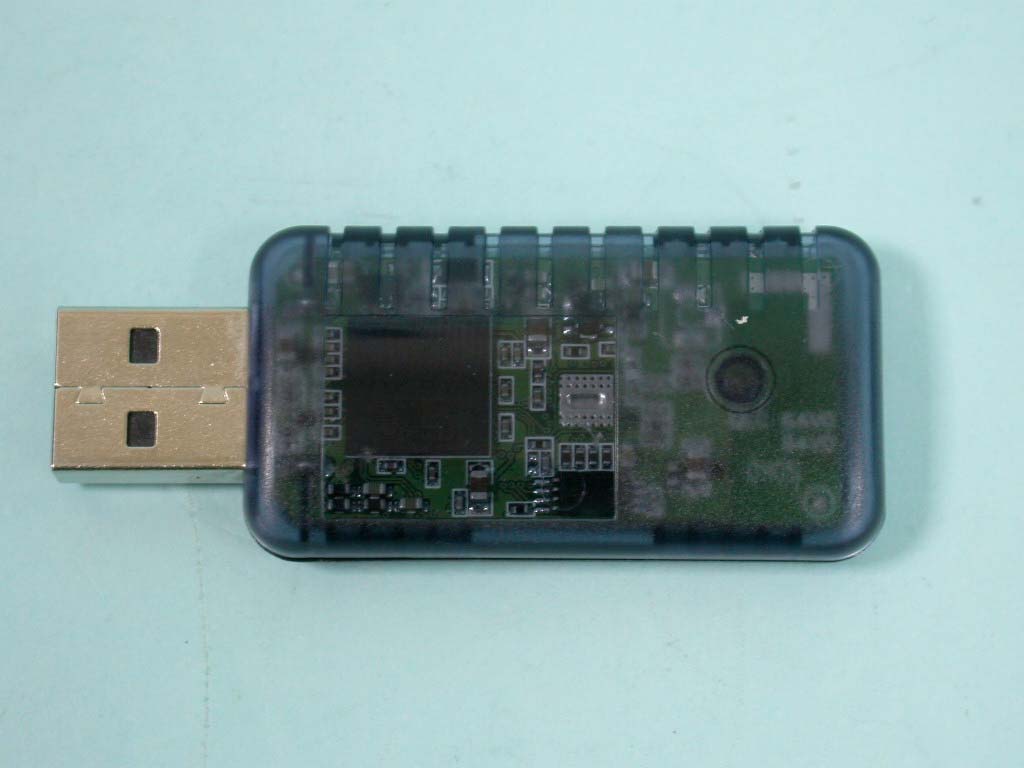

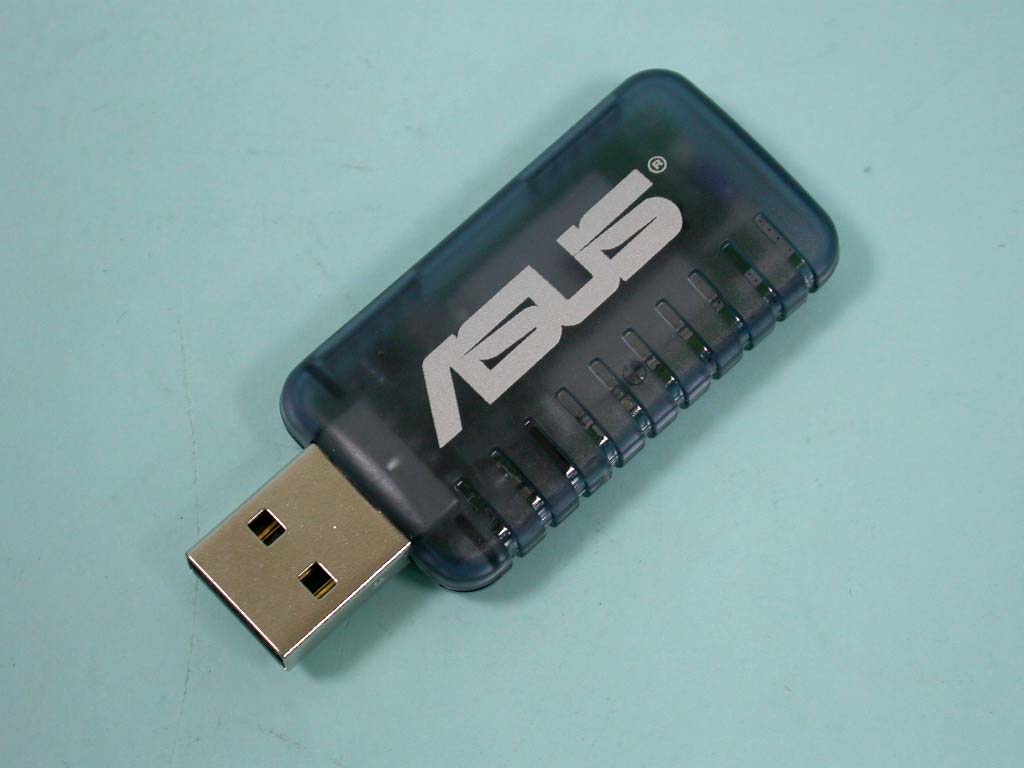

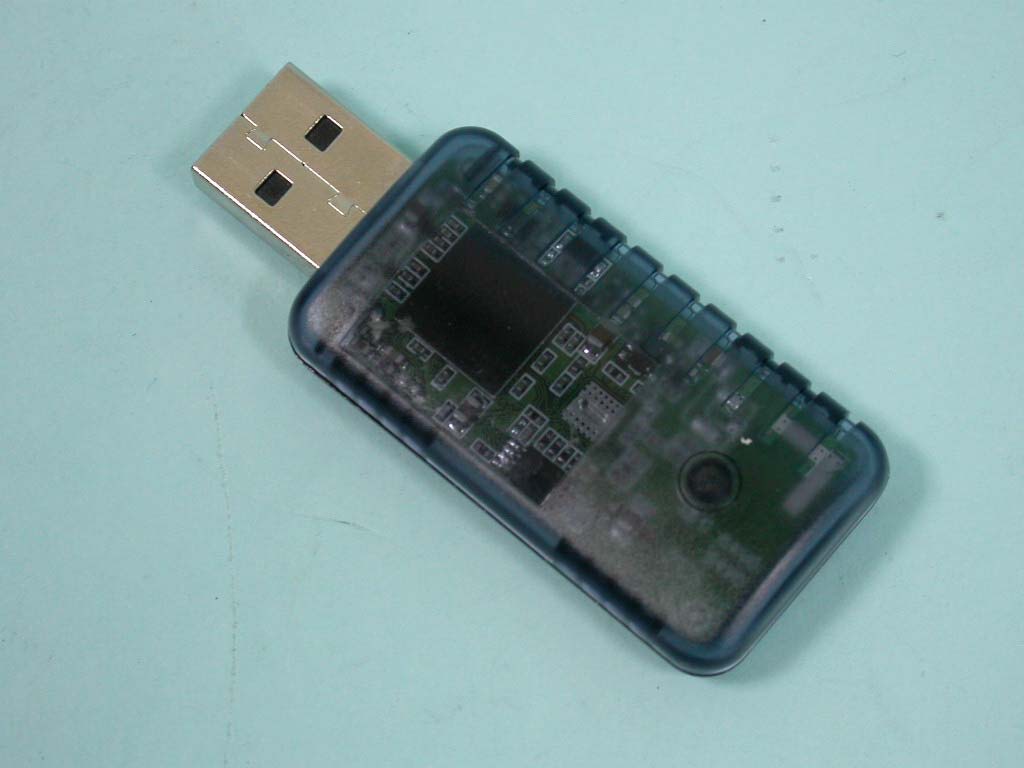

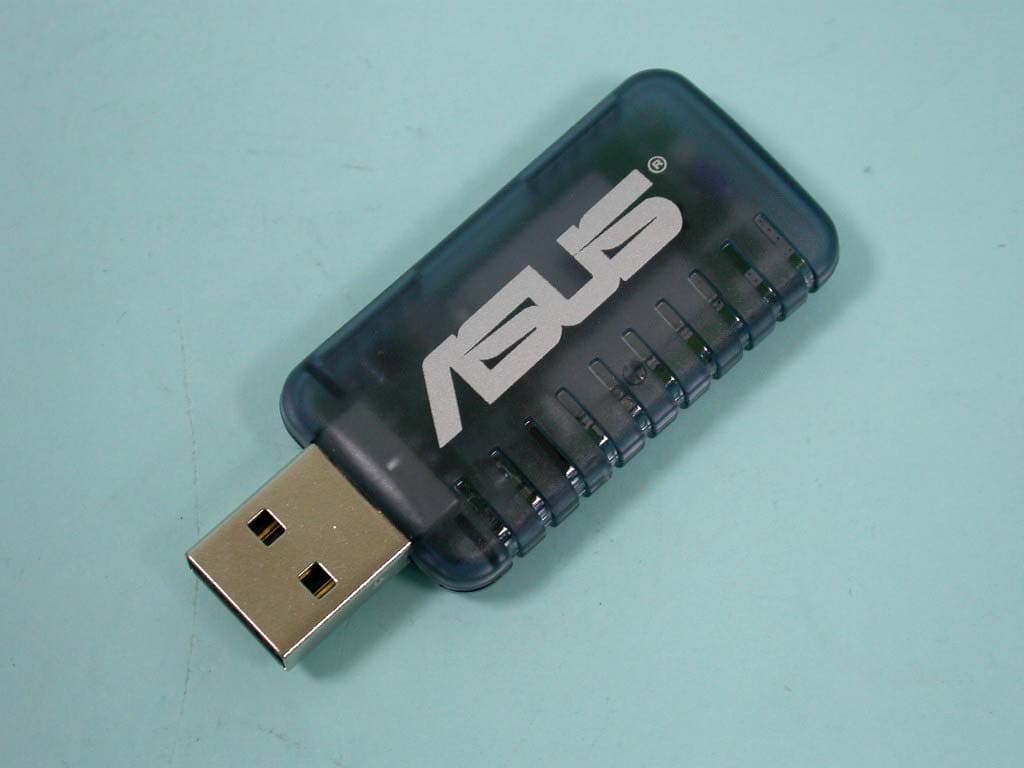

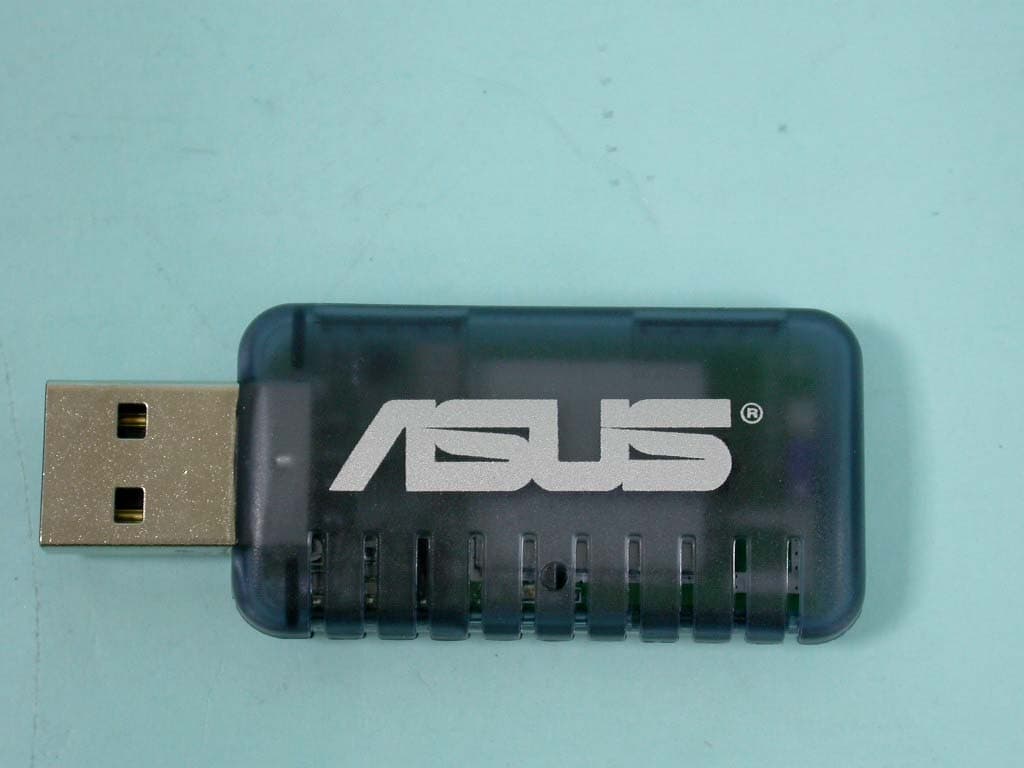

Page 1 CONSTRUCTION PHOTOS OF EUT ASUS WL-161 ASUS WL-161 Page 2 ASUS WL-161 ASUS WL-161

Page 3 ASUS WL-161 ASUS WL-161 Page 4 ASUS WL-161 ASUS WL-161 Page 5 ASUS WL-161 ASUS WL-161 Page 6 ASUS WL-161

FCC ID: MSQWL161 Report No. RF930302R04A Operational Description The transmitter of the EUT is powered by host equipment. The antenna used in this product is Chip antenna without antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: MSQWL161 Report No.: RF930302R04A1Issued: March 24, 2004 Reference No.: RF930302R04 FCC TEST REPORT REPORT NO.: RF930302R04A MODEL NO.: WL-161 RECEIVED: NA TESTED: Mar. 11 ~ Mar. 13, 2004 APPLICANT: ASUSTeK COMPUTER INC. ADDRESS: 4F, No. 150, LI-TE RD., PEITOU, TAIPEI, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: MSQWL161 Report No.: RF930302R04A2Issued: March 24, 2004 Reference No.: RF930302R04 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4TEST SETUP .............................................................................................. 28 4.3.5EUT OPERATING CONDITIONS................................................................ 28 4.3.6TEST RESULTS.......................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 33 4.4.2TEST INSTRUMENTS ................................................................................ 33 4.4.3TEST PROCEDURES................................................................................. 34 4.4.4TEST SETUP .............................................................................................. 34 4.4.5EUT OPERATING CONDITIONS................................................................ 34 FCC ID: MSQWL161 Report No.: RF930302R04A3Issued: March 24, 2004 Reference No.: RF930302R04 4.4.6TEST RESULTS.......................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 36 4.5.2TEST INSTRUMENTS ................................................................................ 36 4.5.3TEST PROCEDURE ................................................................................... 37 4.5.4TEST SETUP .............................................................................................. 37 4.5.5EUT OPERATING CONDITIONS................................................................ 37 4.5.6TEST RESULTS.......................................................................................... 38 4.6BAND EDGES MEASUREMENT ................................................................ 42 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 42 4.6.2TEST INSTRUMENTS ................................................................................ 42 4.6.3TEST PROCEDURE ................................................................................... 42 4.6.4EUT OPERATING CONDITION .................................................................. 42 4.6.5TEST RESULTS.......................................................................................... 43 4.7ANTENNA REQUIREMENT........................................................................ 48 4.7.1STANDARD APPLICABLE ..................…

Text truncated - open the document above for the full version.

Report No.: D930302R04A26Issued: March 24, 2004 Reference No.: D930302R04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: D930302R04A27Issued: March 24, 2004 Reference No.: D930302R04 RADIATED EMISSION TEST
