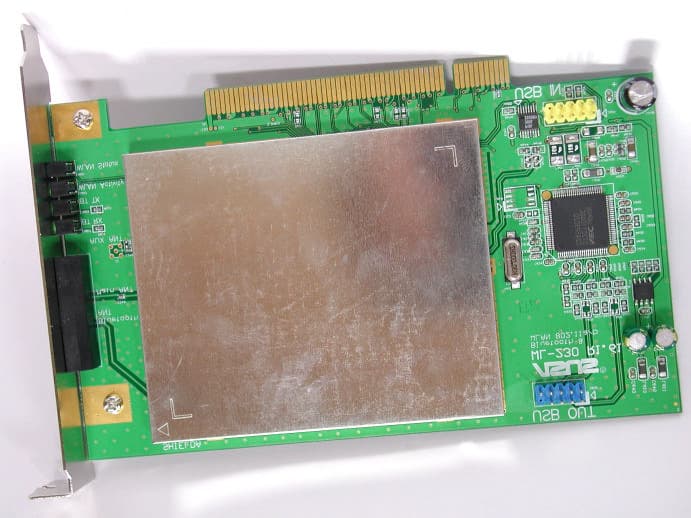

MSQWL230WLAN PCI Card with Integral Antenna

SpaceLink™ B&W PCI Card WL230 User’s Manual ® 2ASUS SpaceLink B&W PCI Card No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2002 ASUSTeK COMPUTER INC. All Rights Reserved. Copyright Information Product Name:SpaceLink B&W PCI Card (WL230) Manual Revision:1 E1165 Release Date:December 2002 ASUS SpaceLink B&W PCI Card3 Copyright Information ASUSTeK COMPUTER INC. (Asia-Pacific) Address:150 Li-Te Road, Peitou, Taipei, Taiwan 112 General Tel:+886-2-2894-3447 General Fax:+886-2-2894-3449 General Email: [email protected] Technical Support MB/Others (Tel): +886-2-2890-7121 (English) Notebook (Tel): +886-2-2890-7122 (English) Desktop/Server: +886-2-2890-7123 (English) Support Fax:+886-2-2890-7698 Support Email: [email protected] Web Site:www.asus.com.tw Newsgroup:cscnews.asus.com.tw ASUS COMPUTER INTERNATIONAL (America) Address:6737 Mowry Avenue, Mowry Business Center, Building 2, Newark, CA 94560, USA General Fax:+1-510-608-4555 General Email: [email protected] Technical Support Support Fax:+1-510-608-4555 General Support: +1-502-933-8713 Web Site:www.asus.com Support Email: [email protected] ASUS COMPUTER GmbH (Germany & Austria) Address:Harkortstr. 25, 40880 Ratingen, BRD, Germany General Fax:+49-2102-442066 General Email: [email protected] (for marketing requests only) Technical Support Support Hotline: MB/Others: +49-2102-9599-0 Notebook (Tel): +49-2102-9599-10 Support Fax:+49-2102-9599-11 Support (Email): www.asuscom.de/de/support (for online support) Web Site:www.asuscom.de 4ASUS SpaceLink B&W PCI Card Table of Contents 1. Introduction ............................................................................. 7 Overview .............................................................................................. 7 The SpaceLink™ Family ...................................................................... 8 System Requirements .......................................................................... 9 The Product Package ........................................................................... 9 ASUS SpaceLink B&W PCI Card Layout ........................................... 10 LED Definitions .......................................................................... 10 ASUS SpaceLink B&W Specifications ....................................... 11 2. Installation ............................................................................. 12 2.1 Installing the ASUS SpaceLink B&W PCI Card ......................... 12 Blue Magic PCI Slot ................................................................... 13 Non-Blue Magic PCI Slot ........................................................... 13 2.2 Installing the SpaceLink PCI Driver ........................................... 14 2.3 Verifying Drivers ......................................................................... 15 2.4 Installing the SpaceLink Utilities ................................................ 16 2.5 Installing the SpaceLink Bluetooth ............................................. 17 3. Wireless LAN Reference ...................................................... 19 3.1 Overview .................................................................................... 19 3.2 Windows XP Wireless Options .................................................. 20 3.3 Control Center ............................................................................ 21 3.4 Wireless Settings ....................................................................... 23 More than one ASUS SpaceLink Card ....................................... 24 3.5 Status - Status Tab ..................................................................... 24 Association State ....................................................................... 25 SSID ........................................................................................... 25 Network Type ............................................................................. 25 Current Channel ......................................................................... 25 MAC address ............................................................................. 25 Transmit Rate ............................................................................ 25 Receive Rate ...............…

Text truncated - open the document above for the full version.

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 Email: [email protected] TRCSince1985 ® January 27, 2003 RE: ASUSTeK Computer Inc. FCC ID: MSQWL230 Dear Bill: After the review of your comments, we have made some response upon your advice; they are summarized as follows: 1. I have segregated the photos into “Internal Photo” and “External Photo”, with the suffix “_2”. 2. The “Block Diagram” is also updated upon your requests, uploaded with the suffix “_2”. 3. The manuals sent before with separate exhibits are a draft one and one of them is about the WLAN and the other is referring to the Bluetooth portion. Anyway, I have combined them together into a single exhibit, uploaded with the suffix “_2”. 4. The regulatory statement about the emission is updated and uploaded. Please find it in the uploaded file. 5. The product is designed only able to work 1-at-a-time. The WLAN and Bluetooth won’t works together in order to comply with known FCC rule. 6. (Still waiting for the manufacturer comment) 7. The metal enclosure is acting only the “weight” of the antenna, for details please find these all with our revised “Internal photo” and “External Photo”. 8. The transmitter is located on the PCI card, the “shark fin” is only the antenna extended from the PCI card. The connector at both the card and the cable is unique and with the “lock-tile” style. It does comply with the requirement of the integral antenna. 9. The label location is shown by our recent uploads about the label format. Should you have any questions or further information is requested, please don’t hesitate to ask us. Thank you. Sincerely yours, Eric Wong Project Engineer Training Research Co Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 17, 2003 RE: ASUSTeK Computer Inc. FCC ID: MSQWL230 I have a few comments on this Application. 1.) Please segregate the photographs into two separate Exhibits: “Internal Photographs” and “External Photographs”. This is an FCC requirement. 2.) Please provide a more detailed block diagram which shows the frequency paths of both the Bluetooth transmitter, and 802.11a/b transmitter. 3.) Please describe how the two different manuals [ASUS and WIDCOM] will be utilized. Shouldn’t only one manual apply for this FCC ID? 4.) Page 82 of ASUS manual is incorrect – there should only be the 20cm restriction for Mobile operations. Otherwise a SAR report would be required. 5.) Can only one transmitter be used at a time? If more than one, the MPE estimation should be revised to anticipate the usage of multiple transmitters. 6.) The Subpart E report indicates the temperature stability can be found in the Theory of Operations. No such documentation can be found. 7.) Please indicate what is located inside the metal enclosure within the “shark fin” antenna. Is this a transmitter? Please provide photographs with cover removed. 8.) Where is the Part 15E transmitter located – inside the “shark fin” or on the PCI card? If on the PCI card, how does this comply with the integral antenna requirements of Part 15E? Both ends of the coax between the “shark fin” antenna and the PCI card would have to be permanent? 9.) Where will the label be located? Please provide a drawing. I look forward to your prompt response. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 27, 2003 RE: ASUSTeK Computer Inc. FCC ID: MSQWL230 I have, regrettably, additional comments on this Application. 1.) The revised block diagram uploaded to AmericanTCB is nearly identical to the original. Please look at the file you sent. What I am looking for is a block diagram for the 802.11a/b section, and another for the Bluetooth section which will meet the definition of 2.1033(b)(5). 2.) The Manual on page 82, second and third paragraph, indicates this device was tested for SAR exposure in a laptop computer. This is obviously incorrect. Regardless, the first paragraph on the same page is correct and is sufficient for this device. Please remove the section entitled “SAR Exposure”. 3.) Per your email of January 27, 2003, if both the Bluetooth and 802.11a/b transmitters can operate at the same time, then RF Exposure estimation (MPE) will have to be modified. 4.) Thank you for your confirmation that the connectors will be glued with “LocTite” or similar adhesive compound. Will this be done at the factory or by the consumer? I look forward to your prompt response. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT EUT : ASUS SpaceLink WL-230 PCI Card Model No. : WL-230 Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual FCC ID : MSQWL230 Frequency Range : 2.4GHz-2.4835GHz / 5.725GHz-5.85GHz Frequency Range : 2.4GHz-2.4835GHz / 5.725GHz-5.85GHz Modulation Skill : DBPSK, DQPSK, CCK / OFDM Interface : PCI interface Power Type : By PCI slot of the client’s device Applicant : ASUSTeK COMPUTER INC. 4/F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® 3a. Limits for Maximum Permissible Exposure (MPE) (DSS - 2.4GHz band) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, equation for predicting RF fields, by the Friis Transmission Formula: Power density at the specific separation (Mobile): 23 22 /10336.1 )20(4 892.155.3 4 cmmW R PG S − ×= × == ππ Estimated safe separation: cm PG R731.0 4 892.155.3 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 0.731 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (2.77 / 10) = 1.892 Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® 3b. Limits for Maximum Permissible Exposure (MPE) (DTS - 2.4GHz band) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, equation for predicting RF fields, by the Friis Transmission Formula: Power density at the specific separation (Mobile): 22 22 /10331.2 )20(4 892.194.61 4 cmmW R PG S − ×= × == ππ Estimated safe separation: cm PG R054.3 4 892.194.61 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 3.054 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (1.13 / 10) = 1.297 Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® 3c. Limits for Maximum Permissible Exposure (MPE) (DTS & NII – 5.1 & 5.7GHz band) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, equation for predicting RF fields, by the Friis Transmission Formula: Power density at the specific separation (Mobile): 22 22 /10869.2 )20(4 297.117.111 …

Text truncated - open the document above for the full version.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 3-Dec-2002 Sheet of File: E:\pcad87\wl230\Wl2302.DDB Drawn By: ADCN_QADCP_QADCP_IADCN_IRFRESET_LRFLOADRFSHIFTRFDATAOUT[0..3]RFDATAIN5 AR2111_CLKIN DACP_QDACN_QDACN_IDACP_I DETP AR5111_RFIN AR5111_RFOUT AR5111AR5111(802.11a).sch AR2111_CLKOUT RFDATAOUT[0..3] AR2111_CLKINRFSHIFTRFLOAD OB_RX_IN AR2111_2.4G_TX_OUT AR5111_RFIN ATTEN5ATTEN2 RFRESET_LRFDATAIN2TX5TX2AR5111_RFOUT OB_TX_OUT AR2111_2.4G_RX_IN AR2111-2AR2111(802.11b).Sch AR2111_2.4G_TX_OUT TX2 ANTD RX2 AR2111_2.4G_RX_IN ANTC RX5 OB_RX_IN ANTB TX5 DETP ANTA OB_TX_OUT 5&2RF Front End.Sch ASUS SPACELINK 802.11A&B MPCI CARD 01 16 SLEEP MB22POWERPower.Sch ADCN_Q ADCP_Q ADCP_I ADCN_I DACN_Q DACP_Q DACP_I DACN_I RFDATAIN2 ATTEN5ATTEN2 SLEEP TX5TX2 ANTCANTDANTAANTB RX5RX2 AR2111_CLKOUT RFSHIFT RFDATAOUT[0..3] RFDATAIN5 RFRESET_L RFLOAD PCI_USB+ pCI_USB- LED0 LED1 AR5211AR5211 & PCI.sch ASUS SpaceLink WL200 802.11a&b Cardbus Card /CCD4 PCI_USB-PCI_USB+LED1TX2LED0PCI_RST_L USB2USB_HUB.sch 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 3-Dec-2002 Sheet of File: E:\pcad87\wl230\Wl2302.DDB Drawn By: Vdd2a 1 Gnd2a 2 Gnd2a 3 NC 4 NC 5 Gnd2a 6 NC 7 NC 8 Gnd2a 9 Gnd2a 10 RXout_Qn 11 RXout_Qp 12 Gnd2a 13 RXout_Ip 14 RXout_Qp 15 Vdd2a 16 VCO_bias 17 LoopFilter 18 Gnd2a 19 Biasref 20 Gnd2a 21 RESET_L 22 Serial_load 23 Serial_clk 24 Serial_in0 25 Serial_in1 26 Serial_in2 27 Serial_in3 28 Vdd2d 29 Gnd2d 30 Gnd3d 31 Vdd3d 32 DataOut 33 CLK32 34 Vdd2a 35 Xtal_i 36 Xtal_o 37 Gnd2a 38 Gnd2a 39 TXin_In 40 TXin_Ip 41 Gnd2a 42 TXin_Qn 43 TXin_Qp 44 Gnd2a 45 Vdd2a 46 Pdetect_Ref 47 Pdetect 48 Gnd2a 49 Gnd2a 50 Gnd2a 51 Vdd3pa 52 PA_bias 53 RFout_n 54 RFout_n 55 RFout_p 56 RFout_p 57 PA_bias 58 Vdd3pa 59 Gnd2a 60 Gnd2a 61 RFin_n 62 RFin_p 63 Gnd2a 64 G 65 U4 AR5111 12 C441PF 12 C43330PF 12 C422U2F 2.5V_A ADCN_QADCP_Q ADCP_I ADCN_I 12 C481PF 2.5V_A 12 C49330PF 12 C511PF 2.5V_VCO 12 C57 330PF 5% NPO 12 C5522PF 12 C5622PF 12 R1020K 12 R126K19 1% RFRESET_L RFLOADRFSHIFT RFDATAOUT[0..3] RFDATAOUT[0..3] RFDATAOUT0RFDATAOUT1RFDATAOUT2RFDATAOUT3RFSHIFTRFLOADRFRESET_L ADCN_QADCP_QADCP_IADCN_I 12 C58100NF 2.5V_A 12 C52100NF 3.3V RFDATAIN5 AR2111_CLKIN AR2111_CLKINRFDATAIN5 12 R1471M 12 C4530PF 1% 12 C4630PF 1% 1 3 2 4 Y132.0000MHZ 12 C531PF 12 C54330PF 2.5V_A DACP_QDACN_Q DACN_I DACP_I DACP_QDACN_QDACN_IDACP_I 12 C401PF 2.5V_A 1 2 R15143K 12 R1465.1K 1% 2.5V_A 12 C338C DETP DETP DETN 12 C3710NF 12 C361PF 12 C351PF 12 C341UF 3.3V_A 1 2 C331PF AR5111_RFIN AR5111_RFIN 12 C300.5PF 12 C310.5PF UBP 1 G 2 BP+ 3 BP- 4 G 5 NC 6 F15512BL15B100 W5L160 W5L160 AR5111_RFOUT AR5111_RFOUT W10L55 0.1 37 ASUS SpaceLink WL230 802.11a&b PCI Card (PG 4) AR5111 (PG 2)(PG 2)(PG 2)(PG 2) (PG 2,4)(PG 2,4)(PG 2,4) (PG 2,4) (PG 2)(PG 4) (PG 2)(PG 2)(PG 2)(PG 2) (PG 5) RFIN_N (PG 4) 12 R5R 1 2 C3300.5PF 1 2 C3311PF 1 2 C19310PF N11391452 N23379 N09265 1 2 R40168 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 3-Dec-2002 Sheet of File: E:\pcad87\wl230\Wl2302.DDB Drawn By: AR5001X TYPEIIIA-AR2111 01 7 Timothy VDDA 1 GNDA 2 NC 3 NC 4 GNDA 5 VDDA 6 GNDA 7 RXOUT-P 8 RXOUT-N 9 GNDA 10 VDDA 11 RESET-L 12 Serial-clk 13 Serial-load 14 vdd2d 15 GNDd 16 Serial-in0 17 Serial-in1 18 Serial-in2 19 Serial-in3 20 CLK32-IN 21 CLK32-OUT 22 GND3D 23 VDD3D 24 DataOut 25 GNDA 26 LoopFilter 27 VddVCO 28 Vdda 29 Rext 30 LOout-n 31 LOout-p 32 Txin-n 33 Txin-p 34 GNDA 35 Vdda 36 GNDA 37 Vdd3pa 38 Pa-bias1 39 Txout-n 40 Txout-p 41 Pa-bias2 42 Vdd3Pa 43 Vdda 44 Rxin-n 46 Rxin-p 47 GNDA 48 GNDA 49 GNDA 45 U1 AR2111 RFSHIFTRFLOAD VDDA 12 C186100NF VDDA VDDA 12 C15210PF 12 C325330PF 12 C32410PF 3.3V 12 C188100NF RFDATAOUT0RFDATAOUT1RFDATAOUT2RFDATAOUT3AR2111_CLKIN AR2111_CLKOUT AR2111_CLKOUT RFDATAOUT[0..3] RFDATAOUT[0..3] PG2 PG 2,3 AR2111_CLKIN PG 3 RFSHIFTRFLOAD PG 2,3PG 2,3 1 2 C1671PF 1 2 L326N8H 12 C1632P2F 1 2 R63221 1% 1 2 R62221 1% 12 C161 2P2F 1 2 L316N8H OB_RX_IN PG 5 41 23 D7 HMPP-3892 12 C1532P2F 12 C1712P2F 12 C191120PF 12 C19010PF 12 C17322PF 12 C176330PF 12 C177 1PF 12 C17822PF 12 C179330PF 12 C18022PF 1 2 C3392P2F 1 2 C3261PF 1 2 C1661PF 12 C1410NF 12 C1310PF 12 C1210PF 12 C111UF 12 C32110PF 12 C15510PF 12 C1391P8F 1 2 R67221 1% 12 R69 6K19 1% 12 R162150 12 R163150 1 2 R161 33 1 2 L336N8H 1 2 L73N3H 6 5 2 1 34 F10 LDB15C500A2400(HHM1517?) AR2111_2.4G_TX_OUT PG 5 AR5111_RFIN PG 3 AR5111_RFIN OB_RX_IN ATTEN5 PG 2 ATTEN5 ATTEN2 PG 2 ATTEN2 RFRESET_L PG 2,3 RFRESET_L RFDATAIN2 RFDATAIN2 PG 2 12 R7310K 1% VCO_BIAS VDDA VDDA VDD3PA GND 2 13 654 OUT1OUT2 IN Vcont1Vcont2 S1 ACB12 TX5TX2 AR5111_RFOUT PG 2,5PG 2,5 PG 3 TX5TX2 AR5111_RFOUT OB_TX_OUT PG 5 OB_TX_OUT AR2111_2.4G_RX_IN PG 5 AR2111_2.4G_RX_IN 12 C18210PF 11B_TXINN 11b_TXOUTp11b_TXOUTn 11B_LOOP W10L200 W37L35 4 VDDA ASUS SpaceLink WL230 802.11a&b PCI Card W40L110 11b_RXOUTp 11b_ABn11b_ABp 11b_REXT 1 2 C3221P5F 1 2 C3291P5F 1 2 R164390 1 2 C32810PF 12 C356C 12 R13R 1 2 R110 1 TP27 1 TP28 1 2 R40068 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 3-Dec-2002 Sheet of File: E:\pcad87\wl230\Wl2302.DDB Drawn By: AR5001X TYPE IIIA-RADIO FRONT END 01 7 Timothy CTRL 1 1 CTRL 3 7 PORT3 2 CTRL 2 9 CTRL 4 3 NC 4 NC 6 NC 10 NC 12 PORT 2 5 PORT 1 11 PORT 4 8 GND 13 U23MASWSS0039 RFIN 2 RFIN 3 VREF1 6 VREF2 7 NC 1 NC 4 NC 5 NC 8 NC 12 NC 13 NC 16 GND 17 RF OUT 10 RF OUT 11 VC2 14 VC1 15 VCC 9 U5 LX5503 1 2 3 F6TDFS8A-5437Z-10A 1 2 3 4 F3LFB215G51SG8A132 NC/GND 1 RF IN 2 GND 3 GND 4 VPC 5 GND 6 GND 7 RFOUT 8 VCC2 9 VCC 10 VCC1 11 VCC 12 U9 RFSP2010 IN 1 GND 3 GND 4 OUT 2 F8MDR747F IN 1 GND 3 GND 4 OUT 2 F9MDR746F AR2111_2.4G_TX_OUTPG 4 AR2111_2.4G_TX_OUT 12 C101C 12 C896P8F 12 C9015PF 5% 12 C91100NF 10% 12 C928P2F 12 L1910NH LOG15 1 2 L2810NH LOG15 1 2 L214N7H 3.3V_A 1 2 R33432 1% TX2 PG 2,4 TX2 1 2 D4 SMS7630-996 12 R43200 12 R159 10K 1% 1 2 R1581K 12 R3547 12 R36221 1% 12 R38221 1% 1 2 R4010K 1% 12 R413K57 1% 1 2 R4610K 1% 12 R47 1K1 1% 1 2 R450 1 2 R3915 1% 12 C1001PF 1 2 C9710PF 12 C10210PF 12 C10510PF 12 C10810PF 12 C109120PF 12 C11010PF 1 2 C…

Text truncated - open the document above for the full version.

Test Report ----------------------------------------------------------------------------- 1/36 Report No.: A5415072 (DSS Device) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of WIRELESS LAN PCI CARD Applicant : ASUSTeK COMPUTER INC. Model No. : WL-230 EUT : ASUS SpaceLink WL-230 PCI Card FCC ID : MSQWL230 Report No. : A5415072 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ----------------------------------------------------------------------------- 3/36 Report No.: A5415072 (DSS Device) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Table of Contents I. GENERAL ........................................................................................................................ 5 1.1 Introduction ................................................................................................................. 5 1.2 Description of EUT ..................................................................................................... 5 1.3 Description of Support Equipment ............................................................................. 6 1.4 Configuration of System Under Test .......................................................................... 8 1.5 Test Procedure ............................................................................................................ 9 1.6 Location of the Test Site ............................................................................................. 9 1.7 General Test Condition ............................................................................................... 9 II. Section 15.203 : Antenna Requirement........................................................................... 10 III. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ............... 11 3.1 Test Condition & Setup ............................................................................................. 11 3.2 List of Test Instruments ............................................................................................. 11 3.3 Test Configuration ..................................................................................................... 12 3.4 Test Results of Conducted Emissions ........................................................................ 13 IV. Section 15.247(a) : Technical Description of the EUT................................................... 14 V. Section 15.247(a)(1) : Carrier Frequency Separation.................................................... 15 5.1 Test Condition ............................................................................................................ 15 5.2 Test Instruments Configuration ................................................................................. 15 5.3 List of Test Instruments ............................................................................................. 16 5.4 Test Results ................................................................................................................ 16 VI. Section 15.247(a)(1)(ii) : Number of Hopping Frequencies ......................................... 17 6.1 Test Condition ............................................................................................................ 17 6.2 List of Test Instruments ............................................................................................. 17 6.3 Test Instruments Configuration ................................................................................. 17 6.4 Test Results ................................................................................................................ 18 VII. Section 15.247(a)(1)(ii) : Time of Occupancy (Dwell time) .......................................... 19 7.1 Test Condition ............................................................................................................ 19 7.2 List of Test Instruments ............................................................................................. 19 7.3 Test Results ................................................................................................................ 20 VIII. Section 15.247(a)(1)(ii) : 20dB Bandwidth.................................................................... 21 8.1 Test Condition ............................................................................................................ 21 8.2 Test Instruments Configuration ................................................................................. 22 8.3 List of Test Instruments ............................................................................................. 22 8.4 Test Results ................................................................................................................ 23 Test Report ----------------------------------------------------------------------------- 4/36 Report No.: A5415072 (DSS Device) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 IX. Section 15.247(b) : Peak Output Power .......................................................................... 24 9.1 Test Condition & Setup ............................................................................................. 24 9.2 List of Test Instruments ............................................................................................. 24 9.3 Test Results ................................................................................................................. 24 X. Section 15.247(c) : Band-edge Compliance........................................................................ 28 10.1 Test Condition & Setup..................................................…

Text truncated - open the document above for the full version.
