MSQWL330UNLIMITED WIRELESS ACCESS POINT

Quick Setup Guide 12 ASUS Unlimited Wireless Access Point Appendix : Warning Statement 15.21 CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Prohibition of co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Federal Communications Commission Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. MPE Statement (Safety Information) To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Quick Setup Guide ASUS Unlimited Wireless Access Point 13 Quick Setup Guide 14 ASUS Unlimited Wireless Access Point

Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Sub.: Confidentiality Request regarding application for certification of FCC ID: MSQWL330 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

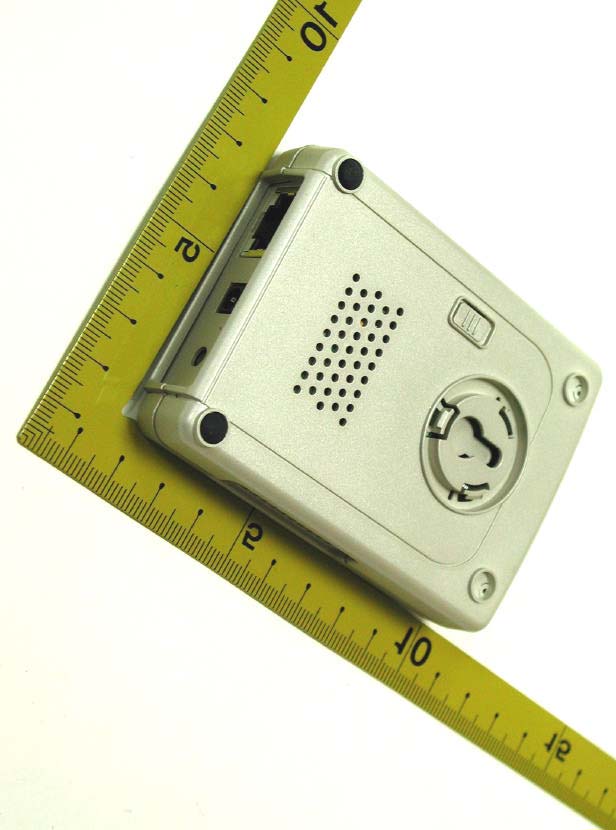

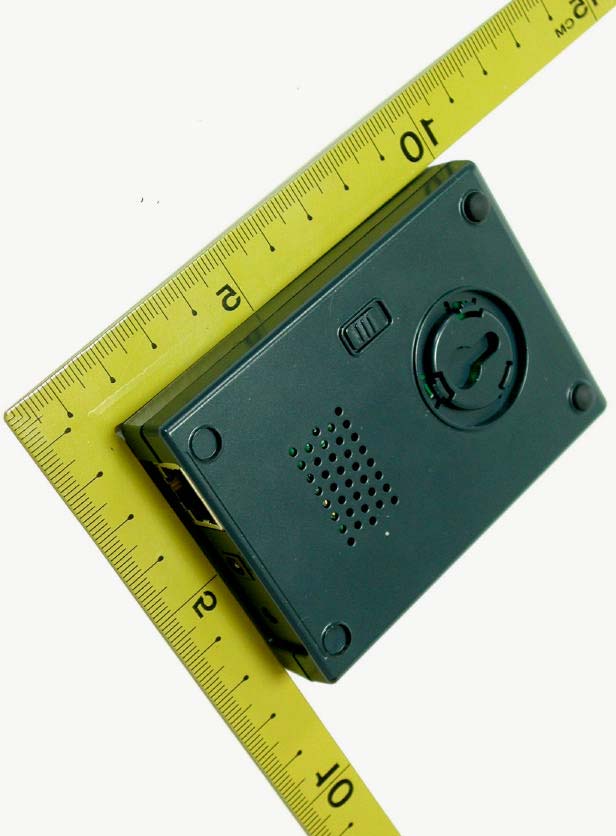

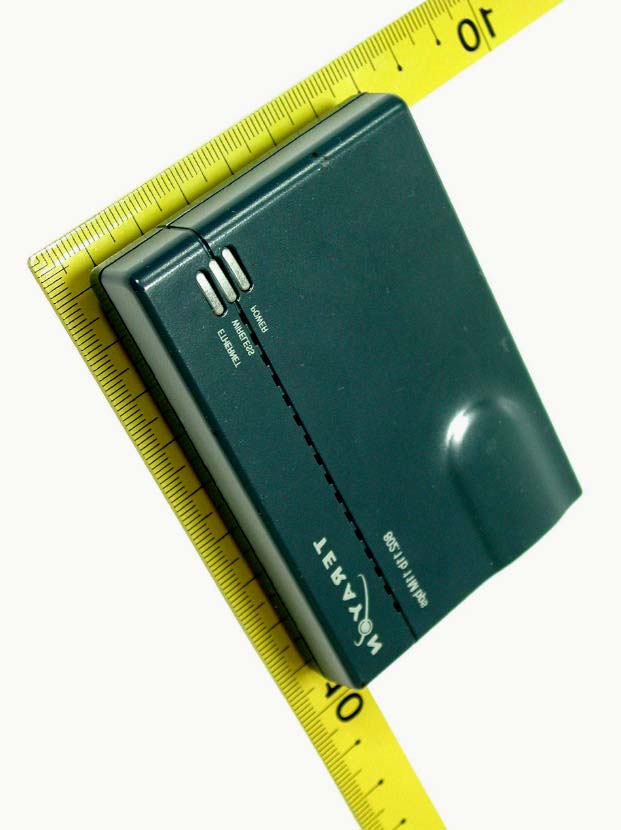

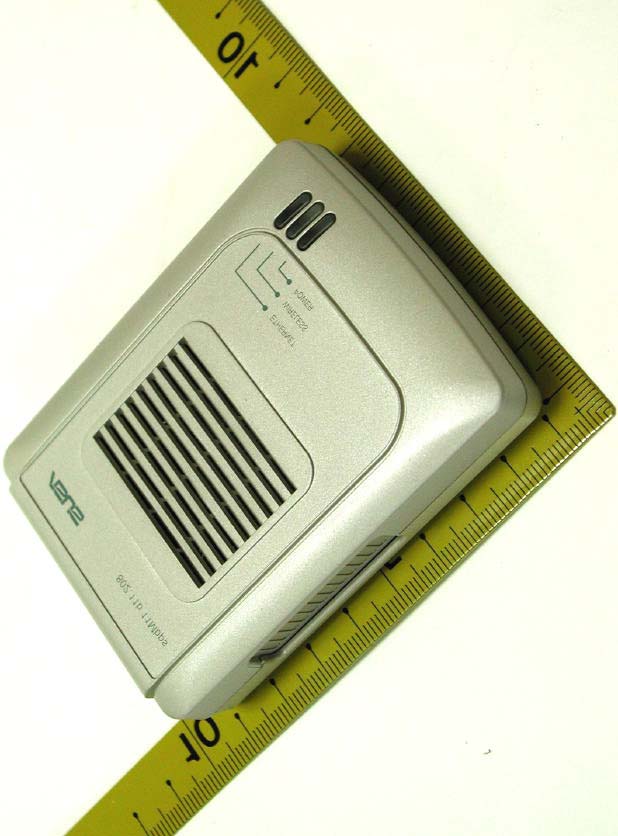

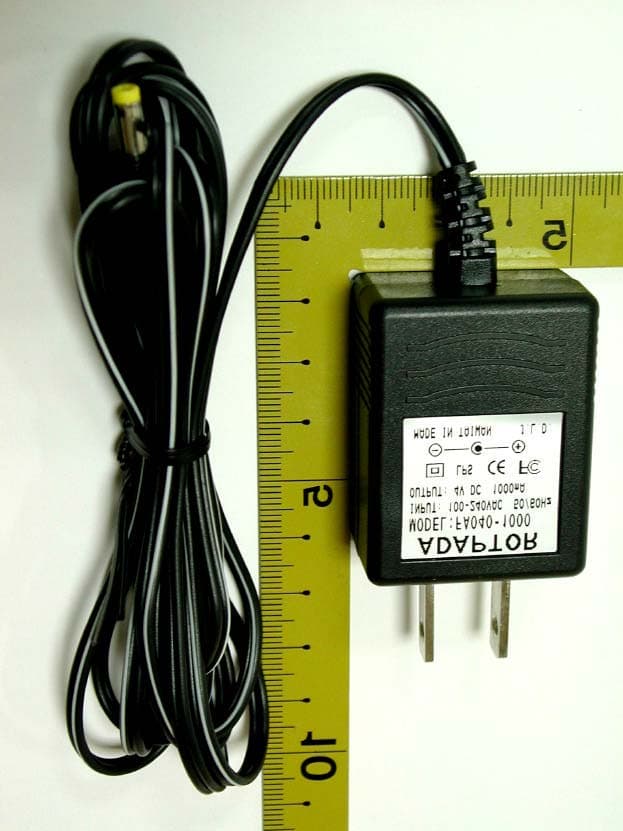

External Photos of Unlimited Wireless Access Point 1/7 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Unlimited Wireless Access Point 2/7 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Unlimited Wireless Access Point 3/7 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Unlimited Wireless Access Point 4/7 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Unlimited Wireless Access Point 5/7 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Unlimited Wireless Access Point 6/7 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Adaptor 7/7 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Position:

LABEL Size: 37mm x 22mm Wireless AP WL-330 Made in Taiwan FCC ID: MSQWL330 Model No.: WL-330 DC Input: 4V/1A ABN45102398158

Internal Photos of Unlimited Wireless Access Point 1/8 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Unlimited Wireless Access Point 2/8 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Unlimited Wireless Access Point 3/8 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Unlimited Wireless Access Point 4/8 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Unlimited Wireless Access Point 5/8 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Unlimited Wireless Access Point 6/8 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Unlimited Wireless Access Point 7/8 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Unlimited Wireless Access Point 8/8 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Measurement of Maximum Permissible Exposure 1/2 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT Granted FCC ID : MSQWL330 Product name : Unlimited Wireless Access Point Model name : WL- 330 ; MAP-11B Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channel Modulation Skill : DBPSK, DQPSK, CCK Power Type : Powered by Adaptor Model: FA040-1000; I/P: 100-240VAC, 50-60Hz; O/P: 4VDC, 1000mA Measurement of Maximum Permissible Exposure 2/2 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /031.0 )20(4 334.122.117 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R528.3 4 334.122.117 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 3.528cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (1.25 / 10) = 1.334 0 270 90 180 Main X Z 0 90 270 180 Y 0 90 180 270 1. without covering 2. with covering 2.9 GHz 10 dB/ -80 dB 20 dB CH110 dB/REF 0 dB START2 GHzSTOP3 GHz100 MHz/ MAGdB FIL 1k1k FIL 1k1k CPL OFS S11 1 2 3 1: -15.96 dB 2.4 GHz 2: -18.15 dB 2.45 GHz 3: -24.51 dB 2.5 GHz 〈 0 dB Date: 27.AUG.03 06:49:40 2.9 GHz 10 dB/ -80 dB 20 dB CH110 dB/REF 0 dB START2 GHzSTOP3 GHz100 MHz/ MAGdB FIL 1k1k FIL 1k1k CPL OFS S11 1 2 3 1: -36.18 dB 2.4 GHz 2: -31.77 dB 2.45 GHz 3: -22.13 dB 2.5 GHz 〈 0 dB Date: 27.AUG.03 06:50:41 3. Smith Chart 00.20.512510 -5 -2 -1 -0.5 0.5 1 2 5 CH1 ↑ 1 U START2 GHzSTOP3 GHz FIL 1k1k FIL 1k1k CPL OFS S11 1 2 3 1: 47.39 Ð j593.9 m Ð 2.4 GHz 2: 51.68 Ð j3.431 Ð 2.45 GHz 3: 55.91 Ð j9.069 Ð 2.5 GHz Date: 27.AUG.03 08:38:17

Test Report -------------------------------------------------------------------------------1/41 Report No.: A5415145, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Unlimited Wireless Access Point Applicant:ASUSTek Computer Inc. EUT:UnlimitedWireless Access Point Model No. : WL-330 ; MAP-11B FCC ID:MSQWL330 Report No.:A5415145 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------2/41 Report No.: A5415145, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant:ASUSTek Computer Inc. Applicant address:4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name:UnlimitedWireless Access Point Model Name : WL-330 ; MAP-11B FCC ID:MSQWL330 Report No.:A5415145 Test Date:Oct. 8, 2003 Prepared by:Approved by: Jack TsaiFrank Tsa i Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------3/41 Report No.: A5415145, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) For the Following Equipment: Product name:UnlimitedWirelessAccess Point Model name : WL-330 ; MAP-11B Trade name : ASUS ; TERAYON Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : A5415145 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name: ASUSTeK Computer Inc.To be determined Computer address: 4/F, 150, Li-Te Rd., Peitou, Taipei, Taiwan ZIP / Postal code 112 Contact person: Lawrence Yu Title: Manager Internet e-mail address: [email protected] Tel / Fax: 886-2-28943447 / 886-2-28950113 Test Report -------------------------------------------------------------------------------4/41 Report No.: A5415145, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL......................................................................................................................... 6 1.1 Introduction.................................................................................................................. 6 1.2 Description of EUT ....................................................................................................... 6 1.3 Test method .................................................................................................................. 6 1.4 Description of Support Equipment ................................................................................. 7 1.5 Configuration of System Under Test ............................................................................. 10 1.6 Verify the Frequency and Channel ................................................................................ 12 1.7 Test Procedure............................................................................................................ 13 1.8 Location of the Test Site ............................................................................................... 13 1.9 General Test Condition ................................................................................................. 13 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators....................... 14 III. Section 15.203 : Antenna Requirement............................................................................. 15 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units................... 16 4.1 Test Condition & Setup................................................................................................ 16 4.2 List of Test Instruments ................................................................................................ 16 4.3 Test Result of Conducted Emissions ............................................................................. 17 IEEE 802.11b, Channel 01............................................................................................. 17 IEEE 802.11b, Channel 06............................................................................................. 18 IEEE 802.11b, Channel 11 ............................................................................................. 19 Standby mode ............................................................................................................... 20 V.Section 15.247(a) : Technical Description of the EUT..................................................... 21 Test Re…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------ 1/3 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/3 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Unintentional) Front View of the Test Configuration of Unintentional Rear View of the Test Configuration of Unintentional Test Setup Photos ------------------------------------------------------------------------ 3/3 FCC ID: MSQWL330 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Intentional) Front View of the Test Configuration of Intentional Rear View of the Test Configuration of Intentional
