Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: MSQWL330GE Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: z Schematics – WL-330gE Schem.pdf z Part List - WL-330gE ParLst.pdf z Block diagram - WL-330gE BlkDia.pdf z Operational description - WL-330gE OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: z External Photos - WL-330gE ExtPho.pdf z Internal Photos - WL-330gE IntPho.pdf z Test Setup Photos - WL-330gE 04 TSup.pdf z User’s Manual - WL-330gE UserMan.pdf Sincerely, Lawrence Yu / Manager, ASUSTek Computer Inc.
LABEL Sample and Location information ------------------------------------------------- 1/1 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL Size: 39 x 24 mm The device complies with Part 15 of the FCC Rules. See instruction FCC ID: MSQWL330GE Model No.: WL-330gE

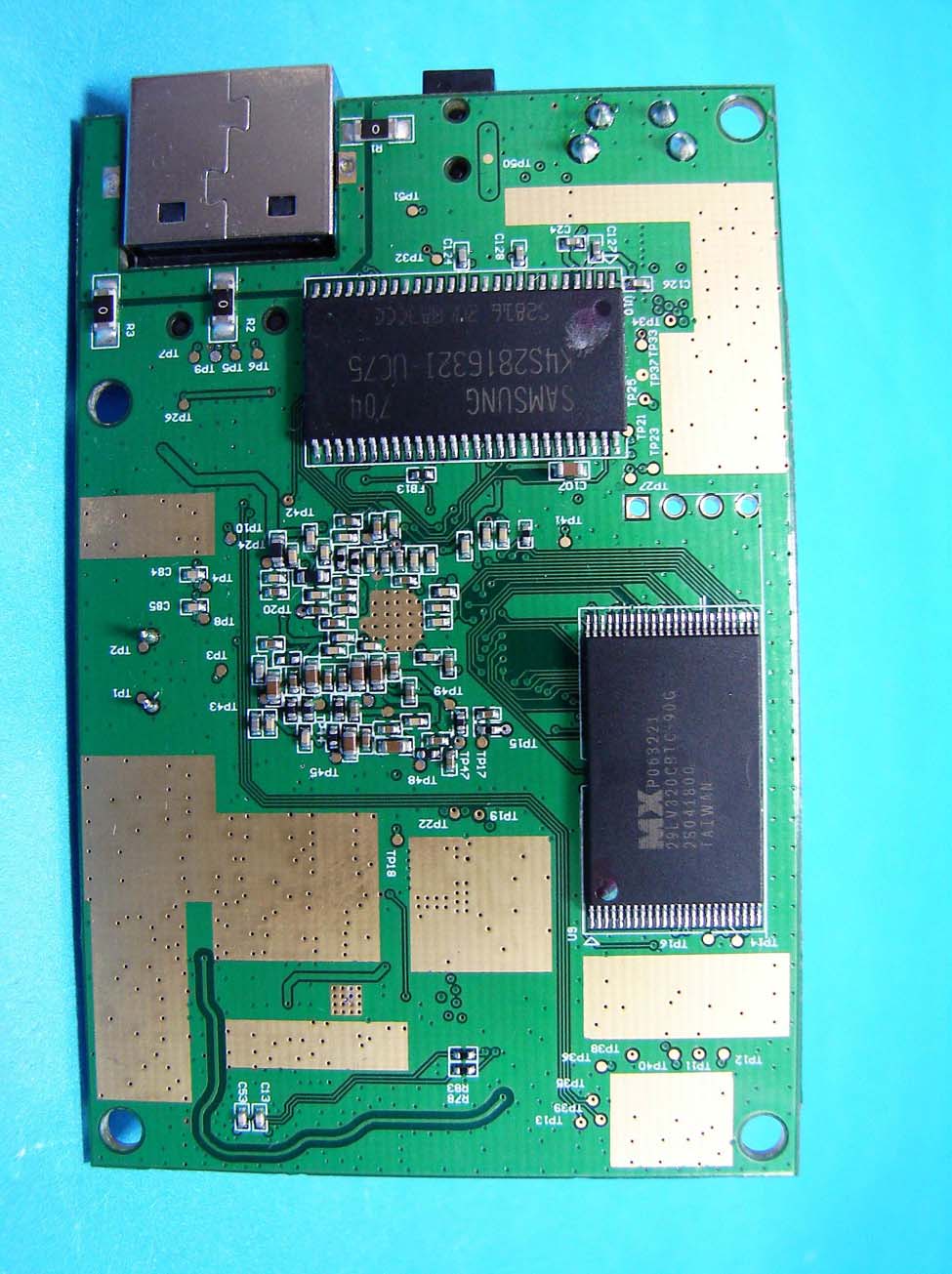

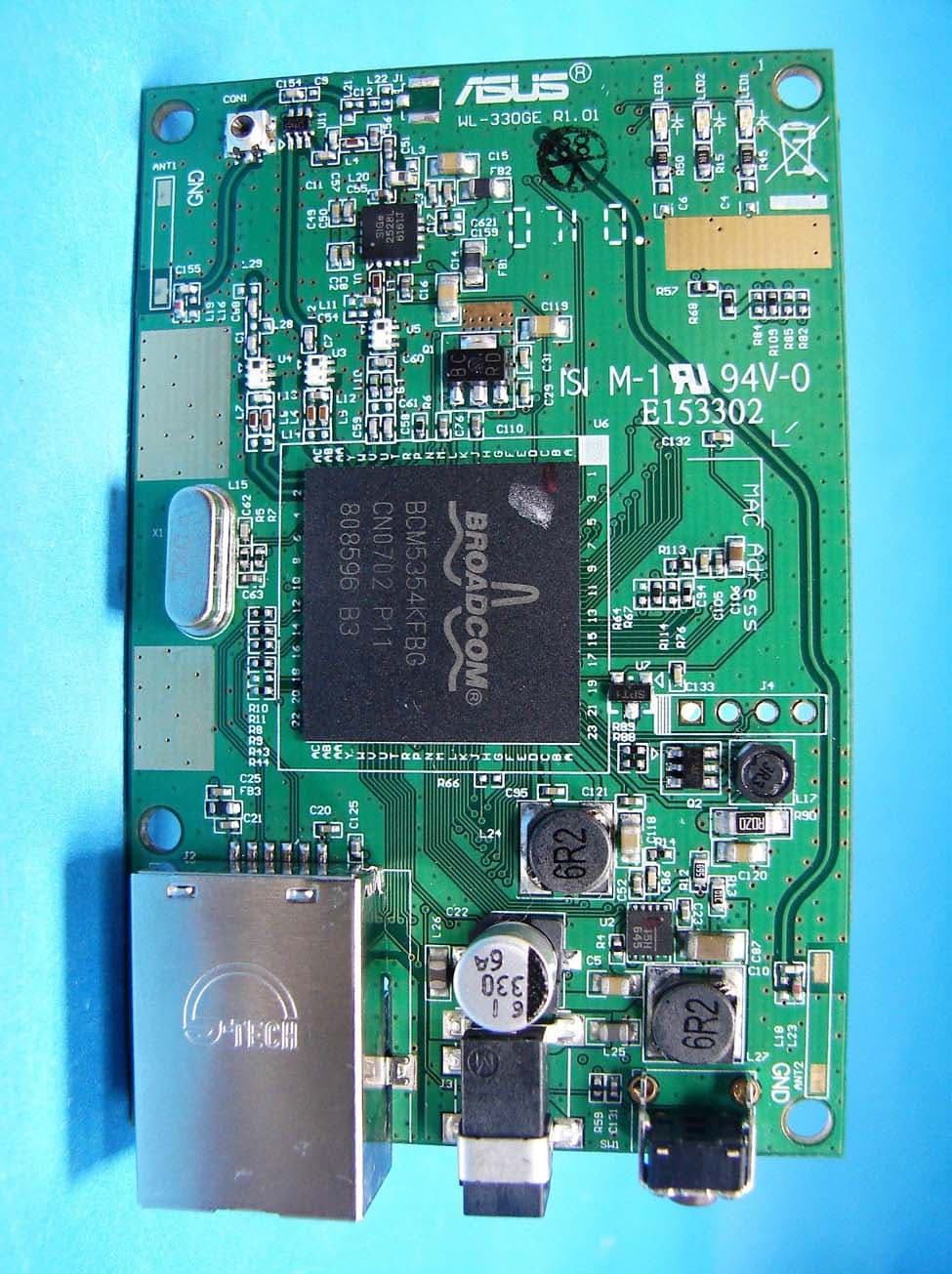

Internal Photos of EUT --------------------------------------------------------------- 6/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 7/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 8/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 9/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 10/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 11/11 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Measurement of Maximum Permissible Exposure ---------------------------------------- 1/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : MSQWL330GE Product name : Portable Wireless Access Point Model : WL-330gE Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by the switching adapter, 1. Manufacture: LEADER ELECTRONICS INC. Model: MU12-2050100-A1 I/P: 100 ~ 240VAC ~ 50/60Hz 0.3A O/P: 5VDC 1.0A. 152cm length, non-shielded, without ferrite core 2. Manufacture: DVE Model: DSA-5P-05FUS 050100 I/P: 100 ~ 240VAC ~ 50/60Hz 0.2A 20VA O/P: 5VDC 1.0A. 158cm length, non-shielded, without ferrite core Measurement of Maximum Permissible Exposure ---------------------------------------- 2/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /0738.0 )20(4 334.1277.97 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R43.5 4 334.1277.97 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 4.73cm" Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (1.25 / 10) = 1.334 Measurement of Maximum Permissible Exposure ---------------------------------------- 3/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix Antenna Specification Antenna Information 1. Antenna Specification and Radiation Characteristics Designator Manufacturer Antenna Type Gain(dBi) WL-330gE Portable Wireless Access Point ASUS Film Type Inverted F Antenna please refer to next table Position Frequency(MHz) Gain(dBi) Horizontal Vertical peak 1.25dBi -5.45dBi X 2445.08MHz avg -6.19dBi -12.03dBi peak -1.29dBi -0.87dBi Y 2445.08MHz avg -6.80dBi -6.3dBi peak -2.29dBi 0.94dBi Z 2445.08MHz avg -10.47dBi -2.53dBi Portable Wireless Access Point Brand: ASUS Model: WL-330gE 2. Antenna Pattern X-2400MHz-Hor. X-2400MHz-Ver. Portable Wireless Access Point Brand: ASUS Model: WL-330gE Y-2400MHz-Hor. Y-2400MHz-Ver. Portable Wireless Access Point Brand: ASUS Model: WL-330gE Z-2400MHz-Hor. Z-2400MHz-Ver. Portable Wireless Access Point Brand: ASUS Model: WL-330gE
Test Report ---------------------------------------------------------------------------------- 1/53 Report No.: A5415061076, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Portable Wireless Access Point Applicant : ASUSTek Computer Inc. EUT : Portable Wireless Access Point Model No. : WL-330gE FCC ID : MSQWL330GE Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ---------------------------------------------------------------------------------- 2/53 Report No.: A5415061076, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart C Section 15.247. Applicant : ASUSTek Computer Inc. Applicant Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name : Portable Wireless Access Point Model : WL-330gE Report No. : A5415061076 Test Date : March 08, 2007 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. Test Report ---------------------------------------------------------------------------------- 3/53 Report No.: A5415061076, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ................................................................................................................... 5 1.1 Introduction ......................................................................................................... 5 1.2 Description of EUT ............................................................................................. 5 1.3 Test method ......................................................................................................... 6 1.4 Description of Support Equipment ...................................................................... 7 1.5 Configuration of System Under Test .................................................................. 10 1.6 Verify the Frequency and Channel ..................................................................... 11 1.7 Test Procedure .................................................................................................... 12 1.8 Location of the Test Site .................................................................................... 12 1.9 General Test Condition ...................................................................................... 12 II. Section 15.203 : Antenna Requirement..................................................................... 13 III. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ......... 14 3.1 Test Condition & Setup ...................................................................................... 14 3.2 List of Test Instruments ...................................................................................... 15 3.3 Test Result of Conducted Emissions .................................................................. 16 IEEE 802.11b: Adapter#1 ............................................................................................... 16 IEEE 802.11g: Adapter#1 ............................................................................................... 18 IEEE 802.11b: Adapter#2 ............................................................................................... 19 IEEE 802.11g: Adapter#2 ............................................................................................... 21 IV. Section 15.247(a) : Technical Description of the EUT.............................................. 23 V. Section 15.247(a)(2) : Bandwidth for Direct Sequence System ............................. 24 5.1 Test Condition & Setup ...................................................................................... 24 5.2 Test Instruments Configuration .......................................................................... 24 5.3 List of Test Instruments ...................................................................................... 24 5.4 Test Result of Bandwidth ................................................................................... 24 Channel 01 ...................................................................................................................... 25 Channel 06 ...................................................................................................................... 26 Channel 11 ...................................................................................................................... 27 Test Report ---------------------------------------------------------------------------------- 4/53 Report No.: A5415061076, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VI. Section 15.247(b) : Power Output ............................................................................ 28 6.1 Test Condition & Setup ...................................................................................... 28 …
Text truncated - open the document above for the full version.
Test Setup Photos ------------------------------------------------------------------------ 1/2 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/2 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL330GE Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: Front View of the Test Configuration Rear View of the Test Configuration
