SpaceLink Home Gateway WL-500g User’s Manual ® 2SpaceLink Home Gateway No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2002 ASUSTeK COMPUTER INC. All Rights Reserved. Copyright Information Product Name:SpaceLink Home Gateway (WL-500g) Manual Revision:1.00 E1062 Release Date:Aug 2002 SpaceLink Home Gateway3 ASUSTeK COMPUTER INC. (Asia-Pacific) Address:150 Li-Te Road, Peitou, Taipei, Taiwan 112 General Tel:+886-2-2894-3447 General Fax:+886-2-2894-3449 General Email:[email protected] Technical Support MB/Others (Tel):+886-2-2890-7121 (English) Notebook (Tel):+886-2-2890-7122 (English) Desktop/Server (Tel): +886-2-2890-7123 (English) Support Fax:+886-2-2890-7698 Support Email:[email protected] Web Site:www.asus.com.tw Newsgroup:cscnews.asus.com.tw ASUS COMPUTER INTERNATIONAL (America) Address:6737 Mowry Avenue, Mowry Business Center, Building 2, Newark, CA 94560, USA General Fax:+1-510-608-4555 General Email:[email protected] Technical Support Support Fax:+1-510-608-4555 Web Site:www.asus.com Support Email:[email protected] ASUS COMPUTER GmbH (Europe) Address:Harkortstr. 25, 40880 Ratingen, BRD, Germany General Fax:+49-2102-442066 General Email:[email protected] (for marketing requests only) Technical Support Support Hotline:MB/Others: +49-2102-9599-0 Notebook (Tel):+49-2102-9599-10 Support Fax:+49-2102-9599-11 Support (Email):www.asuscom.de/de/support (for online support) Web Site:www.asuscom.de Copyright Information 4SpaceLink Home Gateway Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: •This device may not cause harmful interference, and •This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. Canadian Department of Communications This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Safety Statements SpaceLink Home Gateway 5 Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. Any changes of modifications not expressly approved by the grantee of this device could void the users authority to operate the equipment. FCC Radio Frequency Exposure Caution Statement Installation and use of this Wireless L…

Text truncated - open the document above for the full version.

3. Utilities SpaceLink Home Gateway27 Chapter 3 - Home Gateway Utilities Connecting to the SpaceLink Web Manager Wired Ethernet Connection Besides using a network hub, you can also connect a LAN cable from your computer’s network card to the Home Gateway using either a straight or crossover cable because the SpaceLink Home Gateway LAN and WAN RJ-45 ports have auto-crossover capability. Wireless Connection If you are using a Notebook PC with a wireless adapter, you can connect to the SpaceLink Homegateway Web Manager without a wired Ethernet connection. Home Gateway Discovery Run the ASUS Homegateway Discovery from the Start menu and click Config on the device. Manually Entering the Address You can also open your PC’s web browser and enter the IP address of the ASUS SpaceLink Home Gateway depending on the port you are using. 3. SpaceLink Home Gateway Utilities After installation, you can launch the utilities through the Start menu. 3. Utilities 28SpaceLink Home Gateway Chapter 3 - Home Gateway Utilities Web access through the WAN port (over the Internet) is disabled by default so that the above private IP can be used for configuration access. If Internet access through the WAN port is enabled by the user, port 8080 must be used for configuration access. In this case, you would enter the following: http://(WAN Port IP Address):8080 in your web browser. If your computer’s IP is not on the same subnet as the SpaceLink Home Gateway, you will be asked to change it. The IP address can be any number from 2 to 254 that is not used by another device. If your computer is connected to the WAN port use http://(WAN Port IP Address):8080 If your computer is connected to the LAN port use: http://192.168.123.1 Using a proxy server for your LAN requires that you set an ex- ception for the SpaceLink Home Gateway or else connection will fail. 3. Utilities SpaceLink Home Gateway29 Chapter 3 - Home Gateway Utilities Home Page After logging in, you will see the ASUS HomeGateway home page. User Name and Password Once connected, a window will ask for the User name and Password in order to log in. The factory default values are “admin” and “admin”. If you cannot find any the SpaceLink Home Gateways due to a prob- lem in the IP settings, push and hold the “Restore” button over five seconds to restore factory default settings. 3. Utilities 30SpaceLink Home Gateway Chapter 3 - Home Gateway Utilities Basic Setup Select Basic Setup from the menu on the left. Click Next to enter the wireless configuration page. Login Password You can find “Login Password” on the Main Menu. This page will allow you to change the default password “admin” (lower case) to any password of you choice. You can enter any usable characters between 1-16 characters long (cannot be left blank). Click Modify button to save your new password. If you forget the SpaceLink Home Gateway’s password, you can reset the SpaceLink Home Gateway to its factory settings (see troubleshooting). Note: The password is case sensitive. 3. Utilities SpaceLink Home Gateway31 Chapter 3 - Home Gateway Utilities Status The Status page available from the Main Menu gives you all the necessary information for monitoring the SpaceLink Home Gateway’s condition. See next page for information on this page. 3. Utilities 32SpaceLink Home Gateway Chapter 3 - Home Gateway Utilities Status Details Details of the Status page items are described in the configuration pages following this page. Wireless Number of Associated Stations - Tells you how many wireless mobile clients are connected to the SpaceLink Home Gateway. LAN DHCP Server - This shows either Enabled or Disabled. LAN Port Link State - Linked or Not Linked (indicates whether the cable is plugged in or not). WAN WAN Port Link State - Linked or Not Linked (indicates whether the cable is plugged in or not). WAN Port Connection State: Disconnected, Connecting, OK (OK indicates that the IP address is working). Printer Server Connected Printer Status: There are five possible statuses: Off-Line (no printer), On-Line (ready), Error (problem), Out of Paper, Busy (someone is printing). User in Service: Shows the IP address of the user when the status is busy. 3. Utilities SpaceLink Home Gateway33 Chapter 3 - Home Gateway Utilities Basic Setup - Wireless This page allows you to configure the wireless settings. See next page for descriptions on each setting. IMPORTANT: New settings will only take effect after clicking the “Fin- ish” button and waiting for the SpaceLink Home Gateway to restart. 3. Utilities 34SpaceLink Home Gateway Chapter 3 - Home Gateway Utilities SSID & Channel The SSID is an identification string of up to 32 ASCII characters that differentiate one SpaceLink Home Gateway or Access Point from another. The SSID is also referred to as the “ESSID” or “Extended Service Set ID.” You can use the default SSID and radio channel unless more than one SpaceLink Home Gateway or Access Point is deployed in the same area. In that case, you should use a different SSID and radio channel for each SpaceLink Home Gateway or Access Point. All the SpaceLink Home Gateways and SpaceLink 802.11b client adapters must have the same SSID to allow a wireless mobile client to roam between the SpaceLink Home Gateways. By default, the SSID is set to “default”. Channel IEEE 802.11b devices are direct sequence spread spectrum devices that spread a radio signal over a range of frequencies. The range of frequencies used by a direct sequence device is called a Channel. The IEEE 802.11b specification supports up to 14 overlapping Channels for radio communication. But only 11 Channels are supported in the United States and therefore on the SpaceLink Home Gateway. To minimize interference, configure each the SpaceLink Home Gateway to use Non- overlapping channels. Non-overlapping channels have 25Mhz separation beginning at the first allowed channel for the country (for the US and most of Europe, channels 1, 6 & 11 are used). Make sure that the SpaceLink Hom…

Text truncated - open the document above for the full version.

Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Sub.: Confidentiality Request regarding application for certification of FCC ID: MSQWL500G Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

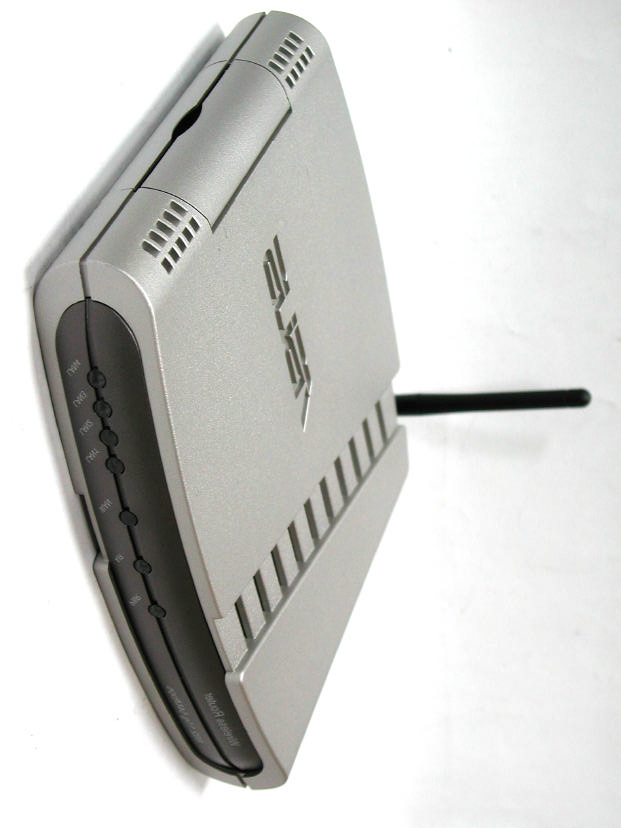

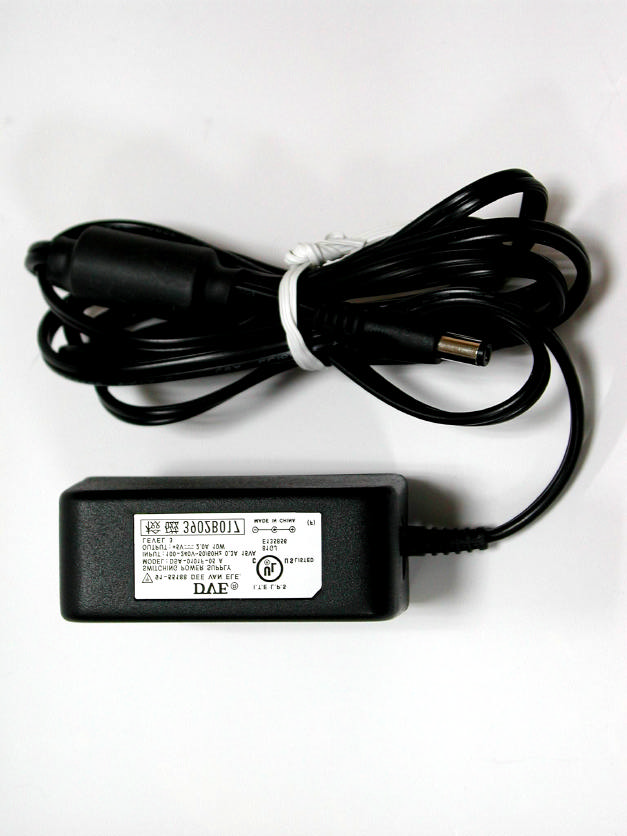

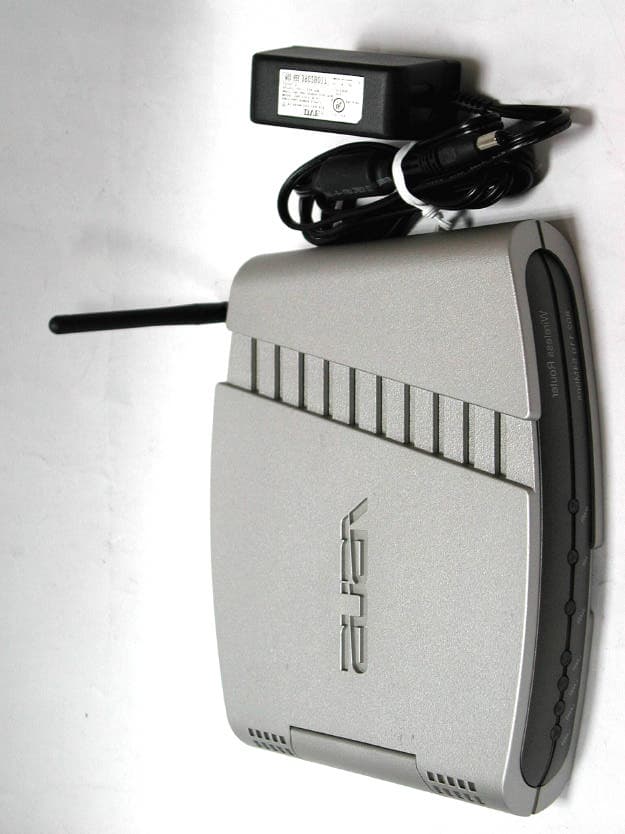

External Photos of Wireless Router 1/4 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless Router 2/4 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless Router 3/4 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless Router 4/4 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Position:

Internal Photos of Wireless Router1/7 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router2/7 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router3/7 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router4/7 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router5/7 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router6/7 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router7/7 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Training Research Co., Ltd. No. 255, Nan-yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel:886-2-26935155Fax: 886-2-26934440 e-mail: [email protected] 1 of 2 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. TheGain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formulaand the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT Granted FCC ID:MSQWL500G Product name:WirelessRouter Model name:WL-500g Classification:Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’ s manual Frequency Range:2.412 GHz ~ 2.462GHz Supported Channel :11 Channel Modulation Skill:DBPSK, DQPSK, CCK, OFDM Power Type:Powered by Switching Power Adaptor Manufacturer: DVE Model: DSA-0101F-05 A I/P: AC 100-240V, 50-60Hz, 0.3A, 10VA O/P: +5VDC, 2A, 10W Training Research Co., Ltd. No. 255, Nan-yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 2 of 2 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 22 22 /10049.6 )20(4 249.2207.135 4 cmmW R PG S − ×= × == ππ Estimated safe separation: cm PG R919.4 4 249.2207.135 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 4.919 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dBi antenna gain / 10 ) G = Log -1 (3.52 / 10) = 2.249 PRODUCT NAME 2.4G ANTENNA WITH RP SMA PART NUMBER ϭ W201-108-D2 Signed By Customers Approved By:
 : TEL:02-2917-7528;FAX:02-2912-1659  37  3  NInput Output Enterprise Corp. PRODUCT SPECIFICATION DOC. No: WL-TL-17 DATE: 25-M A R-02 REV. : C ˊ גᔭ Brass ᝳ᠛ ˉ ༐୚ TPRBlack ˈ ஆࢍ ABSBlack ˇ ᒵஆ֚ ABSBlack ˆ RP SMA ླྀށ Brass ᝳ႕Ꮀ ˅ Contacter ጤ՗ Be.Copper ᝳ८ 30u" ˄ RP SMA ᧯׌ Brass ᝳ८ 4u" ̃˧ ̆ˠ ˗ ̆˦˖˥ ̃ˣ˧ ̃ˢˡˠ˔˧ ̆˥ ̃˔˟˦ ̇ ̃ˡ ̃˦ ̨ ̆˗ NInput Output Enterprise Corp. PRODUCT SPECIFICATION 2.4 G ANTENNA WITH RP -SMA PLUG DOC. No: WL-TL-17 DATE: 25-M A R-02 REV. : C NInput Output Enterprise Corp. PRODUCT SPECIFICATION RP-SMA R/A JACK PCB RECEPTACLE DOC. No: WL-TL-17 DATE: 25-M A R-02 REV. : C W201-108-D2 2.4G ANTENNA SPECIFICATION 1. Electrical Properties 1-1Frequency Range .........................2.4~2.5GHz 1-2Impedance..................................50 Ohms nominal 1-3V.S.W.R.......... . ....... ............. ......2.0 (Max.) 1-4Return Loss............................ ...- 10.0 dB(Max.) 1-5Max. Gain..................................3.52dBi 1-6Polarization.........................Vertical 1-7Admitted Power...........................1W 1-8Electrical Wave............................1/4 â Dipole 2. Mechanical Properties 2-1 Connector........................Reverse SMA Plug Cable......................................RG178 2-3 Antenna Body...........................T.P.R. 2-4 Operating Temperature Range.. ......-20к ~ +50к 2-5 Storage Temperature Range.......... - 2 0к ~ +50к NInput Output Enterprise Corp. PRODUCT SPECIFICATION 2.4 G ANTENNA WITH RP -SMA PLUG DOC. No: WL-TL-17 DATE: 25-MAR-02 REV. : C NInput Output Enterprise Corp. PRODUCT SPECIFICATION 2.4 G ANTENNA WITH RP -SMA PLUG DOC. No: WL-TL-17 DATE: 25-M A R-02 REV. : C 2.9 GHz 10 dB/ -80 dB 20 dB CH110 dB/REF0dB START2 GHzSTOP3GHz100 MHz/ MAGdB FIL 10k10k FIL 10k10k CPL CAL S11 1 2 3 3: -6.252 dB 2.5 GHz 1: -9.111 dB 2.4 GHz 2: -7.886 dB 2.45 GHz 〈 0dB Date: 28.MAR.03 02:18:30 return loss of small I-F antenna on main board (1058x932x16M wmf) 2.9 GHz 10 dB/ -80 dB 20 dB CH110 dB/REF0dB START2 GHzSTOP3GHz100 MHz/ MAGdB FIL 10k10k FIL 10k10k CPL CAL S11 1 2 3 3: -8.356 dB 2.5 GHz 1: -22.19 dB 2.4 GHz 2: -14.91 dB 2.45 GHz 〈 0dB Date: 28.MAR.03 02:14:25 return loss of small I-F antenna (1058x932x16M wmf) WL120G-X (1200x1600x16M jpeg) WL120G-X_2450_hor (639x784x16M jpeg) WL120G-X_2450_ver (639x784x16M jpeg) WL120G-Y (1200x1600x16M jpeg) WL120G-Y_2450_hor (639x784x16M jpeg) WL120G-Y_2450_ver (639x784x16M jpeg) WL120G-Z (1200x1600x16M jpeg) WL120G-Z_2450_hor (639x784x16M jpeg) WL120G-Z_2450_ver (639x784x16M jpeg)

Test Report -------------------------------------------------------------------------------1/48 Report No.: A5415561, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless Router Applicant:ASUSTek Computer Inc. EUT:WirelessRouter Model No.:WL-500g FCC ID:MSQWL500G Report No.:A5415561 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------2/48 Report No.: A5415561, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant:ASUSTek Computer Inc. Applicant address :4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name:Wireless Router Model Name:WL-500g FCC ID:MSQWL500G Report No.:A5415561 Test Date : May 27, 2003 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------3/48 Report No.: A5415561, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) For the Following Equipment: Product name : Wireless Router Model name: WL-500g Trade name: ASUS Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : A5415561 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name: ASUSTeK Computer Inc.To be determined Computer address: 4/F, 150, Li-Te Rd., Peitou, Taipei, Taiwan ZIP / Postal code 112 Contact person: Lawrence Yu Title: R & D Engineer Internet e-mail address: [email protected] Tel / Fax: 886-2-28943447 / 886-2-28950113 Test Report -------------------------------------------------------------------------------4/48 Report No.: A5415561, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL........................................................................................................................ 6 1.1 Introduction.................................................................................................................. 6 1.2 Description of EUT ....................................................................................................... 6 1.3 Description of Support Equipment ................................................................................. 6 1.4 Test method .................................................................................................................. 7 1.5 Configuration of System Under Test ............................................................................. 10 1.6 Verify the Frequency and Channel ................................................................................ 14 1.7 Test Procedure............................................................................................................ 13 1.8 Location of the Test Site ............................................................................................... 13 1.9 General Test Condition ................................................................................................. 13 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators........ 14 III.Section 15.203 : Antenna Requirement...................................................................... 15 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units.... 16 4.1 Test Condition & Setup................................................................................................ 16 4.2 List of Test Instruments ................................................................................................ 16 4.3 Test Result of Conducted Emissions ............................................................................. 17 802.11b ....................................................................................................................... 17 802.11g....................................................................................................................... 19 V.Section 15.247(a) : Technical Description of the EUT............................................ 21 VI. Section 15.247(a)(2) : Bandwidth for Direct Sequence System.......................... 22 6.1 Test Condition & Setup ................................................................................................ 22 6.2 Test Instruments Configuration ...................................................................................... 22 6.3 List of Test Instruments ...…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------ 1/3 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/3 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Unintentional) Front View of the Test Configuration of Unintentional Rear View of the Test Configuration of Unintentional Test Setup Photos ------------------------------------------------------------------------ 3/3 FCC ID: MSQWL500G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Intentional) Front View of the Test Configuration of Intentional Rear View of the Test Configuration of Intentional
