MSQWL500GPV2ASUS WIRELESS ROUTER

User Manual WL-500gP V2 Wireless Router E3209/ April 2007 ® WL500gP_Manual.indd 12007.4.19 5:05:28 PM Manufacturer Contact Information $6867H.&20387(5,1& $VLD3DFLÀF Company address: 15 Li-Te Road, Beitou, Taipei 11259 General (tel):+886-2-2894-3447 Web site address: www.asus.com.tw General (fax): +886-2-2894-7798 General email:[email protected] $686&20387(5,17(51$7,21$/ $PHULFD Company address: 44370 Nobel Drive, Fremont, CA 94538, USA General (fax): +1-510-608-4555Web site address: usa.asus.com Technical support General support: +1-502-995-0883 Support (fax):+1-502-933-8713 Online support: http://vip.asus.com/eservice/techserv.aspx $686&20387(5*PE+ *HUPDQ\ $XVWULD Company address: Harkort Str. 25, D-40880 Ratingen, Germany General (tel):+49-2102-95990Web site address: www.asuscom.de General (fax): +49-2102-959911 Online contact:www.asuscom.de/sales Technical support Components:+49-2102-95990Online support:www.asuscom.de/support Notebook:+49-2102-959910 Support (fax):+49-2102-959911 WL500gP_Manual.indd 22007.4.19 5:05:28 PM WL-500gP V2 Wireless Router User Manual 1 Table of contents 1. Package contents ................................................................................. 3 2. Connecting ADSL modem and wireless router ................................. 3 1) Cable connection ............................................................................... 3 2) Status indicators ................................................................................ 4 3) Wall mount option .............................................................................. 4 3. Getting started ...................................................................................... 5 1) Wired connection ............................................................................... 5 2) Wireless Connection.......................................................................... 5 3) Setting IP address for wired or wireless client ................................... 5  &RQÀJXULQJWKHZLUHOHVVURXWHU.......................................................... 6 5) Quick setup ....................................................................................... 7 4. Wireless router features .................................................................... 12 1) Choosing an appropriate operation mode ....................................... 12 2) Setting up wireless encryption ........................................................ 13 3) Setting up virtual server in your LAN ............................................... 14 4) Setting up virtual DMZ in your LAN ................................................. 15 5) Setting up DDNS ............................................................................. 15 6) Setting up Bandwidth Management................................................. 21 5. Application features ........................................................................... 23 1) Sharing USB storage ....................................................................... 23 2) Setting up FTP site .......................................................................... 25 3) Web camera .................................................................................... 26 4) Sharing USB printer......................................................................... 28 5) Playing stream media on Xbox360 .................................................. 31 6. Setting up using ASUS utility ................................................................ 34 1) Utility Installation for WL-500gP V2 ................................................. 34 2) EZSetup........................................................................................... 35 WL500gP_Manual.indd 12007.4.19 5:05:29 PM WL-500gP V2 Wireless Router User Manual 2 7. Troubleshooting ................................................................................. 37 8. Appendix ............................................................................................. 39 WL500gP_Manual.indd 22007.4.19 5:05:29 PM WL-500gP V2 Wireless Router User Manual 3 2. Connecting ADSL modem and wireless router 1. Package contents • WL-500gP V2 wireless router x 1 • Power adapter x 1 • Utility CD x 1 • RJ45 cable x 1 • Quick Start Guide x 1  &DEOHFRQQHFWLRQ 1 Modem Wall telephone outlet Wall power outlet Phone Power 2 Wall power outlet ASUS Wireless Router LAN 3 Modem Wall telephone outlet Wall power outlet LAN Power Phone Power ASUS Wireless Router WAN Power WL500gP_Manual.indd 32007.4.19 5:05:32 PM WL-500gP V2 Wireless Router User Manual 4  6WDWXVLQGLFDWRUV 3:5 3RZHU   Off No power On System ready Flashing-slowFirmware upgrade failed Flashing-quickEZsetup processing $,5 :LUHOHVV1HWZRUN Off No power On Wireless system ready Flashing Transmitting or receiving data (wireless) :$1 :LGH$UHD1HWZRUN Off No power or no physical connection On Has physical connection to an Ethernet network Flashing Transmitting or receiving data (through Ethernet cable) /$1 /RFDO$UHD1HWZRUN Off No power or no physical connection On Has physical connection to an Ethernet network Flashing Transmitting or receiving data (through Ethernet cable)  :DOOPRXQWRSWLRQ Out of the box, ASUS WL-500gP V2 Wireless 5RXWHULVGHVLJQHGWRVLWRQDUDLVHGÁDWVXUIDFHOLNH DÀOHFDELQHWRUERRNVKHOI7KHXQLWPD\DOVREH converted for mounting to a wall or ceiling. Follow these steps to mount the ASUS Wireless Router to a wall: 1. Look on the underside for the two mounting hooks.  0DUNWZRXSSHUKROHVLQDÁDWVXUIDFH 3. Tighten two screws until only 1/4'' is showing. 4. Latch the hooks of the ASUS Wireless Router onto the screws. Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the screws or if it is too loose. PWR AIRWANLAN WL500gP_Manual.indd 42007.4.19 5:05:34 PM WL-500gP V2 Wireless Router User Manual 5 The ASUS WL-500gP V2 Wireless Router can meet various working scenarios with proper …

Text truncated - open the document above for the full version.

WL-500gP V2 Wireless Router User Manual 12 4. Wireless router features This chapter provides setup examples of some frequentlly used router features. You can setup these features via your Web browser.  &KRRVLQJDQDSSURSULDWHRSHUDWLRQPRGH ASUS WL-500gP V2 Wireless Router supports three operation modes: home gateway, router, and access point. Click System Setup -> Operation mode to open the FRQÀJXUDWLRQSDJH Home gateway mode is for home or SOHO users who want to connect to their ISPs for Internet services. In this operation mode, NAT, :$1FRQQHFWLRQ,QWHUQHWÀUHZDOOIXQFWLRQVDUHVXSSRUWHG Router PRGHLVIRURIÀFHXVHZKHUHPXOWLSOHURXWHUVDQGVZLWFKHVFRH[LVW You can set up routing policies in this mode; however, NAT function is disabled. Access point mode works when you setup WL-500gP V2 as a wireless bridge. In this mode, all Ethernet ports on WL-500gP V2 (4 LAN ports and 1 WAN SRUW DUHUHFRJQL]HGDV/$1SRUWV:$1FRQQHFWLRQ1$7DQG,QWHUQHWÀUHZDOO functions are disabled in access point mode. Select a proper mode which complies to your network senario and press Apply button, and then you can continue to setup advanced features for your WL-500gP V2. WL500gP_Manual.indd 122007.4.19 5:05:45 PM WL-500gP V2 Wireless Router User Manual 13  6HWWLQJXSZLUHOHVVHQFU\SWLRQ WL-500gP V2 provides a set of encryption and authentication methods to meet the different demands of home, SOHO, and enterprise users. Before setting up encryption and authentication for WL-500gP V2, contact your network administrator for advice. Click Wireless -> Interface WRRSHQWKHFRQÀJXUDWLRQSDJH Encryption The encrytion modes supported by WL-500gP V2 are: WEP (64bits), WEP (128bits), TKIP, AES, and TKIP+AES. WEP stands for Wired Equivalent Privacy, it uses 64bits or 128bits static keys to encrypt the data for wireless transmission. To setup WEP keys, set WEP Encryption to WEP-64bits or WEP-128bits , then manually type in four sets WEP Keys (10 hexadicimal digits for 64-bit key or 26 hexadicimal digits for 128-bit key). You can also let the system generate the keys by entering a Passphrase . TKIP stands for Temporal Key Integrity Protocol. TKIP dynamically generates unique keys to encrypt every data packet in a wireless session. AES stands for Advanced Encryption Standard. This solution offers stronger protection and increases the complexity of wireless encryption. TKIP+AES is used when both WPA and WPA2 clients co-exist in the wireless network. WL500gP_Manual.indd 132007.4.19 5:05:46 PM WL-500gP V2 Wireless Router User Manual 14 2. Select Yes to enable virtual server. For example, if host 192.168.1.100 is FTP server which is to be accessed by Internet user, it means all packets from Internet with destination port as 21 are to be directed to the host. Set Well-known Application to FTP. Port range to 21, Local IP to the host IP, Local Port to 21, Protocol to TCP. 3. Click Finish . 4. Click Save & Restart to restart the wireless router and activate the settings. Authentication The authentication methods supported by WL-500gP V2 include: Open, shared key, WPA-PSK, WPA, and Radius with 80.211x. Open: This option disables authentication protection for wireless network. Under Open mode, any IEEE802.11b/g client can connect to your wireless network. Shared: This mode uses the the WEP keys currently in use for authentication. WPA and WPA-PSK: WPA stands for WiFi-Protected Access. WPA provides two security modes: WPA for enterprise network, and WPA-PSK for home and SOHO users. For enterprise network, WPA uses the already existing RADIUS server for authentication; for home and SOHO user, it provides Pre-Shared Key (PSK) for XVHULGHQWLÀFDWLRQ7KH3UH6KDUHG.H\FRQVLVWVRIWRFKDUDFWHUV Radius with 802.1X: Similar with WPA, this solution also uses RADIUS server for authentication. The difference lays on the encryption mothods: WPA adopts TKIP or AES encryption methods, while Radius with 802.1X does not provide encryption. When authentication and encryption are set, click Finish to save the settings and restart the wireless router.  6HWWLQJXSYLUWXDOVHUYHULQ\RXU/$1 Virtual server is a Network Address Translation (NAT) function which turns a computer within a LAN into a server by allowing data packets of certain service, such as HTTP, from Internet. 1. Click Virtual Server in NAT Setting folder to open the NAT FRQÀJXUDWLRQSDJH WL500gP_Manual.indd 142007.4.19 5:05:48 PM WL-500gP V2 Wireless Router User Manual 15 1. Click 9LUWXDO'0= in the NAT Setting menu. 2. Enter the IP address of the host and click Finish . 3. Click Save & Restart to restart the wireless router and activate the settings.  6HWWLQJXS''16 DNS enables host who uses static IP address to associate with a domain name; for dynamic IP user, they can also associate with a domain name via dynamic DNS (DDNS). DDNS requires registering and account-creating at ASUS DDNS service. The ASUS DDNS server has already recorded your IP address information. You just set your domain name and you can access USB Hard Disc Drive that plugged in WL- 500gP V2 via Internet. ASUS DDNS Service  6HWWLQJXSYLUWXDO'0=LQ\RXU/$1 To expose an internal host to Internet and make all services provided by this host available to outside users, enable Vitural DMZ function to open all ports of the host. This function is useful when the host plays multiple roles such as HTTP server and FTP server. However, in doing this, your network becomes less secure. 1. Click DDNS from ,3&RQÀJ folder. 2. Select Yes to enable the DDNS service. WL500gP_Manual.indd 152007.4.19 5:05:50 PM WL-500gP V2 Wireless Router User Manual 16 3. Select WWW.ASUS.COM for detail setting. You do not necessary to key in User Name of E-mail Address and Password or DDNS Key if you select this server. Or you can select another website to register and apply for DDNS service. Please refer to Page 18 to see another service setting. 4. Enter the host name then click 6XEPLW4XHU\ . The format …

Text truncated - open the document above for the full version.

WL-500gP V2 Wireless Router User Manual 23 ASUS WL-500gP V2 Wireless Router provides two USB2.0 ports for connecting USB storage, USB camera, and USB printer, therefore, you can monitor the working environment, share data and printer with both wired and wireless users in your network. Furthermore, WL-500gP V2 provides a download utility - Download 0DVWHUWRIDFLOLDWHDQGVKDUHWKHGRZQORDGÀOHV Warning: Before unplugging the USB storage disk from WL-500gP V2, you must eject the disk in 6WDWXV /RJ!([WHUQDO86%'LVN page to prevent data corruption. Note: Before applying change and rebooting WL-500gP V2, make sure all USB applications are disabled, it would take more than 20 seconds for WL-500gP V2 to reboot.  6KDULQJ86%VWRUDJH To use this feature, you need to plug a USB hard disk to the USB2.0 port on the rear panel of WL-500gP V2. Make sure the hard disk is formated and partitioned properly. Note: )$7KDVD*%ÀOHVL]HOLPLWDWLRQDQGGRQRWVXSSRUWÀOHVDERYHWKDWVL]H,I \RXZDQWWRXVHÀOHVRIDERYH*%\RXPXVWIRUPDWWKHGLVNWR(;7ÀOHV\VWHP Creating user account To share the data in the USB storage, you need to create XVHUDFFRXQWVÀUVW 2. I n p u t User Name and Password for the accounts. Click Add to add the account to the list. 3. To delete an account, select the account from the list and click Del . 4. Click Apply to apply the changes and restart the wireless router. Creating share folder and access right You can create a new share folder or share an existing folder in your hard disk. 1. Click 86%$SSOLFDWLRQ!8VHU/LVW in the left side PHQXWRRSHQWKHFRQÀJXUDWLRQSDJH 1. Click 86%$SSOLFDWLRQ!6KDUH1RGHV in the left VLGHPHQXWRRSHQWKHFRQÀJXUDWLRQSDJH 5. Application features WL500gP_Manual.indd 232007.4.19 5:06:02 PM WL-500gP V2 Wireless Router User Manual 24 2. Click Add to add a share folder. 3. Select the folder you want to share from Folder Manager and click Ok . To create a share folder, input the folder name in Add Folder field and press Add .  'HÀQHWKHDFFHVVULJKWIRU the share folder by appoint User Name and Access Right . Click Add to add the access right rule. When finished, click Apply to VDYHWKHFRQÀJXUDWLRQ 6. Click Finish . 5. Set Network Neighbourhood Mode to Apply rules in shared node list , Work Group to WORKGROUP to enable all computers within WORKGROUP to access WL-500gP V2 USB storage. 7. Click Save & Restart to restart the wireless router and activate the settings. 8. Open My Network Place from a computer connected to WL-500gP V2. Click view work group computers , you can see WL-500gP V2 in the Workgroup category. $OOÀOHVRQWKH86%VWRUDJH are ready for sharing. WL500gP_Manual.indd 242007.4.19 5:06:04 PM WL-500gP V2 Wireless Router User Manual 25  6HWWLQJXS)73VLWH WL-500gP V2 can also serve as an FTP site. You can make your FTP site accessible by all users, or set up access policy to restrict anonymous login. To use this feature, you need to plug a USB storage disk to the USB2.0 port on the rear panel of WL- 500gP V2. Make sure the hard disk is formated and partitioned properly. 1. To allow anonymous login: Set Network Neighbourhood Mode to Share all paritions in disk , FTP Mode to Login to first partition . The anonymous login directory is the root directory of ÀUVWSDUWLWLRQ To allow accout login only: Set Network Neighbourhood Mode to Apply rules in shared node list , FTP Mode to Login to first mached shared node . Click Add in the Share Node List to specify the access directory and access right of FTP account. 2. T h e Maximum Login User field specifies the maximum logged in users at a same time. The default value is 6. 3. Click Finish to activate the settings and reboot. This process may take several minutes. 4. Ty p e ftp://192.168.1.1 into the address box of your Web browser and press Enter to login the FTP site. WL500gP_Manual.indd 252007.4.19 5:06:05 PM WL-500gP V2 Wireless Router User Manual 26  :HEFDPHUD The ASUS Wireless Router implements several applications for a USB Web camera, enabling you to capture images and send them over the Internet. For this function, you need to plug a USB camera onto WL-500gP V2 and enable ActiveX for your Web browser. Web camera 1. Click Web Camera page in USB Application folder. 2. Enable Web Camera - Selecting LAN Only enables Web Camera for LAN users. Selecting LAN and WAN enableds Web Camera for both LAN users and WAN users WKURXJKÀUHZDOO Web Camera Mode - Select the appropriate camera mode from the drop down list. ActiveX Only enables user to execute ActiveX clients on an Windows ® IE platform and get the best image quality. ActiveX and Refresh enables user to get a basic image on both IE and other browsers. Refresh Only provides to all users still images which are refreshed in DVSHFLÀHGLQWHUYDO Web Camera Driver - When you plug a supported Web Camera into the USB2.0 port in the wireless router, the appropriate driver is selected automatically. Refer to the USB Web Camera support list on ASUS Website (www.asus.com) for supported Web Camera models. ,PDJH6L]H - Select the image size from the drop down list. 320 x 240 provides a larger image while 160 x 120 provides faster transmission. Click Preview to see the effect. Sense Level 7KLVÀHOGLQGLFDWHVWKHVHQVLWLYLW\DWZKLFKLPDJHPRYHPHQWLVGHWHFWHG Refresh Time in Seconds 7KLVÀHOGLQGLFDWHVWKHWLPHLQWHUYDOLQVHFRQGVLQZKLFKWKH system reloads images. The range of values is 1~65535. HTTP Port 7KLVÀHOGLQGLFDWHVWKHSRUWWKDW+773VHUYHUOLVWHQVRQWRFRPPXQLFDWH)RU example, by default, you can connect to your web camera by using http://192.168.1.1:7776 ZLWKRXWSDVVZRUGFKHFNLQJ 7KHSDVVZRUGFKHFNLQJÀHOGLVXQFKHFNHG ActiveX Port 7KLVÀHOGLQGLFDWHVWKHSRUWWKDWVHUYHUOLVWHQVRQWRFRPPXQLFDWHZLWK ActiveX clients. Enabling ActiveX for your IE If you use Internet Explorer ® , you need to enable ActiveX or the Web Camera cannot function properly. For clients using Netscap…

Text truncated - open the document above for the full version.

WL-500gP V2 Wireless Router User Manual 34  8WLOLW\,QVWDOODWLRQIRU:/J39 1. Click Install ASUS Wireless Router Utilities to run the setup installation program. 2. Click Next to continue. 3. Click Next to install the utility in the designated location. 4. Select a program folder and click Next . 5. Press Finish to quit the installation program. 6. Open the (=6HWXS:L]DUG . 6. Setting up using ASUS utility WL500gP_Manual.indd 342007.4.19 5:06:19 PM WL-500gP V2 Wireless Router User Manual 35 Wireless settings, including network name and network keys, are generated automatically. <RXFDQPRGLI\WKHVHVHWWLQJVPDQXDOO\1RWHLI\RXUZLUHOHVVURXWHULVFRQÀJXUHGEHIRUH select Preserve original wireless router settings to use the current value. Click Next to continue. Click the (=6HWXS button in the utility.  (=6HWXS Wireless LAN setup will complete in two easy steps. First open the EZSetup utility form Start menu, then push the EZSetup button on the rear panel for 3 seconds. 1) If the setup button is pushed without running the EZsetup wizard utility, the PWR LQGLFDWRUZLOOÁDVKDQG,QWHUQHWFRQQHFWLRQVZLOOSDXVHIRUDVKRUWSHULRGEXWZLOOWKHQ return to normal operation without change. 2) To use EZSetup, we recommend using an ASUS wireless adapter such as WL-106gM, WL-100gE, and WL-169gE. Note: Use EZSetup Wizard with one wireless client at a time. If the wireless client computer cannot discover the wireless router while in EZSetup mode, please shorten the distance between the client and the router. 1 Push (=6HWXS over 3 sec. and release. 2 3 WL500gP_Manual.indd 352007.4.19 5:06:23 PM WL-500gP V2 Wireless Router User Manual 36 If you need to configure the ISP settings for your wireless router, select Configure ISP settings , click Next and follow the instructions to complete the settings. Setup is complete, press Print/Save Wireless LAN Settings button for future reference. Click Finish to exit the EZSetup utility. 4 5 WL500gP_Manual.indd 362007.4.19 5:06:25 PM WL-500gP V2 Wireless Router User Manual 37 7. Troubleshooting &DQQRWDFFHVVWRZHEEURZVHUIRUURXWHUFRQÀJXUDWLRQ 1. Open a web browser and open "Internet Options" dialog box. 2. Click on "Delete Cookies" and "Delete Files". Cannot Establish Connection via Wireless Out of Range: • Put the router closer to the wireless client. • Try to change the channel setting. Authentication: • Use wired connection to connect to router. • Check the wireless security setting. • Do the hard reset on the wireless router by pressing the Reset button on the rear panel for more than 5 seconds.  &RXOGQ WÀQGWKHURXWHU • Do the hard reset on the wireless router by pressing the Reset button on the rear panal for more than 5 seconds. • Check the setting in the wireless adapter such as SSID and encryption setting. Cannot get access to the Internet via wireless LAN adapter • Move the router closer to the wireless client. • Check whether the wireless adapter is connected to the correct AP. • Check whether the wireless channel in use conforms to the channels available in your country/ area. • Check encryption setting. • Check whether the ADSL or Cable connection is correct. • Retry using another Ethernet cable. WL500gP_Manual.indd 372007.4.19 5:06:26 PM WL-500gP V2 Wireless Router User Manual 38 Internet is not accessible • Check the lights on ADSL modem and the Wireless Router • Check whether the "WAN" LED on the Wireless Router is ON. If the LED is not ON, change the cable and try again. :KHQ$'6/0RGHP/LQNOLJKWLV21 QRWEOLQNLQJ WKLVPHDQV,QWHUQHW Access is Possible. • Restart your computer. • Refer to the Quick Setup Guide of the wireless router and reconfigure the settings. • Check whether the WAN LED on the router is ON or not. • Check wireless encryption settings. • Check whether the computer can get the IP address or not (via both wired network and wireless network). • Make sure your Web browser is configured to use the local LAN, and is not configured to use a proxy server. If the ADSL "LINK" light blinks continuously or stays off, Internet access is not possible - the Router is unable to establish a connection with the ADSL network. • Make sure your cables are all correctly connected . • Disconnect the power cord from the ADSL or Cable modem, wait a few minutes, then reconnect the cord. • If the ADSL light continues to blink or stays OFF, contact your ADSL service provider. Network name or encryption keys are forgotten • Try to setup the wired connection for setup the wireless encryption again. • Do the hard reset on the wireless router by pressing the Reset button on the rear panel for more than 5 seconds. How to reset to defaults The following are factory default values. If you push the Restore button on the back of the ASUS Wireless Router for over 5 seconds, or click the “Restore” button on the “Factory Default” page under “ Advanced Setup”, the following default settings overwrite the old settings on your wireless router. User Name: admin Subnet Mask: 255.255.255.0 Password: admin DNS Server 1: 192.168.1.1 Enable DHCP: Yes (if plug in Wan cable)DNS Server 2: (Blank) IP address: 192.168.1.1 SSID: default Domain Name: (Blank) WL500gP_Manual.indd 382007.4.19 5:06:26 PM WL-500gP V2 Wireless Router User Manual 39 8. Appendix FCC Warning Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: : Confidentiality Request regarding application for certification of FCC ID: MSQWL500GPV2 Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics - WL-500gP V2 Schem.pdf l Part List - WL-500gP V2 ParLst.pdf l Block diagram - WL-500gP V2 BlkDia.pdf l Operational description - WL-500gP V2 OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: l External Photos - WL-500gP V2 ExtPho.pdf l Internal Photos - WL-500gP V2 IntPho.pdf l Test Setup Photos - WL-500gP V2 TSup.pdf l User’s Manual - WL-500gP V2 Userman.pdf Sincerely, Lawrence Yu / Manager, ASUSTek Computer Inc.

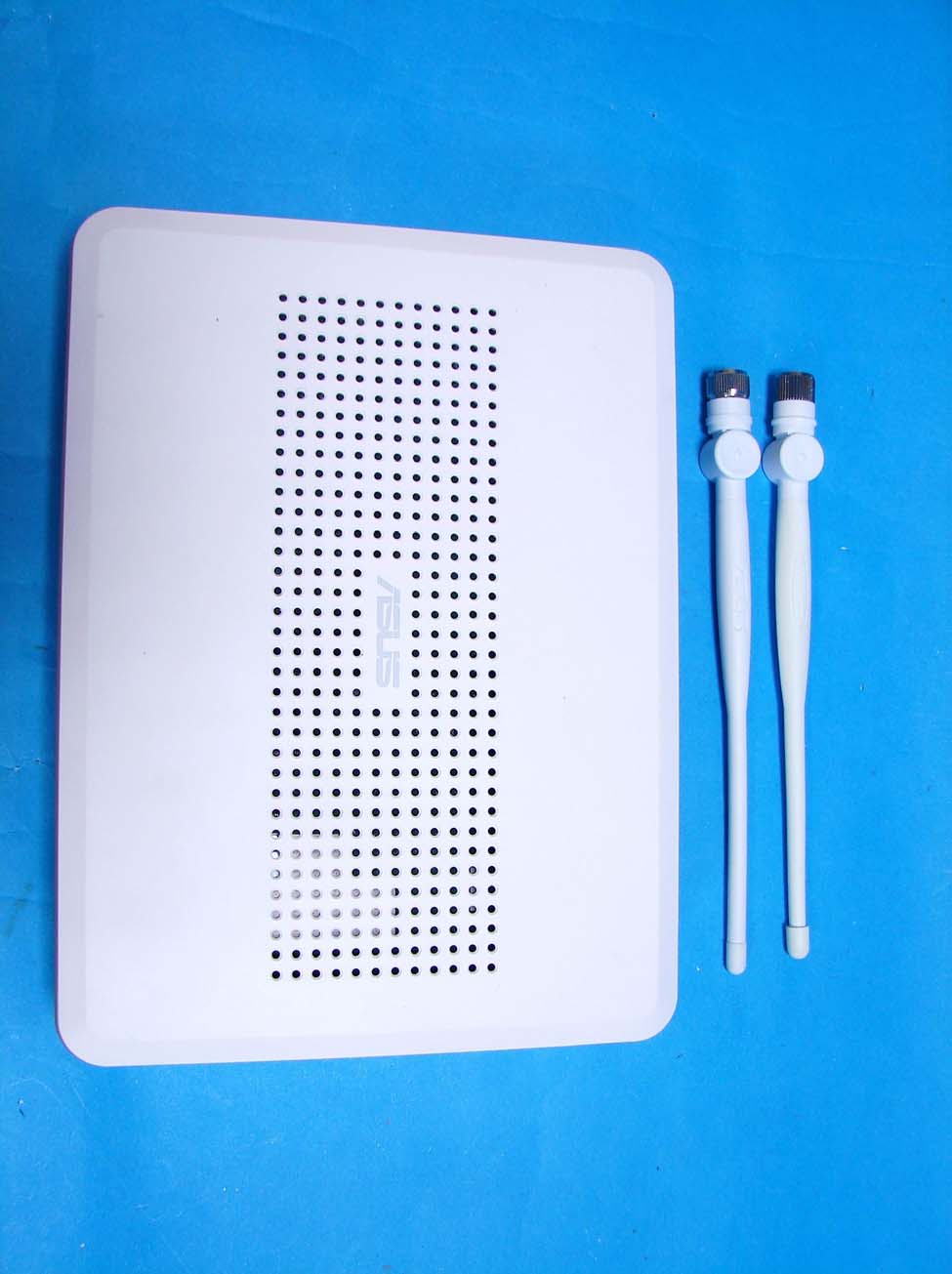

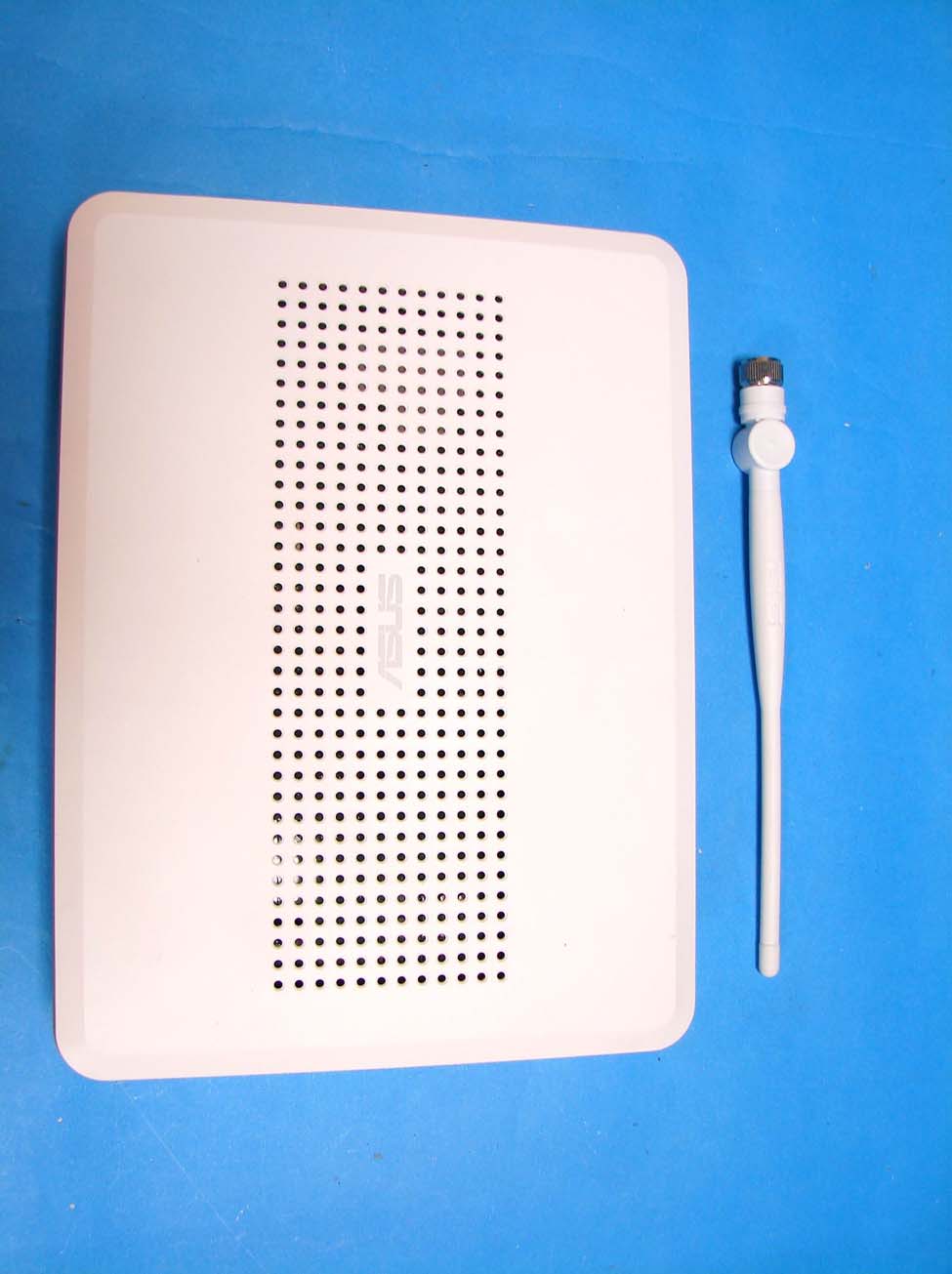

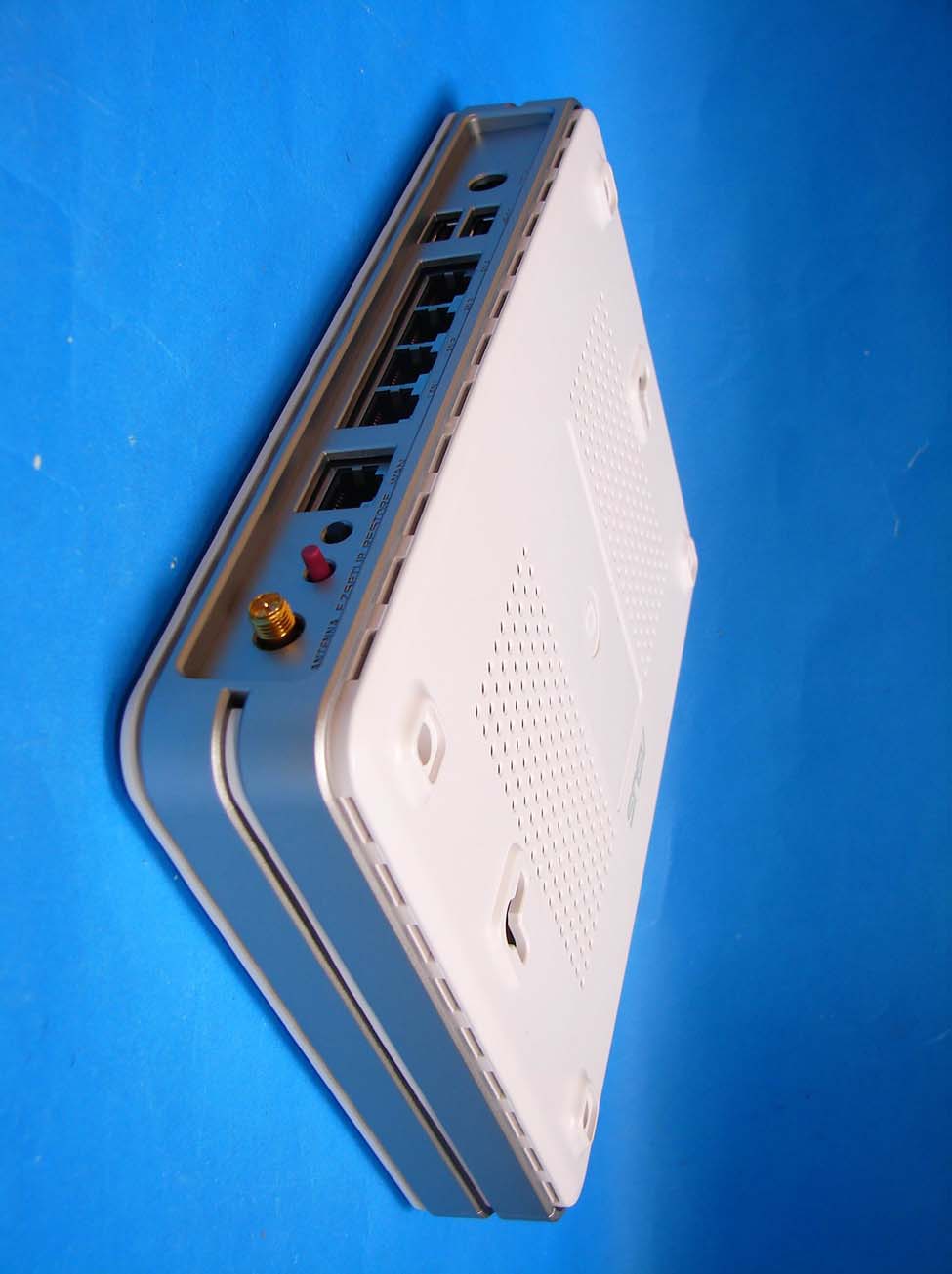

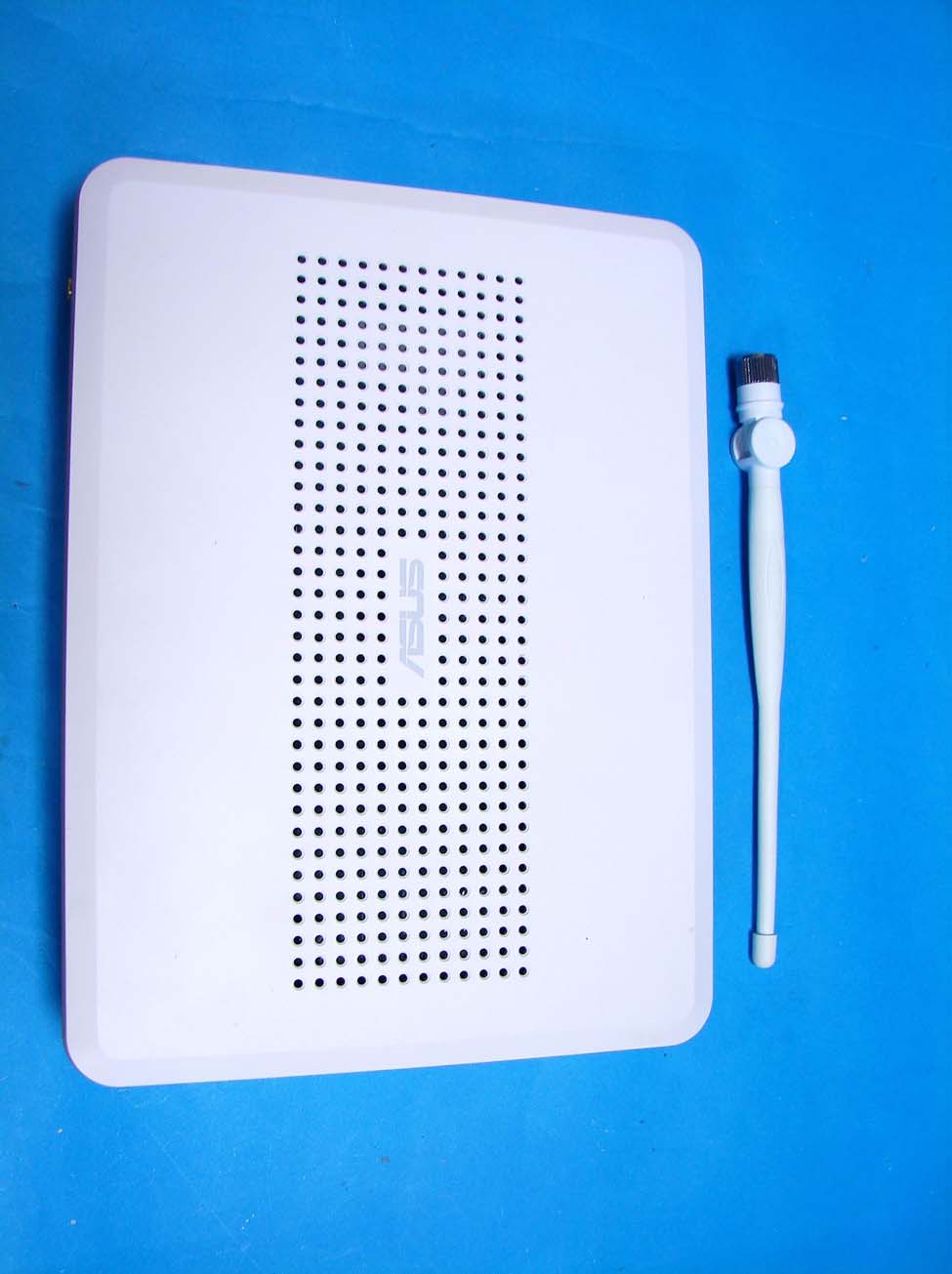

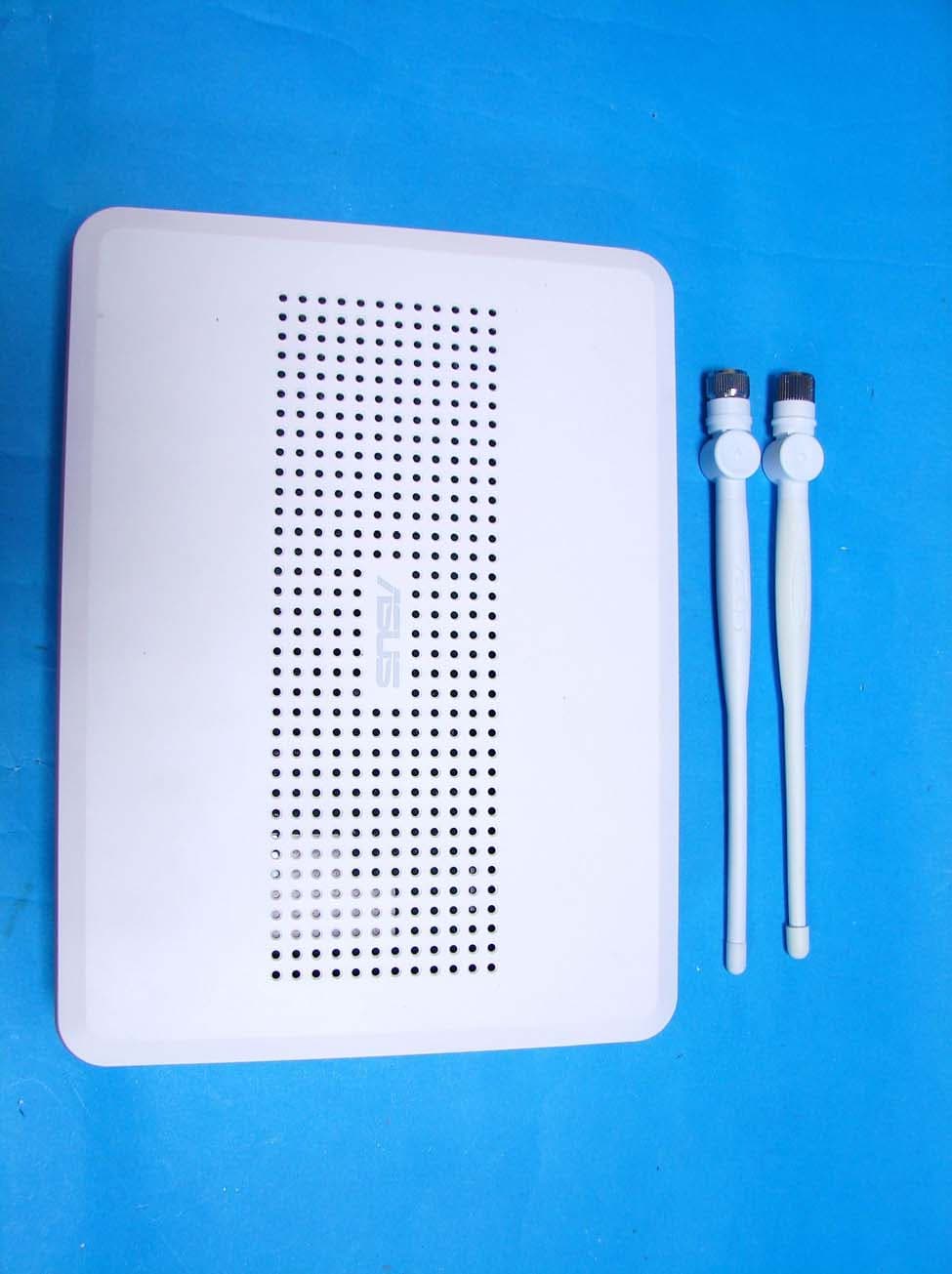

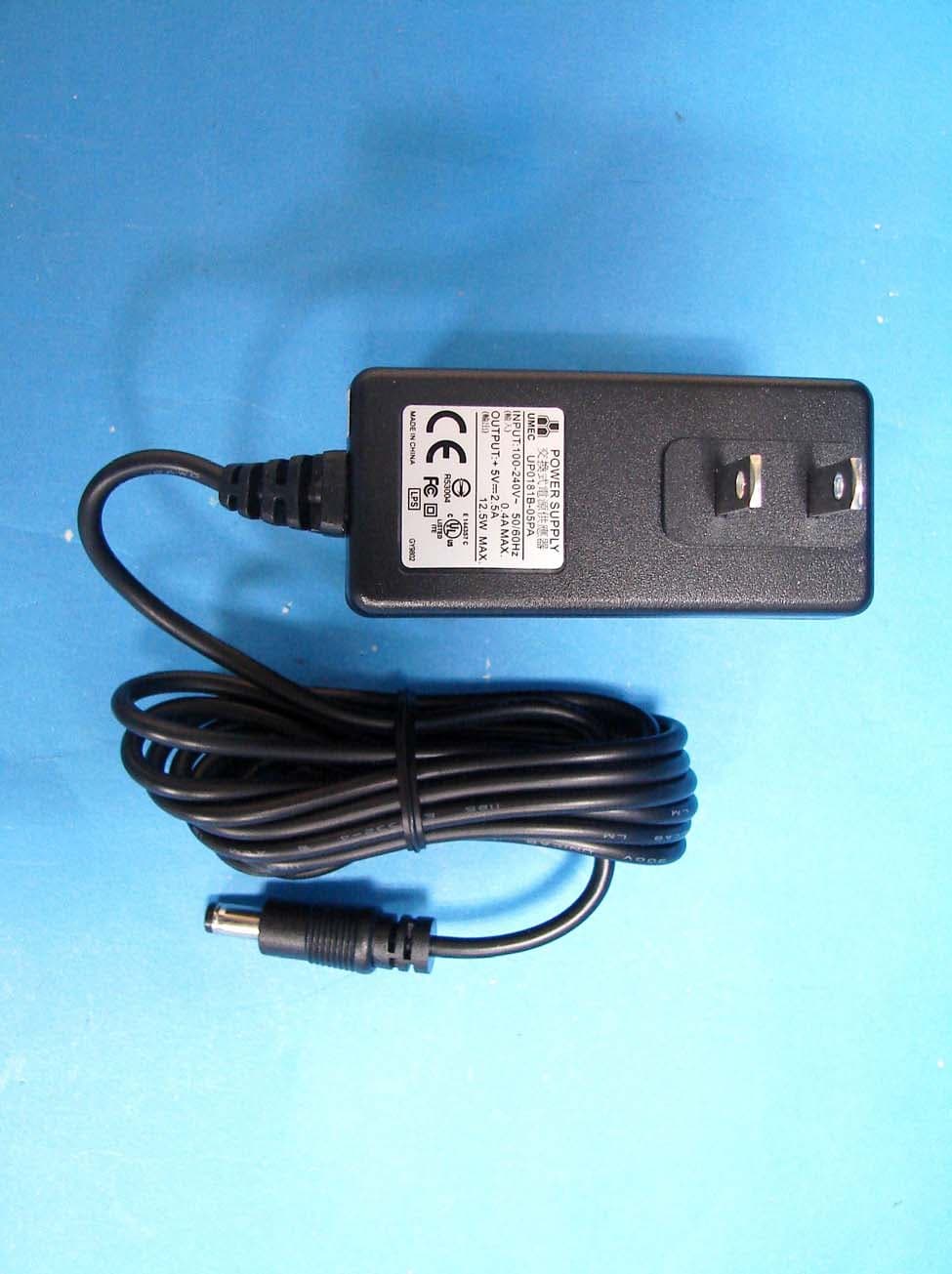

External Photos of Wireless Router ------------------------------------------------ 1/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1: C660-510103-A Antenna#2: RFA-02-C15M3-01 External Photos of Wireless Router ------------------------------------------------ 2/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1: C660-510103-A External Photos of Wireless Router ------------------------------------------------ 3/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2: RFA-02-C15M3-01 External Photos of Wireless Router ------------------------------------------------ 4/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless Router ------------------------------------------------ 5/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Power Adapter of Wireless Router -------------------------------------------------- 6/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information ------------------------------------------------- 1/1 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL Size: 89 x 39 mm FCC ID: MSQWL500GPV2 ASUS WL-500gP V2 This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, includin g interference that may cause undesired operation

Internal Photos of Wireless Router ------------------------------------------------- 7/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router ------------------------------------------------- 8/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router ------------------------------------------------- 9/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router ------------------------------------------------- 10/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router ------------------------------------------------- 11/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router ------------------------------------------------- 12/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Router ------------------------------------------------- 13/13 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Measurement of Maximum Permissible Exposure ---------------------------------------- 1/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL500GPV2 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : MSQWL500GPV2 Product Name : ASUS Wireless Router Model Name : WL-500gP V2 Frequency Range : 2.412GHz ~ 2.462GHz Channel Spacing : 5MHz Support Channel : 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by the switching adapter, Manufacture.:…
