MSQWL600GALL-IN1 WIRELESS ADSL2/2+ HOME GATEWAY

User Manual E2458 / June 2006 All-in-1 Wireless ADSL2/2+ Home Gateway WL-600g ® Manufacturer Contact Information $6867H.&20387(5,1& $VLD3DFLÀF Company address: 15 Li-Te Road, Beitou, Taipei 11259 General (tel):+886-2-2894-3447 Web site address: www.asus.com.tw General (fax): +886-2-2894-7798 General email:[email protected] $686&20387(5,17(51$7,21$/ $PHULFD Company address: 44370 Nobel Drive, Fremont, CA 94538, USA General (fax): +1-510-608-4555Web site address: usa.asus.com Technical support General support: +1-502-995-0883 Support (fax):+1-502-933-8713 Online support: http://vip.asus.com/eservice/techserv.aspx $686&20387(5*PE+ *HUPDQ\ $XVWULD Company address: Harkort Str. 25, D-40880 Ratingen, Germany General (tel):+49-2102-95990Web site address: www.asus.com.de General (fax): +49-2102-959911 Online contact: www.asus.com.de/sales Technical support Components:+49-2102-95990Online support: www.asus.com.de/support Notebook:+49-2102-959910 Support (fax): +49-2102-959911 WL-600g All-in-1 Wireless ADSL2/2+ Home Gateway User Manual 1 Table of contents Package contents ...........................................................................3 Setup Process Overview ...............................................................4 Hardware overview.........................................................................5 Front panel....................................................................................... 5 Rear panel ....................................................................................... 6 Product features............................................................................... 6 Hardware connections ..................................................................... 7 Connecting to the Internet.............................................................8 Before you start................................................................................ 8 Preparing your WAN ........................................................................ 8 Preparing your LAN ......................................................................... 8 /RJLQWRWKH:HEFRQÀJXUDWLRQLQWHUIDFH......................................... 9 Quick setup .................................................................................... 10 Manual Setup................................................................................. 12 EZSetup ......................................................................................... 16 Connecting WL-600g with ASUS WLAN Card ............................... 20 Wireless settings ..........................................................................22 Setting up SSID ............................................................................. 22 Setting up wireless security ........................................................... 22 0$&ÀOWHU....................................................................................... 27 Wireless bridge .............................................................................. 27 Wireless advanced settings ........................................................... 31 Network security...........................................................................32 Setting up access right to WL-600g ............................................... 32 Setting up port triggering................................................................ 33 WL-600g All-in-1 Wireless ADSL2/2+ Home Gateway User Manual 2 Setting up virtual server ................................................................. 34 Setting up DMZ host ...................................................................... 35 Allowing SIP request through NAT................................................. 35 )LUHZDOO2XWJRLQJ,3ÀOWHU............................................................. 35 )LUHZDOO,QFRPLQJ,3ÀOWHU.............................................................. 36 Access time restriction ................................................................... 37 Advanced settings........................................................................38 WAN............................................................................................... 38 LAN ............................................................................................... 38 Setting up DNS server ................................................................... 39 Setting up dynamic DNS ............................................................... 39 Setting up default gateway............................................................. 42 Setting up static route .................................................................... 42 Setting up routing protocol - RIP.................................................... 43 USB applications ..........................................................................44 FTP server function........................................................................ 44 Sharing USB printer ....................................................................... 46 Game Blaster ................................................................................49 Gaming Blaster on WL-600g ......................................................... 49 Setting up priorities for IP phone & other A/V apps........................ 49 Management..................................................................................50 &RQÀJXUDWLRQEDFNXS..................................................................... 50 5HVWRUHVHWWLQJVIURPDEDFNXSÀOH................................................ 50 Reset to factory default .................................................................. 51 Setting up time server .................................................................... 51 Firmware update ............................................................................ 51 WL-600g All-in-1 Wireless ADSL2/2+ Home Gateway User Manual 3 •WL-600g Wireless ADSL2/2+ Home Gateway •…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: MSQWL600G Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: l External Photos l Internal Photos l Test Setup Photos l User’s Manual Sincerely, Lawrence Yu / Manager ASUSTek Computer Inc.

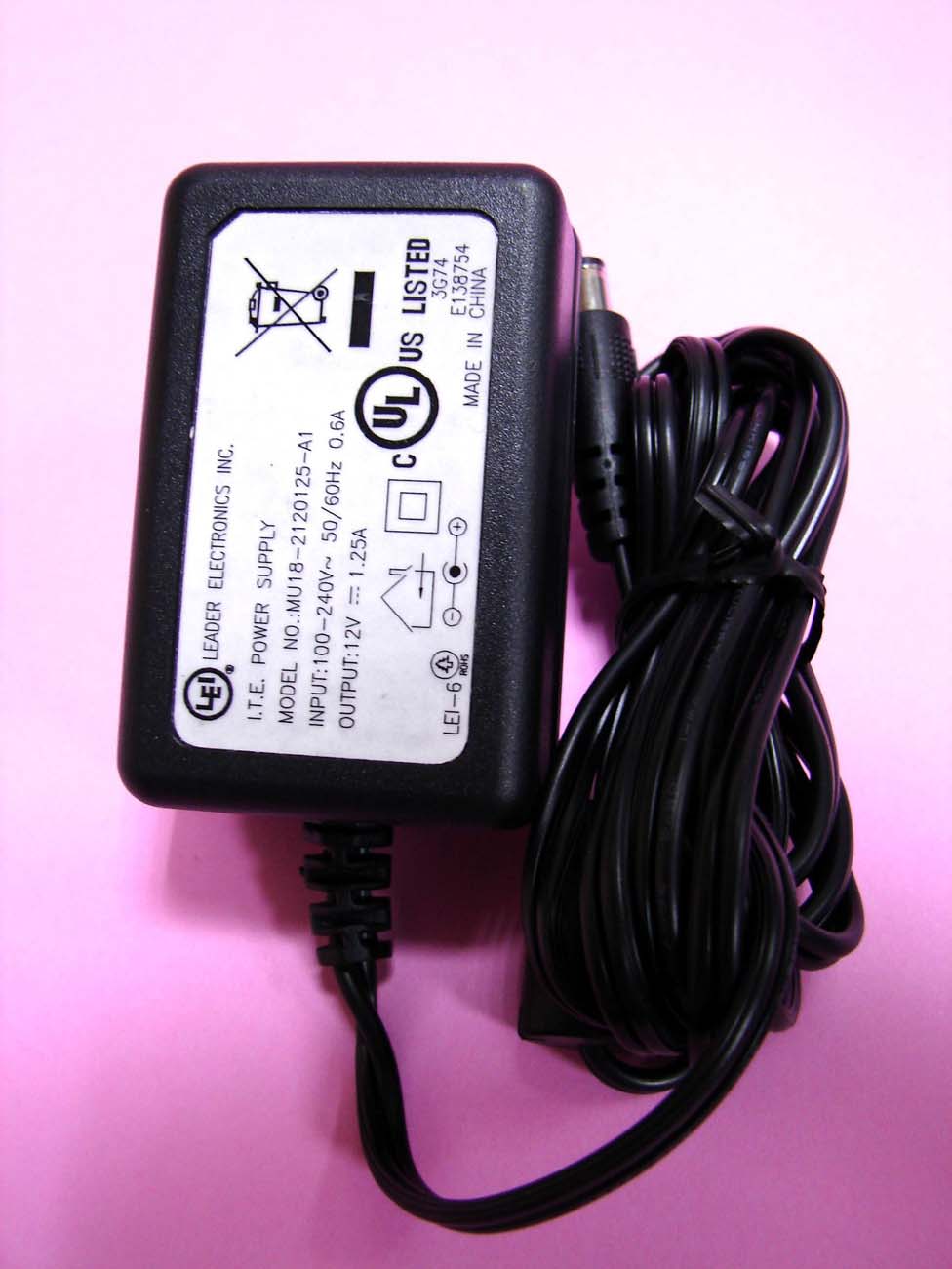

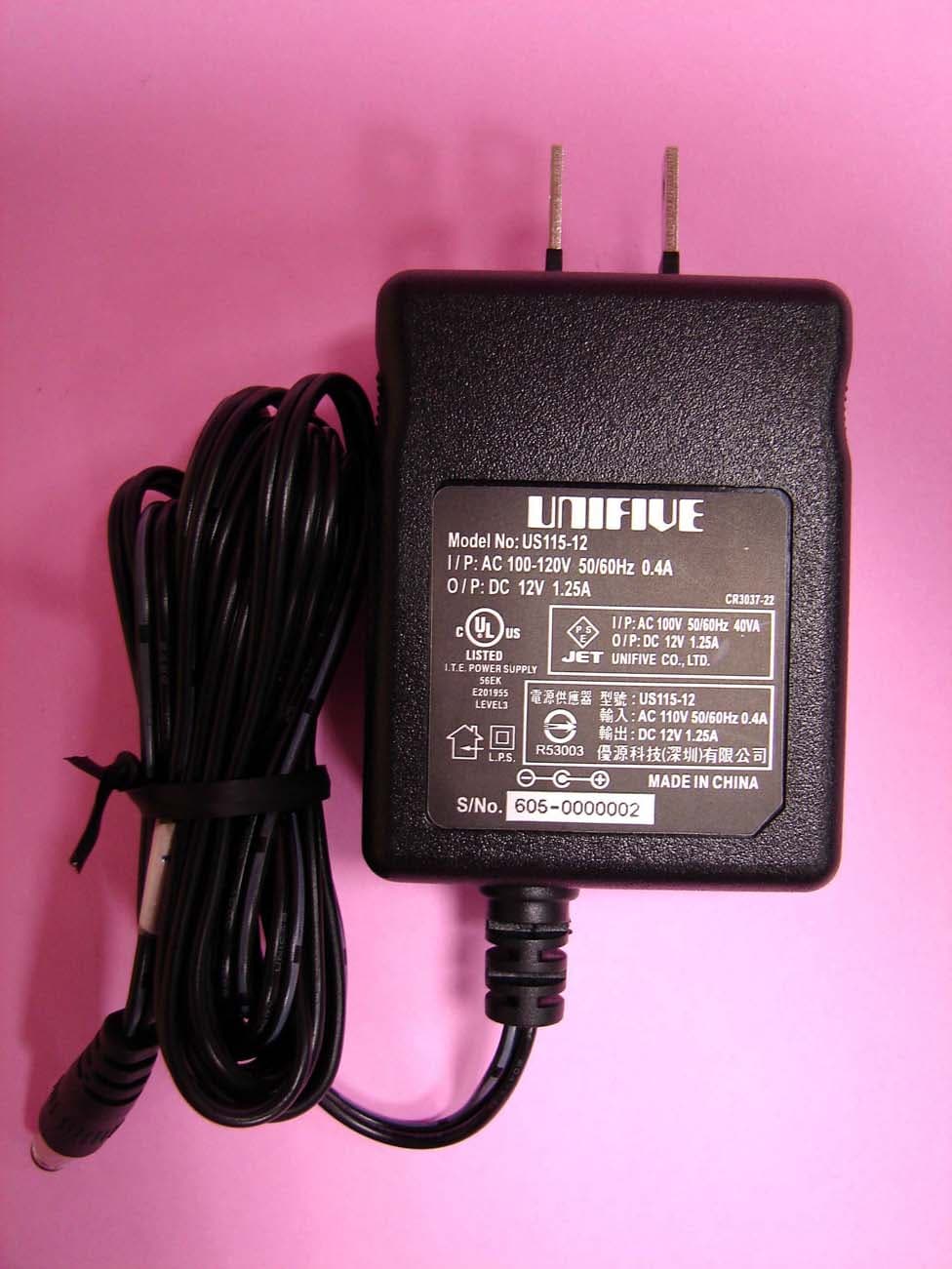

External Photos of ETU --------------------------------------------------------------- 1/9 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of ETU --------------------------------------------------------------- 2/9 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Power Adapter of EUT ---------------------------------------------------------------- 3/9 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Power Adapter of EUT ---------------------------------------------------------------- 4/9 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Model Name:WL-600g DC Input: 12V/1.25A Asus WL-600g FCC ID:MSQWL600G ABN45102398158 N13210

Internal Photos of EUT ---------------------------------------------------------------- 5/9 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 6/9 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 7/9 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 8/9 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 9/9 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information ------------------------------------------------ 1/1 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position:

Measurement of Maximum Permissible Exposure ---------------------------------------- 1/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : MSQWL600G Product Name : All-in-1 Wireless ADSL2/2+ Home Gateway Model Name : WL-600g Frequency Range : 2.412GHz ~ 2.462GHz Channel Spacing : 5MHz Support Channel : 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by the switching adapter, 1. Manufacture: UNIFIVE Model: US115-12 I/P: 100-120VAC 50/60Hz 0.4A MAX. O/P: 12VDC 1.25A MAX. 185cm length, non-shielded, no ferrite core 2. Manufacture: LEI Model: MU18-2120125-A1 I/P: 100-240VAC 50/60Hz 0.6A MAX. O/P: 12VDC 1.25A MAX. 188cm length, non-shielded, ferrite core Measurement of Maximum Permissible Exposure ---------------------------------------- 2/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /084.0 )20(4 513.154.280 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R811.5 4 513.154.280 4 = × == ππ Note: "The safe estimated separation that the user must maintain from the antenna is at least 6.5cm" Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (1.80 / 10) = 1.513 Measurement of Maximum Permissible Exposure ---------------------------------------- 3/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix Antenna Specification Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)................... 1.8dBi 1.7 Polarization............... ...Linear Vertical 1.8 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20 ~ +65 2.6 Storage Temp. ............ ...-30 ~ +75 2.7 Color ........................ .White 2.8 Connector.................. ...SMA Plug Reverse 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Maximum RF Antenna Cable Assembly Omni-directional 1 2 RF Antenna Assembly P/NO : C660-510103-A SPEC : 2.4GHz 4/13/2006 3 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C660-510103-A-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 4 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C660-510103-A-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 6 7 料 8 SGS Test Report Product：RF Antenna Contents No Description Report No. Page 1 Cable RG-178 Cable F690501/LF-CTS500034 F690501/LF-CTS500035 F690501/LF-CTSGP06-0418 F690501/LF-CTSGP05-5552 P.10~19 2 Antenna Body Antenna Head Cap TPE EL-550 CE/2005/B4712 P.20~24 3 Antenna Base PC -110 KE/2006/10319 P.25~26 4 Antenna Base PBT GZSCR05060707862/LP P.27~28 5 Rivet POM ; White CE/2005/96111 P.29~32 6 Connector SMA Plug Reverse SH570049/CHEM GZML060201325 KA/2006/20922A-01 KA/2006/20923A-01 P.33~40 7 Ground Tube Ni Plated + POM CE/2005/96122 CE/2005/96120 CE/2005/96111 P.41~44 P.29~32 Result for RoHS：PASS 9 10 11 12 13 Page 1 of 3Date: January 11, 2006 Test Report No. F690501/LF-CTSGP06-0418 BOGO CHEMICAL CORPORATION 123-4 Samsung-dong Gangnam-gu SEOUL Korea To: The following merchandise was submitted and identified by the client as : For further details, please refer to following page(s) Test Performed: SGS Testing Korea tested the sample(s) selected by applicant with following results Test Results : Received Date: January 06, 2006 Commodity: AP-210 (DAIKIN) SGS File No.: GP06-0418 Test Performing Date: January 09, 2006 SGS Testing Korea Co. Ltd. Jeff Jang / Technical MgrJason Han / Lab Director Brendan Lee Monet Jeong Jully Oh Jerry Jung /Testing Person This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemn…

Text truncated - open the document above for the full version.

Test Report ---------------------------------------------------------------------------------- 1/59 Report No.: A5415060350, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of All-in-1 Wireless ADSL2/2+ Home Gateway Applicant : ASUSTek Computer Inc. EUT : All-in-1 Wireless ADSL2/2+ Home Gateway Model No. : WL-600g FCC ID : MSQWL600G Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ---------------------------------------------------------------------------------- 2/59 Report No.: A5415060350, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant : ASUSTek Computer Inc. Applicant Address : 4F1., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name : All-in-1 Wireless ADSL2/2+ Home Gateway Model : WL-600g Report No. : A5415060350 Test Date : August 1, 2006 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. Test Report ---------------------------------------------------------------------------------- 3/59 Report No.: A5415060350, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity for the following equipment: Product name : All-in-1 Wireless ADSL2/2+ Home Gateway Trade name : ASUS Model name : WL-600g Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : A5415060350 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Manufacturer USA local representative Company name: ASUSTeK Computer Inc. To be determined Computer address: 4/F, 150, Li-Te Rd., Peitou, Taipei, Taiwan ZIP / Postal code 112 Contact person: Lawrence Yu Title: Manager Internet e-mail address: [email protected] Tel / Fax: 886-2-28943447 / 886-2-28950113 Test Report ---------------------------------------------------------------------------------- 4/59 Report No.: A5415060350, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ................................................................................................................... 6 1.1 Introduction ......................................................................................................... 6 1.2 Description of EUT ............................................................................................. 6 1.3 Test method ......................................................................................................... 7 1.4 Description of Support Equipment ...................................................................... 8 1.5 Configuration of System Under Test .................................................................. 11 1.6 Verify the Frequency and Channel ..................................................................... 13 1.7 Test Procedure .................................................................................................... 14 1.8 Location of the Test Site .................................................................................... 14 1.9 General Test Condition ...................................................................................... 14 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators............ 15 III. Section 15.203 : Antenna Requirement..................................................................... 16 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ......... 17 4.1 Test Condition & Setup ...................................................................................... 17 4.2 List of Test Instruments ...................................................................................... 18 4.3 Test Result of Conducted Emissions .................................................................. 19 Standby mode_ UNI ...................................................................................................... 19 IEEE 802.11b TX mode_ UNI ....................................................................................... 20 IEEE 802.11g TX mode_ UNI ....................................................................................... 21 Standby mode_ LEI ....................................................................................................... 23 IEEE 802.11b TX mode_ LEI ....................................................................................... 24 IEEE 802.11g TX mode_ LEI ........................…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------ 1/2 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/2 Applicant: ASUSTeK Computer Inc. FCC ID: MSQWL600G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: Front View of the Test Configuration Rear View of the Test Configuration
