MSQZ00XSASUS Phone

First Edition/ September 2015 Model: ASUS_Z00XS (ZX551ML) Before you start, ensure that you have read all the safety information and operating instructions in this User Guide to prevent injury or damage to your device. NOTE: For the latest updates and more detailed information, please visit www.asus.com. Front features Receiver Light sensor Touch screen display Power key Volume key Touch keys P-sensor Front camera Side features NOTE: Pry open the rear cover from the groove. Audio jack Micro USB port Speaker Power key Record key Shutter key Volume key Strap hole GrooveMicrophone Rear features NOTES: • Remove the rear cover to display the micro SIM and microSD card slots. • The micro SIM card slot supports WCDMA, DC- HSPA, GSM/EDGE, and FDD-LTE network bands. • The microSD card slot supports microSD and microSDHC card formats. Flash Laser focus Rear camera Rear cover Speaker Charging your ASUS Phone To charge your ASUS Phone: 1. Connect the USB connector into the power adapter’s USB port. 2. Connect the other end of the micro USB cable to your ASUS Phone. 3. Plug the power adapter into a wall socket. NOTES: • Use only the power adapter that came with your device. Using a different power adapter may damage your device. • Using the bundled power adapter and ASUS Phone signal cable to connect your ASUS Phone to a power outlet is the best way to charge your ASUS Phone. • The input voltage range between the wall outlet and this adapter is AC 100V - 240V. The output voltage of the micro USB cable is +9V2A, 18W. IMPORTANT! • When using your ASUS Phone while it is plugged to a power outlet, the grounded power outlet must be near to the unit and easily accessible. • When charging your ASUS Phone through your computer, ensure that you plug the micro USB cable to your computer’s USB 2.0 / USB 3.0 port. • Avoid charging your ASUS Phone in an environment with ambient temperature of above 35 o C (95 o F). 3 1 2 3. Insert the micro SIM card into the micro SIM card slot. 1. Locate the groove at the bottom of your ASUS Phone. Installing a micro SIM card To install a micro SIM card: 2. Pry the cover loose and then pull the rear cover off. IMPORTANT: Use only a micro SIM card on your ASUS Phone. A trimmed SIM card may not properly fit into and may not be detected by your ASUS Phone. 1. Locate the groove at the bottom of your ASUS Phone. Installing a microSD card To install a microSD card: 2. Pry the cover loose and then pull the rear cover off. 3. Insert the microSD card into the microSD card slot. CAUTION: Do not use sharp tools or solvent on your device to avoid scratches on it. IMPORTANT: The first time you power on your ASUS Phone, you will see the Welcome screen. Touch the menu to select your preferred language then touch Next Step. Follow the onscreen instructions to set up your ASUS Phone. Turning your ASUS Phone on or off Press the power key at the right side of your ASUS Phone to power the device on or to power it off. Federal Communications Commission Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The antenna(s) used for this transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only. User Guide E10512 Power key CAUTION: • High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. • 5GHz product for indoor use only. Hearing Aid Compatibility Information (HAC) Your phone is compliant with the FCC Hearing Aid Compatibility requirements. The FCC has adopted HAC rules for digital wireless phones. These rules require certain phone to be tested and rated under the American National Standard Institute (ANSI) C63.19-2011 hearing aid compatibility standards. The ANSI standard for hearing aid compatibility contains two types of ratings: M-Ratings: Rating for less radio frequency interference to enable acoustic coupling with hearing aids. T-Ratings: Rating for inductive coupling with hearing aids in telecoil mode. Not all phones have been rated, a phone is considered hearing aid compatible under FCC rules if it is rated M3 or M4 for acoustic coupling and T3 or T4 for inductive coupling. These ratings are given on a scale from one to four, where four is the most compatible. Your phone meets the M4/T4 level rating. However, h…

Text truncated - open the document above for the full version.

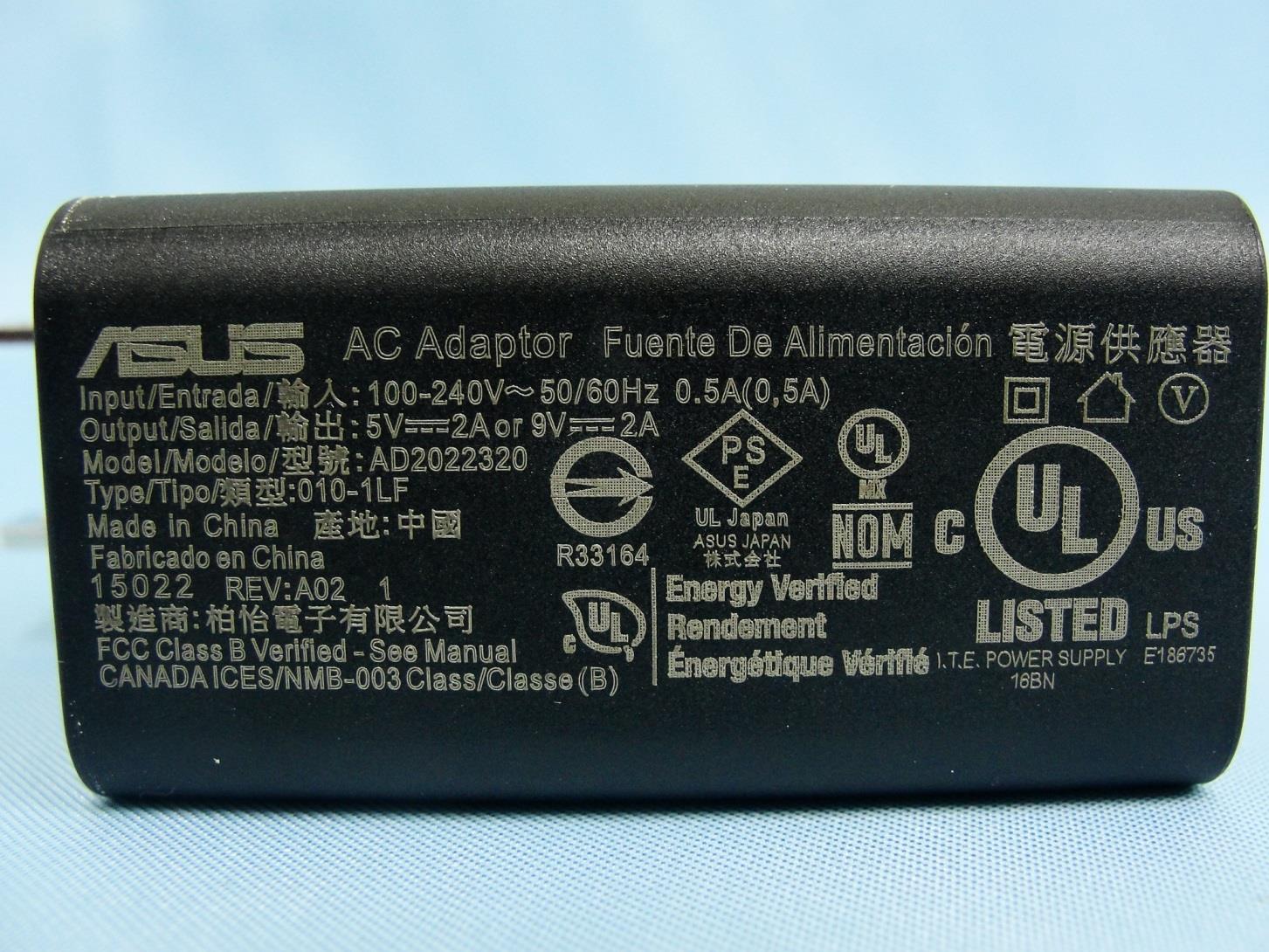

Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 1 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 2 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 3 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Sample 2 Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 4 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS 720510 Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 5 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Specification of Accessory AC Adapter Brand Name ASUS Model Name AD2022320 Battery Brand Name ASUS Model Name C11P1507 Earphone Brand Name ASUS Model Name 1MORE/AR-101 USB Cable 1 Brand Name ASUS Model Name CUBB04M-AS0D0-EF USB Cable 2 Brand Name ASUS Model Name L65U2009-CS-B Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 6 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 7 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS AC Adapter Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 8 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS 720510 Battery

Label Location Back Cover Device Label is visible to the users as they remove the back cover to install the SIM card.

ASUSTek COMPUTER INC. 4F, No.150, LI-TE RD., PEITOU, TAIPEI, TAIWAN Made in ChinaASUS Phone Model: ASUS_Z00XS Input: +9V 2A, 18W IC ID: XXXXXXXXXXX FCC I D : MSQZ00XS MS20 XXXXXXX IC : 3568A-Z00XS

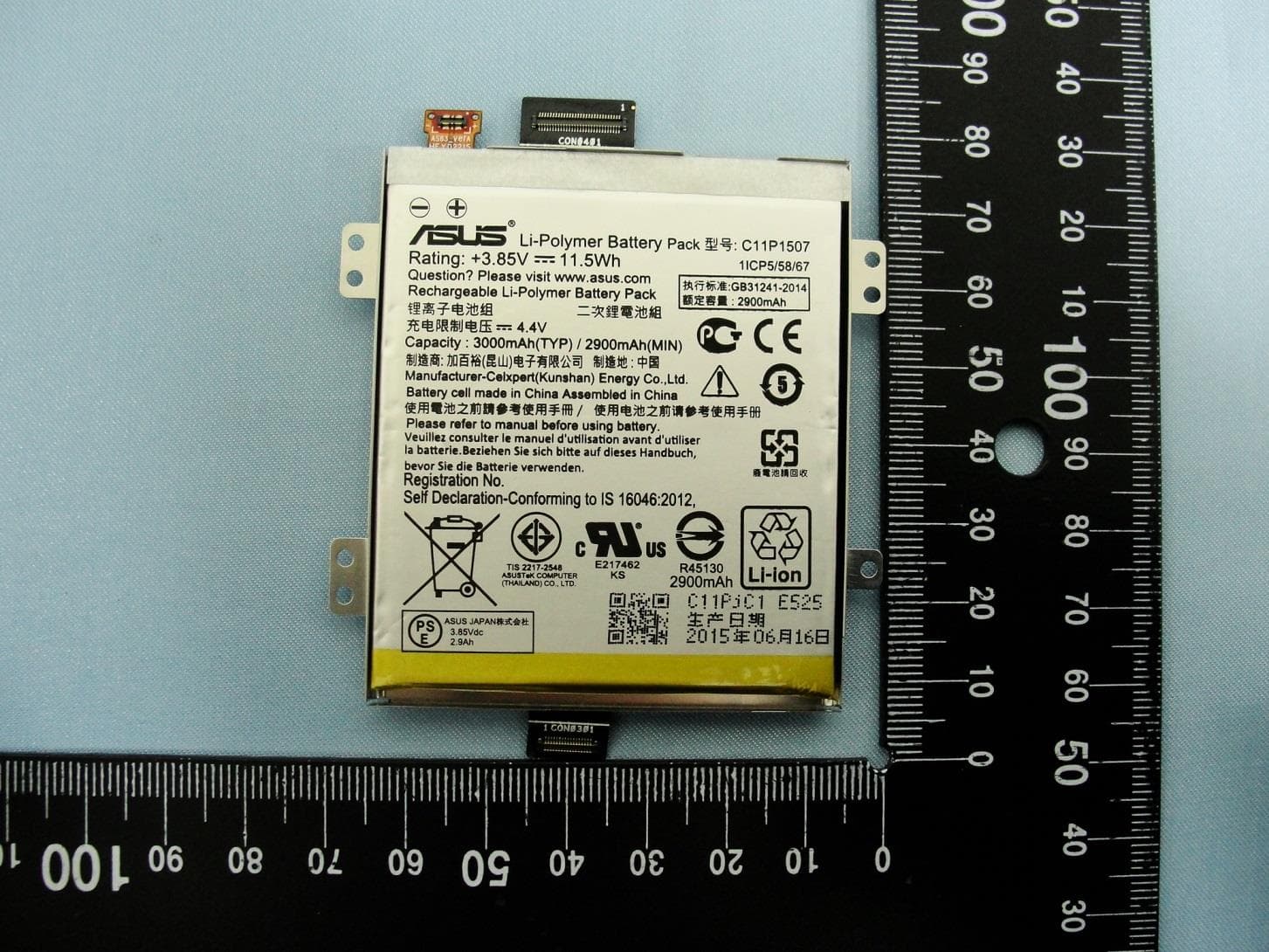

Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 9 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS 3. Internal Photograph of EUT Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 10 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 11 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 12 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 13 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 14 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 15 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 16 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 17 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 18 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 19 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 20 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 21 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS

Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 22 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 23 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 24 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 25 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 26 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 27 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 28 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 29 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 30 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 31 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 32 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 33 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 34 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS WWAN Antenna Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 35 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 36 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS DIV & GPS & Bluetooth & WLAN Antenna Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 37 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS Photographs of EUT Report No.: EP561105-02 Brand Name: ASUS / Model Name: ASUS_Z00XS / Marketing Name: ZX551ML SPORTON INTERNATIONAL INC. Page Number : 38 of 38 TEL : 886-3-327-3456 Report Issued Date : Sep. 25, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQZ00XS IC : 3568A- Z00XS 720510 NFC Antenna

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Sep. 29, 2015 FCC ID : MSQZ00XS Page 1 of 60 Form version. : 150415 FCC SAR Test Report Report No. : FA561105-02 FCC SAR Test Report APPLICANT : ASUSTeK COMPUTER INC. EQUIPMENT : ASUS Phone BRAND NAME : ASUS MODEL NAME : ASUS_Z00XS MARKETING NAME : ZX551ML FCC ID : MSQZ00XS STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Sep. 29, 2015 FCC ID : MSQZ00XS Page 2 of 60 Form version. : 150415 FCC SAR Test Report Report No. : FA561105-02 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Maximum Tune-up Limit ......................................................................................................................................... 7 4.3 General LTE SAR Test and Reporting Considerations ........................................................................................... 8 5. RF Exposure Limits....................................................................................................................................................... 9 5.1 Uncontrolled Environment ...................................................................................................................................... 9 5.2 Controlled Environment .......................................................................................................................................... 9 6. Specific Absorption Rate (SAR) ..................................................................................................................................10 6.1 Introduction ...........................................................................................................................................................10 6.2 SAR Definition .......................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................11 8. Measurement Procedures ...........................................................................................................................................12 8.1 Spatial Peak SAR Evaluation ................................................................................................................................12 8.2 Power Reference Measurement............................................................................................................................13 8.3 Area Scan .............................................................................................................................................................13 8.4 Zoom Scan ............................................................................................................................................................14 8.5 Volume Scan Procedures ......................................................................................................................................14 8.6 Power Drift Monitoring ...........................................................................................................................................14 9. Test Equipment List .....................................................................................................................................................15 10. System Verification ....................................................................................................................................................16 10.1 Tissue Verification ...............................................................................................................................................16 10.2 System Performance Check Results ...................................................................................................................17 11. RF Exposure Positions ..............................................................................................................................................18 11.1 Ear and handset reference point .........................................................................................................................18 11.2 Definition of the cheek position ............................................................................................................................19 11.3 Definition of the tilt position..........................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/23 System Check_Head_750MHz_150823 DUT: D750V3-1099 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL750_150823 Medium parameters used: f = 750 MHz; σ = 0.898 S/m; ε r = 40.407; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(10.88, 10.88, 10.88); Calibrated: 2014/11/18; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2014/11/14 - Phantom: SAM-R; Type: SAM; Serial: 1795 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.67 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.503 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 2.92 W/kg SAR(1 g) = 2.02 W/kg; SAR(10 g) = 1.36 W/kg Maximum value of SAR (measured) = 2.62 W/kg 0 dB = 2.62 W/kg = 4.18 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/26 System Check_Body_750MHz_150826 DUT: D750V3-1099 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_150411 Medium parameters used: f = 750 MHz; σ = 0.954 S/m; ε r = 57.67; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(10.35, 10.35, 10.35); Calibrated: 2014/11/18; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2014/11/14 - Phantom: SAM-R; Type: SAM; Serial: 1795 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.50 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.146 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 2.90 W/kg SAR(1 g) = 2.02 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.51 W/kg 0 dB = 2.51 W/kg = 4.00 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/23 System Check_Head_835MHz_150823 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL850_150823 Medium parameters used: f = 835 MHz; σ = 0.915 S/m; ε r = 43.228; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(10.36, 10.36, 10.36); Calibrated: 2014/11/18; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2014/11/14 - Phantom: SAM-R; Type: SAM; Serial: 1795 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.05 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.986 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.6 W/kg Maximum value of SAR (measured) = 3.05 W/kg 0 dB = 3.05 W/kg = 4.84 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/9/1 System Check_Head_835MHz_150901 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_150901 Medium parameters used: f = 835 MHz; σ = 0.886 S/m; ε r = 42.142; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.32, 10.32, 10.32); Calibrated: 2014/9/25; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.03 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.62 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.97 W/kg 0 dB = 2.97 W/kg = 4.73 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/24 System Check_Body_835MHz_150824 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL850_150824 Medium parameters used: f = 835 MHz; σ = 0.946 S/m; ε r = 55.212; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(10.19, 10.19, 10.19); Calibrated: 2014/11/18; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2014/11/14 - Phantom: SAM-R; Type: SAM; Serial: 1795 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.21 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 60.526 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.62 W/kg SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.6 W/kg Maximum value of SAR (measured) = 3.19 W/kg 0 dB = 3.19 W/kg = 5.04 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/9/1 System Check_Body_835MHz_150901 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL850_150901 Medium parameters used: f = 835 MHz; σ = 0.967 S/m; ε r = 56.161; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(10.01, 10.01, 10.01); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Dete…

Text truncated - open the document above for the full version.
