MU4JCR535WWEATHER ALERT RADIO W/ AM/FM/CD PLAYER

audio JCR-535W WEATHER ALERT/AM/FM STEREO DUAL ALARM CD CLOCK RADIO INSTRUCTION MANUAL PLEASE READ THIS OPERATING MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE. 1 CRD-840W IB JENS 001 REV1.P654/8/2005, 2:55 PM1 CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. FULLY INSERT. 23 Follow the advice below for safe operations. ON PROTECTION AGAINST LASER ENERGY EXPOSURE · As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the casing. · Stop operation immediately if any liquid or solid object should fall into the cabinet. · Do not touch the lens or poke at it. If you do, you may damage the lens and the player may not operate properly. · Do not put anything in the safety slot. If you do, the laser diode will be ON when the CD door is still open. · If the unit is not to be used for a long period of time, make sure that all power sources are disconnected from the unit. Remove all batteries from the battery compartment. · This unit employs a laser. The use of controls or adjustment or performance of procedures other than those specified here may result in exposure to hazardous radiation. Should any trouble occur, remove the power source and refer servicing to qualified personnel. 1.CD door open 2.CD compartment 3.Tuning knob : To select your radio station 4.Band switch AM – FM – FM ST. 5.Volume control 6.Alarm Mode : Off – Buzzer – Auto 7.Alarm Selector : AL 1 – AL 1+2 – AL 2 8.Function Selector : CD – Radio 9.SNOOZE : Interval alarm repetition 10.Weather Band CHANNEL selector 11.Battery compartment 12.Weather Mode : Weather – Alert Standby – Off 13.Alert Test switch : On – Off 14.AC power cord 15.Weather Band Rod Antenna 16.Phones jack 17.FM Wire Antenna 18.Speakers 19.REPEAT : To play the disc continuously 20.P.MODE : To select the random or program play mode 21.R.Skip / F.SKIP (backward / forward) – HR / MIN buttons: -CD track skip and fast search within the track -All clock functions minute and hour setting LOCATION OF CONTROLS AC Outlet AC Plug CRD-840W IB JENS 001 REV1.P654/8/2005, 2:57 PM2 For best reception: FM: Extend FM wire antenna (17).When in stereo mode and the stereo broadcast is received.FM stereo indicator (24) will light up. AM: This unit is equipped with a built-in directional ferrite antenna.Move and rotate the unit. LISTENING TO THE CD PLAYER 1. Open the CD door (1),load your disc (label up) into CD compartment (2). 2. Switch to the CD position (8). 3. Press ON / OFF (29),the Display (39) will show total track numbers.It will return to the clock time after few seconds. 4. Press (23) to start listening from the first trackThe Display (39) will show “ ”, then it will return to the clock time after few seconds. NOTE : Use also this knob to suspend momentarily the playing track. Press once again to continue playing. 5. Rotate the volume (5) to adjust the desired level. 6. Press (22) to stop listening to the disc. OTHER CD PLAYER FUNCTIONS R.SKIP / F.SKIP (21): Press F.SKIP to skip forward to the next track or repeatedly to skip tracks.Press R.SKIP return to the beginning of the track, or press repeatedly to skip backwards several tracks.Press and hold R.SKIP or F.SKIP to search quickly within a track. REPEAT (19) : Press once to repeat your selected track.The REPEAT indicator (25) blinks. Press twice to play the disc continuously, The REPEAT indicator (25) alight. Press again to turn off this function, The REPEAT indicator (25) goes off. PROGRAM (30) : To set your own musical program. 1. Insert the disc (1,2). The total number of tracks in displayed (39). 2. Press (30),the display show “ ”.The PROGRAM indicator (27) blinks. 3. Select with R.SKIP or F.SKIP (21) your desired track,then press (30) to store your program in memory.Redo this operation as many times as necessay.20 tracks can be memorized. 4. Prdss (23) to start playing. 5. Press STOP (22) to stop the disc. 6. To cancel this function,open the CD compartment. NOTE : PROGRAM function can only be done in stop mode. P.MODE (20) : 1. Press P.MODE (20) to select RANDOM play mode and it will play randomly all the tracks of the CD.The RANDOM indicator (26) alight. 2. Press again to switch off this function until the RANDOM indicator (26) goes off. SETTING THE ALARM AND WAKE UP MODE This unit allows you to set two different wake-up times which you can choose to use independently or simultansouly AL 1 or AL 2,or AL1 and2. 22.STOP : To stop playing the disc 23.PLAY / PAUSE : To start playing the CD or to stop momentarily the disc player 24.FM STEREO LED indicator 25.CD REPEAT LED indicator 26.CD RANDOM LED indicator 27.CD PROGRAM LED indicator 28.ON / OFF LED indicator 29.ON / OFF button 30.PROGRAM : To set programmable CD tracks 31.ALARM 2 button 32.ALARM 1 button 33.SLEEP button 34.TIME button 35.PM LED indicator 36.ALARM 1 LED indicator 37.ALERT STANDBY LED indicator 38.Dial scale & pointer 39.Digital Display 40.ALARM2 LED indicator POWER SUPPLY This CD clock radio operates on AC 120V~60Hz.It is also equipped with clock battery back-up system,powered by an optional 9V battery type 6F22(not provided). 1. Insert the AC power cord (14) into a convenient standard AC wall outlet. 2. Connect the 9V battery inside the compartment at the bottom of the unit (11). NOTE : An alkaline type battery is recommended. For optimum performance,this battery should be replaced every 6 months. BATTERY BACK-UP SYSTEM Ensures that the unit will continue to operate as normal during AC power disruption (in order to preserve the battery life the display will not light).All clock settings will be kept in the memory, however,the clock time may require adjustment for exact accuracy.If this battery is not installed,the display will blink “ ” to indicate that you have to redo the time and alarm settings. SETTING THE TIME 1. Press and hold TIME (34) and MINUTE or HOUR (21) to adjust to your desired time. 2. Release TIME (34) to store your set…

Text truncated - open the document above for the full version.

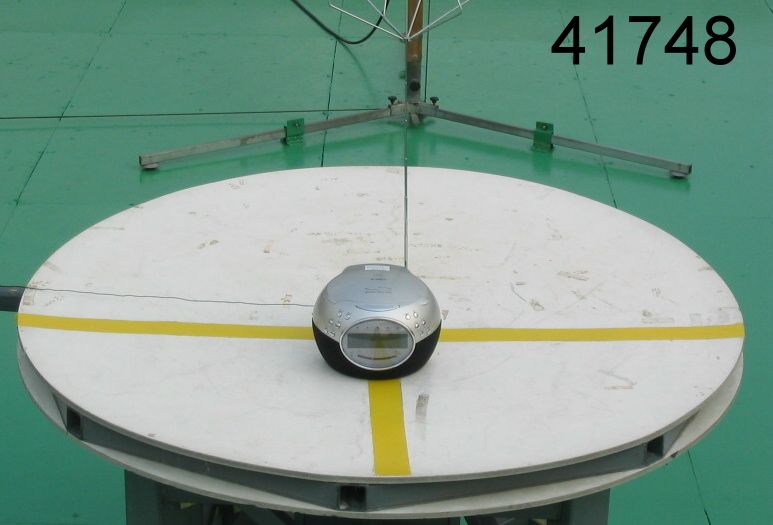

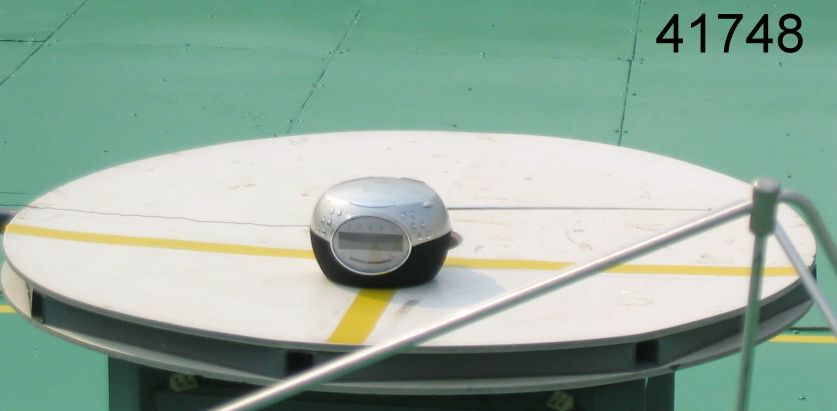

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 41748/5/200F FCC – Test Report No. 41748/5/200F Date: 2005-04-19 Page 2 of 18 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 2001 Product : AM/FM/WB CD Clock Radio with Weather Alert Product Class : Communication Receiver (Super Hetrodyne) Brand Name : - Model : CRD840W Importer : LASCO INDUSTRIES LIMITED FCC – Test Report No. 41748/5/200F Date: 2005-04-19 Page 3 of 18 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz – 30MHz) 9-13. Interference Radiation (Datasheet) 14. Notes for Radiation Measurement (acc. to ANSI C63.4 - 2001) 15-17. Interference Voltage (Datasheet) 18. Notes for Voltage Measurement (acc. to ANSI C63.4 - 2001) FCC – Test Report No. 41748/5/200F Date: 2005-04-19 Page 4 of 18 LABORATORY - REPORT APPLICANT: ADDRESS: LASCO INDUSTRIES LIMITED Unit 2 & 4, 9/F, Century Centre 44-46 Hung To Road, Kwun Tong Kowloon, HONG KONG DATE OF SAMPLE RECEIVED: 2005-03-30 DATE OF TESTING: 2005-04-04 to 2005-04-07 DESCRIPTION OF SAMPLE: Product: AM/FM/WB CD Clock Radio with Weather Alert Product class: Communication Receiver (Super Hetrodyne) Model no.: CRD840W Rating: AC 120V 60Hz and DC 9V ('6F22' Size Battery x 1) for Backup INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B – ‘Unintentional Radiators’ RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark: 1. Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests. 2. The conducted emissions test (if applicable) has considered the limits in Sections 15.107 and 15.207 adopted under FCC 02-157 (ETDocket 98-80). The product may be marketed after July 11, 2005, and is not affected by the 15.37(j) transition provisions. FCC – Test Report No. 41748/5/200F Date: 2005-04-19 Page 5 of 18 Summary of Test Results Interference Radiation: Test result: O.K. Test data: See attached data sheet Interference Voltage: Test result: O.K. Test data: See attached data sheet PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 41748/5/200F Date: 2005-04-19 Page 6 of 18 TEST EQUIPMENT LIST Equipment Manufacturer Model Serial No. Remark Test Receiver Rohde & Schwarz ESH 3 863497/015 150KHz – 30MHz Test Receiver Rohde & Schwarz ESH 3 892580/006 9KHz – 30MHz Test Receiver Rohde & Schwarz ESVP 860688/022 25MHz – 1,000 MHz Test Receiver Rohde & Schwarz ESVP 863512/012 25MHz – 1,000 MHz Test Receiver Rohde & Schwarz ESHS30 839667/002 9KHz – 30MHz Test Receiver Rohde & Schwarz ESVS30 828525/006 25MHz – 1000MHz Spectrum Analyzer with Q. Peak Advantest R3132 140101852 9KHz – 3GHz Spectrum Analyzer with Q. Peak Tektronix 2712 B023006 0.15MHz – 1000MHz Interface for Spectrum 2712 Tektronix TD3F14A -- -- Impulse Limiter Rohde & Schwarz ESH-3-Z2 -- -- Artificial Mains Network (LISN) Schwarzbeck NSLK 8127 8127312 2 x 10A, 50Ω, 50μH 9KHz-30MHz Artificial Mains Network (LISN) Schwarzbeck NSLK 8127 8127309 2 x 10A, 50Ω, 50μH 9KHz-30MHz Antenna System Schwarzbeck BBA 9106 / UHALP 9107 -- 30MHz – 1000MHz Antenna Mast System Schwarzbeck AM9104 -- Max. 4 meters height Loop Antenna Rohde & Schwarz HFH2-Z2 871336/48 9KHz-30MHz Turntable with Controller Drehtisch DT312 -- φ120 cm FCC – Test Report No. 41748/5/200F Date: 2005-04-19 Page 7 of 18 Radiated Emission Testprocedure (> 30MHz) Test receiver ESVP R & S Equipment under test (on turntable) Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 41748/5/200F Date: 2005-04-19 Page 8 of 18 Radiated Emission Test Procedure ( 9kHz – 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Test Receiver ESH3 Rohde & Schwarz Equipment under test (on turntable) 141 U1 Interference Radiation Date : 2005-04-19 According: FCC Part 15 Subpart B (15.109)Page 9 of 18 IECC Ref:41748/5/200F Model:CRD840W Test Equipment Applicant:LASCO INDUSTRIES LIMITED Receiver: ESVP Rohde & Schwarz Antenna: Schwarzbeck BBA 9106 Ser.Nr.:1 and UHALP 9107 Oper. Mode:FM Mode InterFreq:10.7 MHz Receiving - frequency (MHz) Oscillator- frequency (MHz) Har- monics Reading dBμV Polari- zation Correction - factor (dB) Testresult dBμV/m Limit dB(μV/m) 89.8100.5120H10.430.443.5 201.0218H16.534.543.5 301.53<16H16.3<32.346.0 402.04<16H18.3<34.346.0 502.55<16H19.7<35.746.0 603.06<16H20.9<36.946.0 703.57<16H22.4<38.446.0 804.08<16H23.8<39.846.0 904.59<16H25.1<41.146.0 98.3109.0120H11.731.743.5 218.0218H17.035.046.0 327.03<16H16.8<32.846.0 436.04<16H18.8<34.846.0 545.05<16H20.2<36.246.0 654.06<16H21.7<37.746.0 763.07<16H23.2<39.246.0 872.08<16H24.7<40.746.0 981.09<16H26.2<42.254.0 108.0118.7120H12.732.743.5 237.4218H17.435.446.0 356.13<16H17.5<33.546.0 474.84<16H19.4<35.446.0 593.55<16H20.8<36.846.0 712.26<16H22.6<38.646.0 830.97<16H24.1<40.146.0 949.68<16H25.8<41.846.0 The measurements indicate that the test unit meets the FCC requirements. 141 U1 Interference Radiation Date : 2005-04-19 According: FCC Part 15 Subpart B (15.109)Page 10 of 18 IECC Ref:41748/5/200F Model:CRD840W Test Equipment Applicant:LASCO INDUSTRIES LIMITED Receiver: ESVP Rohde & Schwarz Antenna: Schwarzbeck BBA 9106 Ser.Nr.:1 and UHALP 9107 Oper. Mode:FM Mode InterFreq:10.7 MHz Receiving - frequency (MHz) Oscillator- frequency (MHz) Har- monics Reading dBμV Polari- zation Correction - factor (dB) Testresult dBμV/m Limit dB(μV/m) 89.8100.5120V…
