MVARS992-001R

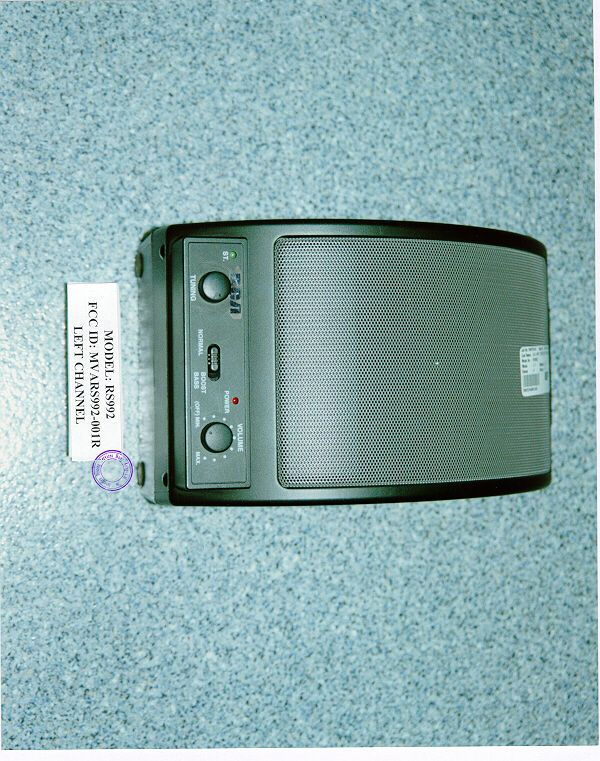

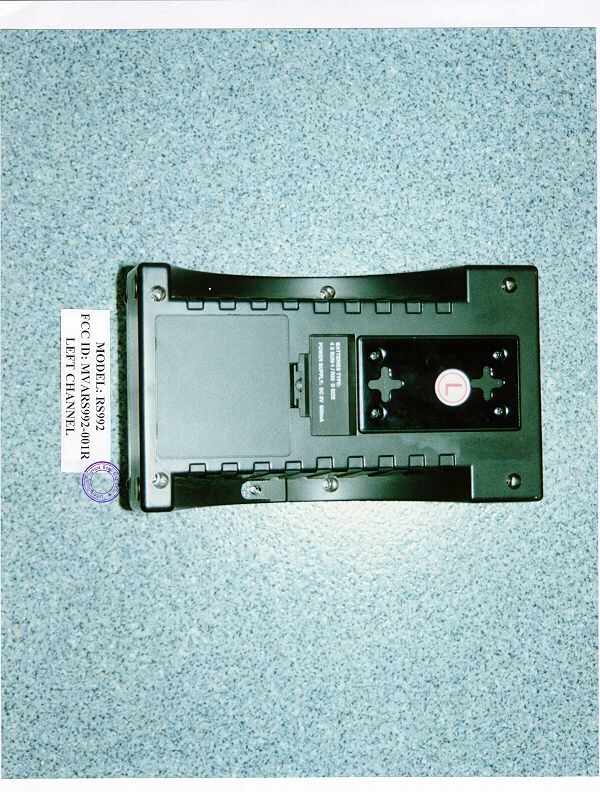

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Limtied FCC ID: MVARS992-001R Uni-Art Precise Products Ltd. Application For Notification (FCC ID: MVARS992-001R) Date: August 18, 1998 WO# 9805348 Wilson S. K. Loke/at August 18, 1998 INTERTEK TESTING SERVICES FCC ID: MVARS992-001R i LIST OF EXHIBITS EXHIBIT 1:General Description EXHIBIT 2:Emission Results EXHIBIT 3:Equipment External Photographs EXHIBIT 4:Product Labelling EXHIBIT 5:Technical Specifications EXHIBIT 6:Instruction Manual INTERTEK TESTING SERVICES FCC ID: MVARS992-001R ii MEASUREMENT/TECHNICAL REPORT Uni-Art Precise Products Ltd. - Model: ARKON RS992 RCA WSP150 GE WSP150 FCC ID: MVARS992-001R Date: August 18, 1998 This report concerns (check one: )Original Grant X Class II Change Equipment Type: Superheterodyne Receiver (example: computer, printer, modem, etc) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on y that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:C. K. Lam Intertek Testing Services 2/F., Garment Center, 576 Castle Peak Rd., Kowloon, Hong Kong. Phone:852-2746-8218 Fax:852-2785-5487 INTERTEK TESTING SERVICES FCC ID: MVARS992-001R iii Table of Contents 1.0 General Description.............................................................................................................. 2 1.1 Product Description........................................................................................................... 2 1.2 Related Submittal(s) Grants .............................................................................................. 2 1.3 Test Methodology ............................................................................................................. 2 1.4 Test Facility....................................................................................................................... 2 1.5 Attestation ......................................................................................................................... 2 2.0 Emisssion Results.................................................................................................................. 4 2.1 Radiated Emission Results.....................................................................................................5 2.2 Line Conducted Emission Results .........................................................................................6 3.0 Equipment Photographs....................................................................................................... 8 4.0 Product Labelling................................................................................................................ 10 5.0 Technical Specifications...................................................................................................... 12 6.0 Instruction Manual............................................................................................................. 14 INTERTEK TESTING SERVICES FCC ID: MVARS992-001R iv List of attached file Exhibit typefilename Test Reportreport.doc Test Setup Photoradiated.jpg, conduct1.jpg & conduct2.jpg External Photoophoto1.jpg, ophoto2.jpg, ophoto3.jpg, ophoto4.jpg Internal Photo(iphoto1.jpg) to (iphoto12.jpg) Block Diagramblock.pdf Schematicscircuit.pdf ID Labellabel.pdf ID Locationlocation.pdf User Manualmanual.pdf Cover Letterletter.pdf Attestationattest.pdf INTERTEK TESTING SERVICES FCC ID: MVARS992-001R 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: MVARS992-001R 2 1.0General Description 1.1Product Description The equipment under test (EUT) is superheterodyne receiver of a 900MHz stereo FM wireless speaker system. The system has left and right channels and powered by AC/DC adapter or eight ‘D’ batteries. The system is used with any sound source such as CD, TV, VCR, Hi-Fi and radio. 1.2Related Submittal(s) Grants This is a single application for Notification of a receiver. The FCC ID of the transmitter associated with this receiver is MVARS900-001T granted on August 29, 1996 1.3Test Methodology Both AC mains line-conducted and radiated emission measurements were performed according to the procedures in ANSI C63.4 (1992). All measurements were performed in Open Area Test Sites. Preliminary scans were performed in the Open Area Test Sites only to determine worst case modes. For each scan, the procedure for maximizing emissions in Appendices D and E were followed. All Radiated tests were performed at an antenna to EUT distance of 3 meters, unless stated otherwise in the "Justification Section" of this Application. 1.4Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located at Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. This test facility and site measurement data have been placed on file with the FCC. 1.5Attestation For electronic filing, the Attestation which is filled by the applicant is saved with filename: “attest.pdf” for electronic filing. INTERTEK TESTING SERVICES FCC ID: MVARS992-001R 3 EXHIBIT 2 EMISSION RESULTS INTERTEK TESTING SERVICES FCC ID: MVARS992-001R 4 2.0Emission Results The judgement on the radiated emission and conducted emission test together with the corresponding configuration photographs are included in the following pages. TEST PERSONNEL: Test Signature Wilson S. K. Loke, Electronics Engineer Typed/Printed Name August 18, 1998 Date INTERTEK TESTING SERVICES FCC ID: MVARS992-001R 5 2.1Radiated Emission R…
