MVASP1192B-001R900 MHz Wireless Indoor/Outdoor Rock Speaker

SP1190B Premium 900MHz Wireless Indoor/ Outdoor Rock Speaker w/ Dual Power Transmitter, Grey Owner's M a nu al (Read Instructions Carefully Before Using This Syst em ) P.1 INTRODUCTION This 900MHz digital hybrid wireless rock speaker sy stem uses latest wireless technology that enables you to enjoy music and TV sound anywhe re inside or outside your home. You can simply connect the system to any audio sour ce such as iPod, iPhone, MP3/CD/VCD/DVD players, smart phone, computer, TV o r home theater system. Without complicated wiring and installation with your Audio /Video equipments and rear channel amplifier, the system enables you to enjoy thrillin g, lifelike sound in minutes. FEATURES 1. Built-in rechargeable speaker (rock speaker) 2. Weatherproof indoor and outdoor rock speakers 3. Automatic Phases Lock Loop (PLL) scanning system on speaker receivers 4. Phase Lock Loop (PLL) transmission system on tra nsmitter 5. 900 MHz Digital Hybrid RF technology speaker sys tem 6. RF technology lets you roam freely throughout yo ur house, garden 7. Operating distance up to 150 feet 8. No line of sight limitation 9. Virtually interference free audio quality 10. Auto ON/OFF control 11. Auto tuning function 12. Auto shut-off on speaker P.2 PACKAGE INCLUDES 1. Dual Power Wireless Transmitter base X 1 2. Wireless Speaker X 1 3. 3.5MM to 1/4 Inch Adapter X 1 4. AC-DC Power Adapter X 2 (1 for transmitter; 1 fo r speaker) 5. 6" 3.5mm M-F cable X 1 6. 6" 3.5mm Female to RCA cable X 1 P.3 COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVER P.4 INSTALLATION TRANSMITTER 1. Connect the supplied AC power adapter to an elec trical wall outlet. 2. Plug the AC power adapter (12V/200mA) in the DC jack located on the rear of the transmitter, or insert 4 fresh “AA” size ALKALINE b atteries into the battery compartment of the transmitter with correct polarit y. Note: Discharged or low batteries will result in no signal to the speakers or distorted sound. 3. Turn on the transmitter by set the POWER switch to ON position, the POWER LED (blue) on transmitter will start flashing. 4. The retractable audio cord that is located at th e front of transmitter can be connected to audio output jack of any audio source such as iPod, iPhone, MP3/CD/VCD/DVD player, smart phone, computer, TV or home theater system. Home theater systems and other devices with red and white RCA audio out connections require a 3.5mm female to dual RCA male adapter cable to connect to the 3.5mm transmitter cable. P.5 5. The transmitter for this speaker set is designed to work with a wide variety of devices. Our tests have shown the default volume le vels of iPods, MP3 players and other devices connected to the transmitter through the headphone jack does not have the signal strength required by the transmitte r. Raising the volume of your device increases the signal strength to the transmi tter. The BLUE LED switches from flashing to steady when the required signal st rength from your device is reached. We recommend that you keep the volume set on your iPod or MP3 player at a minimum of 75% of full volume. P.6 OPERATION 1. Turn on the audio source to which the transmitte r is connected. 2. Set volume of audio source to 75% to send a stro ng consistent signal to the transmitter. 3. Set the POWER switch on the back of the transmit ter to the ON position. The LED on the transmitter will show a steady BLUE light if the source signal is strong enough or flash if the transmitter requires a highe r source device volume level. 4. Select the channel 1 or 2 of the transmitter for best performance in your location. 5. Turn on the speaker and adjust the volume to the desired listening level. Volume can be adjusted up by pressing “+” button or down b y pressing the “-“ button to the desired listening level, or you can press the “+” b utton or “-“ button” on the remote control unit to adjust the volume level. 6. Press the “AUTO TUNE” button to get the best tun ing reception from your speakers. When the button is pressed, frequency tun ing starts automatically and it stops when a signal is detected. Tuning process can also be activated by pressing the “AUTO TUNE” button on the remote control unit. NOTE : Low or distorted sound on speakers or with a transm itter powered by batteries can be caused by batteries that are discharged or h ave low capacity. Test by removing batteries and connecting the AC power adapter or us ing a fresh set of batteries. P.7 Battery Precautions for Transmitter If using batteries in the transmitter or speakers - Only use AA batteries in the transmitter, - Batteries may leak or explode if inserted improperl y, disposed of in fire, or mixed with different types. - Alkaline batteries may leak or explode if placed in a battery charger. - When installing batteries, observe proper +/- polar ities. Batteries positioned incorrectly may leak and cause damage to the unit. - Never attempt to recharge conventional dry cell bat teries. - Replace only with fresh, new batteries. - If unit will not be used for a long period of time, remove batteries to prevent damage or injury due to possible battery leakage. - Keep all batteries away from children. P.8 TROUBLE SHOOTING NO SOUND - Ensure the AC/DC adapter is fully inserted into the AC outlet and the power connection input on the transmitter. - Ensure the speakers are switched ON. - Speaker’s batteries are drained or capacity is too low. Replace with new batteries or connect the AC/DC adapters to the speakers. - Transmitter’s batteries are drained or capacity is too low. Replace with new batteries or connect the AC power adapter to the transmitter. - Ensure the TV or audio component is ON. - The connected audio / video equipment is not playin g. Start playing the equipment. - The volume of speakers is too low. Adjust the volu me to an appropriate level. - The volume of the audio source is too low. Turn up the volume of the source equipment (iPod, radio, etc.). DISTORTED - Press the “AUTO-TUNE” button on the s…

Text truncated - open the document above for the full version.

Uni-Art Precise Products Ltd 11-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Uni-Art Precise Products Ltd Address 11-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong City Hongkong Country declare that the following representative (agent): Name (person) Aven zhou Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 900MHz Wireless Indoor/Outdoor Rock Speaker Type or Model(s) SP1190B Tradename or Brand(s) ARKON We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hongkong May 29th,2012 Simon Chan Sales Manager

Uni-Art Precise Products Ltd 1 1-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Uni-Art Precise Products Ltd Addresss 11-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong City Hongkong Country request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: MVA SP1192B-001R of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Part list Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hongkong May 29th,2012 Simon Chan Sales Manager

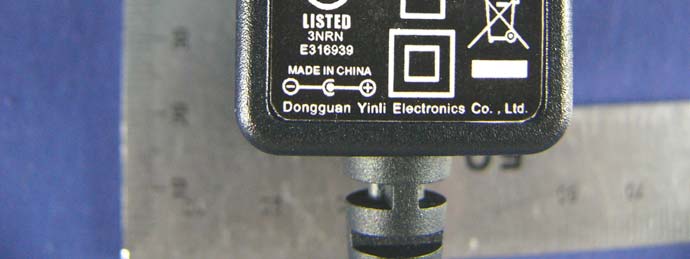

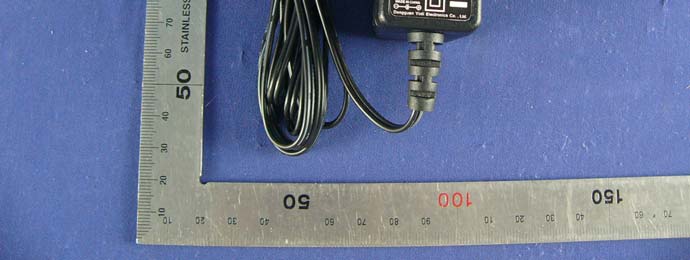

Report No.:SZ120426B01-EF Page 1/5 Adapter Report No.:SZ120426B01-EF Page 2/5 Report No.:SZ120426B01-EF Page 3/5 Report No.:SZ120426B01-EF Page 4/5 Report No.:SZ120426B01-EF Page 5/5

98-14-SP1190B Size : 38(L)x38(H)mm+/-0.5 Background: Black Text: White Coating: P.P. TRANSMITTER SCALE 1:1 Model no.:SP1190B 900MHz Wireless Indoor/Outdoor Rock Speaker FCC ID: MVASP3991-001T IC: 2579A-SP1190B This device complies with Part 15 of the FCC Rules & RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 98-14-SP1190B Size : 38(L)x42(H)mm+/-0.5 Background: Black Text: White Coating: P.P. SPEAKER SCALE 1:1 FCC ID: MVASP1192B-001R IC: 2579A-SP1190B DC 15V 1A / 6 x 1.5V AA size batteries Model no.:SP1190B This device complies with Part 15 of the FCC Rules & RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SP1190B 29 May, 2012 12V 200mA MVASP3991-001T for SP3991 MVASP1192B-001R for sp1192b IC 2579A-SP1190B 900MHz Digital Hybrid Wireless Rock Speaker 900MHz Wireless Indoor/Outdoor Rock Speaker

Label Location label location

Report No.: SZ120426B01-EF Page 1/11 Report No.: SZ120426B01-EF Page 2/11 Report No.: SZ120426B01-EF Page 3/11 Report No.: SZ120426B01-EF Page 4/11 Report No.: SZ120426B01-EF Page 5/11 Report No.: SZ120426B01-EF Page 6/11 Report No.: SZ120426B01-EF Page 7/11 Report No.: SZ120426B01-EF Page 8/11 Report No.: SZ120426B01-EF Page 9/11 Report No.: SZ120426B01-EF Page 10/11 Report No.: SZ120426B01-EF Page 11/11

Report No: SZ120426B01-EF FCC ID: MVASP1192B-001R Page 1 / 22 FCC 47 CFR PART 15 SUBPART B TEST REPORT for Issued for Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Issued By: Compliance Certification Services Inc . Linkuo Laboratory No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 E-Mail: [email protected] Issued Date: May 15, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. 900MHz Wireless Indoor/Outdoor Rock Speaker Model: SP1190B Brand: ARKON Test Report Number: SZ120426B01-EF Report No: SZ120426B01-EF FCC ID: MVASP1192B-001R Page 2 / 22 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No Revisions Effect Page Revised By 00 SZ120426B01-EF Initial Issue ALL Sunny Wang Report No: SZ120426B01-EF FCC ID: MVASP1192B-001R Page 3 / 22 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION............................................................................4 2 EUT DESCRIPTION ................................................................................................5 3 TEST METHODOLOGY ..........................................................................................6 3.1. DECISION OF FINAL TEST MODE ....................................................................................................6 3.2. EUT SYSTEM OPERATION ............................................................................................................... 6 4 SETUP OF EQUIPMENT UNDER TEST.................................................................7 4.1. DESCRIPTION OF SUPPORT UNITS................................................................................................ 7 4.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................................ 7 5 FACILITIES AND ACCREDITATIONS ...................................................................8 5.1. FACILITIES ......................................................................................................................................... 8 5.2. ACCREDITATIONS............................................................................................................................. 8 5.3. MEASUREMENT UNCERTAINTY ...................................................................................................... 8 6 CONDUCTED EMISSION MEASUREMENT ..........................................................9 6.1. LIMITS OF CONDUCTED EMISSION MEASUREMENT................................................................... 9 6.2. TEST INSTRUMENTS ........................................................................................................................ 9 6.3. TEST PROCEDURES ....................................................................................................................... 10 6.4. TEST SETUP .................................................................................................................................... 11 6.5. DATA SAMPLE ................................................................................................................................. 11 6.6. TEST RESULTS ................................................................................................................................ 12 7 RADIATED EMISSION MEASUREMENT.............................................................14 7.1. LIMITS OF RADIATED EMISSION MEASUREMENT...................................................................... 14 7.2. TEST INSTRUMENTS ...................................................................................................................... 15 7.3. TEST PROCEDURES ....................................................................................................................... 16 7.4. TEST SETUP .................................................................................................................................... 17 7.5. DATA SAMPLE ................................................................................................................................. 18 7.6. TEST RESULTS ................................................................................................................................ 19 Report No: SZ120426B01-EF FCC ID: MVASP1192B-001R Page 4 / 22 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Product: 900MHz Wireless Indoor/Outdoor Rock Speaker Model: SP1190B Brand: ARKON Applicant: Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Manufacturer: Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Tested: April 26~May 14, 2012 Test Voltage: AC120V/60Hz EMISSION Standard Item ResultRemarks Conducted (Power Port) PASS Meet Class B limit FCC 47 CFR Part 15 Subpart B ANSI C63.4: 2009 Radiated PASS Meet Class B limit Note: 1. The statements of test result on the above are decided by the request of test standard only; the measurement uncertainties are not factored into this compliance determination. 2. The information of measurement uncertainty is available upon the customer’s request. Deviation from…

Text truncated - open the document above for the full version.

Report No.:SZ120426B01-EF FCC ID: MVASP1192B-001R Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION Radiated Emissions Setup Photos Below 1 GHz Above 1 GHz Report No.:SZ120426B01-EF FCC ID: MVASP1192B-001R Page 2/2 . Power Line Conducted Emissions Setup Photos
