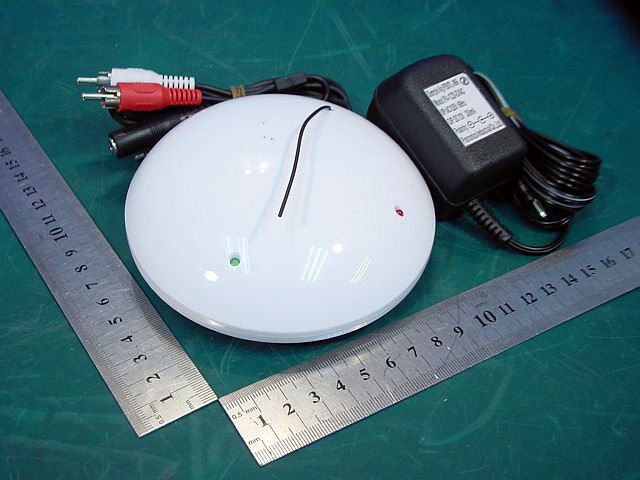

SP1490 900MHz Digital Hybrid Wireless Outdoor Speakers System User’s Manual Please read before using the equipment P.1 INTRODUCTION This 900 MHz wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player. Without complicated wiring and installation with your Audio/Video equipments and rear channel amplifier, the system enables you to enjoy thrilling, lifelike sound in minutes. FEATURES 1. Weatherproof indoor and outdoor speakers. 2. Automatic Phases Lock Loop (PLL) scanning system on speaker receivers 3. Phase Lock Loop (PLL) transmission system on transmitter 4. 900 MHz RF technology panel-like speaker system. 5. RF technology lets you roam freely throughout your house. 6. Operating distance up to 150 feet. 7. No line of sight limitation. 8. Virtually interference free audio quality. 9. Auto ON/OFF control. 10. Auto tuning function. P.2 COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVERS P.3 INSTALLATION TRANSMITTER 1. Insert the antenna tube into the antenna wire. 2. Connect the supplied AC/DC power adaptor to an electrical wall outlet. 3. Plug the AC/DC power adaptor in the DC jack located on the rear of the transmitter. 4. When the AC adaptor is plugged in, the red POWER LED illuminates. If the red POWER LED does not illuminate, make sure the adaptor is plugged in. 5. The rear of the transmitter has one audio cord that can be connected to audio output jack of TV, Monitor, VCR, Radio recorder, CD/MP3/VCD/DVD players or to headphone/earphone jack with the connector provided. When the transmitter received an audio signal, the green SIGNAL LED and the red POWER LED will illuminate together. If the green SIGNAL LED does not illuminate, ensure the audio source is turned on. SPEAKER RECEIVERS 1. Insert 6 pieces ‘AA’ size ALKALINE battery into the battery compartment with correct polarity at the bottom of the speakers (batteries not included in the package) or connect the 12V power adaptor to the DC input jack on the bottom of each speaker, then plug it to the wall AC outlet. P.4 2. Press POWER button and turn the speakers ON. The POWER LED will light up in blue. Switch off the speakers by pressing the POWER button on the speaker, and the LED will be off. OPERATION 1. Turn on the audio source (TV or audio component) to which the transmitter is connected with. The green LED on the transmitter will light up. 2. Select the channel 1 or 2 of the transmitter for best performance in your location. 3. Press the “POWER” button on the speaker to turn on the speaker. Press the “AUTO TUNE” button to get the best tuning reception in the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. 4. Volume can be adjusted up by pressing “+” button or down by pressing the button “-“ to the desired listening level. NOTE : a). Keep a distance of the speaker up to 7 meters apart from the transmitter, and then press “AUTO TUNE” button for the best reception. P.5 b) Whenever you find frequency jam, move your channel switch from one channel to the other channel (there are two channels for selection) on the transmitter, and then press the “AUTO TUNE” button again. 5. You should now be able to place the speakers freely from room to room without disruption. Should there is any disruption (signal cuts off or carries distortion), press the speaker’s “AUTO TUNE” button to maximize the best reception. If you hear interference from other components, switch on the channel control of transmitter, and then move the speakers to other free location. You can re-adjust the tuning control by moving it either channel 1 or 2 of the transmitter, then pressing “AUTO TUNE” button for best reception. When transmitting / receiving over long distances, the signal from the system will become weaker. P.6 6. Switching Off a) For protection of the transmitter and power saving, the transmitter will cut off automatically if there is no/weak operation input signal from audio source for 4 minutes. In other words, if the signal comes back, the transmitter will work again automatically. b) Press the “POWER” button to turn off the speaker and the LED light goes off. TROUBLE SHOOTING NO SOUND - Ensure the AC/DC adaptor is fully inserted into the AC outlet and the power connection input on the transmitter. - Ensure the speaker is switch ON. - Speaker’s battery capacity is too low, replace with new batteries or connect the AC/DC adaptors to the speakers. - Ensure the TV or audio component is ON. - The connected audio / video equipment is not playing. Start playing the equipment. - The volume of speaker is too low, adjust the volume to an appropriate level. DISTORTED - Press the “AUTO TUNE” button on the speakers until matching the frequency of the transmitter. - Change the position of the channel selector on the transmitter. You must then press the “AUTO TUNE” button on the speakers. - Battery capacity is too low. Replace with the new battery. - Ensure the volume level of speakers is adjusted properly. - The speaker is too far away from the transmitter, move it closer. - The input level of the audio signal is too low. Turn up the volume of the audio source equipment. P.7 TECHNICAL SPECIFICATIONS Transmission Mode : UHF Carrier Frequency : 900 MHz Operation Voltage : Transmitter, DC 12V 200mA Speaker, 6 X ‘AA ’ size Alkaline batteries or DC 12V 1A adaptor Frequency Response : 40Hz – 12KHz Distortion : 1% S/N Ratio : 65dB (typical) Channel Separation : 50dB (typical) Operation Distance : Up to 150 feet Output Power : 2 x 4Watts WARNING : MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Uni-Art Precise Products Ltd. would like the following documents regarding this submission for FCC ID: MVASP1490-001R to be kept confidential. 1. BLOCK DIAGRAM 2. UHF BLOCK DIAGRAM 3. SCHEMATICS & BOM 4. UHF SCHEMATICS & BOM 5. INTERNAL PHOTO 6. OPERATIONAL DESCRIPTION And would like the following documents regarding this submission for FCC ID: MVASP1490-001T to be kept confidential. 1. BLOCK DIAGRAM 2. UHF BLOCK DIAGRAM 3. SCHEMATICS & BOM 4. UHF SCHEMATICS & BOM 5. OPERATIONAL DESCRIPTION The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Uni-Art Precise Products Ltd.

The FCC Label for SP1491 This Device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Modification of this device to receive cellular radio-telephone service signals is prohibited under FCC rules and Federal Law. FCC ID: MVASP1490-001T IC: 2579A-SP1490 FCC & IC label location

Produkte Products Prüfbericht - Nr.: Test Report No.: 16009672 001 Seite 2 von 17 Page 2 of 17 TEST SUMMARY 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) RESULT: Pass 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A) RESULT: Pass 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.249(A) RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No.: 16009672 001 Seite 3 von 17 Page 3 of 17 Contents 1 GENERAL REMARKS........................................................................................................... 4 1.1 C OMPLEMENTARY MATERIALS......................................................................................... 4 2 TEST SITES.......................................................................................................................... 4 2.1 T EST FACILITIES................................................................................................................ 4 2.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS........................................................... 5 2.3 TRACE ABILITY................................................................................................................... 5 2.4 CALIBRATION..................................................................................................................... 5 2.5 M EASUREMENT UNCERTAINTY.......................................................................................... 6 2.6 L OCATION OF ORIGINAL DATA........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING........................................................................... 6 3 G ENERAL PRODUCT INFORMATION................................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE......................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES................................................................................... 7 3.4 SUBMITTED DOCUMENTS................................................................................................... 8 4 T EST SET-UP AND OPERATION MODE............................................................................... 8 4.1 P RINCIPLE OF CONFIGURATION SELECTION..................................................................... 8 4.2 T EST OPERATION AND TEST SOFTWARE........................................................................... 8 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT....................................................... 8 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE.................................................... 8 4.5 TEST SET-UP........................................................................................................................ 9 5 T EST RESULTS E M I S S I O N ..................................................................................... 11 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) ............................. 11 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A) ................................. 12 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.249(A)....................................................................................................................................... 13 6 PHOTOGRAPHS OF THE TEST SET-UP.............................................................................. 14 7 LIST OF TABLES................................................................................................................ 17 8 L IST OF PHOTOGRAPHS.................................................................................................... 17 Produkte Products Prüfbericht - Nr.: Test Report No.: 16009672 001 Seite 4 von 17 Page 4 of 17 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test result 2 Test Sites 2.1 Test Facilities Shenzhen SMQ Shenzhen Bureau of Quality Technical Supervision Shenzhen Academy of Metrology and Quality Inspection Bldg, of Shenzhen Academy of Metrology and Quality Inspection Longzhu Road, Nanshan, Shenzhen, P.R. China Produkte Products Prüfbericht - Nr.: Test Report No.: 16009672 001 Seite 5 von 17 Page 5 of 17 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until Antenna Chase CBL6112B 2591 29.01.2008 Horn Antenna Rohde & Schwarz HF906 100014 29.01.2008 3m Semi-anechoic chamber Albatross Projects 9X6X6 ---- 29.01.2008 EMI Test Receiver Rohde & Schwarz ESI26 838786/013 29.01.2008 Communications Test Set Rohde & Schwarz CMU200 1100.0008.02 29.01.2008 Communications Test Set HP HP8920A 3438A05187 29.01.2008 EMI Test Receiver Rohde & Schwarz ESCS30 100003 29.01.2008 AMN Rohde & Schwarz ESH3-Z5 100002 29.01.2008 2.3 Trace ability All measurement equipment calibrations are traceable to NIST or where calibration is performed outside the United States, to equivalent nationally recognized standards organizations 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basis using in house standards or comparisons. Produkte Products Prüfbericht - Nr.: Test Report No.: 16009672 001 Seite 6 von 17 Page 6 of 17 2.5 Measurement Uncertainty Uncertainty for conducted emissions measurements is ± 2.51dB. Uncertainty for radiated emissions measurements is ± 4.9dB (30MHz-1GHz), ± 4.84dB (>1GHz). The reported expanded uncertainty is based on a standard uncertainty multiply by a coverage factor k=2, providing a level of confide…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 16009672 001 Seite 14 von 17 Page 14 of 17 6 Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emission on AC Mains Produkte Products Prüfbericht - Nr.: Test Report No.: 16009672 001 Seite 15 von 17 Page 15 of 17 Photograph 2: Set-up for Radiation Measurement Below 1GHz Produkte Products Prüfbericht - Nr.: Test Report No.: 16009672 001 Seite 16 von 17 Page 16 of 17 Photograph 3: Set-up for Radiation Measurement Above 1GHz
