SP1690 Cordless Stereo 900MHZ Speaker System User’s Manual Please read before using the equipment P. 2 INTRODUCTION This 900 MHz stereo wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simp ly connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player. Without complicated wiring and inst allation with your Audio/Video equipments and rear channel amplifier, the system enables you to enjoy thrilling, lifelike sound stereo in minutes. FEATURES 1. Automatic Phases Lock Loop (PLL) scanning system on speaker receivers 2. Phase Lock Loop (PLL) transmission system on transmitter 3. 900 MHz RF technology panel-like speaker system. 4. RF technology lets you roam freely throughout your house. 5. Operating distance up to 50 Meters 6. No line of sight limitation. 7. Virtually interference free stereo quality. 8. ALC and auto ON/OFF control. 9. Auto tuning function. 10. Bass boost function 11. Stereo (L and R) and Mono Selection P. 3 COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVERS Antenna Signal (Green) Power (Red) P. 4 INSTALLATION TRANSMITTER 1. Insert the antenna tube into the antenna wire. 2. Connect the supplied AC power adaptor to an electrical wall outlet. 3. Plug the AC power adaptor in the DC jack located on the rear of the transmitter. The Power LED (Red) will on. 4. The rear of the transmitter has one audio cord that can be connected to audio output jack of TV, Monitor, VC R, Radio recorder, CD / MP3 / VCD / DVD players or to headphone / earphone jack with the connector provided. Plug the adaptor in the AC source and connect the audio plug to the audio source. As soon as the transmitter is receiving the audio signal, it will automatically switch on and the Signal LED (Green) will illuminate. P. 5 SPEAKER RECEIVERS 1. Insert 6 pieces ‘AA’ size ALKALINE battery into the battery compartment with correct polarity at the rear of the speakers or connect the 12V power adaptor to the DC input jack on the rear of each speaker, then plug it to the wall AC outlet. 2. Switch on the speakers by turning up the VOLUME ON / OFF knob towards ON direction. The POWER / STEREO LED will light up. Switch off the speakers by turning down the VOLUME ON/OFF knob towards OFF direction until a “click” sound is heard. OPERATION 1. Turn on the audio source (TV or audio component) to which the transmitter is connected with. The LED on transmitter will light up. 2. Select the channel 1 or 2 of the transmitter for best performance in your location. 3. Select the L/Mono/R selector on th e speaker receivers, one to L and the other to R for the best stereo reception. Ã In case the audio device only provides Mono audio signal, select the MONO/ST selector to MONO for the best mono reception. 4. Turn on the ON/OFF VOLUME knob on the speaker and adjust the volume to the desired listening level. P. 6 5. Push the “SCAN” auto-tuning button to get the best tuning reception in the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. The POWER / STEREO LED will change from red to green. A). Keep a distance of the speaker up to 7 meters apart from transmitter, and then press “SCAN” auto-tuning button for best tuning reception. B) Whenever you find frequency jam, move your channel switch from one channel to the other channel (there are two channels for selection) on the transmitter, and t hen press the “SCAN” auto-tuning button again. P. 7 6. The BASS BOOST button can be used to enhance the bass sound depending on your own music preferences. Turn bass/boost effect ON simply by pressing the button down, and pressing it once again to OFF. P. 8 NOTE : You should now be able to place the speakers freely from room to room without disruption. If disruption should occur (signal breaks up), press the speaker’s “SCAN” auto-tuning button to maximize best reception. If you hear interference from other components, switch the channel control of transmitter, and then move the speakers to other free location. You can re-adjust the tuning control by moving it either channel 1 or 2 of the transmitter, then pressing “SCAN” auto -tuning button for best reception. When transmitting / receiving over long distances, the signal from the system will become weaker. SWITCHNG OFF 1. Turn the VOLUME ON/OFF knob until the click sound is heard to turn off the speaker and the LED light goes off 2. For protection of the transmitter and power saving, the transmitter will cu t off automatically if there is no/weak operation input signal from audio source for 4 minutes. In other words, if the signal comes back, the transmitter will work again automatically. P. 9 TROUBLE SHOOTING NO SOUND - Ensure the AC adaptor is fully in serted into the AC outlet and the power connection input on the transmitter. - Ensure the speaker is switch ON. - Speaker’s battery capacity is too low, replace with new batteries or connect the AC adaptors to the speakers. - Ensure the TV or audio component is ON. - The connected audio / video equipment is not playing. Start playing the equipment. - The volume of speaker is too low, adjust the volume to an appropriate level. DISTORTED - Press the “SCAN” button on t he speakers until matching the frequency of the transmitter. - Change the position of the channel selector on the transmitter. You must then press the SCAN button on the speakers. - Battery capacity is too low. Replace with the new battery. - Ensure the volume level of speakers is adjusted properly. - The speaker is too far from transmitter, move closer. - The input level of the audio signal is too low. Turn up the volume of the audio source equipment. P.10 TECHNICAL SPECIFICATIONS Transmission Mode : UHF stereo Carrier Frequency : 900 MHz Operation Voltage : Transmitter, DC 12V 200mA Speaker, 6 X ‘AA’ size Alkaline batteries or DC 12V 500mA adaptor Frequency Response : 40Hz – 12KHz Distort…

Text truncated - open the document above for the full version.

UNI-ART PRECISE PRODUCTS LTD Address: 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Uni-Art Precise Products Ltd. would like the following documents regarding this submission for FCC ID: MVASP1690-001T to be kept confidential. 1. Document. Block Diagram/Schematic/Theory of Operation 2. Repeat above format for each item requested. Block Diagram/Schematic/Theory of Operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 4, 2007 RE: ATCB005371 FCC ID: MVASP1690-001T I have a few comments on this application. Depending on your responses, kindly understand there may be additional comments. 1. The designator on the PCB could not be seen clearly on the internal photos. Please provide better internal photos which allow us to clearly see the symbol of capacitor and R on the PCB. 2. It is required to show mode name and company name on the Label. Please provide a FCC label with model name and company name on it. ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ George Chen ~ mailto:[email protected] ~ Taiwan Mobile: +886 930600123 ~ SKYPE: georgeshirley ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

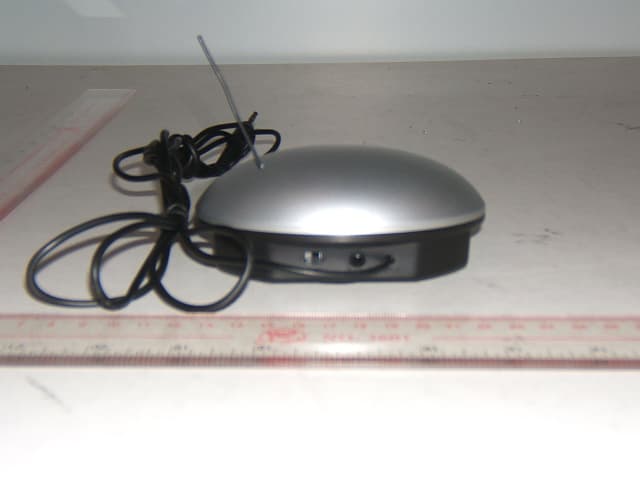

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07070003 FCC ID: MVASP1690-001T IC: 2579A-SP1690 DATE: 08/18/2007 Top View of EUT Back View of EUT
