Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
SP1790B 900MHz Wireless Indoor/Outdoor Speakers w/Remote Control User’s Manual P. 1 INTRODUCTION This 900 MHz digital hybrid wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player. Without complicated wiring and installation with your Audio/Video equipments and rear channel amplifier, the system enables you to enjoy thrilling, lifelike sound in minutes. FEATURES 1. Weatherproof indoor and outdoor speakers. 2. Automatic Phases Lock Loop (PLL) scanning system on speaker receivers 3. Phase Lock Loop (PLL) transmission system on transmitter 4. 900 MHz Digital Hybrid RF technology speakers system. 5. RF technology lets you roam freely throughout your house, garden. 6. Operating distance up to 150 feet. 7. No line of sight limitation. 8. Virtually interference free audio quality. 9. Auto ON/OFF control. 10. Auto tuning function. 11. Remote control unit. 12. Wall-mountable. 13. 2-way speakers. P. 2 COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVERS REMOTE CONTROL Antenna Signal On Indicator (blue) Power On Indicator (red) VOLUME DOWN VOLUME UP POWER ON/OFF AUTO TUNE AUTO TUNE VOLUME UP VOLUME DOWN POWER ON./OFF P. 3 INSTALLATION TRANSMITTER 1. Insert the antenna tube into the antenna wire. 2. Connect the supplied AC/DC power adaptor to an electrical wall outlet. 3. Plug the AC/DC power adaptor in the DC jack located on the rear of the transmitter. 4. When the AC adapter is plugged in, the red POWER LED illuminates. If the red POWER LED does not illuminate, make sure the adapter is plugged in. 5. The rear of the transmitter has one audio cord that can be connected to audio output jack of TV, Monitor, VCR, Radio recorder, CD/MP3/VCD/DVD players or to headphone/earphone jack with the connector provided. When the transmitter received an audio signal, the blue SIGNAL LED and the red POWER LED will illuminate together. If the blue SIGNAL LED does not illuminate, ensure the audio source is turned on. SPEAKER RECEIVERS 1. Insert 6 pieces ‘C’ size ALKALINE battery into the battery compartment with correct polarity at the bottom of each speaker (batteries not included in the package) or connect the 9V power adaptor to the DC input jack on the bottom of each speaker, then plug it to the wall AC outlet. P. 4 2. Press On/Off button and turn the speakers ON. The POWER LED will light up in Blue. Switch off the speakers by pressing the ON/OFF button on the speakers or on the remote control unit, and the LED will be off. 3. To suit the needs of different users, these speakers are designed for wall mounting. There are two holes at the back of each speaker for you to hang them on the wall. REMOTE CONTROL UNIT 1. Remove the battery cover at the rear of the remote control unit and insert 2 pieces “AAA” size batteries provided into the battery compartment with the correct polarity. 2. Place back the cover and close the battery compartment. P. 5 OPERATION 1. Turn on the audio source (TV or audio component) to which the transmitter is connected with. The blue signal LED on the transmitter will light up. 2. Select the channel 1 or 2 of the transmitter for best performance in your location. 3. Turn on the ON/OFF button on the speakers (the ON/OFF button on the remote control unit cannot be used as a primary device to switch on the speakers). Press the “AUTO TUNE” button to get the best tuning reception in the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. Tuning process can also be activated by pressing the “AUTO TUNE” button on the remote control unit. 4. Volume can be adjusted up by pressing “+” button or down by pressing the button “-“ to the desired listening level, or you can press the “+” button or “-“ button” on the remote control unit to adjust the volume level. NOTE : a). Keep a distance of the speakers up to 7 meters apart from the transmitter, and then press “AUTO TUNE” button for the best reception. b) Whenever you find frequency jam, move your channel switch from one channel to the other channel (there are two channels for selection) on the transmitter, and then press the “AUTO-TUNE” button again. P. 6 5. You should now be able to place the speakers freely from room to room without disruption. Should there is any disruption (signal cuts off or carries distortion), press the speaker’s “AUTO TUNE” button to maximize the best reception. If you hear interference from other components, switch on the channel control of transmitter, and then move the speakers to other free location. You can re-adjust the tuning control by moving it either channel 1 or 2 of the transmitter, then pressing “AUTO TUNE” button for best reception. When transmitting / receiving over long distances, the signal from the system will become weaker. 6. Switching Off a) For protection of the transmitter and power saving, the transmitter will cut off automatically if there is no/weak operation input signal from audio source for 4 minutes. In other words, if the signal comes back, the transmitter will work again automatically. b) Press the ON/OFF button to turn off the speakers and the LED light goes off, or simply press the ON/OFF button on the remote control unit. If you use the remote control unit to turn off the speakers, the speakers will be at stand-by mode for 5 minutes and the LED will be changed from blue to yellow. You can switch on the speakers again by using the remote control unit during the stand-by time. If there is no signal from the remote control unit in 5 minutes, the speakers will automatically power off. P. 7 WARNING: THE POWER ADAPTORS ARE FOR INDOOR USE ONLY. IF IT IS SLIGHTLY RAINING, KEEP THE SPEAKERS OPERATED BY BATTERY AND MOVE THE ADAPTORS TO AREA OUT OF RAINWATER. This device must be used with the AC/DC adapters supplied in the package. TROUBLE SHOOTING N…
Text truncated - open the document above for the full version.
Uni-Art Precise Products Ltd 11-12/F,Yue Xiu Industrial Building,87 Hung To Road, Kowloon, Hongkong 2011-05-26 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: MVASP1792B-001R Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics MVASP1792B-001R_ Schematics.pdf Block Diagram MVASP1792B-001R_ Block Diagram.pdf Operational Description MVASP1792B-001R_ Operational Description.pdf Parts List MVASP1792B-001R_ Parts List.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Uni-Art Precise Products Ltd Signature . Name/Title: Simon Chan/Sales Managers
Uni-Art Precise Products Ltd 11-12/F,Yue Xiu Industrial Building,87 Hung To Road, Kowloon, Hongkong FCC ID: MVASP1792B-001R POWER OF ATTORNEY May 26, 2011. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Compliance Certification Service (Shenzhen) Inc. (Aven Zhou) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Compliance Certification Service (Shenzhen) Inc. (Aven Zhou) on our behalf shall have the same effect as acts of our own. This authorization expires on July 28, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Uni-Art Precise Products Ltd are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Uni-Art Precise Products Ltd Signature . Name/Title: Simon Chan/Sales Managers
Report No: SZ110512B01-EF Page 1 / 4 Report No: SZ110512B01-EF Page 2 / 4 Report No: SZ110512B01-EF Page 3 / 4 Report No: SZ110512B01-EF Page 4 / 4

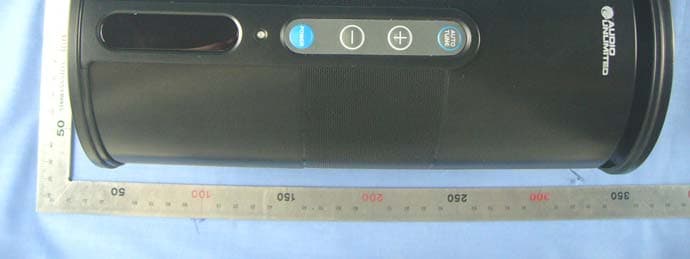

Product Name: Floating 900MHz Wireless Speaker System MODEL: SP1790B Brand: ARKON Label Location
SP1790B-000 02 June, 2011 98-14-SP1790B Size : 38(L)x40(H)mm+/-0.5 Background: Black Text: White Coating: P.P. SPEAKER SCALE 1:1 Model no.: SP1790B 900MHz Wireless Speaker FCC ID: MVASP1792B-001R IC: 2579A-SP1790B DC 9V 1A / 6 x 1.5V AA size batteries This device complies with Part 15 of the FCC Rules & RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Report No:SZ110512B01-EF Page 1 / 5 Report No:SZ110512B01-EF Page 2 / 5 Report No:SZ110512B01-EF Page 3 / 5 Report No:SZ110512B01-EF Page 4 / 5 Report No:SZ110512B01-EF Page 5 / 5
Report No: SZ110512B01-EF FCC ID : MVASP1792B-001R Page 1 / 20 FCC 47 CFR PART 15 SUBPART B TEST REPORT for Floating 900MHz Wireless Speaker System MODEL: SP1790B Test Report Number: SZ110512B01-EF Issued for Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Issued By: Compliance Certification Services Inc . Linkuo Laboratory No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan(R.O.C.) TEL: 886-3-324-0332 FAX: 886-3-324-5235 E-Mail: [email protected] Issued Date: May 27, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: SZ110512B01-EF FCC ID : MVASP1792B-001R Page 2 / 20 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No Revisions Effect Page Revised By 00 SZ110512B01-EF Initial Issue ALL Ethan Huang Report No: SZ110512B01-EF FCC ID : MVASP1792B-001R Page 3 / 20 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION............................................................................4 2 EUT DESCRIPTION ................................................................................................5 3 TEST METHODOLOGY ..........................................................................................6 3.1. DECISION OF FINAL TEST MODE ....................................................................................................6 3.2. EUT SYSTEM OPERATION ............................................................................................................... 6 4 SETUP OF EQUIPMENT UNDER TEST.................................................................7 4.1. DESCRIPTION OF SUPPORT UNITS................................................................................................ 7 4.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................................ 8 5 FACILITIES AND ACCREDITATIONS ...................................................................9 5.1. FACILITIES ......................................................................................................................................... 9 5.2. ACCREDITATIONS............................................................................................................................. 9 5.3. MEASUREMENT UNCERTAINTY ...................................................................................................... 9 6 CONDUCTED EMISSION MEASUREMENT ........................................................10 6.1. LIMITS OF CONDUCTED EMISSION MEASUREMENT................................................................. 10 6.2. TEST INSTRUMENTS ...................................................................................................................... 10 6.3. TEST PROCEDURES ....................................................................................................................... 11 6.4. TEST SETUP .................................................................................................................................... 12 6.5. DATA SAMPLE: ................................................................................................................................ 12 6.6. TEST RESULTS ................................................................................................................................ 13 7 RADIATED EMISSION MEASUREMENT.............................................................14 7.1. LIMITS OF RADIATED EMISSION MEASUREMENT...................................................................... 14 7.2. TEST INSTRUMENTS ...................................................................................................................... 14 7.3. TEST PROCEDURES ....................................................................................................................... 16 7.4. TEST SETUP .................................................................................................................................... 17 7.5. DATA SAMPLE ................................................................................................................................. 18 7.6. TEST RESULTS ................................................................................................................................ 19 Report No: SZ110512B01-EF FCC ID : MVASP1792B-001R Page 4 / 20 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Product: Floating 900MHz Wireless Speaker System Model: SP1790B Brand: ARKON Applicant: Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Manufacturer: Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Tested: May 6~24, 2011 Test Voltage: DC9V supplied by the adapter or 1.5V×6 batteries EMISSION Standard Item ResultRemarks Conducted (Power Port) PASS Meet Class B limit FCC 47 CFR Part 15 Subpart B ANSI C63.4: 2009 Radiated PASS Meet Class B limit Note: 1. The statements of test result on the above are decided by the request of test standard only; the measurement uncertainties are not factored into this compliance determination. 2. The information of measurement uncertainty is available upon the customer’s request. Deviation from Applicable Standard None The above equi…
Text truncated - open the document above for the full version.
Report No.: SZ110512B01-EF FCC ID : MVASP1792B-001R Page 1 / 3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: SZ110512B01-EF FCC ID : MVASP1792B-001R Page 2 . RADIATED EMISSION TEST Below 1GHz Report No.: SZ110512B01-EF FCC ID : MVASP1792B-001R Page 3 . Above 1GHz
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15B | 912 MHz - 913 MHz | - |
