SP3990 Floating 900MHz Wireless Speaker System User’s Manual Please read before using the equipment INTRODUCTION This 900MHz stereo wireless speaker system uses latest wireless technology that enables you to enjoy music outdoors in your swimming pool. You can simply connect the portable transmitter to any audio source such as i-Pod, i-Phone, CD/MPS player, Hi-Fi or other audio sources. FEATURES 1. Automatic Phase Lock Loop (PLL) scanning system on speaker receivers. 2. Phase Lock Loop (PLL) transmission system on transmitter. 3. 900MHz RF technology speaker system. 4. RF technology lets you roam freely throughout your house. 5. Operating distance up to 150 feet in open area. 6. No line of sight limitation. 7. Virtually interference free stereo quality. 8. Auto ON/OFF control. 9. Auto tuning function. 10. Blue LED moon light effect. 11. Battery operation for full portability for the transmitter and speaker. COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVERS INSTALLATION TRANSMITTER 1. Connect the supplied AC power adaptor to an electrical wall outlet. 2. Plug the AC power adaptor (12V/200mA) in the DC jack located on the rear of the transmitter, or you can insert 4 X “AA” size ALKALINE batteries into the battery compartment of the transmitter with correct polarity. 3. Turn on the transmitter by set the POWER switch to ON position, and the POWER LED (blue) on transmitter will start flashing. 4. The retractable audio cord that located at the front of transmitter can be connected to audio output jack of any audio source such as i-Pod, i-Phone, MP3 handphone, Hi-Fi, MP3/CD/VCD/DVD players and etc. 5. As soon as the transmitter is receiving the audio signal, the POWER LED (blue) will illuminate steadily. SPEAKER RECEIVERS 1. Insert 6 pieces of ‘AA’ size ALKALINE battery into the battery compartment with correct polarity at the bottom of the speaker, or you connect an AC power adaptor (9V/1.2A) to the DC input jack on the rear of each speaker, then plug it to the wall AC outlet. 2. Tighten the battery door clockwise and ensure the battery door is closed firmly without any gap. 3. Switch on the speakers by press the POWER button. The Mood Light (blue) will illuminate steadily, and the POWER LED (blue) will start flashing. As soon as the connection between the transmitter and speakers are accomplished, the POWER LED (blue) will illuminate steadily. Switch off the speakers by press the POWER button again. OPERATION 1. Turn on the audio source to which the transmitter is connected with. 2. Turn on the transmitter by set the POWER switch to ON position, and the POWER LED on transmitter will light up. 3. Select the channel 1 or 2 of the transmitter for best performance in your location. 4. Turn on the speaker and adjust the volume to the desired listening level. 5. Press the “SCAN” auto-tuning button to get the best tuning reception in the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. The POWER LED will illuminate steadily. A). Keep a distance of the speaker up to 7 meters apart from transmitter, and then press “SCAN” auto-tuning button for best tuning reception. B) Whenever you find frequency jam, move your channel switch from one channel to the other channel on the transmitter, and then press the “SCAN” auto-tuning button on the speaker again. Caution: Tighten the battery door clockwise and ensure the battery door is closed firmly without any gap before placing the speaker into the water. 6. You can now place the floating speaker in the pool, bathtub, hot tub etc. CAUTION: Speaker will performance best without water resting on top of the speaker. Periodically draining water from the speaker by inverting it helps to achieve better performance. Clean the speaker and housing thoroughly, and keep it dry between uses. NOTE : If disruption should occur (signal breaks up), press the “SCAN” auto-tuning button on the speaker to maximize best reception. If you hear interference from other components, change the channel of transmitter, and then pressing the “SCAN” auto-tuning button on speaker for best reception. When transmitting / receiving over long distances, the signal from the system will become weaker. SWITCHNG OFF 1. Press the POWER button to turn off the speaker and the POWER LED goes off. 2. For protection of the transmitter and power saving, the transmitter will cut off automatically if there is no/weak operation input signal from audio source for 4 minutes. In other words, if the signal comes back, the transmitter will resume working automatically. TROUBLE SHOOTING NO SOUND - Too much water retention inside the speaker grill. Turn over the speaker and let the water drain out from the speaker grill. - Battery capacity of Speaker and/or Transmitter is too low, replace with new batteries. - If AC power source were used, ensure the AC adaptor is fully inserted into the AC outlet, and the power connection input on the transmitter is properly connected. - Ensure the speaker is switch ON. - Ensure the audio source is ON and working well, and its volume level is set to at least 50%. - The volume of speaker is too low, adjust the volume to an appropriate level. DISTORTED - Press the “SCAN” button on the speaker until it matches the frequency with the transmitter. - Switch to a different channel on the transmitter. Then press the SCAN button on the speakers again. - Battery capacity is too low. Replace with new batteries. - Ensure the volume level of speakers is adjusted properly. - The speaker is too far away from transmitter, move them closer. - The input level of the audio signal is too low. Turn up the volume of the audio source equipment. TECHNICAL SPECIFICATIONS Transmission Mode : UHF stereo Carrier Frequency : 900 MHz Operation Voltage : Transmitter, 4 X ‘AA’ size Alkaline batteries (not included) or DC 12V 200mA Speaker, 6 X ‘AA’ size Alkaline batteries (not included) or DC 9V 1.2A adaptor Frequency Response : 40Hz – 12KHz Di…

Text truncated - open the document above for the full version.

Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road,Kowloon, Hong Kong January 13, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID：MVASP3992-001R Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Simon Chan / Sales Manager Company Name: Uni-Art Precise Products Ltd Address: 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong TEL: +00852-27908778 FAX: +00852-23436151 Email: [email protected]

Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road,Kowloon, Hong Kong January 13, 2010 FCC ID：MVASP3992-001R Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China Name: Aven Zhou Job Title: Supervisor Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ARKON / SP3990 FCC ID: MVASP3992-001R Product Name: Floating 900MHz Wireless Speaker System Signature Name/Title: Simon Chan / Sales Manager Company Name: Uni-Art Precise Products Ltd Address: 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong TEL: +00852-27908778 FAX: +00852-23436151 Email: [email protected]

Reference No: Report No: SZ091221B03-EF Page 1 / 5 Reference No: Report No: SZ091221B03-EF Page 2 / 5 Reference No: Report No: SZ091221B03-EF Page 3 / 5 Reference No: Report No: SZ091221B03-EF Page 4 / 5 Reference No: Report No: SZ091221B03-EF Page 5 / 5

Label Location FCC ID MVASP3492-001R" for SP3992 98-14- Background: WHITE Text: BLACK Coating: P.P. 9 0 0 M H z W ir e le s s S p e a k e r P o w e r: 9 V D C , 1 .2 A 6 X A A s iz e a lk a li n e b a tt e ri e s IC: 2579A-SP3990 RECEIVER FCC LABEL IC: 2579A-SP3990 FCC ID: MVASP3992-001R

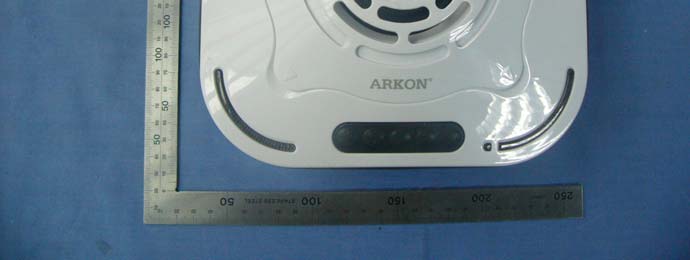

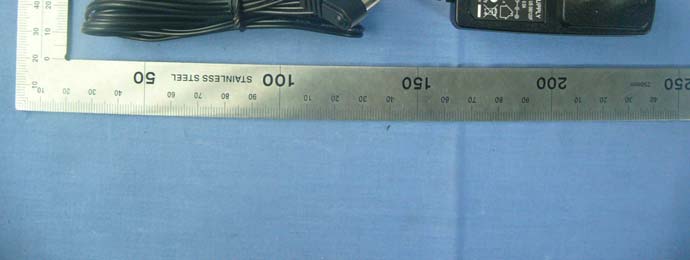

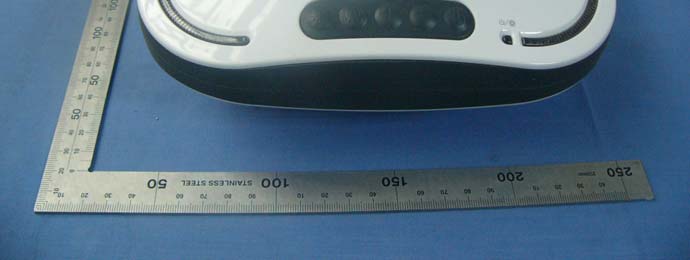

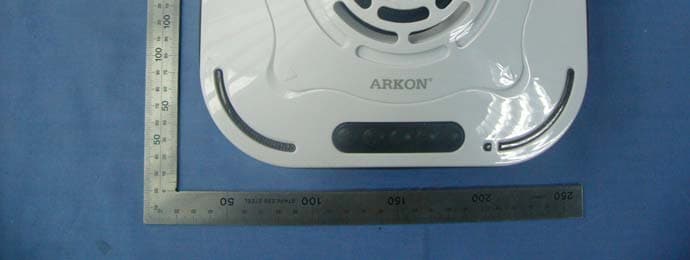

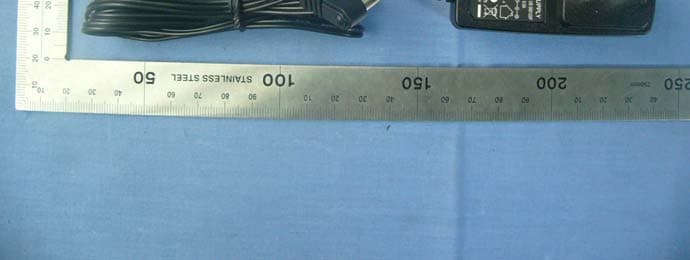

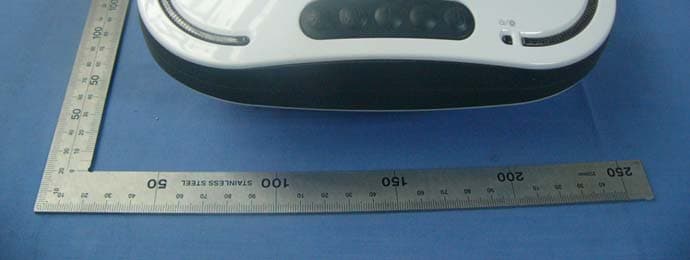

Reference No: Report No: SZ091221B03-EF Page 1 / 7 Internal Photos of EUT Reference No: Report No: SZ091221B03-EF Page 2 / 7 Reference No: Report No: SZ091221B03-EF Page 3 / 7 Reference No: Report No: SZ091221B03-EF Page 4 / 7 Reference No: Report No: SZ091221B03-EF Page 5 / 7 Reference No: Report No: SZ091221B03-EF Page 6 / 7 Reference No: Report No: SZ091221B03-EF Page 7 / 7

Report No: SZ091221B03-EF FCC ID : MVASP3992-001R This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Page 1 / 20 FCC DoC TEST REPORT for Floating 900MHz Wireless Speaker System Brand: ARKON Model: SP3990 Report Number: SZ091221B03-EF Issued Date: January 07, 2010 Issued for Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Issued by: Compliance Certification Services Inc. No. 81-1, Lane 210, Bade 2nd Rd., Lujhu Township Taoyuan County, Taiwan TEL: +886-3-3240332 FAX: +886-3-3245235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: SZ091221B03-EF FCC ID : MVASP3992-001R This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Page 2 Revision History Rev. Issue No. Revisions Effect Page Revised By 00 SZ091221B03-EF Initial Issue ALL Clinton Kao CCS Report Format Version 2.0 Report No: SZ091221B03-EF FCC ID : MVASP3992-001R This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Page 3 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ........................................................................... 4 2 EUT DESCRIPTION ............................................................................................... 5 3 TEST METHODOLOGY ......................................................................................... 6 3.1. DECISION OF FINAL TEST MODE ....................................................................... 6 3.2. EUT SYSTEM OPERATION................................................................................... 6 4 SETUP OF EQUIPMENT UNDER TEST ................................................................ 7 4.1. DESCRIPTION OF SUPPORT UNITS ................................................................... 7 4.2. CONFIGURATION OF SYSTEM UNDER TEST.................................................... 8 5 FACILITIES AND ACCREDITATIONS.................................................................... 9 5.1. FACILITIES............................................................................................................ 9 5.2. ACCREDITATIONS ................................................................................................ 9 5.3. MEASUREMENT UNCERTAINTY.......................................................................... 9 6. CONDUCTED EMISSION MEASUREMENT ........................................................ 10 6.1. LIMITS OF CONDUCTED EMISSION MEASUREMENT ..................................... 10 6.2. TEST INSTRUMENTS .......................................................................................... 10 6.3. TEST PROCEDURES ...........................................................................................11 6.4. TEST SETUP ........................................................................................................ 12 6.5. Data Sample: ........................................................................................................ 13 6.6. TEST RESULTS.................................................................................................... 14 7 RADIATED EMISSION MEASUREMENT ............................................................ 15 7.1. LIMITS OF RADIATED EMISSION MEASUREMENT .......................................... 15 7.2. TEST INSTRUMENTS .......................................................................................... 15 7.3. TEST PROCEDURES .......................................................................................... 16 7.4. TEST SETUP ........................................................................................................ 18 7.5. Data Sample......................................................................................................... 18 7.6. TEST RESULTS.................................................................................................... 19 Report No: SZ091221B03-EF FCC ID : MVASP3992-001R This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Page 4 1 TEST RESULT CERTIFICATION Product: Floating 900MHz Wireless Speaker System Model: SP3990 Brand: ARKON Applicant: Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Manufacturer: Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Tested Date: December 21,2009~ January 07,2010 Test Voltage: AC120V/60Hz or DC9V powered by the by the battery EMISSION Standard Item ResultRemarks Conducted (Main Port) PASS Meet Class B limit FCC 47 CFR Part 15 Subpart B, ANSI C63.4-2003 Radiated PASS Meet Class B limit Note: 1. The test result judgment is decided by the limit of measurement standard 2. The information of measurement uncertainty is available upon the customer’s request. Deviation from Applicable Standard None The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Clinton Kao/ Manager COMPLIANCE CERTIFICATION SERVICES INC. Vincent Yao/ Assistant manager COMPLIANCE CERTIFICATION SERVICES INC. …

Text truncated - open the document above for the full version.

Reference No.: Report No.: SZ091221B03-EF Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Reference No.: Report No.: SZ091221B03-EF Page 2 . RADIATED EMISSION TEST
