MVASP4091-001TWireless Stereo 900MHz Speaker System

SP4090 Wireless Stereo 900MHz Speaker System User’s Manual Please read before using the equipment INTRODUCTION This 900 MHz stereo wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and iPod/CD/MP3/VCD/DVD player. Without complicated wiring and installation with your Audio/Video equipments and rear channel amplifier, the system enables you to enjoy thrilling, lifelike sound stereo in minutes. FEATURES z Automatic Phases Lock Loop (PLL) scanning system on speaker receivers z Phase Lock Loop (PLL) transmission system on transmitter z 900 MHz RF technology panel-like speaker systems. z RF technology lets you roam freely throughout your house. z Operating distance up to 50 Meters z No line of sight limitation. z Virtually interference free stereo quality. z ALC and auto ON/OFF control. z Auto tuning function. z Bass boost function z Stereo (L and R) and Mono Selection PACKAGE INCLUDES 1 x Transmitter 1 x AC/DC 8V 200mA Power Adaptor for Transmitter 2 x Speakers 2 x AC/DC 9V 1.2A Power Adaptor for Speakers 1 x 2M Long Audio Cable 1 x Short "Y-Cord" RCA Adapter Cable. COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVERS 1. Power LED Indicator 2. Signal LED Indicator 3. Audio In 4. Channel Selector 5. DC In (8V) 6. Battery Compartment 7. Volume Down 8. Power/Signal LED Indicator 9. Volume Up 10. Boost Bass 11. Auto Scan 12. Left / Mono / Right 13. DC In (9V) INSTALLATION TRANSMITTER 1. Plug the supplied 8V AC/DC power adaptor in the DC jack located on the rear of the transmitter. 2. Connect the supplied 8V AC/DC power adaptor to an electrical wall outlet. The Power LED then glows. 3. The transmitter can be connected to audio output jack of TV, Monitor, VCR, Radio, CD, MP3, VCD or DVD players with the cables provided. Having finished the above simple wiring, Signal LED glows when the transmitter detects audio input signal played from the source. SPEAKER RECEIVERS 1. Remove the door of the battery compartment. 2. Insert 6 pieces of ‘AA’ size ALKALINE batteries into the battery compartment with correct polarity under the speakers, then replace the door of battery compartment, or connect the provided AC/DC 9V Adaptor to the DC input jack under the speakers, then plug it to the wall AC outlet. OPERATION 1. Turn on the audio source to which the transmitter is connected with. The Signal LED on transmitter will light up. 2. Select a channel of the transmitter for best performance in your location. 3. Select the L/M/R (Left/Mono/Right) selector under the speakers, one to L and the other to R for the best stereo reception. In case the audio device only provides Mono audio signal, select to M (Mono) for the best mono reception. 4. Turn on the speakers by pressing both the Volume Up and Down Buttons simultaneously, the LED in front of the speaker glows. To switch off the speakers, press both the Volume Up and Down Buttons simultaneously again. 5. Push the “AUTO SCAN” button to get the best tuning reception under the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. The glowing LED will be changed to GREEN which represent proper reception. Adjust the volume to the desired listening level by pressing Volume Up or Down. a). Keep a distance of 7 meters between speaker and transmitter, and then press “ AUTO SCAN “ button for best tuning reception. b). Once the frequency is jammed, select another channel on the transmitter, then press “ AUTO SCAN “ button again. 6. The “BOOST BASS” button can be used to enhance the bass sound depending on your own music preferences. Turn the effect ON simply by pressing the button down, and pressing it once again to OFF. If the power of the transmitter is being cut off, or no audio signal is playing from the source, the glowing LED on the speakers will be changed from GREEN to BLUE in 4 minutes, even if the frequency between speakers and transmitter is properly matched. Signal LED on the Transmitter would be cut off automatically if there is no/weak operation input signal from audio source for 4 minutes. When the signal comes back, the transmitter will work again automatically. NOTE : You should now be able to place the speakers freely from room to room without disruption. If disruption should occur (signal breaks up), press the “AUTO SCAN” button under the speakers to maximize best reception. If you hear interference from other components, switch the channel control of transmitter, and then move the speakers to other free location. You can re-adjust the tuning control by moving it among channels of the transmitter, then pressing “AUTO SCAN” button of the speakers for best reception. When transmitting / receiving over long distances, the signal from the system will become weaker. TROUBLE SHOOTING NO SOUND z Ensure the AC adaptor is fully inserted into the AC outlet and the power connection input on the transmitter. z Ensure the speaker is switch ON. z Speaker’s battery capacity is too low, replace with new batteries or connect the AC adaptors to the speakers. z Ensure the TV or audio component is ON. z The connected audio / video equipment is not playing. Start playing the equipment. z The volume of speaker is too low, adjust the volume to an appropriate level. DISTORTED z Press the “AUTO SCAN” button under the speakers until the frequency between the transmitter and speakers are matched. z Change the position of the channel selector on the transmitter. You must then press the “AUTO SCAN” button on the speakers. z Battery capacity is too low. Replace with the new battery. z Ensure the volume level of speakers is adjusted properly. z The speaker is too far away from transmitter, move them closer. z The input level of the audio signal is too low. Turn up the volume of the audio source equipment. TECHNICAL SPECIFICATIONS Transmission Mode : UHF s…

Text truncated - open the document above for the full version.

Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road,Kowloon, Hong Kong 2010-6-29 Federal Communications Commission Authorization and Evaluation Division FCC ID: MVASP4091-001T Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Simon Chan / Sales Manager Company Name: Uni-Art Precise Products Ltd Address: 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong TEL: +00852-27908778 FAX: +00852-23436151 Email: [email protected]

Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road,Kowloon, Hong Kong June 29, 2010 FCC ID： MVASP4091-001T Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China Name: Aven Zhou Job Title: Supervisor Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ARKON/SP4090 FCC ID: MVASP4091-001T Product Name: Wireless Stereo 900MHz Speaker System Signature Name/Title: Simon Chan / Sales Manager Company Name: Uni-Art Precise Products Ltd Address: 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong TEL: +00852-27908778 FAX: +00852-23436151 Email: [email protected]

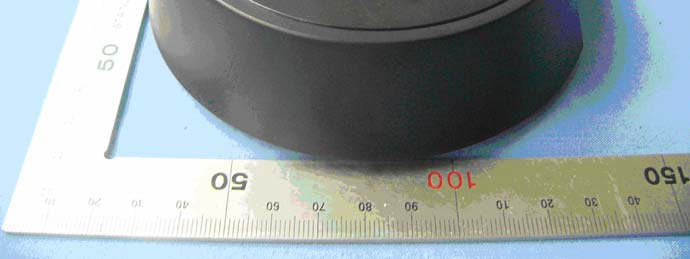

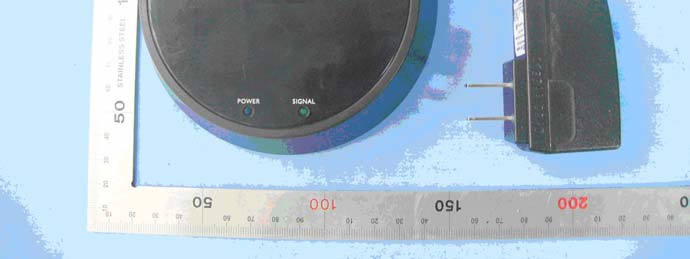

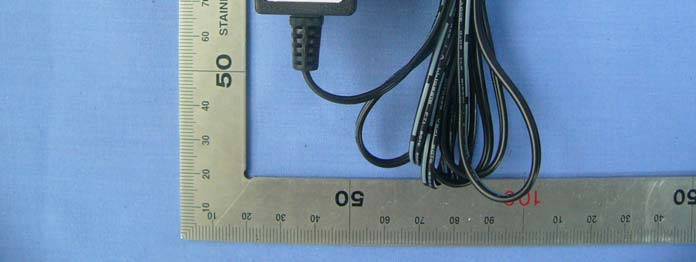

Reference No: Report No: SZ100608B01-RP Page 1 / 4 Reference No: Report No: SZ100608B01-RP Page 2 / 4 Reference No: Report No: SZ100608B01-RP Page 3 / 4 Reference No: Report No: SZ100608B01-RP Page 4 / 4

Size: 40(L)*30(H)mm

Reference No: Report No: SZ100608B01-RP Page 1 / 5 Internal Photos of EUT Reference No: Report No: SZ100608B01-RP Page 2 / 5 Reference No: Report No: SZ100608B01-RP Page 3 / 5 Reference No: Report No: SZ100608B01-RP Page 4 / 5 Reference No: Report No: SZ100608B01-RP Page 5 / 5

Reference No.: Report No.: SZ100608B01-RP FCC ID : MVASP4091-001T Page 1 / 25 FCC TEST REPORT for Wireless Stereo 900MHz Speaker System MODEL:SP4090 Test Report Number: SZ100608B01-RP Issued for Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road, Kowloon, Hong Kong Issued by: COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: June 23, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Reference No.: Report No.: SZ100608B01-RP FCC ID : MVASP4091-001T Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 23, 2010 Initial Issue ALL Clinton Kao Reference No.: Report No.: SZ100608B01-RP FCC ID : MVASP4091-001T Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ................................................................................................. 4 2 EUT DESCRIPTION....................................................................................................... 5 3 TEST METHODOLOGY................................................................................................. 6 3.1. DESCRIPTION OF TEST MODES ...................................................................................... 6 4 TEST METHODOLOGY................................................................................................. 7 4.1. EUT EXERCISE ...................................................................................................................7 4.2. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................... 7 5 INSTRUMENT CALIBRATION ...................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ....................................................................... 8 6.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 6.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 7 FACILITIES AND ACCREDITATIONS .......................................................................... 9 7.1. FACILITIES .......................................................................................................................... 9 7.2. ACCREDITATIONS ............................................................................................................. 9 7.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 8 FCC PART 15.249 REQUIREMENTS ......................................................................... 10 8.1. BAND EDGES MEASUREMENT....................................................................................... 10 8.2. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 14 8.3. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 18 Reference No.: Report No.: SZ100608B01-RP FCC ID : MVASP4091-001T Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product: Wireless Stereo 900MHz Speaker System Model: SP4090 Brand: ARKON Tested: June 08~ 23,2010 Applicant: Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road,Kowloon, Hong Kong Manufacturer: Uni-Art Precise Products Ltd 11-12/F, Yue Xiu Industrial Building, 87 Hung To Road,Kowloon, Hong Kong APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted DEVIATION FROM APPLICABLE STANDARD None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Clinton Kao/ Manager COMPLIANCE CERTIFICATION SERVICES INC. Vincent Yao Assistant manager Compliance Certification Service Inc. Reference No.: Report No.: SZ100608B01-RP FCC ID : MVASP4091-001T Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Wireless Stereo 900MHz Speaker System Trade Name ARKON Model Number SP4090 Model Discrepancy N/A Serial Number SZ100608B01-RP EUT Power Rating DC8V powered by the adapter Adapter manufacturer/model No STANDARD SUCCESS GROUP LIMITED /SUV-005-080-020-A2 AC input: AC100-240V,50/60Hz 0.15A DC output: DC8V 200mA DC output cable: Unshielded, 1.80m Frequency Range 912.0 MHz, 913.0 MHz Transmit Power 92.12 dBuV/m (Peak Max.) Modulation Technique FM Number of Channels 2 Channel Antenna Specification Linear antenna with 0 dBi gain (Max) Note: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FC…

Text truncated - open the document above for the full version.

Reference No.: Report No.: SZ100608B01-RP FCC ID : MVASP4091-001T Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Reference No.: Report No.: SZ100608B01-RP FCC ID : MVASP4091-001T Page 2 . CONDUCTED EMISSION TEST
