MVAWHP151-001RWireless Headphone Receiver

The FCC Label for HP1492 This Device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Modification of this device to receive cellular radio-telephone service signals is prohibited under FCC rules and Federal Law. FCC ID: MVAWHP151– 001R

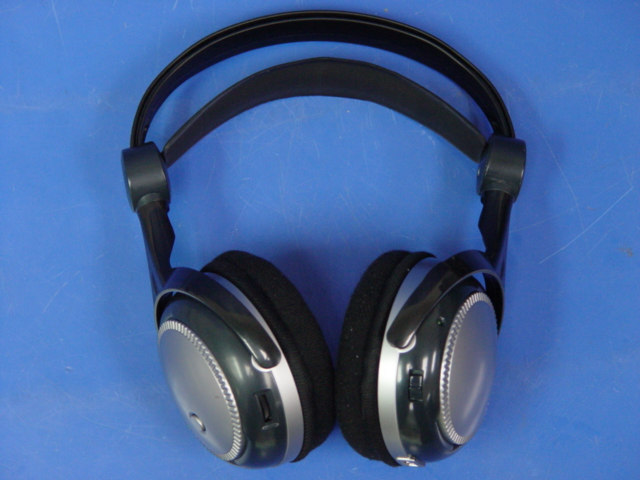

Internal Picture of HP1492 Picture of UHF module of HP1492

Product Operation Description of HP1392 This product is a 900MHz receiver, which is stereo wireless headphone system for audio usage, they would be operated with its associated transmitter and with two pieces of 1.2V “AAA” size battery. The main function of HP1492 is receiving of RF signal from associated transmitter, demodulate the received signal and then express in stereo audio sound via the headphone. The frequency range of HP1492 is 912.0MHz, 912.5MHz and 913.0MHz. The receiving frequency can be selected by pressing the AUTO SCAN button, which was equipped at the side of HP1492’s body. So the receiving frequency of receiver will be locked to transmitted frequency of the associated transmitter after the AUTO SCAN button has been pressed. HP1492 have a volume control for adjusting the output volume, and have ON/OFF, AUTO SCAN buttons. Moreover, there is a power LED and an audio signal indication LED. Charge input contact is available for the charge to the two pieces of “AAA” 1.2V rechargeable batteries.

Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004797 001 Seite 2 von 15 Page 2 of 15 TEST SUMMARY 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.107(A) RESULT: ok 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.109(A) RESULT: ok 5.3 38 DB REJECTION SIGNAL FROM CELLULAR FREQUENCY BAND RESULT: ok Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004797 001 Seite 3 von 15 Page 3 of 15 Contents 1 GENERAL REMARKS.............................................................................................................. 4 1.1 COMPLEMENTARY MATERIALS............................................................................................ 4 2 TEST SITES............................................................................................................................. 4 2.1 T EST FACILITIES................................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS.............................................................. 5 2.3 TRACE ABILITY...................................................................................................................... 5 2.4 C ALIBRATION........................................................................................................................ 5 2.5 MEASUREMENT UNCERTAINTY............................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA.............................................................................................. 6 2.7 S TATUS OF FACILITY USED FOR TESTING.............................................................................. 6 3 GENERAL PRODUCT INFORMATION...................................................................................... 6 3.1 P RODUCT FUNCTION AND INTENDED USE............................................................................ 7 3.2 RATINGS AND SYSTEM DETAILS........................................................................................... 7 3.3 INDEPENDENT OPERATION MODES...................................................................................... 7 3.4 S UBMITTED DOCUMENTS...................................................................................................... 7 4 TEST SET-UP AND OPERATION MODE.................................................................................. 8 4.1 PRINCIPLE OF CONFIGURATION SELECTION........................................................................ 8 4.2 T EST OPERATION AND TEST SOFTWARE.............................................................................. 8 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT.......................................................... 8 4.4 C OUNTERMEASURES TO ACHIEVE EMC COMPLIANCE....................................................... 8 4.5 T EST SET-UP........................................................................................................................... 9 5 T EST RESULTS E M I S S I O N ........................................................................................ 10 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.107(A) ................................ 10 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.109(A).................................... 11 5.3 38 DB REJECTION SIGNAL FROM CELLULAR FREQUENCY BAND....................................... 12 6 P HOTOGRAPHS OF THE TEST SET-UP................................................................................. 13 7 L IST OF TABLES................................................................................................................... 15 8 L IST OF PHOTOGRAPHS....................................................................................................... 15 Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004797 001 Seite 4 von 15 Page 4 of 15 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test result 2 Test Sites 2.1 Test Facilities Shenzhen SMQ Shenzhen Bureau of Quality Technical Supervision Shenzhen Academy of Metrology and Quality Inspection Bldg, of Shenzhen Academy of Metrology and Quality Inspection Longzhu Road, Nanshan, Shenzhen, P.R. China Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004797 001 Seite 5 von 15 Page 5 of 15 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until Antenna Chase CBL6112B 2591 29.01.2006 Horn Antenna Rohde & Schwarz HF906 100014 29.01.2006 3m Semi-anechoic chamber Albatross Projects 9X6X6 ---- 29.01.2006 EMI Test Receiver Rohde & Schwarz ESI26 838786/013 29.01.2006 Communications Test Set Rohde & Schwarz CMU200 1100.0008.02 29.01.2006 Communications Test Set HP HP8920A 3438A05187 29.01.2006 2.3 Trace ability All measurement equipment calibrations are traceable to NIST or where calibration is performed outside the United States, to equivalent nationally recognized standards organizations 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basis using in house standards or comparisons. Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004797 001 Seite 6 von 15 Page 6 of 15 2.5 Measurement Uncertainty The estimated combined standard uncertainty for conducted emissions measurements is ± 3 dB. The estimated combined standard uncertainty for radiated emissions measurements is ± 3 dB. 2.6 Location of original data The original copies of all test data taken during actu…

Text truncated - open the document above for the full version.

Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004797 001 Seite 13 von 15 Page 13 of 15 6 Photographs of the Test Set-Up Photograph 1: Set up for Conducted Emission on AC Mains of AC/DC adaptor of HP1391 Photograph 2: Set-up for Radiation Measurement Below 1GHz Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004797 001 Seite 14 von 15 Page 14 of 15 Photograph 3: Set-up for Radiation Measurement Above 1GHz
