MVAWSP155-001TWireless Audio Transmitter

The FCC Label for SP1551 This Device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Modification of this device to receive cellular radio-telephone service signals is prohibited under FCC rules and Federal Law. FCC ID: MVAWSP155 – 001T

Internal Pictures of HP1551 Picture of 1551 UHF module

Page 1 of 1

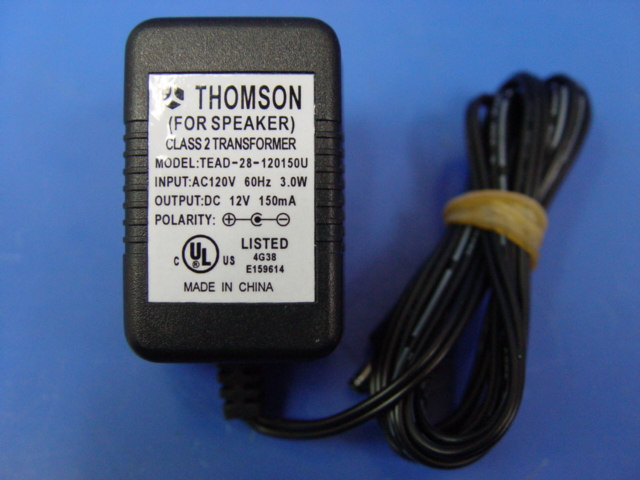

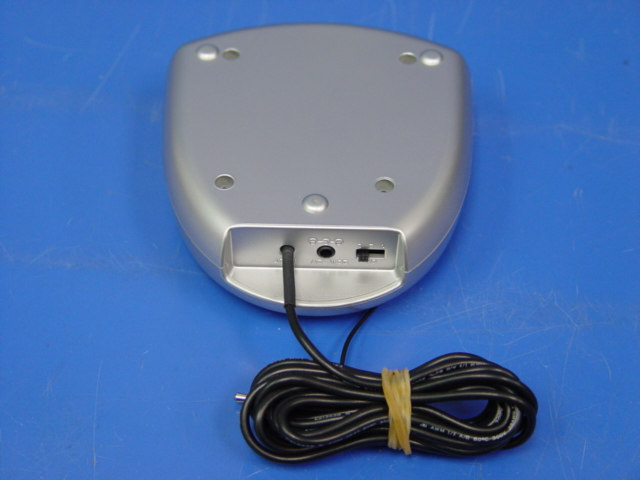

Product Operation Description of SP1551 This product is a 900MHz transmitter, which is part of a stereo wireless Speaker system (via Speaker) for audio usage. They would be operated with its associated receiver (Speaker), with one AC/DC adaptor TEAD-28-120150U (Input: 120VAC/60Hz/3W; Output: 12VDC, 150mA). The main function of SP1551 are demodulating the audio signal, transmit RF signal to associated receiver. The operating frequency of SP1551 is 912.0MHz, 912.5MHz and 913.0MHz; the transmitting frequency can be selected by pushing the channel-selective button, which was equipped at the side of SP1551 body. SP1551 consist of two indicating lights, one is POWER LED that will be in red color when AC adapter is plugged in, the other is SIGNAL LED that will be red color when audio signal is input. There is one audio cord on the rear of the transmitter that can be connected to audio output jack of TV, Monitor, VCR, Radio recorder, CD/MP3/VCD/DVD players or to headphone/earphone jack with the connector provided, the DC jack on the rear is used for DC power connection.

Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004799 001 Seite 2 von 16 Page 2 of 16 TEST SUMMARY 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) RESULT: ok 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A) RESULT: ok 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.249(A) RESULT: ok Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004799 001 Seite 3 von 16 Page 3 of 16 Contents 1 GENERAL REMARKS........................................................................................................... 4 1.1 C OMPLEMENTARY MATERIALS......................................................................................... 4 2 TEST SITES.......................................................................................................................... 4 2.1 T EST FACILITIES................................................................................................................ 4 2.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS........................................................... 5 2.3 TRACE ABILITY................................................................................................................... 5 2.4 CALIBRATION..................................................................................................................... 5 2.5 M EASUREMENT UNCERTAINTY.......................................................................................... 6 2.6 L OCATION OF ORIGINAL DATA........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING........................................................................... 6 3 G ENERAL PRODUCT INFORMATION................................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE......................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES................................................................................... 7 3.4 SUBMITTED DOCUMENTS................................................................................................... 8 4 T EST SET-UP AND OPERATION MODE............................................................................... 8 4.1 P RINCIPLE OF CONFIGURATION SELECTION..................................................................... 8 4.2 T EST OPERATION AND TEST SOFTWARE........................................................................... 8 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT....................................................... 8 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE.................................................... 8 4.5 TEST SET-UP........................................................................................................................ 9 5 T EST RESULTS E M I S S I O N ..................................................................................... 11 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) ............................. 11 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A)................................. 12 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.249(A)....................................................................................................................................... 13 6 PHOTOGRAPHS OF THE TEST SET-UP.............................................................................. 14 7 LIST OF TABLES................................................................................................................ 16 8 L IST OF PHOTOGRAPHS.................................................................................................... 16 Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004799 001 Seite 4 von 16 Page 4 of 16 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test result 2 Test Sites 2.1 Test Facilities Shenzhen SMQ Shenzhen Bureau of Quality Technical Supervision Shenzhen Academy of Metrology and Quality Inspection Bldg, of Shenzhen Academy of Metrology and Quality Inspection Longzhu Road, Nanshan, Shenzhen, P.R. China Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004799 001 Seite 5 von 16 Page 5 of 16 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until Antenna Chase CBL6112B 2591 29.01.2006 Horn Antenna Rohde & Schwarz HF906 100014 29.01.2006 3m Semi-anechoic chamber Albatross Projects 9X6X6 ---- 29.01.2006 EMI Test Receiver Rohde & Schwarz ESI26 838786/013 29.01.2006 Communications Test Set Rohde & Schwarz CMU200 1100.0008.02 29.01.2006 Communications Test Set HP HP8920A 3438A05187 29.01.2006 EMI Test Receiver Rohde & Schwarz ESCS30 100003 29.01.2006 AMN Rohde & Schwarz ESH3-Z5 100002 29.01.2006 2.3 Trace ability All measurement equipment calibrations are traceable to NIST or where calibration is performed outside the United States, to equivalent nationally recognized standards organizations 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basis using in house standards or comparisons. Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004799 001 Seite 6 von 16 Page 6 of 16 2.5 Measurement Uncertainty The estimated combined standard uncertainty for conducted emissions measurements is ± 3…

Text truncated - open the document above for the full version.

Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004799 001 Seite 14 von 16 Page 14 of 16 6 Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emission on AC Mains Photograph 2: Set-up for Radiation Measurement Below 1GHz Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16004799 001 Seite 15 von 16 Page 15 of 16 Photograph 3: Set-up for Radiation Measurement Above 1GHz
