MVH04979668451PTXRemote Controller for Toy

1 2 A 1 3 2 3 7 8 5 6 9 4 B 4 5 Age: F rom 2 years + Please read these instructions carefully and keep for future ref er ence. • The to y is powered by 4 x 1.5 Vol t “AA” type alkaline batteries and the remote control unit requires 3 x 1.5 Vol t “AAA” type alkaline batteries (Batteries are not included). For your child’s safety: WARNINGS For your child’s safety: ATTENTION! Plastic bags and other components which ar e not part of the to y (e.g, ties, fasteners, etc.) must be removed befor e use and kept out of the reach of c hildren. Choking hazard. WARNINGS • It is recommended that you check the to y for signs of damage befor e use. Should an y part be damaged, do not use and keep out of r each of c hildren. • Warning! - Do not touch the toy’ s wheels while they are moving. - Do not use the toy on the road. - Do not use the toy on wet, sandy or dusty surfaces. - Do not leave the toy or the remote control unit next to heat sources. • The functioning of the to y can be af fected by interfer ence to the remote control caused by the followin g: the simultaneous use of two “Safari Tracker” vehicles or any other products with the same frequency, high tension cables, high vol tage tr ansformers, certain types of buildings or walls, electromagnetic pollution, the pr esence of r adio signals emitted by other equipment. The remote control unit has an ef fective range of approximately 7 metres (this could be further reduced due to envir onmental conditions). Safari Tracker Fig . A 1) ON/OFF switch (I / O) 2) Battery compartment cover 3) Direction selector (wheel alignment) Remote control unit: Fig . B 4) Battery compartment cover 5) Forwar d left button 6) Forwar d right button 7) Forwar d straight button 8) Rev er se straight button 9) Aer ial – handle Instructions GBUSA 6 TOY DESCRIPTION “Safar i Tracker” is a radio remote controlled electric toy car that moves in 4 directions (f orwar d straight, back- war d straight, f orwar d left and forwar d right). Thanks to its simple controls, the to y is suitable for children fr om 2 years of ag e. At this ag e, a child can begin to use the remote control unit, by simply pr essing the buttons and observing in which direction, the car moves. This ex er cise is very important, since it allows the child to extend its field of vision and hone its hand-eye co-ordination. By the ag e of three, the child learns to associate the direction of movement, selected on the remote control unit, with the ef fect ac hieved by the car’s movement. At fir st , the child will dr iv e the car until it meets with an obstacle; later on the child will learn how to operate the remote control unit more pr ecisely, in or der to dr iv e the car along a route of its choice. HOW TO USE THE TOY • Switch on the car, b y moving the ON/OFF switch, located underneath the car, (fig. A-1) to position I. • To operate the to y, pr ess the buttons on the remote control unit. The remote control unit features four buttons, corresponding to the directions forwar d left (fig. B-5), forwar d right (fig. B-6), forwar d straight (fig. B-7), backwar d straight (fig. B-8). • When you wish to stop playing, it is recommended that you always switch off the to y, by moving the ON/ OFF switch (fig. A-1) to position O. Direction selector control If , when pr essing the forwar d straight button (fig. B-7), the car does not move in a straight direction, it is possible to adjust the direction by moving the direction selector, located underneath the car, a notch at a time (fig. A-3) FITTING AND/OR REPLACING BATTERIES • Batteries must only be r eplaced b y an adult. • To replace the batteries: loosen the scr ew on the battery compartment cover (Diag. A-2 for the car and Diag. B-4 for the remote control) with a scr ewdriver and open the cover. Then remove the spent batteries the battery cover , and tighten the scr ew. • Only use alkaline batteries of the same type or equivalent to the type recommended for the corr ect func- tion of this pr oduct. • Never mix new and old or differ ent types of batteries. • Do not mix alkaline, standard (carbon-zinc) or r echar geable (nickel-cadmium) batteries. • Always k eep batteries and tools out of the r each of childr en. • Do not short-cir cuit the battery terminals. • Always remove spent batteries from the pr oduct to avoid the danger of leakage from the battery damaging the pr oduct. • Always r emove the batteries if the pr oduct will not be used for a long period of time • Remove the batteries from the car and remote control befor e disposing of the pr oduct. 7 • Do not burn or dispose of old batteries into the environment. Dispose of them at an appropriate differenti- ated collection point. • Do not attempt to recharge non-rechargeable batteries: they might explode. • If the batteries happen to leak liquid, replace them immediately, making sure you clean the compartment beforehand; wash your hands thoroughly if you come into contact with any such liquid. • Do not use rechargeable batteries. • This product is not designed for use with lithium batteries. WARNING Improper use could be hazardous DECLARATION OF EC COMPLIANCE. Mod. 3-T & 3-R / Mod. 68451.400 Artsana S.p.A hereby declares that this product complies with all the essential requirements and other pr o- visions indicated in EU Directive 1999/5/EC (electromagnetic compatibility). In accordance with the European Commission Decision N°2000/299/EC dated 06/04/2000, the frequency band used by this product has been harmonised for all EU Countries and therefore this is a Class 1 product which can be used in all European Community Countries. “A copy of the Declaration of Conformity with the essential requirements of European Directive 1999/5/CE is available in the Product section of the website www.chicco.com” This product complies with EU Directive 2002/96/EC. The cr ossed bin symbol on the appliance indicates that the pr oduct, at the end of its lif e, must be disposed of separately fr om domestic waste, either by taking i…

Text truncated - open the document above for the full version.

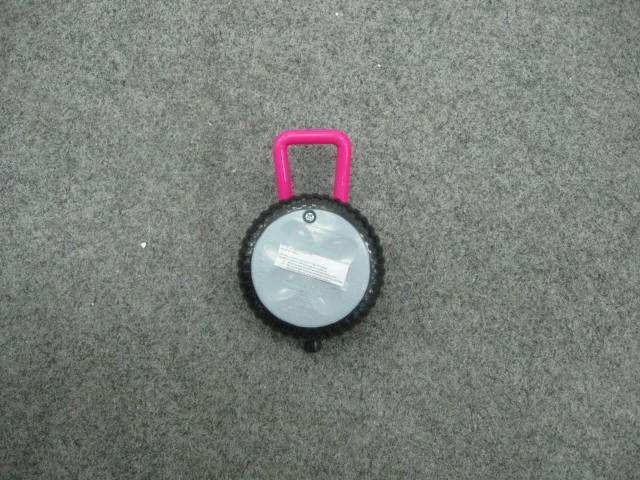

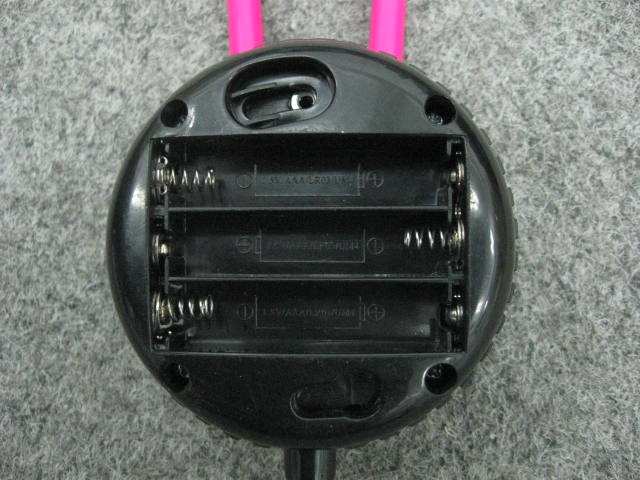

External Photo Front View of the product Rear View of the product Battery compartment Battery Cover

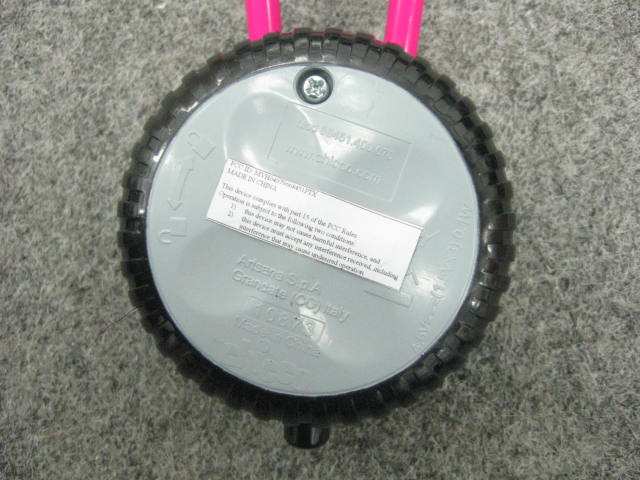

FCC ID: MVH04979668451PTX MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photo Inner Circuit Top View Inner Circuit Bottom View Front View of the product (Internal) Rear View of the product (Internal)

BUREAU VERITAS TESTREPORTNo.: (5212)055-0920 FolderNo.: E-mail: To: CABENASIAPACIFICLTO. To: Attn:AlbertAuAttn: 9/F,Tal building,49 AustinRoad,TST, Kowloon,HongKong Address:Address: Fax:Fax:86-755-8831-2343 albertauartsana.comE-mail: FactoryName: SAFARIPARKGIRL(PINK) ModelNo.: 00068451400070 Location: Product: SampleNo:(5212)055-0920 Test Date(s):March2, 2012 Test Requested:FCC Part 15 - 2011 Test Method:ANSIC63.4- 2009 FCC ID:MVH04979668451PTX The resultsgivenin this reportare relatedto the testedspecimenof the describedelectricalapparatus. AuthorizedSignature: CONCLUSION:The submittedsamplewas foundto COMPLYwith requirementof FCC Part 15 SubpartC. Reviewedb : KeithYeun Date:March14,2012 BUREAUVERITASHONGKONGLlMITED- KowloonBay Office 1/FPacificTradeCentre, 2 Kai HingRoad,KowloonBay, Kowloon,HONGKONG Tel: +85223310888 Fax: +85223310889 www.cps.bureauveritas.com Thisreponis intendedforyourexclusiveuse.Anycopyingor replicationof thisreportto or foranyotherpersonor entity,or use of ournameor trademark,is permittedonlywithourpriorwrittenpermission.Ourreponis limitedto thetestsamplesidentified herein.Theresultssetforthin thisreportarenotnecessarilyindicativeor representativeof thestatisticalqualityor characteristicsof thelotfromwhicha testsamplewastakenor anysimilaror identicalproductunlessspecificallyandexpresslynoted.Ourreport includesall of thetestsrequestedby youandtheresultsthereof.Youshallhavethirtydaysfromreceiptof thisreportto request additionaltestingof thesamplesor to notifyus of anyerrorsor omissionsrelatingto ourreport,provided,however,suchnotice shallbe in writingandshallspecificallyaddresstheissueyouwishto raise.A failureto raisesuchissuewithintheprescribedtime shallconstituteyourunqualifiedacceptanceof thecompletenessof thisreport.thetestsconductedandthecorrectnessof thereport contents Page1of16 TEST REPORT No.: (5212)055-0920 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 2 of 16 Test Result Summary EMISSION TEST Test requirement: FCC Part 15 – 2011 Test Result Test Condition Test Method Pass Failed Radiated Emission Test, 9kHz to 1GHz ANSI C63.4 Report Revision & Sample Re-submit History: -- TEST REPORT No.: (5212)055-0920 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 3 of 16 Test Laboratory & Test Instruments List Radiated and Conducted emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. An Open Area Test Site and Full Anechoic Chamber (FCC Listed Site, Registration No. 642151) are set up for investigation and located at: BUREAU VERITAS HONG KONG LIMITED, EMC CENTRE No. 2106-2107, 21/F., Westin Centre, 26 Hung To Road, Kwun Tong, Kowloon, Hong Kong Test Instrument List Radiated Emission EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DUE EMI TEST RECEIVER R&S ESCI 100379 18-OCT-2012 BILOG ANTENNA SCHAFFNER CBL6112D 25229 16-SEP-2012 OPEN AREA TEST SITE BVCPS N/A N/A 07-JUL-2012 ANECHOIC CHAMBER ALBATROSS M-CDC 80374004499B 01-DEC-2012 COAXIAL CABLE SUHNER N/A N/A 10-NOV-2012 Remarks: - N/A: Not Applicable or Not Available The measurement instrumentation uncertainty would be taking into consideration on each of the test result TEST REPORT No.: (5212)055-0920 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of ou…

Text truncated - open the document above for the full version.

Test Set Up Photo
