MVH04979670648RRC Car

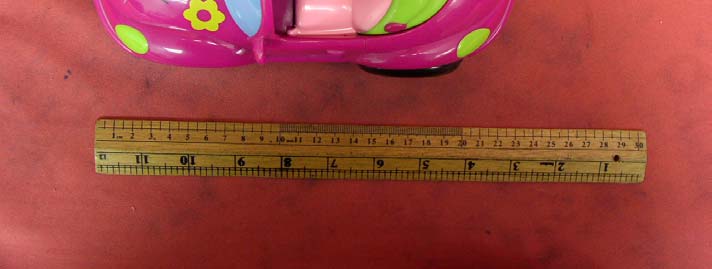

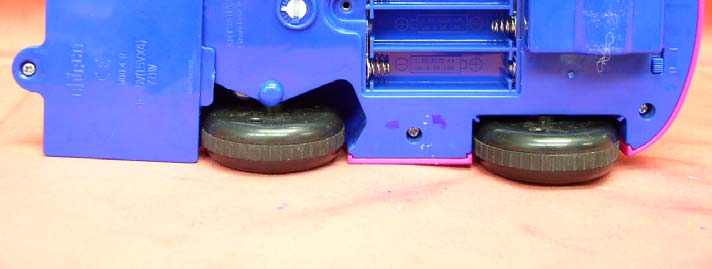

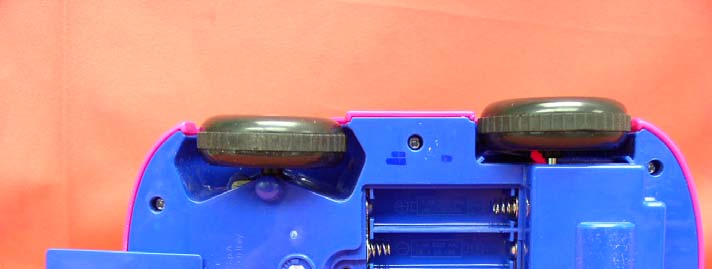

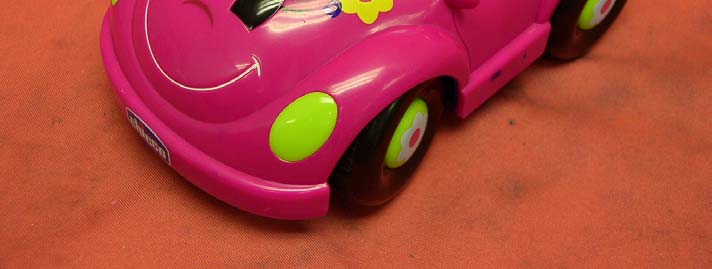

FCC ID: MVH04979670648R Ophoto1 Ophoto2 FCC ID: MVH04979670648R Ophoto3 Ophoto4

To : ITS Attn : Mr. Albert Kwok From : Sandy Yu Re: Location of FCC label The FCC label should be located on the Rx as per below pictures. Rx Close view of label on Rx Word height: 1.5mm Label size: 62mm X 17mm FCC ID: MVH04979670648R MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. 62mm Best Regards Sandy 17mm

FCC ID: MVH04979670648R Iphoto1 Iphoto2 FCC ID: MVH04979670648R Iphoto3 Iphoto4

FCC ID: MVH04979670648R Technical Description : The brief circuit description is listed as follows : - Q4 and associated circuit act as Super-regenerative Receiver (49.860 MHz). - U1 and associated circuit act as Decoder. - Q11 ~ Q16 and associated circuit act as Motor Driver for Drive Motor. - Q5 ~ Q10 and associated circuit act as Motor Driver for Steering Motor. - D10 and associated circuit act as Voltage Regulator. Antenna Used : An integral antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : MVH04979670648R Caben Limited Application For Certification (FCC ID: MVH04979670648R) Superregenerative Receiver Sample Description : Carolina Cabriolina (49.860 MHz) Model : 70648 0601473 TL/at March 2, 2006 INTERTEK TESTING SERVICES FCC ID: MVH04979670648R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: MVH04979670648R ii MEASUREMENT/TECHNICAL REPORT Caben Limited - MODEL: 70648 FCC ID: MVH04979670648R March 2, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for intentional radiator Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: MVH04979670648R iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology................................................................................................. 3 1.4 Test Facility .......................................................................................................... 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification ........................................................................................................... 5 2.2 EUT Exercising Software ...................................................................................... 5 2.3 Support Equipment List and Description................................................................ 5 2.4 Equipment Modification......................................................................................... 6 2.5 Special Accessories.............................................................................................. 6 3.0 Emission Results ..................................................................................................... 8 3.1 Field Strength Calculation ..................................................................................... 9 3.2 Radiated Emission Configuration Photograph ..................................................... 10 3.3 Radiated Emission Data...................................................................................... 11 4.0 Equipment Photographs ........................................................................................ 14 5.0 Product Labelling................................................................................................... 16 6.0 Technical Specifications........................................................................................ 18 7.0 Instruction Manual ................................................................................................. 20 8.0 Miscellaneous Information.................................................................................... 22 8.1 Stabilization Waveform........................................................................................ 23 8.2 Emissions Test Procedures................................................................................. 24 8.2 Emissions Test Procedures (cont'd) .................................................................... 25 INTERTEK TESTING SERVICES FCC ID: MVH04979670648R iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: MVH04979670648R 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: MVH04979670648R 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a RC Car operating at 49.860 MHz. The EUT is powered by four AA batteries. The EUT has an ON/OFF switch. After switched ON the EUT. It can be controlled to move forward, move backward, move forward with turning left direction and move forward with turning right direction by the corresponding controller. The brief circuit description is saved with filename: descri.pdf 1.2 Related Submittal(s) Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure with FCC ID: MVH04979670648. INTERTEK TESTING SERVICES FCC ID: MVH04979670648R…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
