MWI2010BT01WIRELESS BLUETOOTH KEYBOARD

1 Bluetooth Keyboard User Manual APL-202 BT Bluetooth Keyboard System Requirements:
APPLE iMAC / iPad Computer which build in Bluetooth receiver.
MAC OS 10.xx or later. Features: 1. Support Language: US, Europe, Chinese, Japanese 2. Slim Design 3. Keyboard Technology: Membrane Rubber Switch 4. Active Range: 10 meter 5. Auto Connect Button: Available 6. 2 LED indicators for Battery Low and Bluetooth Connectivity 7. Plug and Play – No software to install. Specifications: 8. Bluetooth V 2.0 specification compliant. 9. Bluetooth HID profile V 1.1 compliant. 10. Frequency Range: 2.4G ~ 2.4835GHz 11. Peak Power consumption: 6 mA Max 12. Sleep mode Power consumption: 500uA 13. Security Encryption: 128 bits 14. Support AFH (Adaptive Frequency Hopping). 15. Compatibility with MAC Computer, iPad 16. Key Force: 55±7g 17. Key Travel: 2.2+/- 0.3mm 18. Switch Life: 10 Million Cycles 19. Keyboard Dimensions: 324(L) x 137(W) x 24.5(H) mm 2 20. Weight: 510 ± .20 g 21. Battery: 1.5V AAA, 2 PCs 22. FCC, CE, BQB, R&TTE, RoHS, How to connect iPad 1. Insert batteries to underside of the Bluetooth keyboard. 2. Press “ CONNECT “ button of the Bluetooth keyboard , and blue LED will flash. 3. Turn on your Bluetooth keyboard and make it discoverable by other Bluetooth devices. 4. Tap the "Settings" icon on your iPad to open the Settings menu. 5. Press the "Off" button under the Bluetooth heading to turn on the iPad's Bluetooth radio. The iPad will now search for and list devices it can connect with. 3 6. Tap the name of your Bluetooth keyboard when it shows up on your iPad. A Passkey number will be shown on the iPad. Type this number on your Bluetooth keyboard and press "Enter." The iPad and keyboard will now be paired. 4 5 7. Open an iPad application you can type in, such as Notes or Pages. You should be able to type with the Bluetooth keyboard. Note: LED indicator status:  Blue LED: Bluetooth keyboard is searching iPad and to do pairing when the LED is flashing. Once the LED stop flashing, the pairing will be success.  Amber LED: Alert the batteries should be change to new one when the LED is flashing. Federal Communication Commission 15B Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3)) Modification Warning Statement FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.(15.21) FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device has been evaluated to be safe to use close to human body. It will not cause any harmful interference if client use this device within distance 20cm between the radiator and body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Ezkey Corp. Date: Oct.27, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: MWI2010BT01 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Block Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________________ Jacky Hsu / R&D Manager Ezkey Corp.

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : 0O0102 PHOTO OF EUT Front View of EUT Rear View of EUT

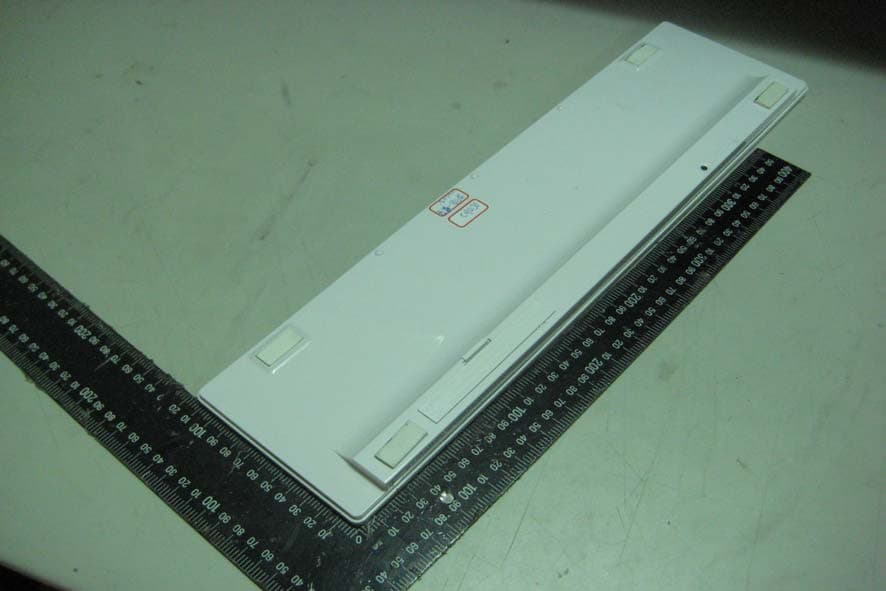

Label location

FCC Label Ezkey Corp. Bluetooth Keyboard Model No.: APL-202BT Input: 3 Vdc; 10mA FCC ID: MWI2010BT01 This device complies with Part 15 of the FCC rule. Operation is subject to the following two condition s: (1) This device may not cause harmful interference, and (2) This device must accept any interference receiv ed, including interference that may cause undesired operation. Warning: Improper or prolonged keyboard use may re sult in injury. Made in China 90 mm 17 mm

Global Certification Corp. Report No. : 0O0102 PHOTO OF EUT Inside View of EUT Global Certification Corp. Report No. : 0O0102 PHOTO OF EUT Component Side of Main Board 1 Solder Side of Main Board 1 Global Certification Corp. Report No. : 0O0102 PHOTO OF EUT RF module

Global Certification Corp. Date of Issue: Oct. 22, 2010 Report No:F0O0102 Page1/40 FCC 47 CFR PART 15 SUBPART C 15.247 TEST REPORT FOR Product Name: Wireless Bluetooth Keyboard Model : APL-202BT, ike-202BT Trade Name: Ezkey Corp. Issued to Ezkey Corp. 15-7, No.258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, R.O.C. (235) Issued by Global Certification Corp. EMI Test Site Sansia Lab No. 34-3, Zihhe Rd., Sansia Township, Taipei County 237, Taiwan (R.O.C.) EMS Test Site Sijhih Office and Lab No. 146, Sec. 2, Siangjhang Rd., Sijhih City, Taipei County 221, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue: Oct. 22, 2010 Report No:F0O0102 Page2/40 TABLE OF CONTENTS ----------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION -------------------------------------------------------------------------------------------------------- 4 1.1 DESCRIPTION OF THE TESTED SAMPLES----------------------------------------------------------------------------------------------- 5 2. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 7 2.1 GENERAL TEST PROCEDURES --------------------------------------------------------------------------------------------------- 7 2.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ----------------------------------------------------------------- 7 2.3 DESCRIPTION OF TEST MODES -------------------------------------------------------------------------------------------------- 8 2.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS ----------------------------------------------------------------------------- 9 3. TEST AND MEASUREMENT EQUIPMENT ----------------------------------------------------------------------------------10 3.1 CALIBRATION----------------------------------------------------------------------------------------------------------------------10 3.2 EQUIPMENT-------------------------------------------------------------------------------------------------------------------------10 4. ANTENNA REQUIREMENTS-----------------------------------------------------------------------------------------------------12 4.1 STANDARD APPLICABLE----------------------------------------------------------------------------------------------------------12 4.2 ANTENNA CONSTRUCTION AND DIRECTIONAL GAIN-------------------------------------------------------------------------12 5. PEAK OUTPUT POWER -----------------------------------------------------------------------------------------------------------13 5.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------13 5.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------13 5.3 TEST PROCEDURE -------------------------------------------------------------------------------------------------------------13 5.4 TEST RESULT --------------------------------------------------------------------------------------------------------------------13 5.5 TEST DATA-------------------------------------------------------------------------------------------------------------------------13 6. AVERAGE POWER ------------------------------------------------------------------------------------------------------------------14 6.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------14 6.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------14 6.3 TEST PROCEDURE-----------------------------------------------------------------------------------------------------------------14 6.4 TEST RESULT --------------------------------------------------------------------------------------------------------------------14 6.5 TEST DATA-------------------------------------------------------------------------------------------------------------------------15 7. BAND EDGE ---------------------------------------------------------------------------------------------------------------------------16 7.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------16 7.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------17 7.3 RESULT ---------------------------------------------------------------------------------------------------------------------------17 7.4 TEST DATA-------------------------------------------------------------------------------------------------------------------------18 8. 20DB BANDWIDTH ------------------------------------------------------------------------------------------------------------------22 8.1 TEST LIMIT-------------------------------------------------------------------------------------------------------------------------22 8.2 TEST LIMIT-------------------------------------------------------------------------------------------------------------------------22 8.3 TEST SETUP LAYOUT--------------------------------------------------------------------------------------------------------------22 8.4 TEST RESULT AND DTA-----------------------------------------------------------------------------------------------------------22 8.5 TEST DATA-------------------------------------------------------------------------------------------------------------------------23 9. RADIATED EMISSION ----------------------------------------------…

Text truncated - open the document above for the full version.

Global Certification Corp. Appendix 1 PHOTOS OF TEST CONFIGURATION Global Certification Corp. Report No. : F0O0102 RADIATED EMISSION TEST Front View Rear View
