MWIMOUSERFCordless Advance Mouse

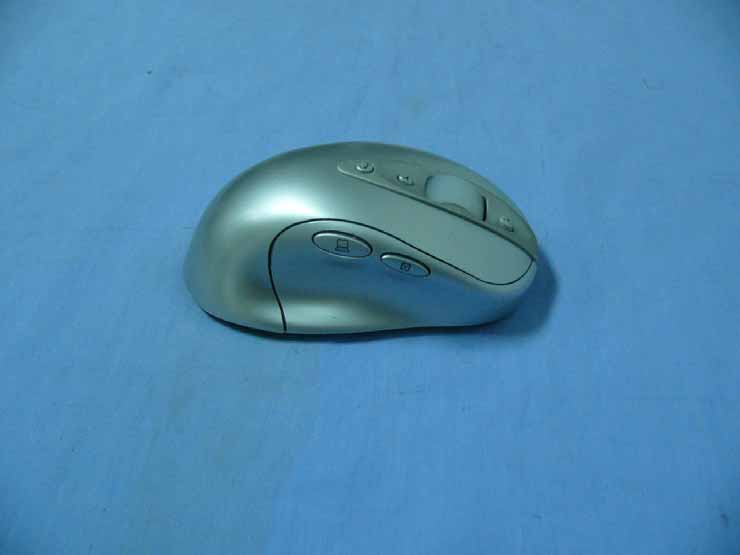

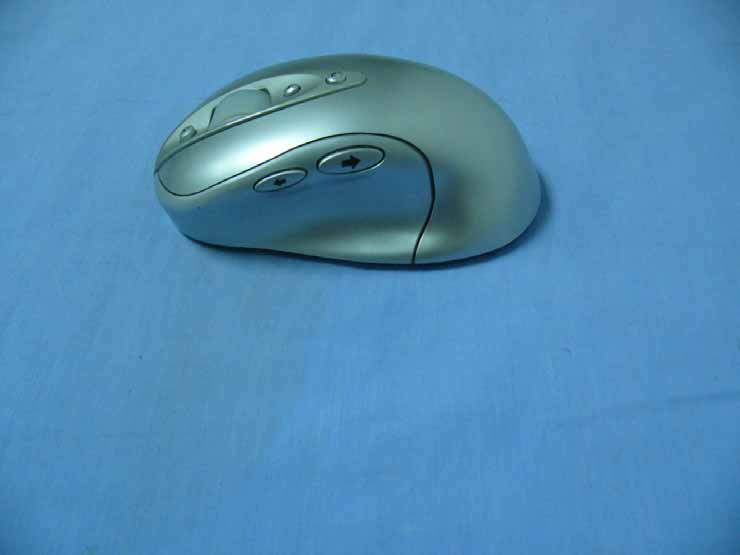

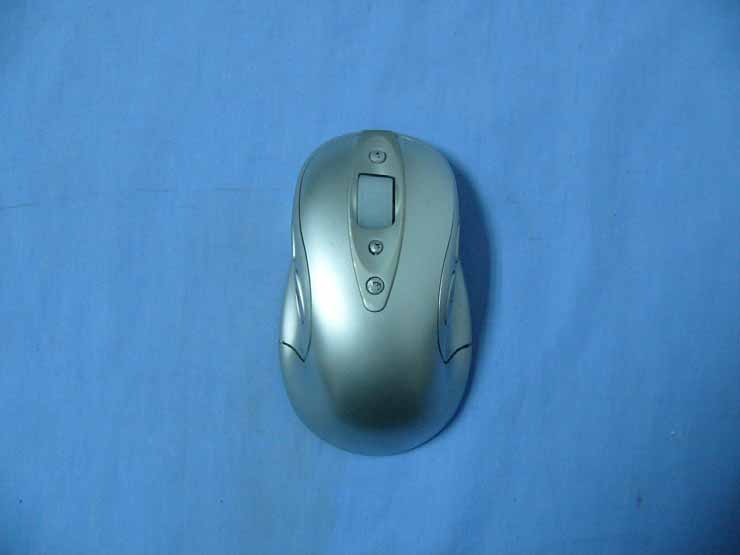

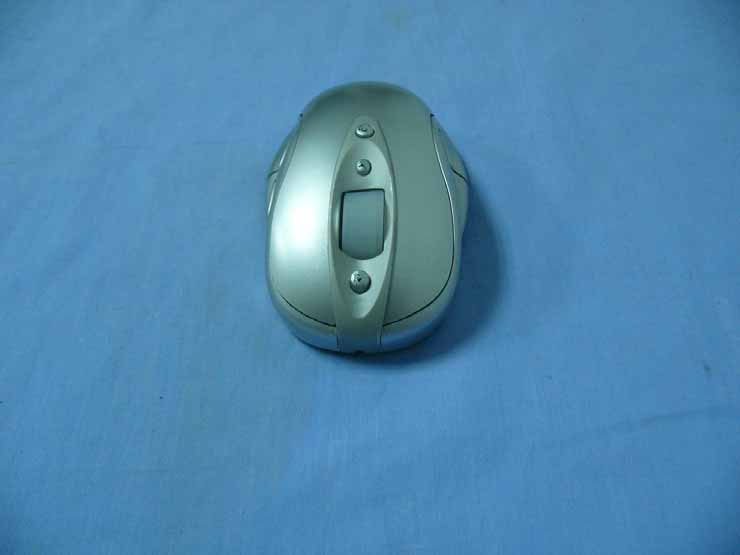

RF-102 Cordless Advance Mouse User’s Manual The Description of RF-102 Cordless Advance Mouse 1. Left- or Right- handed with enhanced Grip. Ambidextrous design makes it comfortable either way. 2. can experience more accurate scrolling with no ratcheting feel. 3. Thumb rest: Not only palm need rest but also your thumb. 4. 10 keys defaulted efficient function. 5. Enhanced accelerated scrolling keys 6. Metallic colors to match your desktop: Blue, Red, Black and Silver. 7. Frequency: 27 Mhz 8. Batteries: AA 1.5 Volts * 2 PCs 9. Channel & ID : 1 CH, 256 ID for changeable 10. Resolution : Optical, 800 CPI 11. Operation distance: 1.5 Meter (in normal environment) 12. Driver free: less return rate for compatible problem 13. Compatible with Win98/2000/ME/XP/Win64 14. Safety: FCC, CE, R&TTE The function of 10 keys (default) 1 key: Left button 2 key: Right button. 3 key: Scrolling wheel w/button The advance features 4/5 keys (Back/Forward buttons): Two thumb buttons let you easily move Forward or Back between pages on the Internet or other applications. 6/7 keys (Vertical Acc. Buttons): Vertical w/accelerated scrolling (up & down) for documents or Web site. Ring finger buttons let you easily fast move up or down on active Application. 8 key (Rotate Button): Move easily to choose open windows on your screen by pushing Rotate window key. You no longer have to locate a program on the toolbar or type a keyboard shortcut. 9/10 keys (Application Buttons): Two Application buttons provide “ Close” windows and “ My computer” function. Extra tips: Advance Mouse bundle with Office keyboard is the best choice to own the most powerful function you ever tasted. Pop-up function for 3key-scrolling key can be enable through keyboard driver. Receiver: You can select Ezkey’s UFO-1, RX007(Mini RX), RX008(StarNet RX) to bundle RF-102 Cordless Advance Mouse. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

EZKEY CORP.____________________________________________________ FAR EAST CENTURY PARK 15F-7, NO.258, LIAN CHENG RD., CHUNG HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C(235) Date: 2006/4/14 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Shenzhen office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS SZ, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS SZ on our behalf shall have the same effect as acts of our own. In authorizing CCS SZ as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours,

LABEL LOCATION Label location

RF-102 uses PCB printed antenna, the antenna gain is 0dBi.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ060330B05-RP FCC ID: MWIMOUSERF Date of Issue: April 18, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 16 FCC 47 CFR PART 15 SUBPART C TEST REPORT For CORDLESS ADVANCE MOUSE Model: RF-102 Trade Name: N/A Prepared for EZKEY CORP. FAR EAST CENTURY PARK 15F-7, NO.258, LIAN CHENG RD., CHUNG HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C(235) Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060330B05-RP FCC ID: MWIMOUSERF Date of Issue: April 18, 2006 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION............................................................................................................... 5 3.2 EUT EXERCISE.......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................... 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES...............................................................................................................................8 5.2 EQUIPMENT.............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING........................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT............................................................................................... 9 6.2 SUPPORT EQUIPMENT ....................................................................................................... 9 7. FCC PART 15.227 REQUIREMENTS...................................................................................... 10 7.1 RADIATED EMISSIONS............................................................................................................ 10 7.2 POWERLINE CONDUCTED EMISSIONS..................................................................................... 15 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060330B05-RP FCC ID: MWIMOUSERF Date of Issue: April 18, 2006 Page 3 1. TEST RESULT CERTIFICATION Applicant: EZKEY CORP. FAR EAST CENTURY PARK 15F-7, NO.258, LIAN CHENG RD., CHUNG HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C(235) Equipment Under Test: CORDLESS ADVANCE MOUSE Tr a d e N a m e : N/A Model: RF-102 Date of Test: March 30-April 05, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved by: Tested By: Henry Ding/ Engineer Reviewed By: Clinton Kao / EMC Manager Eric Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ060330B05-RP FCC ID: MWIMOUSERF Date of Issue: April 18, 2006 Page 4 2. EUT DESCRIPTION Product CORDLESS ADVANCE MOUSE Trade Name N/A Model Number RF-102 Model Difference N/A Power Supply TX: Powered by AAA batteries × 2 (Rating: 2 × 1.5Vdc) RX: Powered by the notebook Frequency Range 27.1982MHz Modulation Technique FSK Note: This submittal(s) (test report) is intended for FCC ID: MWIMOUSERF filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. Compliance Certification Services (Shenzhen) Inc. Report No: SZ060330B05-RP FCC ID: MWIMOUSERF Date of Issue: April 18, 2006 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.227. EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. A…

Text truncated - open the document above for the full version.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ060330B05-RP FCC ID: MWIMOUSERF Date of Issue: April 18, 2006 Page 15 APPENDIX 1 PHOTOGRPHS OF TEST SETUP RADIATED EMISSION TEST Below 30MHz Below 1GHz
