MWIEZRF104RF MOUSE

RF-104 Cordless Advance Mouse User’s Manual The Description of RF-104 Cordless Advance Mouse 1. Left- or Right- handed with enhanced Grip. Ambidextrous design makes it comfortable either way. 2. can experience more accurate scrolling with no ratcheting feel. 3. Thumb rest: Not only palm need rest but also your thumb. 4. 10 keys defaulted efficient function. 5. Enhanced accelerated scrolling keys 6. Metallic colors to match your desktop: Blue, Red, Black and Silver. 7. Frequency: 27 Mhz 8. Batteries: AA 1.5 Volts * 2 PCs 9. Channel & ID : 1 CH, 256 ID for changeable 10. Resolution : Optical, 800 CPI 11. Operation distance: 1.5 Meter (in normal environment) 12. Driver free: less return rate for compatible problem 13. Compatible with Win98/2000/ME/XP/Win64 14. Safety: FCC, CE, R&TTE The function of 10 keys (default) 1 key: Left button 2 key: Right button. 3 key: Scrolling wheel w/button The advance features 4/5 keys (Back/Forward buttons): Two thumb buttons let you easily move Forward or Back between pages on the Internet or other applications. 6/7 keys (Vertical Acc. Buttons): Vertical w/accelerated scrolling (up & down) for documents or Web site. Ring finger buttons let you easily fast move up or down on active Application. 8 key (Rotate Button): Move easily to choose open windows on your screen by pushing Rotate window key. You no longer have to locate a program on the toolbar or type a keyboard shortcut. 9/10 keys (Application Buttons): Two Application buttons provide “ Close” windows and “ My computer” function. Extra tips: Advance Mouse bundle with Office keyboard is the best choice to own the most powerful function you ever tasted . Pop-up function for 3key-scrolling key can be enable through keyboard driver. Receiver: You can select Ezkey’s UFO-1, RX007(Mini RX), RX008(StarNet RX) to bundle RF-102 Cordless Advance Mouse.

Ezkey Corp. RF MOUSE BLOCK DIAGRAM MICRO CONTORLLER (27.192MHz/22MHz/ 76.8KHz) OPTICAL SENSOR (18MHz) OSC POWER CONTROL RF CIRCUIT DC-DC CIRCUIT BUTTON CIRCUIT 3V

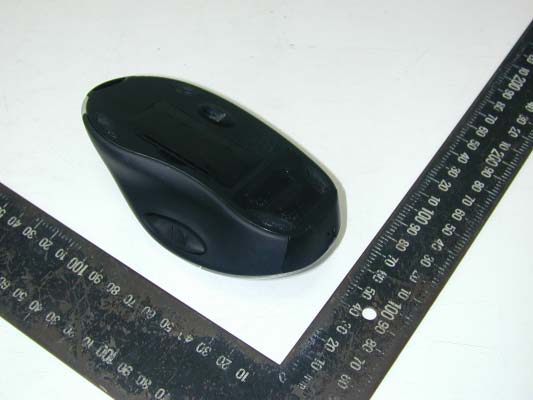

HomeTek Technology Inc. FB5K010 Appendix B : PHOTO OF EUT 1 of 3 Front View of EUT Rear View of EUT Model : RF-104

HomeTek Technology Inc. FB5K010 Appendix A : PHOTO OF Label Label Front View Label of EUT 1 of 2

HomeTek Technology Inc. FB5K010 Appendix B : PHOTO OF EUT 2 of 3 Inside View of EUT Case Inside View of EUT Model : RF-104 HomeTek Technology Inc. FB5K010 Appendix B : PHOTO OF EUT Component Side of Main Board Solder Side of Main Board 3 of 3 Model : RF-104

Operational description of RF-104, RX005 This Unit is a wireless optical mouse. The frequency is 27.19MHz. Operating process: 1. Insert 2AA batteries in compartment on the bottom of the mouse. 2. Insert USB plug on receiving device into USB port on computer. 3. Press button on receiver and red light will blink on and off for a few seconds. Immediately turn mouse over, hold near receiver, press connect button on the bottom of the mouse and release it while light is blinking on receiver. Devices will search for and find one another. 4. Let the mouse work continually. Power Requirement: This unit input is 2 AA batteries. Operated is DC3V. Operating principle The wireless mouse reflects using the light to the work floor illumination to IC MA60H223-007AD in carries on the transformation, Responds the mouse under active status X direction and the Y direction path. IC MA60H223-007AD unceasingly will change the light signal will transform the electrical signal, IC outward outputs SCLK (clock signal) and SDIO (X direction and Y direction synthesis serial data signal) in the time base vibration foundation the signal. Two groups signals parallel deliver to the pulse control, launch IC ADNS-2030. This IC by exterior time base vibrates (76.8KHz), RF vibrates (27.19MHz), the pressed key signal input, the hoop type coded signal input, the supply voltage examination and the low voltage demonstrated the pulse signal output and internal power source operate the oscillating circuit, the synchronized code electric circuit (to code signal), pulse electric circuits and so on processing electric circuit, signal modulation compose. When mouse works, after the arteries control the electric circuit the SKIO signal or the pressed key, the coded signal and the synchronization coded signal and the SCLK signal carry on serial processing. Carries on FSK in the tone circuit (frequency-shift keying modulation) modulate the center frequency is 27.19MHz RF signal from the antenna radiation to space. The receiver is composed by one kind of frequency-modulation reception electric circuit and the pulse control circuit and E 2 PROM. The external signal carries on the enlargement after the antenna receive, Delivers the frequency modulation to demodulate electric circuit MC3361 16 th foot RF input end, Carries on the mixing enlargement in the electric circuit, Outputs 455KHz from 3 th foot the intermediate frequency, the 455KHz intermediate frequency carries on the supersonic amplification after 5 th foot inputs in the electric circuit, Places after the intermediate frequency signal to output the demodulation signal after warning frequency electric circuit processing by 9 th feet, Q1 will demodulate the signal further to place inputs to the IC static dry electric circuit, The signal will enlarge which with the aid of the static dry electric circuit will carry on the reshaping to complete the entire signal the demodulation duty. Demodulates the signal is a comprehensive serial pulse signal, Embody SCLK signal, SKIO signal and synchronization coded signal. Delivers this to the pulse control circuit, the control circuit enters these signals separation processing; If the synchronization coded signal may lock the transmitter which transmits, And stores up this signal in E 2 PROM.

HomeTek Technology Inc. FCC TEST REPORT FOR APPLICANT : EzKEY CORP. ADDRESS : 15F-7, No. 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R. O. C. (235) EUT : RF mouse, RF Receiver MODEL NO. : RF-104, RX005 FCC ID : MWIEZRF104 Under Part 15, SUBPART B AND SUBPART C CLASS B Certification MEASUREMENT PROCEDURE USED FCC RULES AND FCC / ANSI C63.4-2003 PREPARED BY : HomeTek Technology Inc. No. 67-9, Shir Men Road, Tu Cheng City, Taipei Hsien. Taiwan Report # : FB5K010 ADDRESS: No. 67-9, Shir Men Road, Tu Cheng City, Taipei Hsien, Taiwan PHONE : 886-2-22608375 FAX : 886-2-22748013 E - mai l: [email protected] HomeTek Technology Inc. FCC ID : MWIEZRF104 FB5K010 Page : 1 of 16 TABLE OF CONTENTS.................................................................................................................................. 1 GENERAL INFORMATION ................................................................................................................................... 2 MODIFICATION LIST............................................................................................................................................ 4 CONDUCTED POWER LINE TEST...................................................................................................................... 5 1 TEST PROCEDURE ..................................................................................................................................... 5 2 RESULT OF CONDUCTED EMISSION TEST ............................................................................................. 5 RADIATED EMISSION TEST (3M)....................................................................................................................... 6 1 TEST INSTRUMENTS & FACILITIES ........................................................................................................ 6 2 EUT OPERATING CONDITION.................................................................................................................. 7 3 TEST SETUP ................................................................................................................................................ 8 4 CONFIGURATION OF THE EUT................................................................................................................10 5 TEST PROCEDURE ....................................................................................................................................11 6 LIMIT OF RADIATED EMISSION CLASS B ..............................................................................................12 7 RESULT OF RADIATED EMISSION TEST ................................................................................................13 8 EMISSION BAND MEASUREMENT....................................................................................................................15 PHOTO OF FCC ID LABEL ..................................................................................................................................16 APPENDIX A PHOTOS OF TEST CONFIGURATION APPENDIX B PHOTOS OF EUT APPENDIX C PLOT OF OCCUPIED BANDWIDTH HomeTek Technology Inc. FCC ID : MWIEZRF104 FB5K010 Page : 2 of 16 GENERAL INFORMATION 1 APPLICANT : EzKEY CORP. 2 ADDRESS : 15F-7, No. 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R. O. C. 3 MANUFACTURER : ShenZhen Eytech Electronic Co., LTD. 4 ADDRESS : No. 3, Gui Hua Rd., Wen Zai Keng Industrial Zone, Tang Xia Yong Village, Song Gang Town, Bao An District, Shen Zhen City, Guang Dong, China 5 DESCRIPTION OF EUT : EUT : RF mouse, RF Receiver FCC ID : MWIEZRF104 Model Number : RF-104, RX005 Serial # : N/A HomeTek Technology Inc. FCC ID : MWIEZRF104 FB5K010 Page : 3 of 16 6 FEATURES OF EUT : 6.1 Frequency Band: 27MHz. 6.2 Carrier Frequency: 27.19MHz. 6.3 Resolution: Optical, 800CPI. HomeTek Technology Inc. FCC ID : MWIEZRF104 FB5K010 Page : 4 of 16 MODIFICATION LIST THE FOLLOWING ACCESSORIES WERE ADDED TO THE EUT DURING TESTING : NO MODIFICATION BY HOMETEK TECHNOLOGY INC. HomeTek Technology Inc. FCC ID : MWIEZRF104 FB5K010 Page : 5 of 16 CONDUCTED POWER LINE TEST 1 TEST PROCEDURE According to ANSI C63.4 – 2003. 2 RESULT OF CONDUCTED EMISSION TEST N/A(Conducted Power Line Test is not applicable to this EUT (Model : RF-104, RX005). HomeTek Technology Inc. FCC ID : MWIEZRF104 FB5K010 Page : 6 of 16 RADIATED EMISSION TEST (3M) 1 TEST INSTRUMENTS & FACILITIES The following test Instruments was used during the radiated emission test : Item Instruments /facilities Specification Manufacturer Model # / S/N# Date of Cal. 1 OPEN AREA TEST SITE ; OATS 3 JUL/2006 2 EMI TEST RECEIVER 20Hz ~ 26.5GHz ROHDE & SCHWARZ ESMI 845442/006 FEB/2006 3 PRE- AMPLIFIER 9KHz ~ 3000MHzADVANTEST BB525C 90081001 OCT/2006 4 ANTENNA (LOOP) 10KHz ~ 30MHz ZHINAN ZN30900A NOV/2005 5 Horn Antenna1G ~ 18GHz BJXIBAO 040506 OCT/2006 6 Attenuation 50Ω/6dB JYE BAO FAT-N (M-F) 001 JUL/2006 7 Cable 10m SUHNER RG214/U OS3-003 DEC/2005 8 Cable 14m BELDEN 9913 OS3-001 DEC/2005 9 EMI 32 (software) N/A AUDIX 19991013-0923 N/A Note : Items 1 ~ 8 were calibrated within period of 1 year. HomeTek Technology Inc. FCC ID : MWIEZRF104 FB5K010 Page : 7 of 16 2 EUT OPERATING CONDITION 2.1 Configure the EUT according to the ANSI C63.4 - 2003. 2.2 The frequency of the EUT is 27.19 MHz. 2.3 The radiated emission in the frequency range from 30 MHz - 1000 MHz was test in a horizontal and vertical polarization at HomeTek Lab’s open site III. 2.4 The crystal frequencies of the EUT are 76.8 KHz, 18 MHz, 22 MHz, 27.192 MHz (For Model No.: RF-104); the crystal frequencies of the EUT are 26.64 MHz and 26.74 MHz (For Model No.: RX005). 2.5 Provided by 2AA battery to Mouse. Connect receiver to USB port of Person computer. 2.6 Turn on all the power of EUT and peripheral. 2.7 The EUT was operated in its normal operating mode for the purpose of the measurements. 2.8 The receiving antenna polarized horizontally was varied from 1 to 4 meters and the wooden turntable was…

Text truncated - open the document above for the full version.

HomeTek Technology Inc. FB5K010 Appendix C PLOT OF OCCUPIED BANDWIDTH HomeTek Technology Inc. FB5K010 27.19 MHz

HomeTek Technology Inc. FB5K010 Appendix A : Front View 2 of 2 PHOTO OF RADIATED EMISSION TEST

RF-104 Cordless Advance Mouse User’s Manual The Description of RF-104 Cordless Advance Mouse 1. Left- or Right- handed with enhanced Grip. Ambidextrous design makes it comfortable either way. 2. can experience more accurate scrolling with no ratcheting feel. 3. Thumb rest: Not only palm need rest but also your thumb. 4. 10 keys defaulted efficient function. 5. Enhanced accelerated scrolling keys 6. Metallic colors to match your desktop: Blue, Red, Black and Silver. 7. Frequency: 27 Mhz 8. Batteries: AA 1.5 Volts * 2 PCs 9. Channel & ID : 1 CH, 256 ID for changeable 10. Resolution : Optical, 800 CPI 11. Operation distance: 1.5 Meter (in normal environment) 12. Driver free: less return rate for compatible problem 13. Compatible with Win98/2000/ME/XP/Win64 14. Safety: FCC, CE, R&TTE The function of 10 keys (default) 1 key: Left button 2 key: Right button. 3 key: Scrolling wheel w/button The advance features 4/5 keys (Back/Forward buttons): Two thumb buttons let you easily move Forward or Back between pages on the Internet or other applications. 6/7 keys (Vertical Acc. Buttons): Vertical w/accelerated scrolling (up & down) for documents or Web site. Ring finger buttons let you easily fast move up or down on active Application. 8 key (Rotate Button): Move easily to choose open windows on your screen by pushing Rotate window key. You no longer have to locate a program on the toolbar or type a keyboard shortcut. 9/10 keys (Application Buttons): Two Application buttons provide “ Close” windows and “ My computer” function. Extra tips: Advance Mouse bundle with Office keyboard is the best choice to own the most powerful function you ever tasted . Pop-up function for 3key-scrolling key can be enable through keyboard driver. Receiver: You can select Ezkey’s UFO-1, RX007(Mini RX), RX008(StarNet RX) to bundle RF-102 Cordless Advance Mouse.
