MZKBTS4000-850Broadband Transceiver System

PRELIMINARY Base Station System (BSS) BTS-4000RM Installation & Maintenance March 14, 2007 Part Number 06868-001, Rev 30 PRELIMINARY ALL RIGHTS RESERVED! This product and related documentation are protected by copyright and are distributed under license restricting its use, copying, distribution, and decompilation. No part of this product or related documentation may be reproduced in any form by any means without prior written authorization from AirNet Communication Corporation or its licensors, if any. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE! While all reasonable efforts have been made to assure the accuracy of this document, AirNet Communications Corporation assumes no liability resulting from any errors or omissions in this document or from the use of the information obtained herein. The information contained in this document has been carefully reviewed and is believed to be reliable. However, no responsibility is assumed for inaccuracies. AirNet Communications Corporation reserves the right to make changes to any equipment described herein to improve reliability, function, or design, and reserves the right to revise this document and to make changes in content hereof with no obligation to notify any person of revisions or changes. AirNet Communications Corporation does not assume any liability arising out of the use or application of any equipment or circuit described herein. SOFTWARE COPYRIGHT! The AirNet equipment described in this manual includes computer program(s) (the “SOFTWARE”) which are stored in semiconductor memories or other media. The SOFTWARE is owned or licensed by AirNet Communications Corporation and is protected by copyright, trade secret, patent and other intellectual property laws. Accordingly, the use of the SOFTWARE described in this manual requires a separate software license from AirNet Communications Corporation and may not be copied or reproduced in any manner inconsistent with that license. The purchase of equipment shall not be deemed to grant either directly or implied, any license under copyrights, trade secrets, patents, or patent applications of AirNet Communications Corporation. AirNet Communications Corporation 3950 Dow Road Melbourne, FL 32934-9215 Phone: (321) 984-1990 FAX: (321) 676-4494 The stylized AirNet logo, AirNet  , AdaptaCell  , and AirSite  are registered trademarks of AirNet Communications Corporation registered with the United States Patent and Trademark Office. Other product names mentioned in this manual are the trademarks of their respective manufacturers. Printed in U.S.A. © 2007 AirNet Communications Corporation. BTS-4000RM Installation and Maintenance Manual March 14, 2007 i PRELIMINARY REVISION PAGE Revision Date Comments 30 3/14/07 Added Appendix H, Ancillary Equipment, and updated the Installation section. 20 2/26/07 Added TMA port, TX Mon port, TMA installation procedure and Transmit Gain Adjustment procedure. Modified Block Diagram in Appendix C. 10 1/19/07 Preliminary manual. BTS-4000RM Installation and Maintenance Manual March 14, 2007 ii PRELIMINARY THIS PAGE IS INTENTIONALLY LEFT BLANK. BTS-4000RM Installation and Maintenance Manual March 14, 2007 iii PRELIMINARY TABLE OF CONTENTS PREFACE....................................................................................................................................... iv 1. BTS-4000RM ......................................................................................................................... 1-1 1.1 Frequency Bands .......................................................................................................... 1-2 1.2 Radio Channel Capacity ................................................................................................ 1-2 1.3 EDGE/GPRS Support.................................................................................................... 1-2 1.4 AirSite Support .............................................................................................................. 1-2 1.5 Auto-Boot Startup .......................................................................................................... 1-2 1.6 Circuit Switched Voice and Data Calls ........................................................................... 1-2 1.7 Input Power ................................................................................................................... 1-3 1.8 Certifications/Regulations .............................................................................................. 1-3 1.9 Local Subscriber Database............................................................................................ 1-3 1.10 Network Mode Descriptions ........................................................................................... 1-4 1.10.1 Stand-Alone Mode ................................................................................................. 1-4 1.10.2 ISDN PRI Mode ..................................................................................................... 1-4 1.10.3 AirNet Abis Mode ................................................................................................... 1-5 1.10.4 iBSS Mode............................................................................................................. 1-6 1.10.5 SIP Mode ............................................................................................................... 1-7 1.11 Network Mode Capabilities ............................................................................................ 1-8 1.11.1 Stand-Alone Mode Capabilities .............................................................................. 1-8 1.11.2 ISDN Mode Capabilities ....................................................................................... 1-10 1.11.3 AirNet Abis Mode ................................................................................................. 1-10 1.11.4 iBSS Mode Capabilities..............................…

Text truncated - open the document above for the full version.

BTS-4000RM Installation and Maintenance Section 5 March 14, 2007 Technical Support 5-2 PRELIMINARY Frequency Per BCCH ARFCN RBW 30 kHz (See Note below) VBW 10 kHz Ref Level +45 dBm Sweep Auto Video Average On (100 samples) Note - This measurement must be taken in a 30 kHz RBW in case an alternate channel local carrier is nearby the BCCH, which would then give an artificially high reading if 300 kHz RBW were used. 4. If the BTS is not turned on, turn on the circuit breakers. The BTS will boot up and receive the MIB download, activating the BCCH channel. 5. After the BTS has booted, verify that the BCCH is at the correct frequency by observing the spectrum analyzer and correlating the center frequency with the ARFCN for RF 0. Refer to Appendix E to obtain the BTS transmit frequency. 6. Use the spectrum analyzer’s Marker in Peak mode, and measure the RF output power in dBm at the TX Monitor port. Since the Tx Monitor port is inclusive of the HPA to Filter coax and the Filter loss, it should be +43.0 dBm ±0.5 dB. 7. If the level measured at the TX Monitor output is +43.0 dBm ±0.5 dB, this procedure is complete. If you performed this procedure as part of the initial BTS installation, return to Section 3.4 and fill out the BTS-4000RM Installation Quick Checklist form. If the level measured at the TX Monitor output is too high or too low, connect a console to the BTS-4000RM BPU as described in Section 2.1, and then perform the following steps: a) Use the rfStuff command to view the current attenuation level. Following is an example of the rfStuff output: rfStuff 0 1 2 3 ==================== ============ ============ ============ ============ bdxState: Operational NotDetected NotDetected NotDetected BDX board rev: 810 0 0 0 BDX Ctrl FPGA rev: 29 0 0 0 BDX TDM FPGA rev: 18 0 0 0 BDX ModelType: GSM 850 ???? ???? ???? Temperature: 37C 0C 0C 0C Tx Enable: Disabled Disabled Disabled Disabled Tx RF Level (atten): 9.5dB 0.0dB 0.0dB 0.0dB Extra HPA Atten: 7dB 7dB 7dB 7dB Extra RF Atten: 0dB 0dB 0dB 0dB Serial Number BDX 0: SN0452BXA01160 ARFCN Status BDX 0: baseArfcn = 128, numActiveRfs = 0 Section 5 BTS-4000RM Installation and Maintenance Technical Support March 14, 2007 5-3 PRELIMINARY BDX 0 TMA: Tx/Rx: ENABLED -> Normal - 88mA Rx: ENABLED -> Normal - 88mA BDX Alarms: A/D Clock Unlock ok - - - TX RF Synth Unlock ok - - - RX RF Synth Unlock ok - - - TX IF Synth Unlock ok - - - RX IF Synth Unlock ok - - - TDM Sync Fail ok - - - TDM Clock Fail ok - - - GSM Frame Sync Fail ok - - - Missing 1PPS Input ok - - - DDC Sync Fail ok - - - DUC Sync Fail ok - - - value = 73 = 0x49 = 'I' AirNet BTS-> b) Note the current Tx RF attenuation level. c) Use the settxlevel command to change the TX RF Level Attenuation value. The settxlevel command is used by AirNet manufacturing and in the field to adjust the BDX transmit level to match the gain of the HPA and other components in the transmit path. The default is 4.0 dB of attenuation, but the current level is displayed with the rfStuff command. The setting can be adjusted from 0 dB to 15.5 dB in 0.5 dB steps. The new transmit level attenuation takes effect immediately and is stored in BDX flash, so it stays in effect after reboots. The syntax for the settxlevel command is shown below: settxlevel <board num>, “<attenuation in dB>” board num = BDX board number (0 to 3) attenuation = Amount that the BDX attenuates the transmit path (from 0.0 to 15.5 dB in 0.5 dB steps). 4.0 dB is the default in BDX. Put double-quotes around the attenuation value, as shown. Note - The attenuation level is in dB and must have one digit after the decimal point (i.e., 5 must be entered as 5.0). Following is an example of how the settxlevel command would be used if the BTS-4000RM output were 1 dB too hot: AirNet BTS->settxlevel 0, “5.0” Writing Flash BDX Transmit RF level to 5.0 Current BDX Transmit RF level is 4.0 Setting BDX Transmit RF level to 5.0 Successfully wrote RF Tx Attenuation 5.0 to flash value = 0 = 0x0 AirNet BTS-> 8) Repeat Steps 6 and 7 until the output is +43.0 dBm ±0.5 dB. 9) Record the final Tx output level. BTS-4000RM Installation and Maintenance Section 5 March 14, 2007 Technical Support 5-4 PRELIMINARY 10) If you performed this procedure as part of the initial BTS installation, return to Section 3.4 and fill out the BTS-4000RM Installation Quick Checklist form. Stop – The transmit gain adjustment procedure is complete. Section 5 BTS-4000RM Installation and Maintenance Technical Support March 14, 2007 6-1 PRELIMINARY 6. TECHNICAL SUPPORT AirNet provides several support services that cover all aspects of BSS equipment, from initial system planning through deployment and operation. Once a system is in operation and has been conditionally accepted, the AirNet Customer Response Center (CRC) is available and responsible for answering technical questions or addressing technical problems. Access to the CRC is typically available to AirNet customers for one year from the original date of purchase of the AirNet BSS equipment. Access to the CRC may be extended beyond the one-year period by purchasing a maintenance agreement from AirNet. In addition to extending access to the AirNet CRC, the maintenance agreement may also include software upgrades 4 for purchased AirNet products as well as participation in the Depot Maintenance Program. Contact the AirNet Sales Department for more information on purchasing a maintenance agreement 5 . 6.1 Customer Response Center Answers to specific technical questions may not be available in the user documentation due to the complexity of wireless systems. If this is the case, customers may contact the AirNet Customer Response Center to ask a technical question, report a problem and even suggest product enhancements. The Customer Response Center should also be contacted for major upgrades to network components, including major database changes, frequency plan modifications, and upgrades to the MSC. When advance notice of major upgrades is received, the…

Text truncated - open the document above for the full version.

920 MHz 16.0-21.0 MHz TX RF Synth 1021.6-1041.6 MHz RX RF Synth 966.6-986.6 MHz 147.5-152.5 MHz 869-894 MHz 824-849 MHz 13_MHz_P 13_MHz_N Tx RF 4 @ -2 dBm each (-12 dBFS each) (20 W at BTS out) Rx1 RF-2 dBm (Max. AGC)-40 dBm (Min. AGC)For Full Scale A/DRx2 RF-2 dBm (Max. AGC)-40 dBm (Min. AGC)For Full Scale A/D Loopback -30 dB Coupled LOOPBACK_EN -30 LOOP_EXT -40 dB PAD 91.0 MHz VCXO Control FPGA TDM BUS TMA Current Monitor RS-232 LEDs -0.2 dB P/2 P/2 -30 -30 P/2 BDX-850-5 Broadband Digital Transceiver GSM-850 LNA RX IF Synth 158.4 MHz Loopback Osc. 45.0 MHz 869-894 MHz TX_ENABLE TX_LVL[4:0] 5 TX_SPC[3:0] 4 TX IF Synth 168.4 MHz A/D Converter A/D Converter D/A Converter 91.0 MHz FRAME_SYNC HDLC BUS 147.5-152.5 MHz 137.5-142.5 MHz 16.0-21.0 MHz BDX RESET 91.0 MHz A/D Converter 1 DET2 DET Power DetPower Det AGC[4:0] AGC_EN[1:0] 870 MHz 137.5-142.5 MHz AGC[5:0] AGC_EN[1:0] -0.3 dB 9090 9090 TX_IF_GAIN[5:0] 6 90 90 DUCDUC DUC DDCDDCDDCDDCDDCDDC CPLD TDM FPGA 1PPS LVDS RCVR 1 TMA2 TMA DLO I/O GLOBAL SYNC 91.0 MHz FLASH RAM VME BUS DDC DATA DDC/DUC DATA FRAME_SYNC 1PPS GLOBAL SYNC DUC DATA Diplexer 91.0 MHz LVPECL Clock Distribution Rx LO (From DLO) Tx LO (From DLO) IF LO RF LO RF LO IF LO Diplexer DLO_EN DSP-BDX AirNet Proprietary

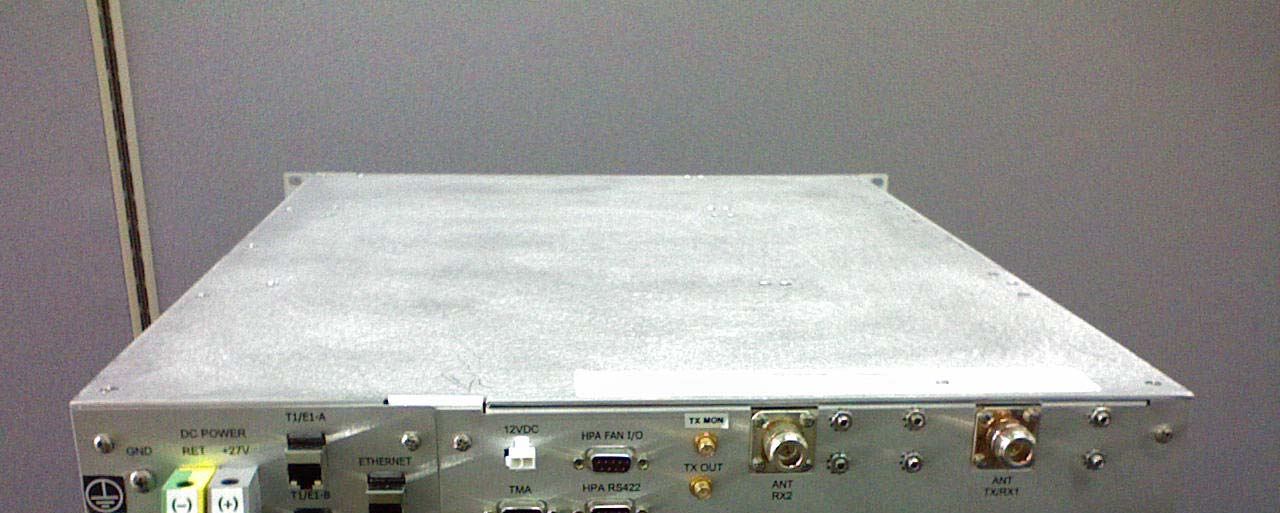

External Photo – Front with Cover On External Photo – Front with Cover Off External Photo – Rear

Figure 1 FCC Label Location FCC Label Location

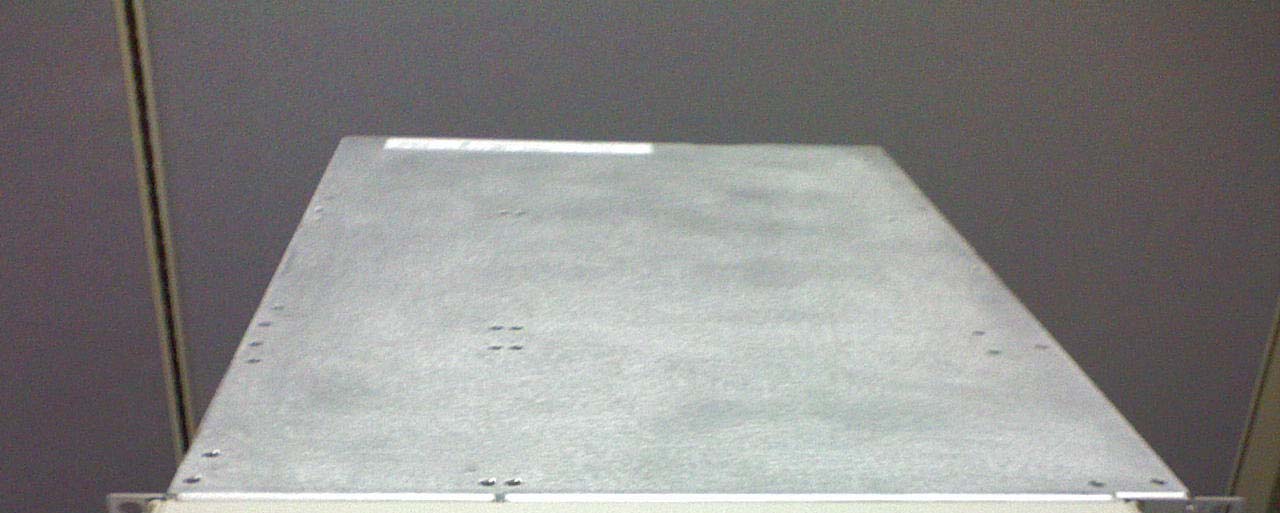

Internal Photo – Transceiver Internal Photo – Transceiver with Cover Off (Top) Internal Photo – Transceiver with Cover Off (Bottom)

FCC ID: MZKBTS4000-850 AirNet Communications Corporation - Proprietary Page 1 of 4 Transmitter Technical Characteristics RF Output Power of Transceiver 0 dBm Tunable Channels 123 (ARFCN 128 to ARFCN 251) Frequency Range 869.2 MHz to 895.8 MHz Frequency Stability 0.008 ppm Emission Designator(s) 250KGXW 250KG7W Spurious Emissions < -70 dBC Final Amplifier Stage Information Watkins-Johnson Model AH102A amplifier (two used for balanced configuration) Supply voltage = 9 Vdc, Current = 200 mA x2, Gain = 13 dB Antenna Information Antenna Information Maximum Gain 16.6 dBi General Description The AirNet Broadband Transceiver System (AirNet BTS) is the primary equipment realizing the functionality of a GSM 850 MHz Base Transceiver System (BTS). The AirNet BTS uses AirNet’s patented broadband technology to achieve its compact size and high capacity. The AirNet BTS is designed around the philosophy of the software- defined radio. AirNet’s broadband technology comprises AirNet’s software defined radio implemented with its Digital Signal Processors (DSPs) and Broadband Digital Transceiver (BDX). These components can be software-configurable and are programmed with modulation type, RF channel bandwidth, channel spacing, and frequency, and the parameters of cellular radio signals. AirNet’s broadband technology eliminates the need for a bank of cavity filters and RF combiners that are traditionally required with narrowband systems. Transmitted signals are combined digitally into a single broadband signal that is upconverted to the appropriate RF band by the BDX and amplified by an external highly linear, multi-carrier amplifier. The AirNet BTS-4000RM can combine up to 12 TRXs. Likewise individually received RF carriers are digitally filtered, which provides significantly more flexibility and FCC ID: MZKBTS4000-850 AirNet Communications Corporation - Proprietary Page 2 of 4 control for out-of-band signal rejection than analog filtering used in traditional BTS transceivers. All software components (source, libraries and executables) of the AirNet software defined radio are tightly controlled using mature industry-standard software configuration management practices. All versions of code released for customer use are archived in an unwritable state and retained for the duration of product life, and can be readily compared to any other version. These archive versions are also backed up and stored off-site for disaster recovery. Subsequent changes to the baseline version of AirNet software delivered for initial testing by the FCC will be managed according to the FCC rules and regulations for permissive changes. Per past direction from the OET office at the FCC (see FCC ID: MZKBPU2000-1900), this application covers the RF transceiver portion of the BTS; it does not include the high power amplifiers (HPA) that are sold with the product. This is a result of AirNet’s ability to use different amplifiers from different vendors with the same base BDX and digital BTS hardware. Each amplifier type has it’s own Part 22 certification. Therefore, this application is written for the RF output of the BDX - the HPA and the post HPA RF duplexer/filter have been bypassed for all conducted transmit tests shown herein. This application refers to the complete BTS product with an HPA when discussing means for limiting output power and when referring to power limitations for channels at the band edge. As in the previous application, ARFCNs adjacent to the band edge are limited in the AirNet BTS to a power of 2 Watts or less. It has been shown previously that a 2 Watt GMSK or 8PSK modulated carrier centered 200 kHz from a band edge meets the FCC requirements for out of band spurious emissions. Total power out of the BTS with an HPA will be governed by the equipment authorization granted for the HPA and other applicable FCC regulations as described in Part 22. Tune-up Procedure The parameters for programming the transceiver synthesizes are stored in a file contained in flash memory on the BTS. This file is configured at the factory and the system user cannot change it. These parameters determine the receiver and transmit frequencies and their separation. The transceiver has a 5 MHz receiver and a 5 MHz transmit bandwidth at this base frequency. The parameters are downloaded to the flash non-volatile memory during BTS installation based on the frequency plan for that particular licensee. The BTS transceiver will automatically tune to these frequencies at power-up. This data, or list of tuning frequencies, is required in order for the base station to transmit; if lost or corrupted the system will not transmit. There is no user accessible way of retuning the BTS. Means for Frequency Stabilization The frequency reference for the BTS is an extremely stable 13 MHz signal supplied by the Rubidium Oscillator module. The 13 MHz signal is then used to phase lock a 91 FCC ID: MZKBTS4000-850 AirNet Communications Corporation - Proprietary Page 3 of 4 MHz Voltage Controlled Crystal Oscillator or VCXO. The 91 MHz signal is then used by the transmit IF and RF synthesizes to produce the local oscillators required for the upconversion. Means for Harmonic Suppression Conducted Harmonic Suppression- The upconverter stage contains a SAW band-pass filter centered at 836.5 MHz with a 25 MHz bandwidth. This SAW filter significantly reduces the level of out of band spurious emissions and transmitter harmonics. In addition, there is a duplexer filter connected in the transmit path after the output of the high power amplifier. This is to ensure that any certified amplifier can be connected between the transceiver output and the duplexer filter input and continue to meet the requirements. The duplexer is a cavity based 8-pole filter tuned to the GSM 850 MHz transmit band (824 to 849 MHz). This filter provides additional attenuation of spurious emissions generated or passing through an amplifier (80 dB out-of-band suppression). Note that the spurious emission…

Text truncated - open the document above for the full version.

Tune-up Procedure The parameters for programming the transceiver synthesizes are stored in a file contained in flash memory on the BTS. This file is configured at the factory and the system user cannot change it. These parameters determine the receiver and transmit frequencies and their separation. The transceiver has a 5 MHz receiver and a 5 MHz transmit bandwidth at this base frequency. The parameters are downloaded to the flash non- volatile memory during BTS installation based on the frequency plan for that particular licensee. The BTS transceiver will automatically tune to these frequencies at power-up. This data, or list of tuning frequencies, is required in order for the base station to transmit; if lost or corrupted the system will not transmit. There is no user accessible way of retuning the BTS. Means for Frequency Stabilization The frequency reference for the BTS is an extremely stable 13 MHz signal supplied by the Rubidium Oscillator module. The 13 MHz signal is then used to phase lock a 91 MHz Voltage Controlled Crystal Oscillator or VCXO. The 91 MHz signal is then used by the transmit IF and RF synthesizes to produce the local oscillators required for the upconversion. Means for Limiting Power The dynamic range of the wideband digital signal coming to the transceiver from the DSP board is set in an initialization file that is automatically downloaded at system power-up. This value is chosen to give the maximum power out of the transceiver for the desired maximum number of carriers, while preventing the digital output from overflowing and thus clipping the signals. The base station controller has the capability, through software download, of changing the combiner gain value to yield a lower maximum power level out of the transceiver. The level can only be decreased, not increased. The granularity of the control is in 1 dB steps. There are no other methods for a system user to vary the power level. Per the PCS-1900/850 Air Interface Specification, the system provides 15 levels of dynamic power control in steps of 2 dB each. This variable attenuation is used by the power control algorithm running on the digital signal processor boards to optimize the power level of the signal from the base station to the mobile handset. (Only use as much power as necessary to achieve an acceptable signal to noise ratio (SNR).) When a traffic channel is first turned on, it is at maximum attenuation, i.e., 30 dB below maximum power. The power control algorithm will then continually optimize this level based on the strength of the received mobile signal. This power adjustment mechanism is automatic and implemented in DSP software. All high power amplifiers that will be used will shutdown if their input signal level is too high, if the VSWR at the output port is too high, if the output power is too high, or if a number of other error conditions occur. This ensures that the BTS will not transmit at power levels higher than authorized should a system equipment failure occur.

Client: Product Designation: BTS 4000 RM 850MHz Report Number: 3115850ATL-004 All services undertaken are subject to the following general policy: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST, or any agency of the US Government. Tested by: Tests performed by:Report reviewed by: Standard: Shawn K. McGuinness EMC Project Engineer David J. Schramm EMC Department Manager Airnet Communications Cor p 3950 Dow Road Melbourne, FL 32934 Contact: Steve Cassidy Phone: 321.953.6616 Fax: 321.757.0624 TEST REPORT February 26, 2007 Intertek Testing Services NA Inc. 1950 Evergreen Blvd., Suite 100 Duluth, GA 30096 FCC Part 22; FCC Part 15, Subpart B Page 1 of 43EMC Report for Airnet Communications Corp on the BTS 4000 RM 850MHz 02/26/2007Report Number: 3115850ATL-004Issued: Intertek 2.0 Test Summary 1.0 Introduction and Conclusion Test DateTest Full NameResultSection 02/12/2007System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup)4.0 Description of test facility (Test Site Location)5.0 02/12/2007RF Output Power (Conducted) (FCC Part 2.1046 Cond)PASS6.0 02/13/2007Occupied Bandwidth (FCC Part 2.1049)PASS7.0 02/13/2007Spurious emissions at antenna terminals (FCC Part 2.1051)PASS8.0 02/12/2007Field strength of spurious radiation (FCC Part 2.1053)PASS9.0 Conducted emissions on AC power lines (Conducted Emissions) was waived due to EUT is DC powered only.NA The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatum text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Page 2 of 43EMC Report for Airnet Communications Corp on the BTS 4000 RM 850MHz 02/26/2007Report Number: 3115850ATL-004Issued: Intertek 3.0 Description of Equipment Under Test Equipment Under Test Description Manufacturer Model Number Serial Number GSM Base Station AirNet Communications BTS4000RM (850 MHz) ANCCAN0703BRM00004 EUT receive date: 2/12/2007 EUT receive condition: Good Description of EUT provided by Client: The BTS4000RM is a 19" rack mounted GSM cellular base station. The unit consists of a baseband processing unit (BPU) module and a high power multi-carrier amplifier (HPA) module. This unit provides high capacity GSM and EDGE services in a compact form factor. EUT Operation and Exercising: The BPU was configured using test functions to produce GSMK or 8PSK modulated carriers. The data streams consist of pseudo-random data. The BPU then upconverts the baseband signal to the final RF frequency. The upconverted signal is then sent to the multi-carrier amplifier module for amplification for over the air transmission. All non-RF ports were either terminated or configured for loopback. Page 3 of 43EMC Report for Airnet Communications Corp on the BTS 4000 RM 850MHz 02/26/2007Report Number: 3115850ATL-004Issued: Intertek System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup) 4.0 Method: Record the details of EUTcabling, document the support equipment, and show the interconnections in a block diagram. Data: Ant. Tx/Rx Ant. Rx2 P. Supply P. Supply HPA RS422 HPA Fan HPA Fan HPA RS422 Tx Out Tx In Tx In Tx Out Ethernet T1/E1 A T1/E1 B + - + - + - TMA +12VDC Aux Out High Power Attenuator Power Supply +27VDC HPA Module BPU Module BTS4000RM (Rack Mount BTS) BTS4000RM Radiated Emissions Setup A A B C DE F G H I J K L Ant. Tx/Rx Ant. Rx2 P. Supply P. Supply HPA RS422 HPA Fan HPA Fan HPA RS422 Tx Out Tx In Tx In Tx Out Ethernet T1/E1 A T1/E1 B + - + - + - TMA +12VDC Aux Out High Power Attenuator Power Supply +27VDC HPA Module BPU Module BTS4000RM (Rack Mount BTS) BTS4000RM Radiated Emissions Setup A A B C DE F G H I J K L A Block Diagram Photo: Page 4 of 43EMC Report for Airnet Communications Corp on the BTS 4000 RM 850MHz 02/26/2007Report Number: 3115850ATL-004Issued: Intertek System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup) 4.0 A B C D E F G H I J K L Power AmplifierAirnet Communications, Inc.G3L-850-135VS00011N6E Description EUT Cabling Connection Length Shielding FerritesIDFromTo DC Power SupplyBPU and HPA Modules HPA Module50 Ohm Termination DC Power Cables (2)3' Antenna Tx/Rx25'CoaxNone NoneNone Antenna Rx225'CoaxNone HPA ModuleBPU Module Tx In Cable3'CoaxNone HPA Module50 Ohm Termination BPU ModuleHPA Module BPU ModuleHPA Module Tx Out Cable3' HPA RS4223'NoneNone CoaxNone BPU ModuleLoopbackT1/E1 B15'NoneNone Support Equipment DescriptionManufacturerModel NumberSerial Number High Power…

Text truncated - open the document above for the full version.

02/26/2007Report Number: 3115850ATL-004Issued: Intertek RF Output Power (Conducted) (FCC Part 2.1046 Cond)6.0 Method: Connect the transmitter output to a calibrated coaxial attenuator. Connect the other end of the attenuator to a power meter. Transmitter output was read off the power meter in dBm. Performed the test at three frequencies (low, middle, and high channels) and on the highest power levels, which can be setup on the transmitter. Canada typically requires this test to be repeated at +60° C and at -30° C. Description:Manufacturer:Model:Asset Number:Cal Date:Cal Due: Test Equipment Used: Attenuator, 10 dB, 50 Watt, DC-18GHzWeinschel47-10-3420006107/18/200607/18/2007 Cable E05 (Formerly HS 1500 N-N)Huber-SuhnerSucoflex 104PEAE0505/11/200605/11/2007 EMI ReceiverHewlett Packard8546A21138808/04/200608/04/2007 EMI Receiver, Preselector sectionHewlett Packard85460A21138908/04/200608/04/2007 Results: The sample tested was found to Comply. Photo: Page 7 of 43EMC Report for Airnet Communications Corp on the BTS 4000 RM 850MHz 02/26/2007Report Number: 3115850ATL-004Issued: Intertek Field strength of spurious radiation (FCC Part 2.1053)9.0 Test set up rear Photo: Plot: Page 33 of 43EMC Report for Airnet Communications Corp on the BTS 4000 RM 850MHz
