N3EUCLSR70468Spy Listener

Label Artwork and Location Label Size: 12.875mm(W)×1mm(H) FCC ID: N3EUCLSR70468

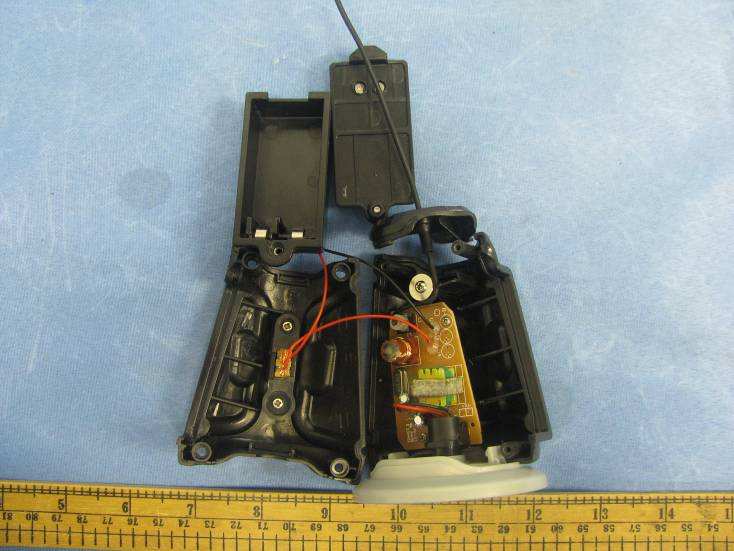

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C1, C2 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal L2 Oscillator Generate 49.860MHz carrier Y1, Q1 Modulation & Audio amplifier Modulate the carrier and amplify the modulated audio signal Q2, Q3, Q4 Type of antenna: Integrated Antenna Type of modulation: AM modulation
