WIKA Module User Manual Rev 1.1 Author: David Kramer 11/18/2022 Regular FCC/ISED Part 15C/RSS-Gen warning statement For FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. For ISED This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Regular FCC/ISED RF exposure considerations For FCC This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RF Exposure - This device is only authorized for use in a mobile application. At least 20 cm of separation distance between the module and the user's body must be maintained at all times. 2820 Wilderness Place, Unit C, Boulder, CO 80301 For ISED This device meets the IC requirements for RF exposure in public or uncontrolled environments. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RF Exposure - This device is only authorized for use in a mobile application. At least 20 cm of separation distance between the module and the user's body must be maintained at all times. Instruction to module Integrator (for module integration) Labelling A label must be affixed to the outside of final commercial product with the following statements: This device contains FCC ID: N4T-WMC915R1 Contains IC: 3196A-WMC915R1 Antenna The following antennas are recommended for use with the WIKA Radio Module: Nearson vertical whip P/N S1551AH-915S (Peak Gain = 2.0 dBi) Pulse Larsen “mag mount” antenna P/N NMO5T900B (Peak Gain = 2.75dBi) To comply with FCC regulations, any antenna used must either employ a “non-standard” connector, or be permanently affixed to the equipment containing the RF Module. The Nearson antenna is supplied with an “Reverse Polarity SMA connector (RP-SMA)”, which meets this requirement. The Pulse Larsen antenna must be used with a magnetic mount containing a non-standard connector such as the Laird P/N: GB195RPSMAI, which also uses an RP-SMA connector. Alternative antennas may be used, provided peak gain is equal to or lower than antennas used for FCC compliance testing. Any alternative antenna used must employ a “non-standard” antenna or be permanently affixed to the housing containing the radio module. Peak gain for alternative antennas are as follows: Vertical Whip: peak gain =< 2.7 dBi Mag Mount Antenna: peak gain <= 2.75dBi FCC RF exposure considerations Consistent with §2.909(a), the following text must be included within the user’s manual or operator instruction guide for the final commercial product: This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is only authorized for use in a mobile application. At least 20 cm of separation distance between the module and the user's body must be maintained at all times. Additional testing, Part 15 Subpart B disclaimer The final host / module combination may also need to be evaluated against the FCC Part 15B criteria for unintentional radiators in order to be properly authorized for operation as a Part 15 digital device. The FCC Part 15 Statement shall be included in the user manual of final commercial product if applicable. Caution Statement for Modifications: CAUTION: Any changes or modifications not expressly approved could void the user’s authority to operate the equipment. 1 Overview The WIKA Radio Module is a radio transceiver designed to provide medium range digital communication between two nodes. Typically, these nodes will be a battery powered remote sensor and a gateway, both utilizing the transceiver module. It operates in the 902 – 928 MHz frequency band which allows for unlicensed operation in North America. The module is represented pictorially below: Figure 1 -RF Module Design As is shown, the dimensions are 36mm x 52mm. There are four mounting holes for attachment into the housing. The connector at J3 mates to the digital control board, which provides digital I/O and +3.3VDC regulated power. J4 attaches to an FFC (Flexible Flat Cable) that attaches to a user accessible indicator/switch panel. J2 is the “tag connect swd” programming port. The antenna cable attaches at J1. 2 Specifications 2.1 I/O 2.1.1 Digital I/O (J3) The main interface and input/output connector is an ERNI#234206, which establishes the following signals: Table 1 - J3 Pin Descriptions Pin Signal Name Description Levels A1 VDD 3.3V Regulated DC from Digital Board A2 TXD USART TXD to interface Board (OUTPUT) 0/3.3V A3 RXD USART RXD from interface Board (INPUT) 0/3.3V A4 CAN_CTS Handshake signal from interface board (INPUT) 0/3.3V A5 RADIO_CTS Handshake signal to interface board (OUTPUT) 0/3.3V A6 CLI_TXD Command line usart tx (OUTPUT) 0/3.3V B1 VDD 3.3V Regulated DC from Digital Board B2 GND System Ground B3 GND System Ground B4 GND System Ground B5 CLI_RXD Command line usart rx (INTPUT) 0/3.3V B6 CLI_ACTIVE When high, activates command line interface CLI_RXD an…

Text truncated - open the document above for the full version.

EUT External View - Top EUT External View - Bottom

EUT External View - Bottom

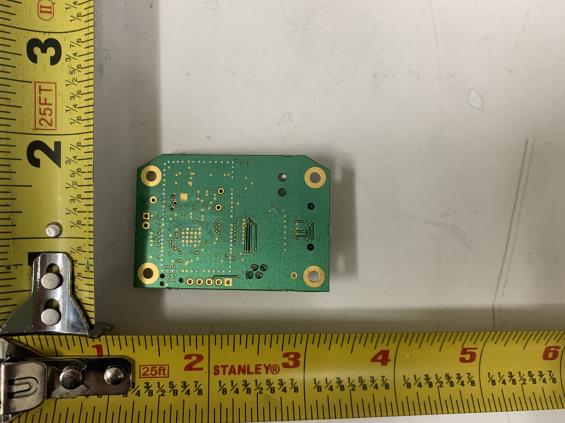

EUT Internal View - Top EUT Internal View - Bottom

Phone: +1 (949) 393-1123 Web: www.vista-compliance.com Email: [email protected] MPE Report Test Report Number PFE-22030421-LC-FCC-IC-MPE FCC ID N4TWMC915R1 IC Applicant 3196A-WMC915R1 Phase IV Engineering Inc. Applicant Address 2820 Wilderness Place Suite C, Boulder, CO 80301 Product Name WIKA Module Model (s) 44-100358-00 Date of Receipt 04/08/2022 Date of Test 04/08/2022- 05/24/2022 Report Issue Date 06/24/2022 Test Standards 47 CFR §1.1307(b), 47 CFR §1.1310 RSS-102 Issue 5: Feb 2021 Test Result PASS Issued by: Vista Compliance Laboratories 1261 Puerta Del Sol, San Clemente, CA 92673 USA www.vista-compliance.com Devin Tai (Test Technician) David Zhang (Technical Manager) This report is for the exclusive use of the applicant. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Note that the results contained in this report pertain only to the test samples identified herein, and the results relate only to the items tested and the results that were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested and the results thereof based upon the information provided to us. The applicant has 60 days from date of issuance of this report to notify us of any material error or omission. Failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is not to be reproduced by any means except in full and in any case not without the written approval of Vista Laboratories. Report# PFE-22030421-LC-FCC-IC-MPE Page 2 of 8 REVISION HISTORY Report Number Version Description Issued Date PFE-22030421-LC-FCC-IC-MPE 01 Initial report 06/24/2022 Report# PFE-22030421-LC-FCC-IC-MPE Page 3 of 8 TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................................... 4 1.1 Applicant .......................................................................................................................................................... 4 1.2 Product information ...................................................................................................................................... 4 1.3 Test standard and method .......................................................................................................................... 5 2 TEST SITE INFORMATION ..................................................................................................................................... 5 3 RF EXPOSURE .......................................................................................................................................................... 6 3.1 Limits for Maximum Permissible Exposure (MPE) .................................................................................. 6 3.2 MPE Calculation Formula ............................................................................................................................. 6 3.3 Classification ................................................................................................................................................... 6 3.4 Antenna Gain .................................................................................................................................................. 6 4 TEST RESULTS .......................................................................................................................................................... 7 Report# PFE-22030421-LC-FCC-IC-MPE Page 4 of 8 1 General Information 1.1 Applicant Applicant Phase IV Engineering Inc. Applicant address 2820 Wilderness Place Suite C, Boulder, CO 80301 Manufacturer Phase IV Engineering Inc. Manufacturer Address 2820 Wilderness Place Suite C, Boulder, CO 80301 1.2 Product information Product Name WIKA Module Product Description WIKA Module Model Number 44-100358-00 Family Models N/A Serial Number FCC1 Frequency Band 906 – 924 MHz Type of modulation OQPSK (DSSS) Equipment Class DTS Antenna Information Antenna#1 - Mag mount vertical whip antenna with a gain of 2.82 dBi (Model: NMO5T900B) Antenna#2 - Short monopole with a gain of 2.7 dBi (Model: FW.95.B.SMA.M) Antenna#3 - Short monopole with a gain of 2 dBi (Model: S1551AH-915S) Clock Frequencies N/A Input Power DC 3.3V Power Adapter Manufacturer/Model N/A Power Adapter SN N/A Hardware version N/A Software version N/A Simultaneous Transmission N/A Additional Info N/A Report# PFE-22030421-LC-FCC-IC-MPE Page 5 of 8 1.3 Test standard and method Test standard 47 CFR §1.1307(b), 47 CFR §1.1310 47 CFR §2.1093 RSS-102 Issue 5: Feb 2021 Test method 47 CFR §1.1307(b), 47 CFR §1.1310 RSS-102 Issue 5: Feb 2021 2 Test Site Information Lab performing tests Vista Laboratories, Inc. Lab Address 1261 Puerta Del Sol, San Clemente, CA 92673 USA Phone Number +1 (949) 393-1123 Website www.vista-compliance.com Report# PFE-22030421-LC-FCC-IC-MPE Page 6 of 8 3 FCC RF Exposure 3.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (…

Text truncated - open the document above for the full version.

Phone: +1 (949) 393-1123 Web: www.vista-compliance.com Email: [email protected] FCC ISED RF Test Report Test Report Number PFE-22030421-LC-FCC-IC-RF FCC ID N4TWMC915R1 IC Applicant 3196A-WMC915R1 Phase IV Engineering Inc. Applicant Address 2820 Wilderness Place Suite C, Boulder, CO 80301 Product Name WIKA Module Model (s) 44-100358-00 Date of Receipt 04/08/2022 Date of Test 04/08/2022- 05/24/2022 Report Issue Date 06/24/2022 Test Standards 47 CFR Part 15.247 Test Result PASS Issued by: Vista Compliance Laboratories 1261 Puerta Del Sol, San Clemente, CA 92673 USA www.vista-compliance.com Devin Tai (Test Engineer) David Zhang (Technical Manager) This report is for the exclusive use of the applicant. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Note that the results contained in this report pertain only to the test samples identified herein, and the results relate only to the items tested and the results that were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested and the results thereof based upon the information provided to us. The applicant has 60 days from date of issuance of this report to notify us of any material error or omission. Failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is not to be reproduced by any means except in full and in any case not without the written approval of Vista Laboratories. Report# PFE-22030421-LC-FCC-IC-RF Page 2 of 36 REVISION HISTORY Report Number Version Description Issued Date PFE-22030421-LC-FCC-IC-RF 01 Initial report 06/24/2022 Report# PFE-22030421-LC-FCC-IC-RF Page 3 of 36 TABLE OF CONTENTS 1 TEST SUMMARY ...................................................................................................................................................... 4 2 GENERAL INFORMATION ..................................................................................................................................... 5 2.1 Applicant .......................................................................................................................................................... 5 2.2 Product information ...................................................................................................................................... 5 2.3 Test standard and method .......................................................................................................................... 5 3 TEST SITE INFORMATION ..................................................................................................................................... 6 4 MODIFICATION OF EUT / DEVIATIONS FROM STANDARDS ....................................................................... 6 5 TEST CONFIGURATION AND OPERATION ....................................................................................................... 6 5.1 EUT Test Configuration ................................................................................................................................. 6 5.2 Supporting Equipment ................................................................................................................................. 7 6 UNCERTAINTY OF MEASUREMENT ................................................................................................................... 7 7 TEST RESULTS .......................................................................................................................................................... 8 7.1 Antenna Requirement .................................................................................................................................. 8 7.2 Conducted Emissions .................................................................................................................................... 9 7.3 DTS (6 dB) Bandwidth ................................................................................................................................. 13 7.4 Maximum Output Power............................................................................................................................ 19 7.5 Power Spectral Density ............................................................................................................................... 22 7.6 Radiated Spurious Emissions into Restricted Frequency Bands ....................................................... 25 7.7 Conducted Band-Edge ................................................................................................................................ 33 8 EUT AND TEST SETUP PHOTOS ......................................................................................................................... 35 9 TEST INSTRUMENT LIST ..................................................................................................................................... 36 Report# PFE-22030421-LC-FCC-IC-RF Page 4 of 36 1 Test Summary Test Item Test Requirement Test Method Result Antenna Requirement 47 CFR Part 15.247 ANSI C63.10-2013 558074 D01 15.247 Meas…

Text truncated - open the document above for the full version.

December 7, 2022 Measurement Results of NMO5T900B Rev 01 2 Test Setup Z axis Y axis X axis 3 Return Loss 4 Efficiency 5 Peak Gain 6 Radiation Patterns X axis Y axis X axis Z axis Y axis Z axis Z axis Y axis X axis 7 End Thank You SPE-16-8-007/B/WY Meteor Part No: FW.95.B.SMA.M Description: ISM Band 915Mhz Flexible Whip Monopole Antenna SMA(M) Straight Features: External 915MHz Monopole Antenna Designed for Outdoor Use Over 60% high efficiency* 2.71dBi high peak gain* Robust Inner Steel Core Antenna Length: 226mm SMA Type(M) Straight Connector IP65 dust and water-resistant *Tested on 30cm*30cm Ground Plane RoHS Compliant 2 SPE-16-8-007/B/WY www.taoglas.com Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. 1. Introduction 3 2. Specifications 4 3. Antenna Characteristics 5 4. Radiation Patterns 7 5. Mechanical Drawing 9 6. Packaging 10 Changelog 11 3 SPE-16-8-007/B/WY www.taoglas.com The FW.95 is a flexible 915MHz whip antenna with a SMA type (M) connector for outdoor use. It features excellent efficiency (>60%) and high peak gain (>2.71 dBi) at 915MHz on a 30x30 cm ground plane. The antenna was developed for monitoring systems, such as weather monitoring, motion / vibration sensors, and pollutants monitoring. The FW.95 has an excellent omni-directional radiation pattern, ensuring wide coverage. The antennas high efficiency means that it allows your radio to consume less power than with a lower efficiency antenna when transferring data. It also means a better signal strength and better sensitivity in areas of low signal levels. The antenna performs at its best while attached to a ground plane with dimensions of at least 30x30 cm. For an environment where there is no ground-plane available we recommend to use the terminal mount antenna the TI.19 or the outdoor fiberglass omni antenna the OMB.915. The FW.95 whip is made of a flexible inner steel core covered by PE so it is extremely resistant to abrasion and maintains its original shape and RF performance even after shock. This rugged design and IP65 rating on the housing ensure high reliability. This antenna comes with SMA(M) connector as standard. Other custom variants can be provided subject to NRE and MOQ. Contact your regional Taoglas office for details.. 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 4 SPE-16-8-007/B/WY www.taoglas.com ISM Band 915MHz Center Frequency 902MHz 915MHz 928MHz Design Environment On 30x30cm ground Efficiency 62.07 % 60.60 % 64.46 % Peak Gain 2.30 dBi 2.71 dBi 3.75 dBi Return loss < -10 dB VSWR ≤ 2:1 Impedance 50 Ω Polarization Linear Radiation Pattern Omni-Directional Input Power 2 W Tested Power 10 W Mechanical Dimensions Length 226 ± 6 mm Base Diameter 16 ± 0.6 mm Whip Diameter 6.2 ± 0.6 mm Casing ABS Connector SMA Type(M) Straight Weight 38 g Dust and Water Resistance IP65 Environmental Temperature Range -40°C to 85°C Humidity Non-condensing 65°C 95% RH 2. Specifications 3. Antenna Characteristics2. Specifications 3. Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics2. Specifications 3. Antenna Characteristics2. Specifications 3. Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics2. Specifications 5 SPE-16-8-007/B/WY www.taoglas.com 3.1 Return Loss 3.2 Efficiency 3. Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics 6 SPE-16-8-007/B/WY www.taoglas.com 3.3 Peak Gain 3.4 Average Gain 7 SPE-16-8-007/B/WY www.taoglas.com 4. 4.1 Test Setup On 30x30 cm ground plane 4. Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns X Y Z 8 SPE-16-8-007/B/WY www.taoglas.com 4.2 3D and 2D Radiation Patterns (0n 30cm*30cm Ground Plane) XZ Plane 902MHz XZ Plane 915MHz YZ Plane 928MHz Y X X Z Y Z 9 SPE-16-8-007/B/WY www.taoglas.com 8. Packaging 6. Packaging5. Mechanical Drawing 5. Mechanical Drawing (Units: mm) 6. Packaging5. Mechanical Drawing 6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. Packaging5. Mechanical Drawing 6. Packaging 7. Application Note6. Packaging 7. Application Note 7. Application Note6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. Packaging5. Mechanical Drawing 10 SPE-16-8-007/B/WY www.taoglas.com 1 pcs FW.95.B.SMA.M per PE Bag Bag Dimensions - 380*50mm Weight - 38g 50 PE Bags per Large PE Bag 50 pcs FW.95.B.SMA.M per Large PE Bag Large PE Bag Dimensions - 470*340mm Weight – 2Kg 5 Large PE Bags per Carton 50 pcs FW.95.B.SMA.M per Carton Carton Dimensions - 360*310*180mm Weight - 10.5Kg Pallet Dimensions: 1200*1000*1350mm 63 Cartons Per Pallet 9 Cartons Per Layer 7 Layers 6. Packaging 6. Packaging5. Mechanical Drawing 6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. Packaging5. Mechanical Drawing 6. Packaging 7. Application Note6. Packaging 7. Application Note 7. Application Note6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. Packaging5. Mechanical Drawing 11 SPE-16-8-007/B/WY www.taoglas…

Text truncated - open the document above for the full version.

Conducted emission test - Front View Conducted emission test - Rear View RE below 1GHz test - Front View (Short monopole antenna) RE below 1GHz test - Rear View (Short monopole antenna) RE below 1GHz test - Front View (Mag mount antenna) RE below 1GHz test - Rear View (Mag mount antenna) RE above 1GHz test - Front View (Short monopole antenna) RE above 1GHz test - Rear View (Short monopole antenna) RE above 1GHz test - Front View (Mag mount antenna) RE above 1GHz test - Rear View (Mag mount antenna)
