N52-ADX-HPR-7F

ADRF KOREA, Inc.

DAS (Distributed Antenna System)

Click to zoom

Application Details

Equipment Class: B2I - Part 20 Industrial Booster (CMRS)
Date of Grant: Aug 02, 2015
Application Purpose: Original Equipment
Date of Application: Jul 05, 2015
Equipment Note: DAS (Distributed Antenna System)
Frequency Range: 728.00000000 - 757.00000000
Company: ADRF KOREA, Inc.
Country: South Korea

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

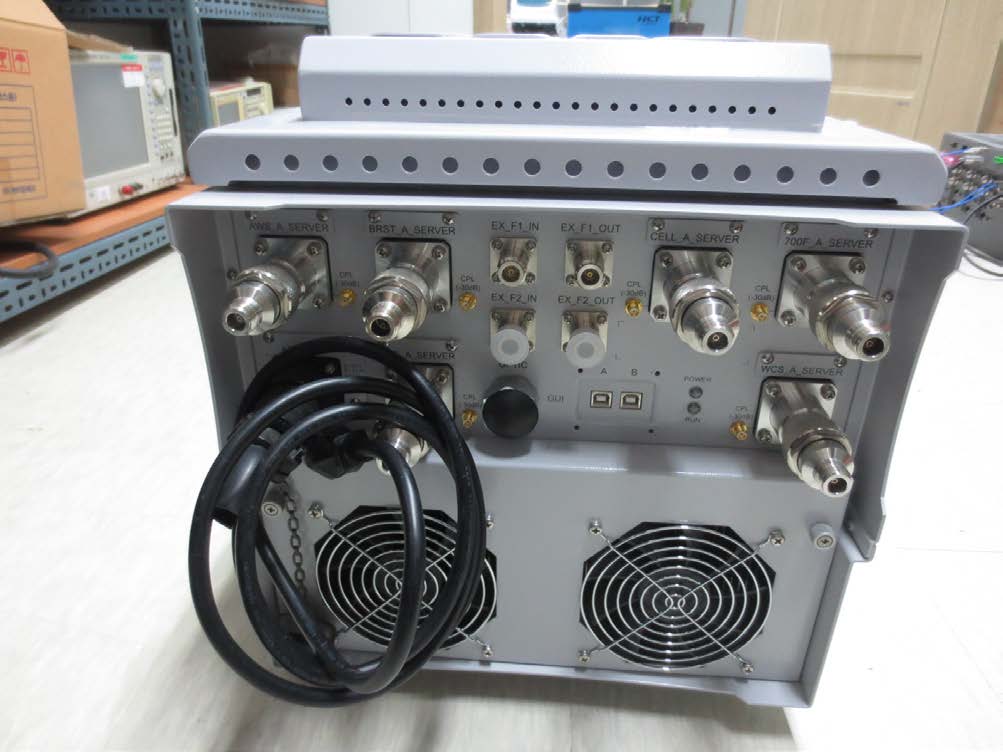

External Photos

ID Label/Location Info

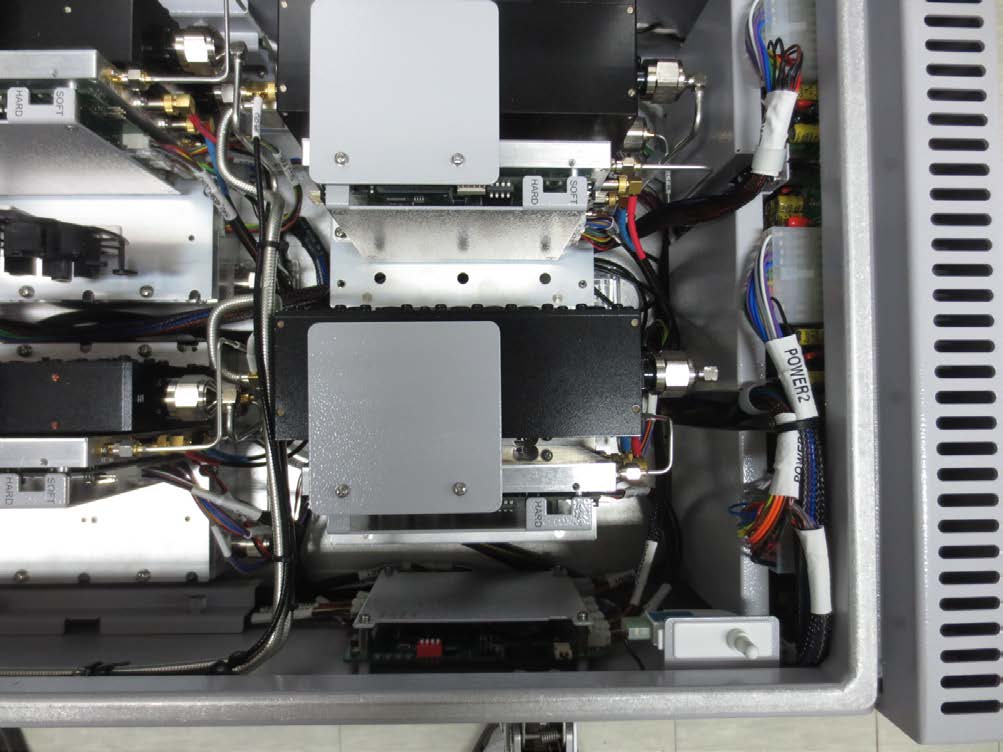

Internal Photos

Test Report

Test Setup Photos

Contact Information

Applicant

Hyun-Kyung Song(Management Support Team Manager)

[email protected]+82-31-637-4435Fax: +82-31-638-7749

Test Firm

HCT Co., LTDSang Lee

[email protected]82-31-645-6420Fax: 82-31-645-6401

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	27	728 MHz - 757 MHz	24.322 W	8M97G7D	Amp

Confidentiality

Long Term

Grant Notes

Output power is conducted. Device supports LTE 10MHz modulation. This transmitter operates as a remote unit as part of a system along with base station interface unit as described in this filing, and excluding any other devices connected to the (uplink) transmit output terminal of the base station interface unit. This application covers only the system configuration with base interface unit connected to a base station RF port in the uplink transmit path; operations of this remote unit if any in a system with base interface unit connected to antenna or amplifier for uplink transmissions require separate equipment authorization. This device is authorized to operate only as part of a distributed-antenna booster system installed in buildings. This filing has compliance demonstration information and test data only for SISO (single-input single-output) booster system configurations; additional equipment authorization is required to allow this device to be used in MIMO (multiple-input multiple-output) industrial booster systems. Users and installers must be provided with appropriate antenna installation instructions and transmitter operating conditions, including antenna colocation requirements of Sec. 1.1307(b)(3), for satisfying RF exposure compliance. RF exposure will be addressed at time of installation and the use of higher gain antennas may require larger separation distances.
