ADRF KOREA, Inc. 5- 5, Mojeon-Ri, Backsa-Myun, Icheon-City, Kyunggi-Do,South Korea ____________________________________________________________________________ Date: Dec. 21, 2019 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Subject: Letter for Warning Label Message FCC ID: N52-ADXD To Whom It May Concern: Warning label messages will be also shown in online and point-of-sale marketing materials and on outside packaging of device per KDB 935210 D02 Signal Boosters Certification v04r01 in Section IV clause (d).

ADRF KOREA, Inc. 5-5, Mojeon-Ri, Backsa-Myun, Icheon-City, Kyunggi-Do,South Korea Date: Dec. 21, 2019 To whom it may concern: We, the undersigned, hereby authorize HCT Co., LTD to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by HCT Co., LTD on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely

ADRF KOREA, Inc. 5- 5, Mojeon-Ri, Backsa-Myun, Icheon-City, Kyunggi-Do,South Korea ____________________________________________________________________________ Date: Dec. 21, 2019 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: N52-ADXD To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, ADRF KOREA, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give ADRF KOREA, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description CONFIDENTIAL 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure 4 Schematics SHORT-TERM CONFIDENTIAL 5 Internal Photos & External photo 6 Test-Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely,

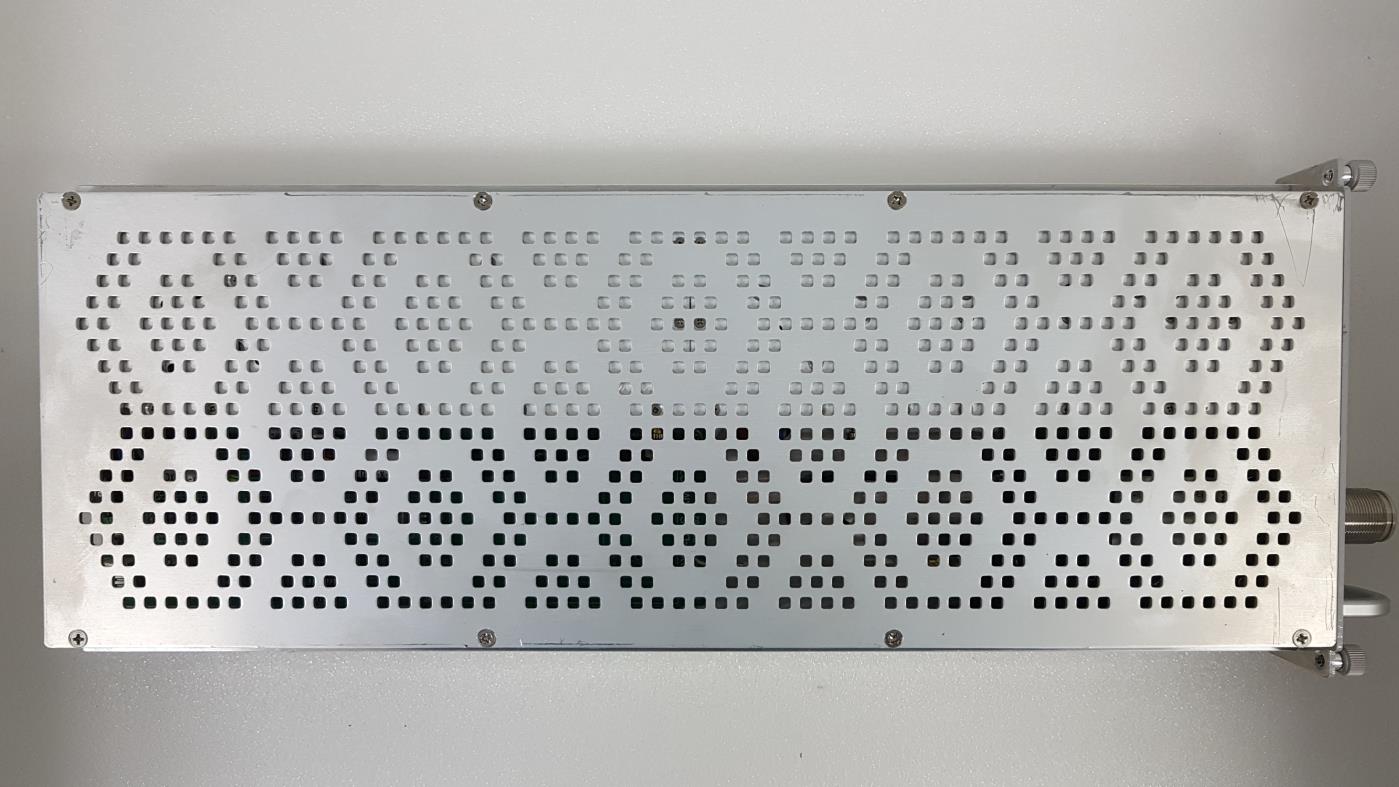

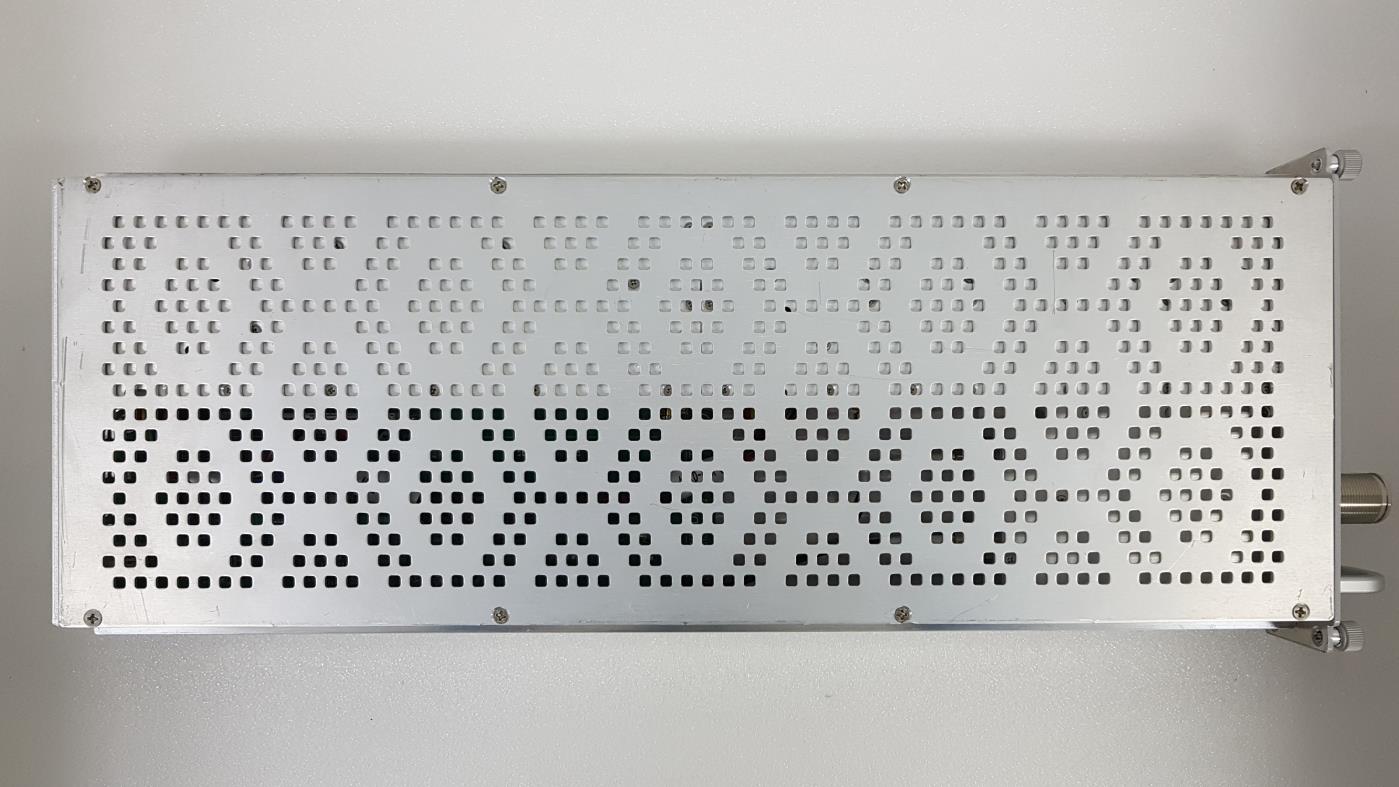

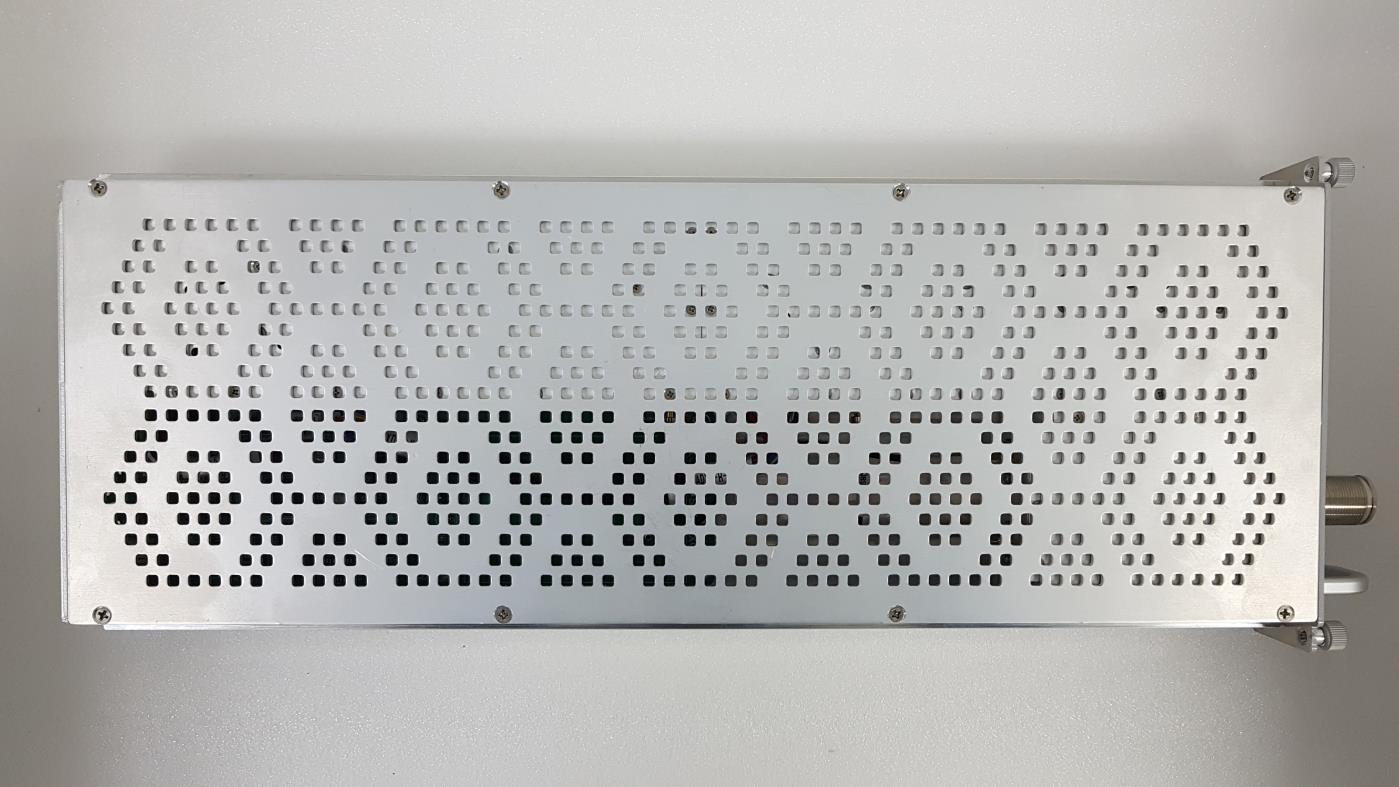

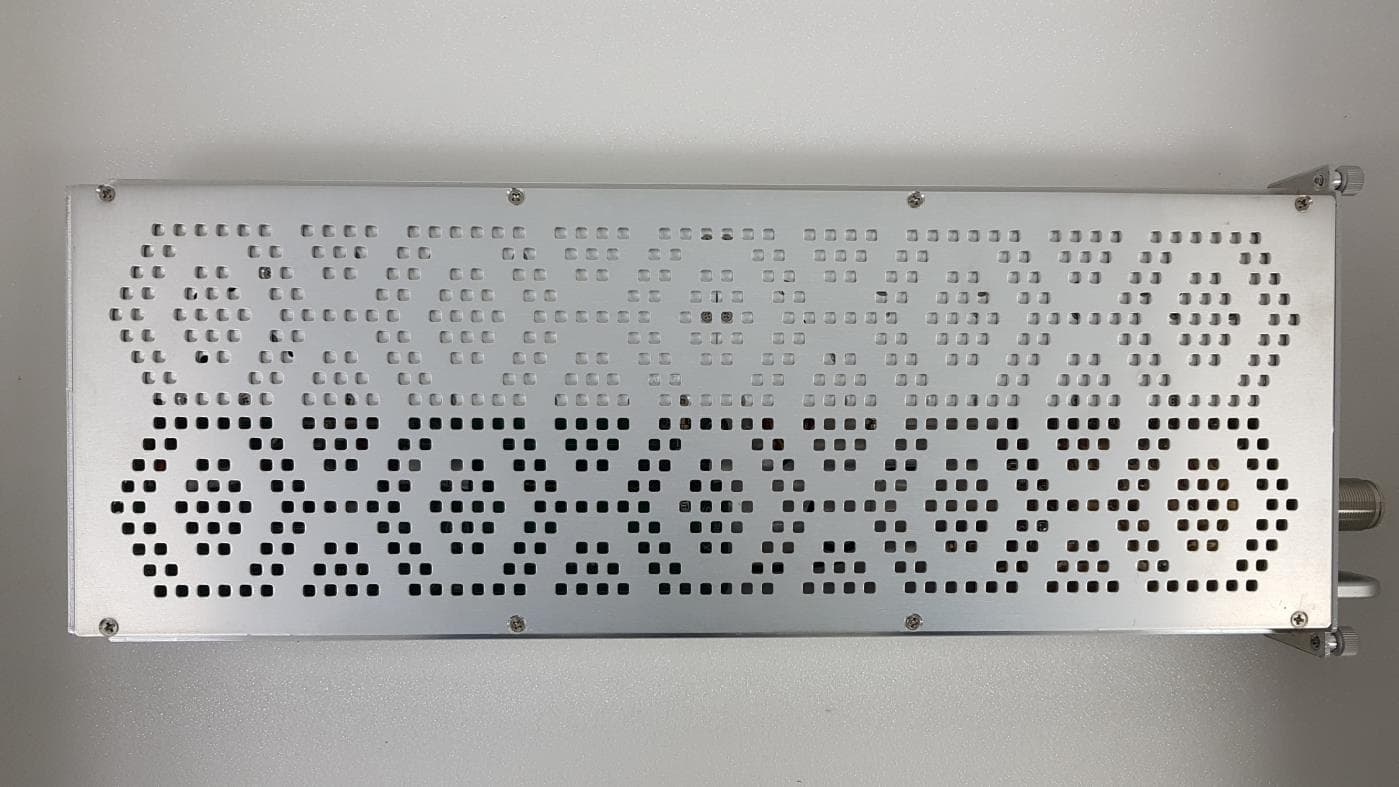

FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 43 EXTERNAL PHOTOGRAPHS FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 43 ■ EXTERNAL PHOTO( R-336 front ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 43 ■ EXTERNAL PHOTO( R-336 back ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 43 ■ EXTERNAL PHOTO( R-336 top ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 43 ■ EXTERNAL PHOTO( R-336 bottom ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 43 ■ EXTERNAL PHOTO( R-336 right ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 43 ■ EXTERNAL PHOTO( R-336 left ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 43 ■ EXTERNAL PHOTO( R-337F front ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 43 ■ EXTERNAL PHOTO( R-337F back ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 43 ■ EXTERNAL PHOTO( R-337F top ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 43 ■ EXTERNAL PHOTO( R-337F bottom ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 43 ■ EXTERNAL PHOTO( R-337F right ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 43 ■ EXTERNAL PHOTO( R-337F left ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 43 ■ EXTERNAL PHOTO( R-33S8C front ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 43 ■ EXTERNAL PHOTO( R-33S8C back ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 43 ■ EXTERNAL PHOTO( R-33S8C top ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １７ of 43 ■ EXTERNAL PHOTO( R-33S8C bottom ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １８ of 43 ■ EXTERNAL PHOTO( R-33S8C right ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １９ of 43 ■ EXTERNAL PHOTO( R-33S8C left ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２０ of 43 ■ EXTERNAL PHOTO( R-37P front ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２１ of 43 ■ EXTERNAL PHOTO( R-37P back ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２２ of 43 ■ EXTERNAL PHOTO( R-37P top ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２３ of 43 ■ EXTERNAL PHOTO( R-37P bottom ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２４ of 43 ■ EXTERNAL PHOTO( R-37P right ) FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２５ o…

Text truncated - open the document above for the full version.

ADXD DAS FCC Label Label1 Label2 Label 2 Label3 MODEL NO : ADXD DAS

FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 19 INTERNAL PHOTOGRAPHS FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 19 [R-Extension Back B'd BOT] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 19 [R-Extension Back B'd TOP] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 19 [R-Hub Back B'd BOT] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 19 [R-Hub Back B'd TOP] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 19 [RM CTRL B'd BOT] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 19 [RM CTRL B'd TOP] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 19 [RM-700] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 19 [RM-AWS] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 19 [RM-BT] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 19 [RM-PCS] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 19 [RM-S8C] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 19 [RM-WCS] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 19 [R-ORU B'd BOT] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 19 [R-ORU B'd TOP] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 19 [RU Back B'd BOT] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １７ of 19 [RU Back B'd TOP] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １８ of 19 [RU PSU-AC Internal photo] FCC ID: N52-ADXD, IC: 6416A-ADXD HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １９ of 19 [RU PSU-AC Internal photo-1]

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side TEST REPORT FCC MPE Test for ADXD Certification APPLICANT ADVANCED RF TECHNOLOGIES, INC REPORT NO. HCT -RF-1912-FC024-R1 DATE OF ISSUE January 21, 2020 Report No. HCT-RF-1912-FC024-R1 F-TP22-03 (Rev. 01) Page 3 of 13 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 December 26, 2019 Initial Release 1 January 21, 2020 Added the Uplink results. The result shown in this test report refer only to the sample(s) tested unless otherwise stated. The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. Report No. HCT-RF-1912-FC024-R1 F-TP22-03 (Rev. 01) Page 4 of 13 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/ cm²) Averaging time (minutes) 0.3 - 1.34�������� 1.34 - 30��������� 30 - 300��������� 300 - 1500�������� 1500 - 100.000������ 614 824/f 27.5 ���� ���� 1.63 2.19/f 0.073 ���� ���� *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Report No. HCT-RF-1912-FC024-R1 F-TP22-03 (Rev. 01) Page 5 of 13 - 600 MHz ᄓ LTE 20 MHz (Uplink) Max Peak output Power at antenna input terminal -34.000 dBm Max Peak output Power at antenna input terminal 0.00040 mW Prediction distance 60.00 cm Prediction frequency 673.000 MHz Antenna Gain(typical) 3.700 dBi Antenna Gain(numeric) 2.344 - Power density at prediction frequency( S) 0.000000021 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4487 mW/cm 2 - 600 MHz ᄓ LTE 20 MHz (Downlink) Max Peak output Power at antenna input terminal 34.000 dBm Max Peak output Power at antenna input terminal 2511.89 mW Prediction distance 60.00 cm Prediction frequency 627.00 MHz Antenna Gain(typical) 3.700 dBi Antenna Gain(numeric) 2.344 - Power density at prediction frequency( S) 0.1302 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4180 mW/cm 2 Report No. HCT-RF-1912-FC024-R1 F-TP22-03 (Rev. 01) Page 6 of 13 - Lower 700 MHz ᄓ LTE 10 MHz (Uplink) Max Peak output Power at antenna input terminal -34.000 dBm Max Peak output Power at antenna input terminal 0.00040 mW Prediction distance 60.00 cm Prediction frequency 703.00 MHz Antenna Gain(typical) 3.900 dBi Antenna Gain(numeric) 2.455 - Power density at prediction frequency( S) 0.000000022 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4687 mW/cm 2 - Lower 700 MHz ᄓ LTE 10 MHz (Downlink) Max Peak output Power at antenna input terminal 34.000 dBm Max Peak output Power at antenna input terminal 2511.89 mW Prediction distance 60.00 cm Prediction frequency 733.00 MHz Antenna Gain(typical) 3.900 dBi Antenna Gain(numeric) 2.455 - Power density at prediction frequency( S) 0.1363 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4887 mW/cm 2 Report No. HCT-RF-1912-FC024-R1 F-TP22-03 (Rev. 01) Page 7 of 13 - Upper 700 MHz ᄓ LTE 10 MHz (Uplink) Max Peak output Power at antenna input terminal -34.000 dBm Max Peak output Power at antenna input terminal 0.00040 mW Prediction distance 60.00 cm Prediction frequency 781.00 MHz Antenna Gain(typical) 3.900 dBi Antenna Gain(numeric) 2.455 - Power density at prediction frequency( S) 0.000000022 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5207 mW/cm 2 - Upper 700 MHz ᄓ LTE 10 MHz (Downlink) Max Peak output Power at antenna input terminal 34.000 dBm Max Peak output Power at antenna input terminal 2511.89 mW Prediction distance 60.00 cm Prediction frequency 751.00 MHz Antenna Gain(typical) 3.900 dBi Antenna Gain(numeric) 2.455 - Power density at prediction frequency( S) 0.1363 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5007 mW/cm 2 Report No. HCT-RF-1912-FC024-R1 F-TP22-03 (Rev. 01) Page 8 of 13 - ESMR ᄓ LTE 5 MHz (Uplink) Max Peak output Power at antenna input terminal -34.000 dBm Max Peak output Power at antenna input terminal 0.00040 mW Prediction distance 60.00 cm Prediction frequency 819.50 MHz Antenna Gain(typical) 4.000 dBi Antenna Gain(numeric) 2.512 - Power density at prediction frequency( S) 0.000000022 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5463 mW/cm 2 - ESMR ᄓ LTE 5 MHz (Downlink) Max Peak output Power at antenna input terminal 34.000 dBm Max Peak output Power at antenna input terminal 2511.89 mW Prediction distance 60.00 cm Prediction frequency 864.50 MHz Antenna Gain(typical) 4.000 dBi Antenna Gain(numeric) 2.512 - Power density at prediction frequency( S) 0.1395 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5763 mW/cm 2 Report No. HCT-RF-1912-FC024-R1 F-TP22-03 (Rev. 01) Page 9 of 13 - Cellular ᄓ LTE 20 MHz (Uplink) Max Peak output Power at antenna input terminal -34.000 dBm Max Peak output Power at antenna input terminal 0.00040 mW Prediction distance 60.00 cm Prediction frequency 834.00 MHz Antenna Gain(typical) 4.000 dBi Antenna Gain(numeric) 2.512 - Power density at prediction frequenc…

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side TEST REPORT FCC Test for ADXD Certification APPLICANT ADVANCED RF TECHNOLOGIES, INC REPORT NO. HCT-RF-1912-FC023-R1 DATE OF ISSUE January 21, 2020 Report No. HCT-RF-1912-FC023-R1 Page 3 of 383 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of IssueDescription 0 December 26, 2019Initial Release 1 January 21, 2020Added the Uplink results. The result shown in this test report refer only to the sample(s) tested unless otherwise stated. The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. Report No. HCT-RF-1912-FC023-R1 Page 4 of 383 CONTENTS 1. GENERAL INFORMATION 5 1.1. APPLICANT INFORMATION 5 1.2. PRODUCT INFORMATION 5 1.3. TEST INFORMATION 5 2. FACILITIES AND ACCREDITATIONS 6 2.1. FACILITIES 6 2.2. EQUIPMENT 6 3. TEST SPECIFICATIONS 7 3.1. STANDARDS 7 3.2. ADDITIONAL DESCRIPTIONS ABOUT TEST 8 3.3. MEASUREMENTUNCERTAINTY 11 3.4. STANDARDS ENVIRONMENTAL TEST CONDITIONS 11 3.5. TEST DIAGRAMS 12 4. TEST EQUIPMENTS 13 5. TEST RESULT 14 5.1. AGC THRESHOLD 14 5.2. OUT-OF-BAND REJECTION 16 5.3. INPUT-VERSUS-OUTPUT SIGNAL COMPARISON 27 5.4. INPUT/OUTPUT POWER AND AMPLIFIER/BOOSTER GAIN 69 5.5. OUT-OF-BAND/OUT-OF-BLOCK EMISSIONS AND SPURIOUS EMISSIONS 90 5.6. RADIATED SPURIOUS EMISSIONS 380 6. Annex A_EUT AND TEST SETUP PHOTO 383 Report No. HCT-RF-1912-FC023-R1 Page 5 of 383 1. GENERAL INFORMATION 1.1. APPLICANT INFORMATION Company Name ADVANCED RF TECHNOLOGIES, INC Company Address 3116 WEST VANOWEN STREET, BURBANK, CA 91505, USA 1.2. PRODUCT INFORMATION EUT Type DAS EUT Serial Number ADXDRCHA190001 Power Supply 110-120V AC / 210-240 AC Frequency Range Band Name Uplink (MHz) Downlink (MHz) 600 MHz 663 ~ 698 617 ~ 652 Lower 700 MHz 698 ~ 716 728 ~ 746 Upper 700 MHz 776 ~ 787 746 ~ 757 ESMR 817 ~824 862 ~ 869 Cellular 824 ~ 849 869 ~ 894 Broadband PCS 1 850 ~ 1 915 1 930 ~ 1 995 AWS 1 710 ~ 1 755 2 110 ~ 2 155 WCS 2 305 ~ 2 315 2 350 ~ 2360 BRS/EBS 2 496 ~ 2 690 Tx Output Power Downlink: 33 dBm (600, 700F, S8C), 37 dBm(PCS, AWS, WCS, BRS) Uplink: -35 dBm Antenna Peak Gain 617 - 698 MHz: 3.7 dBi 698 - 806 MHz: 3.9 dBi 806 - 960 MHz: 4.0 dBi 1695 - 1850 MHz: 3.9 dBi 1850 - 1990 MHz: 4.8 dBi 1990 - 2180 MHz: 4.6 dBi 2180 - 2400 MHz: 4.9 dBi 2400 - 2690 MHz: 4.7 dBi 1.3. TEST INFORMATION FCC Rule Parts Part 2, Part 22, Part 24, Part 27, Part 90 Measurement Standards KDB 935210 D05 v01r03, ANSI C63.26-2015 Test Location HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA Report No. HCT-RF-1912-FC023-R1 Page 6 of 383 2. FACILITIES AND ACCREDITATIONS 2.1. FACILITIES The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA. The site is constructed in conformance with the requirements of ANSI C63.4 (Version: 2014) and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated April 02, 2018 (Registration Number: KR0032). 2.2. EQUIPMENT Radiated emissions are measured with one or more of the following types of linearly polarized antennas: tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum analyzers with pre-selectors and quasi-peak detectors are used to perform radiated measurements. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, ˑRadio Interference Measuring Apparatus and Measurement Methods.˒ Report No. HCT-RF-1912-FC023-R1 Page 7 of 383 3. TEST SPECIFICATIONS 3.1. STANDARDS The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 2, Part 22, Part 24, Part 27, Part 90. Description Reference Results AGC threshold KDB 935210 D05 v01r03 3.2 Compliant Out-of-band rejection KDB 935210 D05 v01r03 3.3 Compliant Input-versus-output signal comparison §2.1049 Compliant Input/output power and amplifier/booster gain §2.1046, §22.913, §24.232, §27.50(a), (b), (c), (d), (h), §90.635 Compliant Out-of-band/out-of-block emissions and spurious emissions §2.1051, §22.917, §24.238, §27.53(a), (c), (f), (g), (m), §90.691 Compliant Spurious emissions radiated §2.1053 Compliant Report No. HCT-RF-1912-FC023-R1 Page 8 of 383 3.2. ADDITIONAL DESCRIPTIONS ABOUT TEST Except for the following cases, EUT was tested under normal operating conditions. : Out-of-band rejection test requires maximum gain condition without AGC. This EUT is supported power supply both of AC and DC. Test results are only attached worst cases. The test was generally based on the method of KDB 935210 D05 v01r03 and only followed ANSI C63.26-2015 if there was no test method in KDB standard. EUT was tested with following modulated signals provide by applicant. Band Name Tested signals 600 MHz LTE 20 MHz Lower 700 MHz LTE 10 MHz Upper 700 MHz LTE 10 MHz ESMR LTE 5 MHz Cellular LTE 20 MHz Broadband PCS LTE 20 MHz AWS-1 LTE 20 MHz WCS LTE 10 MHz BRS/EBS 5G NR 80 MHz The frequency stability measurement has been omitted in accordance with section 3.7 of KDB 935210 D05 v01r03. : It can be confirmed through input-versus-output signal comparison test that EUT does not alter the input signal. Report No. HCT-RF-1912-FC023-R1 Page 9 of 383 The tests re…

Text truncated - open the document above for the full version.

Report No. HCT-RF-1912-FC023-R1 Page 119 of 383 Out-of-band (two adjacent test signals) / Upper 700 MHz / Downlink / LTE 10 MHz / Upper Out-of-band (two adjacent test signals) / Upper 700 MHz / Downlink / LTE 10 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 120 of 383 +3 dB above Out-of-band (two adjacent test signals) / Upper 700 MHz / Downlink / LTE 10 MHz / Upper +3 dB above Out-of-band (two adjacent test signals) / Upper 700 MHz / Downlink / LTE 10 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 121 of 383 Out-of-band (two adjacent test signals) / ESMR / Downlink / LTE 5 MHz / Upper Out-of-band (two adjacent test signals) / ESMR / Downlink / LTE 5 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 122 of 383 +3 dB above Out-of-band (two adjacent test signals) / ESMR / Downlink / LTE 5 MHz / Upper +3 dB above Out-of-band (two adjacent test signals) / ESMR / Downlink / LTE 5 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 123 of 383 Out-of-band (two adjacent test signals) / Cellular / Downlink / LTE 20 MHz / Upper Out-of-band (two adjacent test signals) / Cellular / Downlink / LTE 20 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 124 of 383 +3 dB above Out-of-band (two adjacent test signals) / Cellular / Downlink / LTE 20 MHz / Upper +3 dB above Out-of-band (two adjacent test signals) / Cellular / Downlink / LTE 20 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 125 of 383 Out-of-band (two adjacent test signals) / AWS-1 / Downlink / LTE 20 MHz / Upper Out-of-band (two adjacent test signals) / AWS-1 / Downlink / LTE 20 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 126 of 383 +3 dB above Out-of-band (two adjacent test signals) / AWS-1 / Downlink / LTE 20 MHz / Upper +3 dB above Out-of-band (two adjacent test signals) / AWS-1 / Downlink / LTE 20 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 127 of 383 Out-of-band (two adjacent test signals) / Broadband PCS / Downlink / LTE 20 MHz / Upper Out-of-band (two adjacent test signals) / Broadband PCS / Downlink / LTE 20 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 128 of 383 +3 dB above Out-of-band (two adjacent test signals) / Broadband PCS / Downlink / LTE 20 MHz / Upper +3 dB above Out-of-band (two adjacent test signals) / Broadband PCS / Downlink / LTE 20 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 129 of 383 Out-of-band (two adjacent test signals) / WCS / Downlink / LTE 10 MHz / Upper Out-of-band (two adjacent test signals) / WCS / Downlink / LTE 10 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 130 of 383 +3 dB above Out-of-band (two adjacent test signals) / WCS / Downlink / LTE 10 MHz / Upper +3 dB above Out-of-band (two adjacent test signals) / WCS / Downlink / LTE 10 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 131 of 383 Out-of-band (two adjacent test signals) / BRS/EBS / Downlink / 5G NR 80M / Upper *This device operate maxiimum 80 MHz bandwidth. Out-of-band (two adjacent test signals) / BRS/EBS / Downlink / 5G NR 80M / Lower *This device operate maxiimum 80 MHz bandwidth. Report No. HCT-RF-1912-FC023-R1 Page 132 of 383 +3 dB above Out-of-band (two adjacent test signals) / BRS/EBS / Downlink / 5G NR 80M / Upper *This device operate maxiimum 80 MHz bandwidth. +3 dB above Out-of-band (two adjacent test signals) / BRS/EBS / Downlink / 5G NR 80M / Lower *This device operate maxiimum 80 MHz bandwidth. Report No. HCT-RF-1912-FC023-R1 Page 133 of 383 Out-of-band (single test signals) / 600 MHz / Uplink / LTE 20 MHz / Upper Out-of-band (single test signals) / 600 MHz / Uplink / LTE 20 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 134 of 383 +3 dB above Out-of-band (single test signals) / 600 MHz / Uplink / LTE 20 MHz / Upper +3 dB above Out-of-band (single test signals) / 600 MHz / Uplink / LTE 20 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 135 of 383 Out-of-band (single test signals) / Lower 700 MHz / Uplink / LTE 10 MHz / Upper Out-of-band (single test signals) / Lower 700 MHz / Uplink / LTE 10 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 136 of 383 +3 dB above Out-of-band (single test signals) / Lower 700 MHz / Uplink / LTE 10 MHz / Upper +3 dB above Out-of-band (single test signals) / Lower 700 MHz / Uplink / LTE 10 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 137 of 383 Out-of-band (single test signals) / Upper 700 MHz / Uplink / LTE 10 MHz / Upper Out-of-band (single test signals) / Upper 700 MHz / Uplink / LTE 10 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 138 of 383 +3 dB above Out-of-band (single test signals) / Upper 700 MHz / Uplink / LTE 10 MHz / Upper +3 dB above Out-of-band (single test signals) / Upper 700 MHz / Uplink / LTE 10 MHz / Lower Report No. HCT-RF-1912-FC023-R1 Page 139 of 383 Out-of-band (single test signals) / ESMR / Uplink / L…
