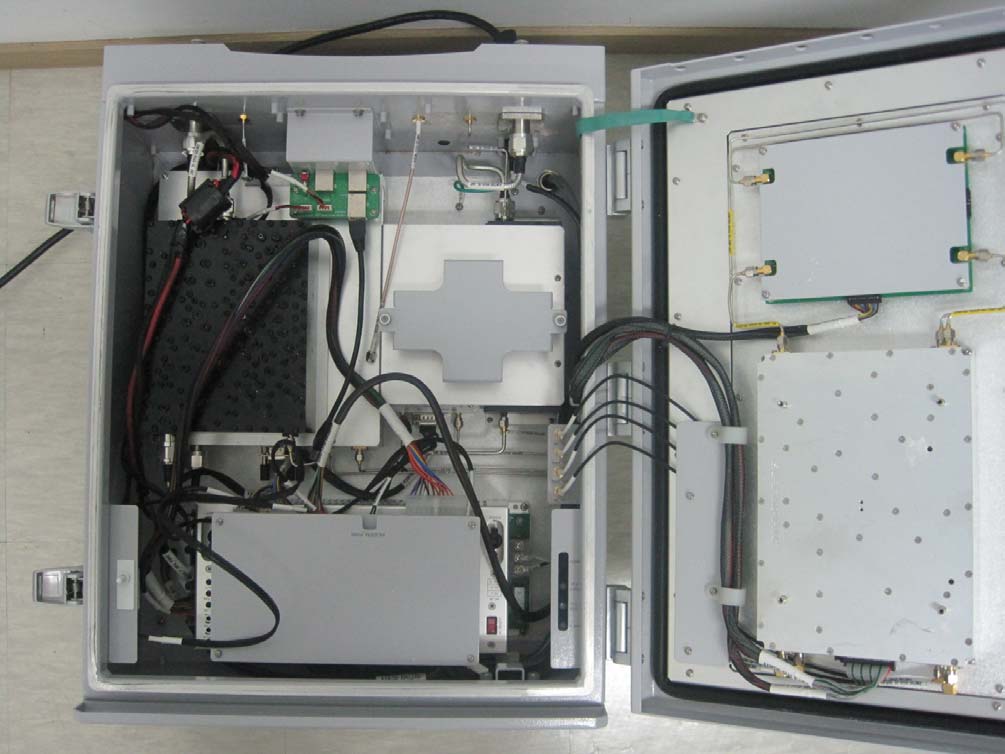

N52-AXM700-9543Repeater

ADRF KOREA, Inc.

Click to zoom

Application Details

Equipment Class: AMP - Amplifier
Date of Grant: Sep 12, 2012
Application Purpose: Original Equipment
Date of Application: Sep 12, 2012
Equipment Note: Repeater
Frequency Range: 776.00000000 - 787.00000000
Company: ADRF KOREA, Inc.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Advanced RF Technologies, Inc. i AXM700-9543 User Manual VERSION 0.1 3116 West Vanowen St. Burbank, CA 91505 Tel: 818-840-8131 Fax: 818-840-8138 www.adrftech.com Advanced RF Technologies, Inc. ii Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 1996-2011. All rights reserved. • Please send comments to: E-Mail: [email protected] Phone: (818) 840-8131 (800) 313-9345 Fax: (818) 840-8138 • Address: Advanced RF Technologies, Inc. Attention: Technical Publications Department 3116 Vanowen St. Burbank, CA 91505 USA www.adrftech.com Advanced RF Technologies, Inc. iii REVISION HISTORY CHANGE LIST Version Change list Contents 0.2 Single band관련 수정 1.1 Highlight, 5 Web, 8.1 Spec(6/22/12) Version Author Descriptions Date 0.1 YHKO Initial Release 6/1/12 0.2 Sun Kim Updated illustrations 6/12/12 Advanced RF Technologies, Inc. ix Terms and Abbreviations The following is a list of abbreviations and terms used throughout this document. Abbreviation/Term Definition AGC Automatic Gain Control ALC Automatic Level Control AROMS ADRF’ Repeater Operation and Management System BDA Bi-Directional Amplifier BTS Base Transceiver Station CDMA Code Division Multiple Access CFR Crest Factor Reduction CP Cyclic Prefix CW Continuous Wave (un-modulated signal) DAS Distributed Antenna System DL Downlink eNode-B Evolved Node B which is the element in E-UTRA of LTE that is the evolution of the element Node B in UTRA of UMTS HPA High Power Amplifier HW Hardware IF Intermediate Frequency LNA Low Noise Amplifier LTE Long Term Evolution MS Mobile Station OFDM Orthogonal Frequency-Division Multiplexing OFDMA Orthogonal Frequency-Division Multiple Access PAR (PAPR) Peak to Average Power Ratio (Crest Factor) PLL Phase Locked Loop PSU Power Supply Unit QAM Quadrature Amplitude Modulation QPSK Quadrature Phase Shit Keying RB Resource Block RF Radio Frequency SC-FDMA Single Carrier-Frequency Division Multiple Access SQE Signal Quality Estimate SW Software eUE LTE User Equipment (LTE Mobile Station) UL Uplink VSWR Voltage Standing Wave Ratio Advanced RF Technologies, Inc. 10 1. INTRODUCTION The AXM700-9543 is an over-the-air high power repeater. 1.1 Highlights • Band Selectable (Lower A, Lower B, Lower A + Lower B, Upper C) • Digital filtering with sharp roll-off (>50 dBc @ + 1 MHz from sub-band edge) • Remote monitoring and control capability using our Web-based GUI • 95dB on the downlink and about 82dB on the uplink of max gain and 43dBm Composite power • LED panel provide signal strength and alarm status • Support optional internal modem box for remote access and alarming • Configurable network setting in order to interface with 3rd party external modem boxes • Adjustable AGC Output Power Level • Supports Network Management Monitoring System via SNMP • Incremental Automatic Shutdown/Resumption Time: AXM700-9543 gradually increases the time span between automatic shutdown and resumption before it permanently shuts itself down • Versatility and Usability: AXM700-9543 gives total control to the user. Most of the control parameters, e.g., gain, output power, alarm threshold, etc. can be changed using the Web-GUI so that the user can adjust the system perfectly to the given RF environment • Web-GUI connectivity via DHCP • Supports DHCP; No 3 rd party GUI software required • Automated installation • Adjustable center frequencies by 1kHz step • Direct ray cover on heat-sink to prevent direct light (Front door) • Membrane vent to prevent moisture by condensation Advanced RF Technologies, Inc. 12 * CD includes: User Manual, Quick-Start Guide, and Troubleshooting Guide 1.3 Repeater Quick View LED indicator Controller UDC Module PSU Ethernet port (RJ-45) ADRF-BBU battery port Donor port (DIN Female) Modem antenna port AC Input port Membrane Vent Door Switch DL HPA UL HPA Server Duplexer Donor Duplexer Optional Modem DSP Module Ethernet Interface Board Direct Ray Cover Server Port (DIN Female) Sever CPL (DL Output Monitor port,-30dB) Donor CPL (UL Output Monitor port, -30dB) Advanced RF Technologies, Inc. 13 Figure 1-2 Repeater Quick View Wall Mount Bracket Fan Ground terminal Advanced RF Technologies, Inc. 14 1.4 Warnings and Hazards Opening or tampering the AXM700-9543 will void all warranties. WARRANTY Actual separation distance is determined upon gain of antenna used. Please maintain a minimum safe distance of at least 50 cm while operating near the donor and the server antennas. Also, the donor antenna needs to be mounted outdoors on a permanent structure. RF EXPOSURE & ANTENNA PLACEMENT Guidelines Operating the AXM700-9543 with antennas in very close proximity facing each other could lead to severe damage to the repeater. WARNING! DAMAGE TO REPEATER Working with the repeater while in operation, may expose the technician to RF electromagnetic fields that exceed FCC rules for human exposure. Visit the FCC website at www.fcc.gov/oet/rfsafety to learn more about the effects of exposure to RF electromagnetic fields. WARNING! EXPOSURE TO RF Opening the AXM700-9543 could result in electric shock and may cause severe injury. WARNING! ELECTRIC SHOCK Advanced RF Technologies, Inc. 15 Double Pole/Neutral Fusing. CAUTION NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. FCC Part 15 Class A Ethernet Instructions: This equipment is for indoor use only. All cabling should be limited to inside the b…
