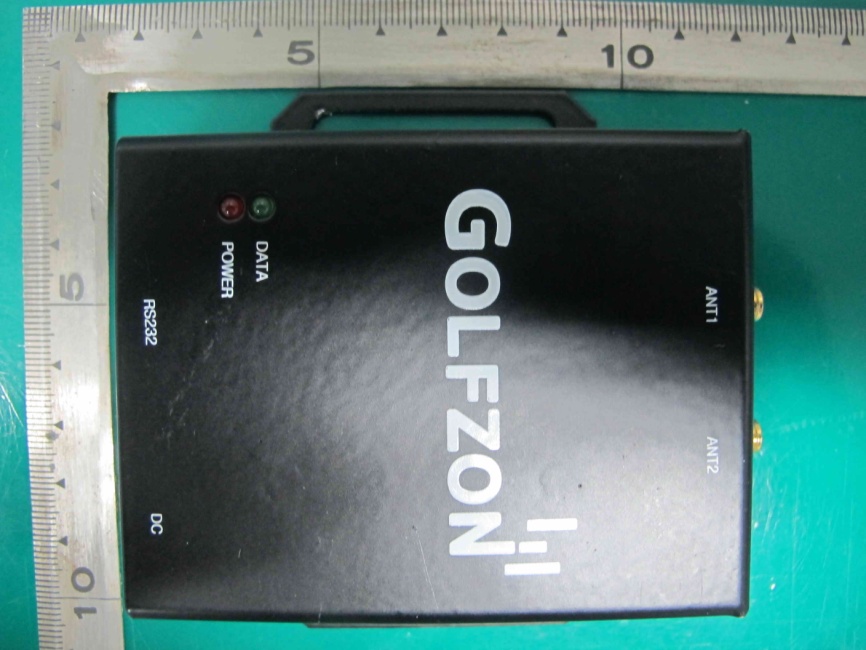

N5Y-IDRO900F2UHF RFID Reader

MAY 2012 IDRO900F2 USER’S MANUAL V2.5.24 IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 2 Identification with Radio and Optical „ Revision history Version Revision Date Revision Page Revision Description V2.5.24 2012-05-24 Draft IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 3 Identification with Radio and Optical Contents 1. Introduction & System composition diagram .......................................................... 4 z Introduction ................................................................................................................................................. 4 z System composition diagram ............................................................................................................ 4 2. Composition parts .......................................................................................................... 5 3. Reader Description ......................................................................................................... 6 4. Reader Specification ....................................................................................................... 8 z Reader Performance ............................................................................................................................... 8 z Interface ......................................................................................................................................................... 8 z Physical Dimension .................................................................................................................................. 8 z Power control level table ..................................................................................................................... 9 z Mechanical Dimension ........................................................................................................................ 10 5. Operation method ....................................................................................................... 11 IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 4 Identification with Radio and Optical 1. Introduction & System composition diagram z Introduction - IDRO900F2 is the Fixed type UHF RFID that is designed for long distance, wide range application using the RS-232 interface. It provides features such as Compact size, low cost, high performance to customer. ISO 18000-6C(EPC C1G2) and ISO 18000-6B protocol is supported. Read range of Reader reaches up to 10 meters(depends on tags) - Target Application Parking management system Factory conveyor system Bagging management system Other application z System composition diagram IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 5 Identification with Radio and Optical 2. Composition parts RFID Reader Antenna(6dBi) (option) Antenna cable (option) DC12V/3A Adaptor RS-232 cable Reader Software & User Document CD-ROM IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 6 Identification with Radio and Optical 3. Reader Description Interface ANT Port SERIAL(RS232) : It can be locally connected to the host PC and Use to information transfer or firmware u pdate. DC : RFID Reader power supply port, recommend DC 12V/3A Adaptor. ANT1/ANT2 : Use a 50ohm coaxial cable to connect the reader with the patch antenna. It is possible to connection up to four antennas. IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 7 Identification with Radio and Optical Status LED Status LED GREEN(DATA) z It will twinkle when the reader is receiving data from a tag RED(POWER) z It is turned on when the reader is powered LED : It is comprised of Red Led(POWER) and Green Led(DATA) that appear status of the reader. IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 8 Identification with Radio and Optical 4. Reader Specification z Reader Performance Description Value MODEL IDRO900F2 Architecture UHF RFID Reader Protocol EPC Gen2(ISO 18000-6C), ISO 18000-6B Frequency 917.3MHz to 920.3MHz(Korea) 860MHz to 960MHz (Customizable) Max Tx Power 30dBm±1dBm (1W) Power control 12dBm to 30dBm (1dB step) Hopping Channels 6 (Korea), 50(USA), 4(EUROPE) Channel Spacing 600KHz (Korea, EUROPE), 500KHz (USA) Channel Dwell time < 0.4 seconds Modulation Method DSB-ASK, PR-ASK Supply voltage 12V±1V Max Current (max power) < 2A Tag Read Distance(Max.) <10m Operating Temperature -20°C to +50°C LED Indicators Data , Power Signaling RS-232 : Baud rate(9600bps, 115200bps), z Interface Host connector RS-232 : DB-9F ANT Connector SMA Female R/A z Physical Dimension SIZE 89mm × 86.4mm × 25.5mm Weight ? g IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 9 Identification with Radio and Optical z Power control level table Power control levelPower(dBm) 0 30 1 29 2 28 3 27 4 26 5 25 6 24 7 23 8 22 9 21 10 20 12 19 13 18 14 17 15 16 16 15 17 14 18 13 19 12 IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 10 Identification with Radio and Optical z Mechanical Dimension IDRO900F2 User’s Manual Company Date Version IDRO Co.,Ltd 2012-05-24 V2.5.24 11 Identification with Radio and Optical 5. Operation method ①. Run [email protected] with window XP ②. Connect serial data cable between PC and Reader. ③. First, check “Fixed 4 Channel-IDRO900F4, Serial, COM1” (The COM1 can change port number as environment of PC and reader) ④. Supply power to reader. Waiting until the buzzer is sounded “beep”. ⑤. Click “Reader@Controller” Æ If connection is completed, then “Inventory@Multiple” appears as follows. ⑥. Click “Inventory@Multiple” Æ Reader executes to read tag ⑦. Please refer to the “Reader@Express User’s manual” for more information <Reader@Express>
