N5Y-SWINGTALKPersonal Swing analyzer

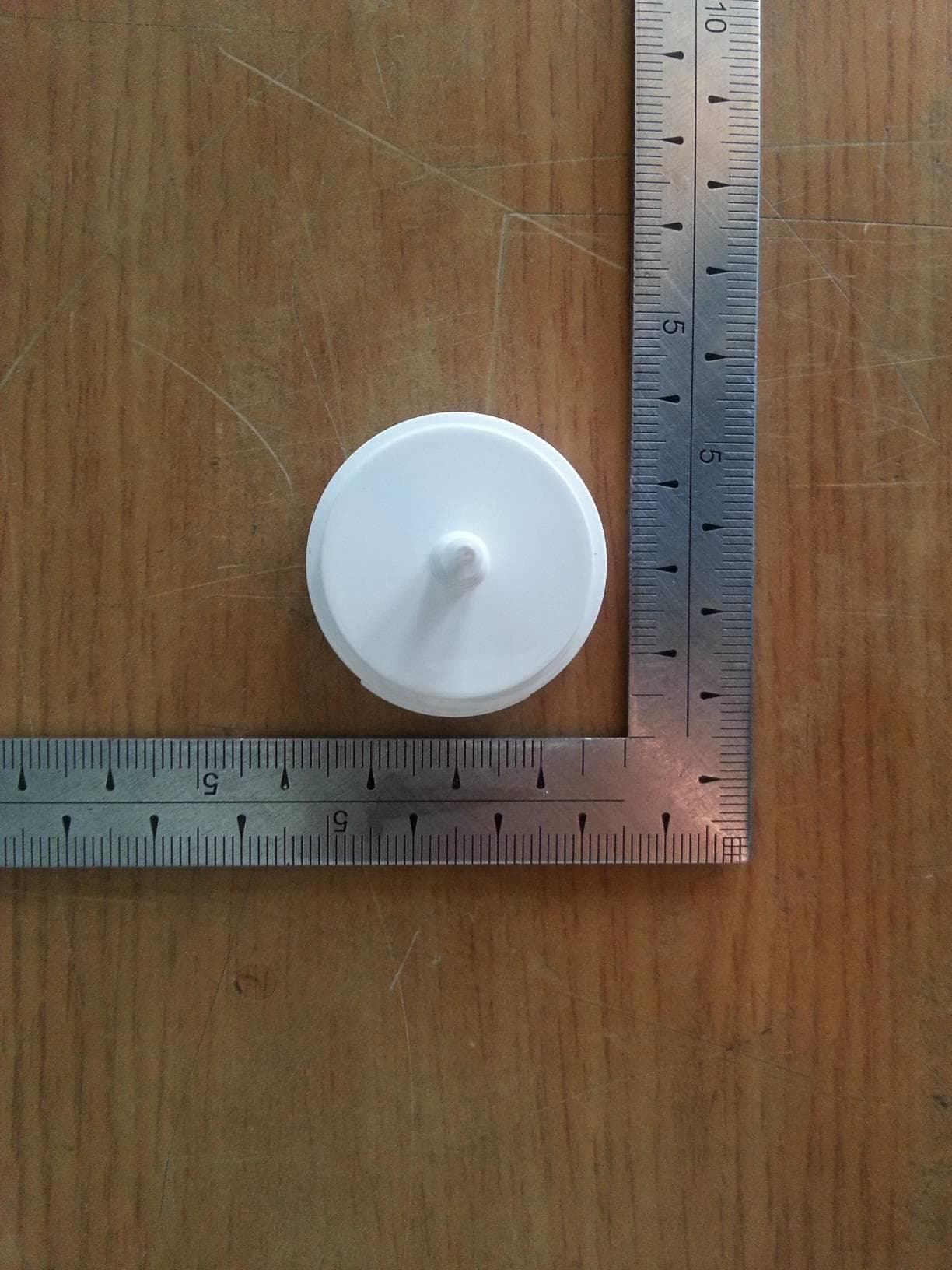

Swingtalkmade by Golfzon SAFETY PRECAUTION Please read all safety information prior to using Swingtalk. Failure to do so may result in unnecessary injury. 1.Operate the device only as intended. Do not use for any other purpose. 2.Do not place heavy objects on the device and keep the device away from humid,dustyand environments. 3.Do not use water, Clean the surface with a soft cloth. 4.Do not push the button hard. 5.The device’s operate & storage temperature is between -10ºC ~ 40ºC. Keep away from heat or cold. 6.Be careful not to drop the device. Table of Contents Introduction & specification Device and Accessories How to charge the device How to H/W installation How to connect to the smart device How to add your swing motion Introduction & specification Attach Swingtalkeasily to any club. Fits any club, driver through putter. Pairs to your smartdevicevia Bluetooth. Tap ‘New swing’ in the app and swing, Swingtalkwill automatically record individual swings for you to review in real time or later on. weight(g)10.5 ConnectivityBluetooth ver2.1 + EDR Operationtime2 h30min(continuously) Charging time1h 20min USB portMicro USB 5pin for charging Size(mm)32*13.2(without needle),32*38(includingneedle) Operating temp-10°C~40°C Storagetemp-10°C~50°C Specification Device and Accessories 1. Swingtalk 2. USB cable 3. Quick Start Guide How to charge the device 1. Open the cover 2. Connect USB cable PC or Adapter 3. Red light turn on 4. Charging finished Red light turn off How to H/W installation 1. Attach Swingtalkto your club2. Align Swingtalkto your club Center of Club LED Rotating the device push until the end Push the device into grip’s air hole. How to connect to the smart device 1. Turn on the swingtalk2. Connect to iOSdevices Blue LED on Push the center button for 1 sec and turn on After on push button for 3 sec and turn off If low battery the blue led turn red. Turn on the Bluetooth and you can find ‘SwingTalk’ click it(the Swingtalk H/W must be turned on ahead) If connect succeed the blue led light turn blinkslowly. How to add your swing motion 1.Run Swingtalkapp. Click Swing analysis 2. Swing & shot Waiting for swing You need to hit the ball. It doesn’t work properly without impact. You can check the details on analysis screen. 3. Analysis The initial screen of app. FCC Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.1. Reorient or relocate the receiving antenna. 1.2. Increase the separation between the equipment and receiver. 1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected. 1.4. Consult the dealer or experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. “CAUTION : Exposure to Radio Frequency Radiation. Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 (2014/10/15) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Golfzon Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Personal Swing analyzer, SwingTalk(PSA-1)) FCC ID: N5Y-SWINGTALK We affirm that between SIEMIC and Golfzon Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Mr. Jong-Sun, Kim / Advisory Research Engineer Contact information / address : Telephone: +82-70-8660-4076 Fax No.: +82-42-671-1247 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 (2014/10/15) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: N5Y–SWINGTALK We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Mr. Jong-Sun, Kim / Advisory Research Engineer Contact information / address : Telephone: +82-70-8660-4076 Fax No.: +82-42-671-1247 E-mail: [email protected] SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 (2014/10/15) To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: N5Y–SWINGTALK To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title : Mr. Jong-Sun, Kim / Advisory Research Engineer Contact information / address : Telephone: +82-70-8660-4076 Fax No.: +82-42-671-1247 E-mail: [email protected]

FCC ID. : N5Y–SWINGTALK Page 1 of 6 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : N5Y–SWINGTALK Page 2 of 6 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : N5Y–SWINGTALK Page 3 of 6 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : N5Y–SWINGTALK Page 4 of 6 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : N5Y–SWINGTALK Page 5 of 6 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : N5Y–SWINGTALK Page 6 of 6 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904)

FCC ID. : N5Y-SWINGTALK Page 1 of 1 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed in the rear side of the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : N5Y–SWINGTALK

FCC ID. : N5Y–SWINGTALK Page 1 of 5 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : N5Y–SWINGTALK Page 2 of 5 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : N5Y–SWINGTALK Page 3 of 5 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : N5Y–SWINGTALK Page 4 of 5 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : N5Y–SWINGTALK Page 5 of 5 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904)

FCC ID. : N5Y–SWINGTALK Page 1 of 6 Report No. : E14OR-022 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : E14OR-022 AGR No. : A147A-070 Applicant : Golfzon. Co., Ltd. Address : 898 Tamnip-dong, Yuseong-gu, Daejeon, 305-510, Korea Manufacturer : Golfzon. Co., Ltd. Address : 898 Tamnip-dong, Yuseong-gu, Daejeon, 305-510, Korea Type of Equipment : Personal Swing analyzer FCC ID. : N5Y–SWINGTALK Model Name : SwingTalk(PSA-1) Serial number : N/A Total page of Report : 6 pages (including this page) Date of Incoming : August 08, 2014 Date of issue : September 22, 2014 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by: Approved by: Ki-Hong, Nam / Senior Engineer Gea-Won, Lee / Managing Director ONETECH Corp. ONETECH Corp. FCC ID. : N5Y–SWINGTALK Page 2 of 6 Report No. : E14OR-022 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 4 2 GENERAL INFORMATION ............................................................................................................................................. 5 2.1 PRODUCT DESCRIPTION ................................................................................................................................................. 5 2.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 5 3. EUT MODIFICATIONS .................................................................................................................................................... 5 4. RADIO FREQUENCY EXPOSURE ................................................................................................................................ 6 4.1 RF EXPOSURE LIMIT ..................................................................................................................................................... 6 4.2 EUT DESCRIPTION ......................................................................................................................................................... 6 4.3 TEST RESULT ................................................................................................................................................................. 6 FCC ID. : N5Y–SWINGTALK Page 3 of 6 Report No. : E14OR-022 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) Revision History Issued Report No. Issued Date Revisions Effect Section E14OR-022 September 22, 2014 Initial Issue All FCC ID. : N5Y–SWINGTALK Page 4 of 6 Report No. : E14OR-022 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 1. VERIFICATION OF COMPLIANCE APPLICANT : Golfzon. Co., Ltd. ADDRESS : 898 Tamnip-dong, Yuseong-gu, Daejeon, 305-510, Korea CONTACT PERSON : Jae-Woo, Lee / Senior Researcher TELEPHONE NO : +82-70-8660-4072 FCC ID : N5Y–SWINGTALK MODEL NAME : SwingTalk(PSA-1) BRAND NAME : - SERIAL NUMBER : N/A DATE : September 22, 2014 EQUIPMENT CLASS DSS – PART 15 SPREAD SPECTRUM TRANSMITTER KIND OF EQUIPMENT Personal Swing analyzer THIS REPORT CONCERNS Original Grant MEASUREMENT PROCEDURES ANSI C63.10: 2009 TYPE OF EQUIPMENT TESTED Pre-Production KIND OF EQUIPMENT AUTHORIZATION REQUESTED Certification EQUIPMENT WILL BE OPERATED UNDER FCC RULES PART(S) FCC PART 15 SUBPART C Section 15.247 MODIFICATIONS ON THE EQUIPMENT TO ACHIEVE COMPLIANCE None FINAL TEST WAS CONDUCTED ON 3 m open area test site -. The above equipment was tested by ONETECH Corp. for compliance with the requirement set forth in the FCC Rules and Regulations. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within the compliance requirements. FCC ID. : N5Y–SWINGTALK Page 5 of 6 Report No. : E14OR-022 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 2 GENERAL INFORMATION 2.1 Product Description The Golfzon. Co., Ltd., Model SwingTalk(PSA-1) (referred to as the EUT in this report) …

Text truncated - open the document above for the full version.

FCC ID. : N5Y–SWINGTALK Page 1 of 86 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : E149R-080 AGR No. : A147A-070 Applicant : Golfzon. Co., Ltd. Address : 898 Tamnip-dong, Yuseong-gu, Daejeon, 305-510, Korea Manufacturer : Golfzon. Co., Ltd. Address : 898 Tamnip-dong, Yuseong-gu, Daejeon, 305-510, Korea Type of Equipment : Personal Swing analyzer FCC ID. : N5Y–SWINGTALK Model Name : SwingTalk(PSA-1) Serial number : N/A Total page of Report : 86 pages (including this page) Date of Incoming : August 08, 2014 Date of issue : September 22, 2014 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by: Approved by: Ki-Hong, Nam / Senior Engineer Gea-Won, Lee / Managing Director ONETECH Corp. ONETECH Corp. FCC ID. : N5Y–SWINGTALK Page 2 of 86 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 6 2. TEST SUMMARY .............................................................................................................................................................. 7 2.1 TEST ITEMS AND RESULTS ............................................................................................................................................. 7 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ........................................................................................... 7 2.3 RELATED SUBMITTAL(S) / GRANT(S) ............................................................................................................................ 7 2.4 PURPOSE OF THE TEST ................................................................................................................................................... 7 2.5 TEST METHODOLOGY .................................................................................................................................................... 7 2.6 TEST FACILITY ............................................................................................................................................................... 8 3 GENERAL INFORMATION ............................................................................................................................................. 9 3.1 PRODUCT DESCRIPTION ................................................................................................................................................. 9 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 9 4. EUT MODIFICATIONS .................................................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................................. 10 5.1 JUSTIFICATION ............................................................................................................................................................. 10 5.2 PERIPHERAL EQUIPMENT ............................................................................................................................................ 10 5.3 MODE OF OPERATION DURING THE TEST .................................................................................................................... 10 5.4 CONFIGURATION OF TEST SYSTEM ............................................................................................................................. 10 5.5 ANTENNA REQUIREMENT ............................................................................................................................................ 11 6. PRELIMINARY TEST .................................................................................................................................................... 11 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS ....................................................................................................... 11 6.2 GENERAL RADIATED EMISSIONS TESTS ..................................................................................................................... 11 7. OCCUPIED BANDWIDTH ............................................................................................................................................. 12 7.1 20 DB BANDWIDTH .................................................................................................................................................. 12 7.1.1 Operating environment ......................................................................................................................................... 12 7.1.2 Test set-up ....................................................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID. : N5Y–SWINGTALK Page 43 of 86 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 8 MAXIMUM PEAK OUTPUT POWER 8.1 Operating environment Temperature : 26 °C Relative humidity : 48 % R.H 8.2 Test set-up The maximum peak output power was measured with the spectrum analyzer connected to the antenna output of the EUT. The EUT was operating in transmit mode at the appropriate center frequency. 8.3 Test equipment used Model Number Manufacturer Description Serial Number Last Cal. (Interval)  - FSV30 Rohde & Schwarz Signal Analyzer 101372 Apr. 28, 2014(1Y) All test equipment used is calibrated on a regular basis. EUT Power Meter FCC ID. : N5Y–SWINGTALK Page 44 of 86 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 8.4 Test data for 1 Mbps -. Test Date : September 17, 2014 -. Test Result : Pass CHANNEL FREQUENCY (MHz) MEASURED VLAUE (dBm) LIMIT (dBm) MARGIN (dB) Low 2 402 -0.73 30.00 30.73 Middle 2 441 -0.88 30.00 30.88 High 2 480 -1.39 30.00 31.39 Tested by: Tae-Ho, Kim / Project Engineer Low Channel FCC ID. : N5Y–SWINGTALK Page 45 of 86 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) Middle Channel High Channel FCC ID. : N5Y–SWINGTALK Page 46 of 86 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 8.5 Test data for 2 Mbps -. Test Date : September 17, 2014 -. Test Result : Pass CHANNEL FREQUENCY (MHz) MEASURED VLAUE (dBm) LIMIT (dBm) MARGIN (dB) Low 2 402 -0.45 30.00 30.45 Middle 2 441 -0.62 30.00 30.62 High 2 480 -0.96 30.00 30.96 Tested by: Tae-Ho, Kim / Project Engineer Low Channel FCC ID. : N5Y–SWINGTALK Page 47 of 86 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) Middle Channel High Channel FCC ID. : N5Y–SWINGTALK Page 48 of 86 Report No. : E149R-080 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-002 (Rev.3) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 8.6 Test data for 3 Mbps -. Test Date : September 17, 2014 -. Test Result : Pass CHANNEL FREQUENCY (MHz) MEASURED VLAUE (dBm) LIMIT (dBm) MARGIN (dB) Low 2 402 -0.45 30.00 30.45 Middle 2 441 -0.63 30.00 30.63 High 2 480 -0.91 30.00 30.91 Tested by: Tae-Ho, Kim / Project Engineer Low Channel …

Text truncated - open the document above for the full version.
