N69-715000Traxit X 2G GPS Module

Montage
Traxit X 2G GPS Module - FCC ID N69-715000 - Montage
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jul 30, 2012
Application Purpose
Original Equipment
Date of Application
Jul 08, 2012
Equipment Note
Traxit X 2G GPS Module
Frequency Range
1850.20000000 - 1909.80000000
Company
Montage
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

© Montage Asia 2011 1 GT2GM-M Wireless Module User Manual Status [ ]Draft [ ]Release []Revise File Indicator EL_GT2GM-M Hardware Design Guide Current Version 1.2 Author Date 2012-07-18 © Montage Asia 2011 2 Version History Version Author Attendee Date Remark V1.0 2012-03-20 V1.1 2012-04-18 Added some options for pin V1.2 Cheng 2012-05-25 Contents © Montage Asia 2011 3 Revision History..........................................................................................................................2 Contents ......................................................................................................3 Version History ................................................................................................................................. 2 1 Introduction ............................................................................................................................... 4 1.1 Overview ............................................................................................................................. 4 1.2 Electrical features ................................................................................................................ 4 1.3 RF features .......................................................................................................................... 4 1.4 SW features ......................................................................................................................... 4 1.5 Terms and Abbreviations ..................................................................................................... 4 2 Feature....................................................................................................................................... 5 3 Block Diagram .......................................................................................................................... 6 4 ELECTRICAL SPECIFICATION ............................................................................................ 6 4.1 Supply Voltage .................................................................................................................... 6 4.2 Recommended Operation Conditions ................................................................................. 6 4.3 Power Consumption ............................................................................................................ 7 4.4 Radio Performance .............................................................................................................. 8 4.5. Output power...................................................................................................................... 8 4.6 Sensitivity ........................................................................................................................... 8 5 PIN definition.......................................................................................................................... 10 6 Functional description ............................................................................................................. 11 6.1 ANT PORT............................................................................................................ 11 6.2 VBAT Pin (Pin 2~4) .............................................................................................. 12 6.3 Charge in Pin (Pin 1) ............................................................................................. 12 6.4 UART interface .............................................................................................................. 12 6.5 GPIOs .................................................................................................................... 13 6.6 LED ....................................................................................................................... 13 6.7 SIM card interface .......................................................................................................... 13 6.8 Power on ........................................................................................................................ 14 7 Mechanical Structure(mm)...................................................................................................... 15 8 Important announcement ......................................................................................................... 16 9 Construction and setup ............................................................................................................ 17 © Montage Asia 2011 4 1 Introduction 1.1 Overview The GT2GM-M module is a tiny, standards-based, wireless data modem that provides GPRS wireless data connectivity, it suitable for embedding environment in some wireless products, such as wireless modemhandheld computersGPS Tracker other machine-to-machine devices and vertical applications. In addition, The GT2GM-M module allows you access to the Internet easier and convenient. 1.2 Electrical features Input supply voltage: • VBAT—Min 3.3 V, Max 4.2V Typical DC power consumption(Total): • Standby current: 2 mA • GPRS1Tx+4RxData current: 300 mA—350 mA MCP(Nordflash+SRAM) working current:[email protected] Baseband CPU working current:[email protected] RF Power amplifier working current:[email protected] 1.3 RF features • 2G band support : PCS 1.9GHz • Support for GPRS multi-slot class 12 1.4 SW features • Standard AT command interface • embedded TCP/IPUDP protocol stack 1.5 Terms and Abbreviations JTAG Joint Test Action Group ADC Analog to Digital Converter LED light-emitting diode PA Power Amplifier UART Universal Asynchronous Receiver and Transmitter RF Radio Frequency I/O Input / Output PD Pull Down PU Pull Up © Montage Asia 2011 5 GPIO general purpose input or output port 2 Feature Item Description Temperature range Normal range: -20°C to +70°C (full compliant) Storage: -40°C to 85°C Weight (in g) 6g (typical) Physical dimension 29.5 x 26.0 x 2.4 mm Connector Type 36 Pin stamp Power supply External input : 3…

Text truncated - open the document above for the full version.

Cover Letter(s)

HK Office: Flat A, 10/F, Phase 3, Kwun Tong Industrial Building, 458-558 Kwun Tong Road, Kowloon, HONG KONG. 香港九龍官塘道458-558號官塘工業中心3期10樓A室 Tel: +852 3611 6911 Fax: +852 6128 8086 CN Office: Flat J, 13/F, Tower C, NEO Enterprise Avenue, 6009 Shennan Mid Road, Futian, Shenzhen, CHINA 518048 中国深圳市福田区深南中路6009号NEO企业大道C栋13楼J室,邮编518048 Tel: +86 755 6128 8086 Fax: +86 755 6128 8087 Authority to Act as Agent Date: 2012/6/13 Montage , Inc. Flat J, 13/F, Tower C, NEO Enterprise Avenue, 6009 Shennan Mid Road, Futian, Shenzhen, CHINA 518048 To Whom It May Concern: SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch is authorized to act on our behalf, until otherwise notified, for applications to Montage Asia, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___12 months_____ By: __________________________ ____Sky Peng____________________ (Signature 1 ) (Print name) Title: ___QA Manager_______________________ On behalf of: __Montage ________________________ (Company Name) Telephone: ___86-755-61288087_____________

Cover Letter(s)

HK Office: Flat A, 10/F, Phase 3, Kwun Tong Industrial Building, 458-558 Kwun Tong Road, Kowloon, HONG KONG. 458-558310A Tel: +852 3611 6911 Fax: +852 6128 8086 CN Office: Flat J, 13/F, Tower C, NEO Enterprise Avenue, 6009 Shennan Mid Road, Futian, Shenzhen, CHINA 518048 6009NEOC13J518048 Tel: +86 755 6128 8086 Fax: +86 755 6128 8087 Request for Confidentiality Date: 2012/6/13 Subject: Confidentiality Request for: ____ FCC ID: N69-715000 ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ____________ __ Montage ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” HK Office: Flat A, 10/F, Phase 3, Kwun Tong Industrial Building, 458-558 Kwun Tong Road, Kowloon, HONG KONG. 458-558310A Tel: +852 3611 6911 Fax: +852 6128 8086 CN Office: Flat J, 13/F, Tower C, NEO Enterprise Avenue, 6009 Shennan Mid Road, Futian, Shenzhen, CHINA 518048 6009NEOC13J518048 Tel: +86 755 6128 8086 Fax: +86 755 6128 8087 The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, / QA Manager By: __________________________ ___ __ Sky Peng__________________ (Signature/Title 3 ) (Print name) 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Cover Letter(s)

Cover Letter-Modular Approval FCC ID: N69-715000 Data: Jun. 13, 2012 Gentlemen: There’s an Traxit X 2G GPS Module that would like to have your authorization as a modular approval. The specific product as below, Traxit X 2G GPS Module, with its designed features and specified description, meets special requirements for full modular approval on FCC 15.212 list below. Company Montage Model Name Traxit X 2G GPS Module Model Number GT2GM-M FCC ID N69-715000 Requirement of 15.212 Reference to GT2GM-M 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see external photographs.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip A7121. Please see schematics.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the GT2GM-M Please see schematics.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The GT2GM-M meets the FCC antenna requirements. It has a u nique connector. Please see external p hotographs.pdf 5. The modular transmitter must be tested in a stand alone ‐ configuration, i.e., the module must not be inside another device during testing. The GT2GM-M was tested in a stand alone‐ Configuration via a external MCU. Please see conducted setup phot ographs.pdf and spurious set up ‐ 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of GT2GM-M is clearly indicated. Please see the label.pdf Please notice that if the FCC identification number is not visible when the nodule is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: N69-715000” or “Contains FCC ID: N69-715000 ” 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The GT2GM-M is compliant with all applicable FCC r ules. Detail instructions are given in th e Users Manual. Please see User manual.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The GT2GM-M comply with applicable RF ex posure requirements. Please see SAR Not Required. pdf Thank you, By: __________________________ ____Sky Peng____________________ (Signature 1 ) (Print name) Title: ___QA Manager_______________________ On behalf of: __Montage ________________________ (Company Name) Telephone: ___86-755-61288087_____________

External Photos

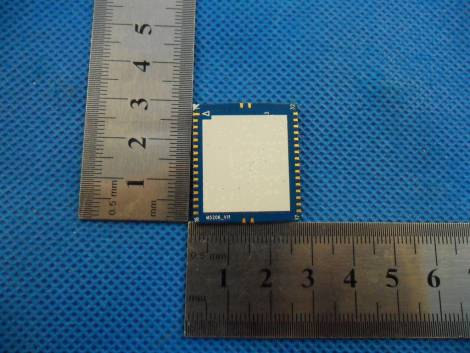

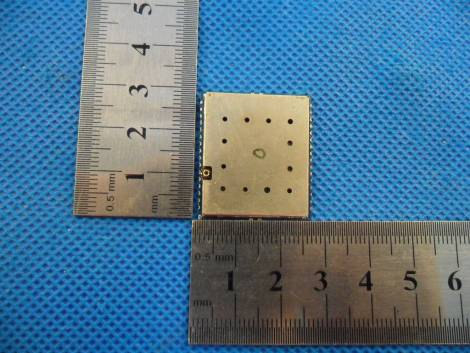

1 Photographs (Test mode No.: GT2GM-M) 1.1 EUT Constructional Details

Internal Photos

1 Photographs (Test mode No.: GT2GM-M) 1.1 EUT Constructional Details

RF Exposure Info

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120500258902 Page: 1 of 6 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page RF Exposure Evaluation Report Application No: SZEM1205002589IT (GZEM1205001588IT) Applicant: Montage Manufacturer: Montage Asia Product Name: Traxit X 2G GPS Module Model No.(EUT): GT2GM-M FCC ID: N69-715000 Standards: FCC CFR Title 47 Part 1.1307 FCC CFR Title 47 Part 1.1310 Date of Receipt: 2012-05-16 Date of Test: 2012-05-31 to 2012-06-08 Date of Issue: 2012-07-18 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM120500258902 Page: 2 of 6 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE.............................................................................................................................................................1 2 CONTENTS.................................................................................................................................................................2 3 GENERAL INFORMATION.......................................................................................................................................3 3.1 CLIENT INFORMATION................................................................................................................................................3 3.2 GENERAL DESCRIPTION OF EUT ................................................................................................................................3 3.3 TEST LOCATION.........................................................................................................................................................3 3.4 TEST FACILITY...........................................................................................................................................................4 3.5 DEVIATION FROM STANDARDS...................................................................................................................................4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS.......................................................................................................4 3.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER.............................................................................................4 4 RF EXPOSURE EVALUATION..............................................................................................................…

Text truncated - open the document above for the full version.

Test Report

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120500258901 Page: 1 of 42 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1205002589IT (GZEM1205001588IT) Applicant: Montage Manufacturer: Montage Asia Product Name: Traxit X 2G GPS Module Model No.(EUT): GT2GM-M FCC ID: N69-715000 Standards: FCC Title 47 Part 2: FCC Title 47 Part 22H subpart H FCC Title 47 Part 24E subpart E Date of Receipt: 2012-05-16 Date of Test: 2012-05-31 to 2012-06-08 Date of Issue: 2012-07-18 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120500258901 Page: 2 of 42 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item FCC Requirement Test method Result 850 Conducted output power Part 2.1046(a)/Part 22.913(a) ITA-603-D-2010 PASS Effective Radiated Power of Transmitter(ERP) Part 2.1046(a)/Part 22.913(a) ITA-603-D-2010 PASS 99% Occupied Bandwidth Part 2.1049(h) Part 22.917(b) PASS Band Edge at antenna terminals Part 2.1051/Part 22.917(a) Part 22.917(b) PASS Spurious emissions at antenna terminals Part 2.1051/ Part 2.1057/ Part 22.917(a)(b) ITA-603-D-2010 PASS Field strength of spurious radiation Part 2.1051/ Part 2.1057/ Part 22.917(a)(b) ITA-603-D-2010 PASS Frequency stability Part 2.1055/ Part 22.355 ITA-603-D-2010 PASS 1900 Conducted output power Part 2.1046(a) /Part 24.232(c) ITA-603-D-2010 PASS Effective Radiated Power of Transmitter(EIRP) Part 2.1046(a) / Part 24.232(c) ITA-603-D-2010 PASS 99% Occupied Bandwidth Part 2.1049(h) Part 24.238(b) PASS Band Edge at antenna terminals Part 2.1051/ Part 24.238(a) Part 24.238(b) PASS Spurious emissions at antenna terminals Part 2.1051/ Part 2.1057/ Part 24.238(a)(b) ITA-603-D-2010 PASS Field strength of spurious radiation Part 2.1051 /Part 2.1057 / Part 24.238(a)(b) ITA-603-D-2010 PASS Frequency stability Part 2.1055/Part 24.235 ITA-603-D-2010 PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120500258901 Page: 3 of 42 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that inform…

Text truncated - open the document above for the full version.

Test Setup Photos

1 Photographs (Test mode No.: GT2GM-M) 1.1 Conducted Emission Test Setup 1.2 Radiated Emission Test Setup

Contact Information

Applicant

Amanda Yang
[email protected]86-0755-61288070Fax: 86-0755-61288087

Technical Contact

SGS-CSTCSheek Luo
[email protected]0755-2654-4119

No. 1 Workshop, M-10, Middle Section, Science · Shenzhen · China

Test Firm

SGS-CSTC Standards Technical Services Co.,Ltd.June Zhang
[email protected]8675525328598Fax: 86075526710594

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz891.20 mW248KGXW2.5 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power out is conducted at the antenna terminal. Single Modular Approval ERP for part 22 is 28.60dBm and EIRP for part 24 is 27.72dBm. This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This module can only be used with a host antenna circuit trace layout design in strict compliance with the OEM instructions provided. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators must insure that the end user has no manual instructions to remove or install this module. For mobile and fixed operating configurations the antenna gain, including cable loss, must not exceed 0dBi at 1900 MHz and 0 dBi at 850 MHz as defined in 2.1091 for satisfying RF exposure compliance. Under no condition may an antenna gain be used that would exceed the 7W erp Part 22 and the 2W eirp Part 24 power limits.
