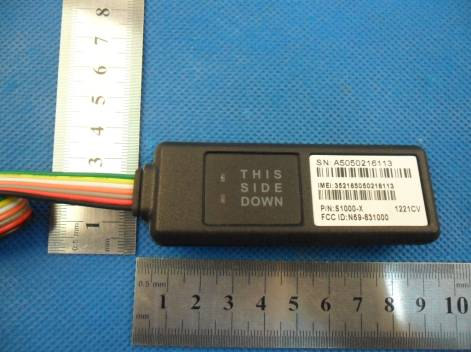

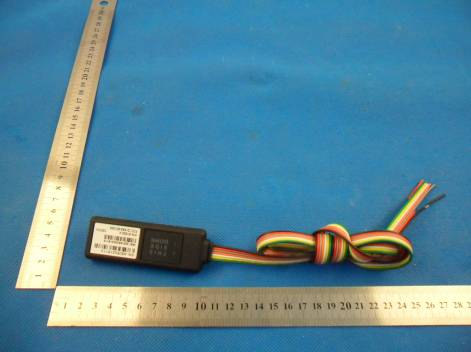

N69-831000Traxit X 2G GPS Tracker

Confidential Preliminary – Subject to Change  2011 Montage Asia Page 1 of 19 Product Specification For the Traxit X 2G GPS Tracke Vehicle Tracking Device By Montage Asia March 1, 2012 Document reference Revision: X1.00 Author: Mr. Marcus Krieter Proofed by: Mr. Zeev Collin Release date: Date first printed above File name: TRAXIT X 2G GPS TRACKER_Overview_Specification_X100_030112.docx Authorized Recipients Executive management as provided to and are bound by a Non-Disclosure Agreement (NDA) in favor of Montage Asia, its parent or its agent and preventing disclosure or misuse of the confidential information herein. The information presented in this document is strictly confidential and contains trade secrets and other confidential information that are the exclusive property of China Mark Enterprise Investment Limited T/A Montage Asia, its parent, subsidiaries or agents. Confidential Preliminary – Subject to Change  2011 Montage Asia Page 2 of 19 Revision History Revision Date Description X1.00- 12/08/11 First draft release X1.00 03/01/12 First Prototype Release Confidential Preliminary – Subject to Change  2011 Montage Asia Page 3 of 19 Scope This document sets forth the basic technical requirements and feature set for the TRAXIT X 2G GPS TRACKER tracking device. Description The TRAXIT X 2G GPS TRACKER Tracker is a self contained, integrated commercial grade vehicle tracking device that uses GPS satellite location in combination with a quad band GPRS cellular radio connection to report that location. The TRAXIT X 2G GPS TRACKER is optimized for reliability, cost and size. The TRAXIT X 2G GPS TRACKER is a cost optimized version of the standard IONL1G2 tracker that is targeted at expandable and fleet oriented applications. The TRAXIT X 2G GPS TRACKER is targeted more at the finance market. All antennas including the GPS patch is internal to the device. Data reporting can be initiated by a server or by the tracker itself via GPRS SMS or UDP pathways or over a physical USB connection. The TRAXIT X 2G GPS TRACKER is comprised of a simple two piece plastic enclosure that is sonically welded together for reliability, durability and low cost assembly. Interface signals and power are ported through a strain relief bundle at one end with up to a 7-lead pigtail. For added redundancy against system lockup, a physically separate, dedicated watchdog circuit oversees the TRAXIT X 2G GPS TRACKER system operation. If the system does not maintain the watchdog circuit through programmed reporting, the system power is cycled and a new GPS satellite and cellular connection is established. The TRAXIT X 2G GPS TRACKER can be provisioned for UDP and SMS data services for application command and/or data transactions within the 850, and 1900 MHz bands. Network provisioning is done using embedded SIM technology for reliability and cost savings. For added safeguard against network connection loss, a hardware TRAXIT X 2G GPS TRACKER endpoint reset and reboot can be initiated by simply calling the provisioned phone number and allowing it to ring three times. Flexible I/O includes 2 bidirectional General Purpose Input Output (GPIO) ports. A separate dedicated USB port is provided for general use as well as development and programming support. A high current relay drive is provided for starter motor solenoid control or general purpose drive (current sink only). Over The Air (OTA) application firmware updates are supported through at TFTP connection to a server. The entire application image can be updated using one specialized SMS or USB command. All inputs are electrically hardened against overvoltage and over current conditions present in automotive environments. This includes transient electrical noise and Confidential Preliminary – Subject to Change  2011 Montage Asia Page 4 of 19 Electrostatic Discharge (ESD). The power input is further protected against over current with an internal self-resetting fuse. The TRAXIT X 2G GPS TRACKER is physically disguised to appear to be a nondescript part of the cabling system. It is a small black box with unremarkable features. Two LED status indicators are provided to verify correct installation and initial operation. A unique power management feature allows these LEDs to be extinguished once installation is verified to be correct. This feature reduces power and further conceals the ION Tracker from untrained parties wishing to defeat its operation. As with all GPS location devices, the TRAXIT X 2G GPS TRACKER should be installed in a vehicle such that it has an unobstructed view of the sky during normal operation. Double sided foam tape can be used to secure the surface not facing the sky if needed. A factory populate option is provided to add a motion detector to the main board. Under software control, this motion detector can be used to wake the TRAXIT X 2G GPS TRACKER from a very low power state. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit …
