N6AFJEE0111Electronic Energy Saving Lamp

U SER ’ S M ANUAL This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1. Use only on 120 volt, 60 hertz. 2. Never disassemble or modify - any changes could void the user's authority to operate this device. 3. Not for use in totally enclosed fixtures. 4. Risk of electric shock - do not use where directly exposed to water. 5. This device is not intended for use with emergency exit fixtures or emergency exit lights. 6. This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or, plug the lamp or the appliance into a different outlet. 7. To prevent burns, do not touch the bulb during operation or immediately after switching off. 8. Not for use with electronic timer or photocell devices or occupancy sensor.

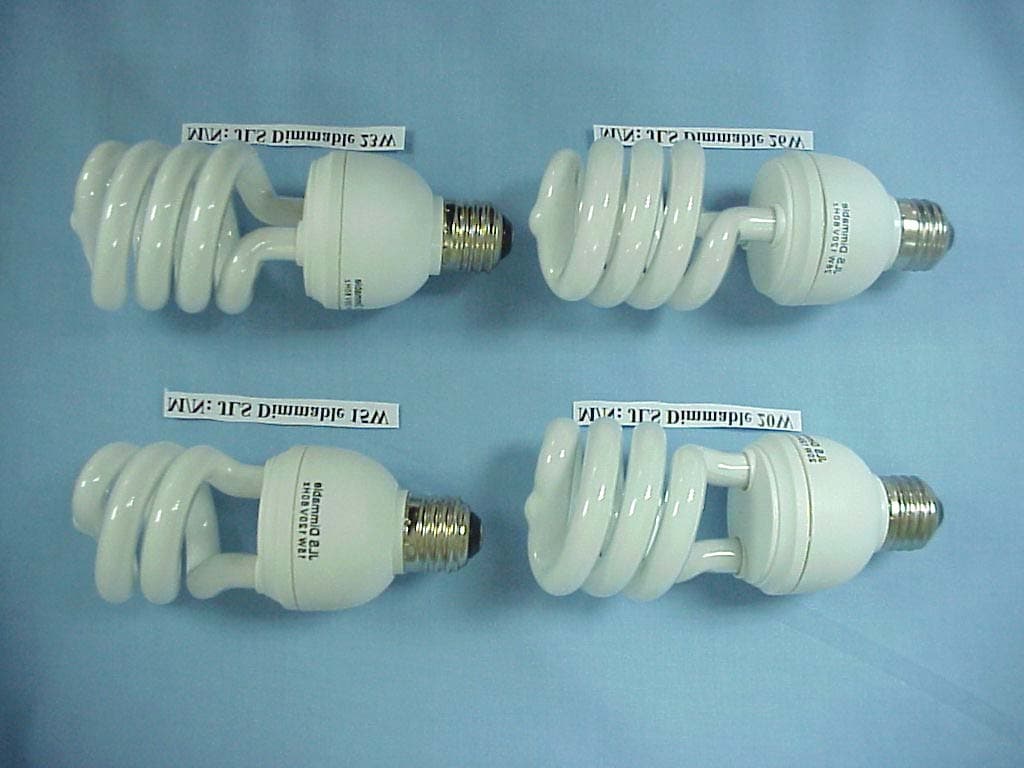

F IGURE 1 E LECTRONIC E NERGY S AVING L AMP (M/N: JLS D IMMABLE 15W/20W/23W/26W) G ENERAL A PPEARANCE

Label Drawing (SIZE OF 1:1) JOINLUCK FCC ID: N6AFJEE0111

Label Location Information Refer to the below red arrow: (for example)

F IGURE 1 E LECTRONIC E NERGY S AVING L AMP (M/N: JLS D IMMABLE 15W/20W/23W/26W) C OVER R EMOVED F IGURE 2 E LECTRONIC E NERGY S AVING L AMP (M/N: JLS D IMMABLE 15W/20W/23W/26W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 3 E LECTRONIC E NERGY S AVING L AMP (M/N: JLS D IMMABLE 15W/20W/23W/26W) M AIN B OARD (S OLDERED S IDE )

Schematics (M/N: JLS D IMMABLE 15W/20W/23W/26W)

Fujian Joinluck Electronic Enterprise Co., Ltd. FCC ID: N6AFJEE0111 Page 1 of 24 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01104 Application for FCC Certificate On Behalf of Fujian Joinluck Electronic Enterprise Co., Ltd. Electronic Energy Saving Lamp Model No.: JLS Dimmable 15W JLS Dimmable 20W JLS Dimmable 23W JLS Dimmable 26W FCC ID: N6AFJEE0111 Prepared For : Fujian Joinluck Electronic Enterprise Co., Ltd. Cangshan Industrial Area, Cangshan District, Fuzhou, Fujian, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F01104 Date of Test : Oct 22 ~ Dec 03, 2001 Date of Report : Dec 18, 2001 Fujian Joinluck Electronic Enterprise Co., Ltd. FCC ID: N6AFJEE0111 Page 2 of 24 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01104 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 5 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 FIELD STRENGTH TEST ........................................................................................................... 11 3.1 Test Equipment......................................................................................................................... 11 3.2 Block Diagram of Test Setup ................................................................................................... 11 3.3 Test Configuration.................................................................................................................... 11 3.4 Operating Condition of EUT .................................................................................................... 11 3.5 Test Procedure .......................................................................................................................... 12 3.6 Test Result ................................................................................................................................ 12 Fujian Joinluck Electronic Enterprise Co., Ltd. FCC ID: N6AFJEE0111 Page 3 of 24 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01104 TEST REPORT FOR FCC CERTIFICATE Applicant : Fujian Joinluck Electronic Enterprise Co., Ltd. Manufacturer : Fujian Joinluck Electronic Enterprise Co., Ltd. EUT Description : Electronic Energy Saving Lamp (A) Model No.: JLS Dimmable 15W JLS Dimmable 20W JLS Dimmable 23W JLS Dimmable 26W (B) Serial No.: N/A (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Oct 22 ~ Dec 03, 2001 Prepared by : Test Engineer : STELLA TANG (Assistant) NILL YEE (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ALEX CHIU (Assistant Manager) Fujian Joinluck Electronic Enterprise Co., Ltd. FCC ID: N6AFJEE0111 Page 4 of 24 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01104 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Electronic Energy Saving Lamp Type of EUT : ; Production … Pre-product … Pro-type Model Number : JLS Dimmable 15W JLS Dimmable 20W JLS Dimmable 23W JLS Dimmable 26W Applicant : Fujian Joinluck Electronic Enterprise Co., Ltd. Cangshan Industrial Area, Cangshan District, Fuzhou, Fujian, China Manufacturer : Fujian Joinluck Electronic Enterprise Co., Ltd. Cangshan Industrial Area, Cangshan District, Fuzhou, Fujian, China Frequency range : 51kHz ~ 57kHz M/N Apparent Power (VA) Real Power (W) JLS Dimmable 15W 18.8 16.4 JLS Dimmable 20W 23.2 20.4 JLS Dimmable 23W 27.7 23.3 JLS Dimmable 26W 27.6 24.0 1.2 Description of Test Facility Site Description : Sep…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test S IDE VIEW (M/N: JLS DIMMABLE 15W/20W/23W/26W) 2. Field strength Test
