N6AFJEE0210Electronic Energy Saving Lamp

User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1 Use only on 120 volt, 60 hertz. 2 Never disassemble or modify - any changes could void the user's authority to operate this device. 3 Risk of electric shock - do not use where directly exposed to water. 4 This device is not intended for use with emergency exit fixtures or emergency exit lights. 5 This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or, plug the lamp or the appliance into a different outlet. 6 To prevent burns, do not touch the bulb during operation or immediately after switching off. 7 Not for use with dimmers, electronic timer or photocell devices or occupancy sensor.

Label Drawing JOINLUCK FCC ID: N6AFJEE0210

Label Location Information Refer to the below red arrow: (for example) JOINLUCK FCC ID: N6AFJEE0210

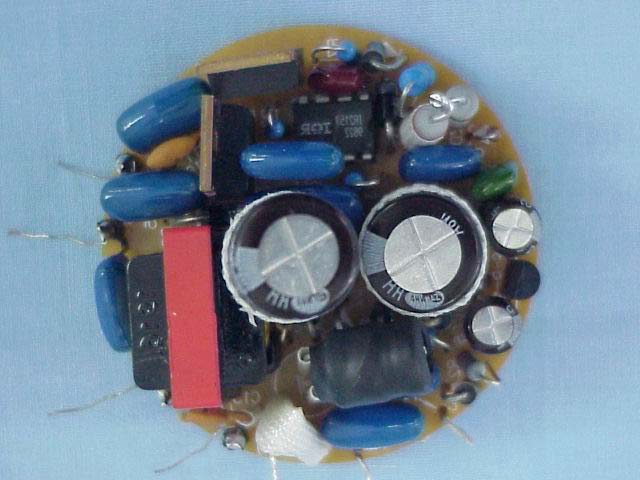

FIGURE 1 ELECTRONIC ENERGY SAVING LAMP (M/N: JLS 3-WAY 12W/20W/26W) COVER REMOVED FIGURE 2 ELECTRONIC ENERGY SAVING LAMP (M/N: JLS 3-WAY 12W/20W/26W) MAIN BOARD (COMPONENT SIDE) F IGURE 3 ELECTRONICS ENERGY SAVING LAMP (M/N: JLS 3-WAY 12W/20W/26W) MAIN BOARD (SOLDERED SIDE)
