N6AFJEEJL0898Electronic Energy Saving Lamp

FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 12 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) 4 BLOCK DIAGRAM(S) OF MODEL JLC7-18 and JLS Figure 4.1 Block Diagram and Description of Model JLC7-18 and JLS Diagram # 1 FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 13 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) Figure 4.2 Schematic Wiring Diagram of Model JLC7-18 and JLS (cont.) Diagram #2 FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 14 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) Figure 4.3 Foil Trace Diagram of Model JLC7-18 and JLS (cont.) Diagram #3

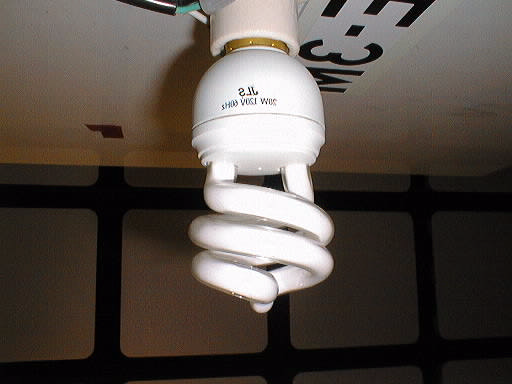

FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 25 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) RADIATED EMISSIONS, PRECOMPLIANCE, 3M CHAMBER FIG. 5.10 Model # JLC7-18 20W FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 27 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) RADIATED EMISSIONS, PRECOMPLIANCE, 3M CHAMBER FIG. 5.12 Model # JLS 26W

FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 7 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) 2 PRODUCT LABELING AND USER INFORMATION 2.1 Label for Part 18 Compliance In accordance with Paragraph 2.925(a)(a1) (b)(f) of CFR 47;(a) Each equipment covered in an application for equipment authorization shall bear a name plate or label listing the following: (a1) FCC Identifier consisting of the two elements in the exact order specified in 2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. (b) Any device subject to more than one equipment authorization procedure may be assigned a single FCC Identifier. However, a single FCC Identifier is required to be assigned to any device consisting of two or more sections as assembled in a common enclosure, on a common chassis or circuit board, and with common frequency controlling circuits. Devices to which a single FCC Identifier has been assigned shall be identified pursuant to paragraph (a) of this section. (f) the term: “FCC ID:” and the coded identification assigned by the Commission shall be in a size of type large enough to be readily legible, consistent with the dimensions of the equipment and its nameplate. However, the type size for the FCC Identifier is not required to be larger than eight point. The layout and size of the FCC ID below, are only for illustration purposes: 2.2 Location of Label on EUT In accordance with Paragraph 2.925;(d)(d1)(d2)(e) of CFR 47;(d) The nameplate or label shall be permanently affixed to the equipment and shall be readily visible to the purchaser at the time of purchase. (d1) As used here, “permanently affixed” means that the required nameplate data is etched, engraved, stamped, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment enclosure. Alternatively, the required information may be permanently marked on a nameplate of metal, plastic, or other material fastened to the equipment enclosure by welding, riveting, etc., or with a permanent adhesive. Such a nameplate must be able to last the lifetime of the equipment in the environment in which the equipment will be operated and must not be readily detachable. (d2) As used here, ‘readily visible” means that the nameplate or nameplate data must be visible from the outside of the equipment enclosure. It is preferable that it be visible at all times during normal installation or use, but is not a prerequisite for grant of equipment authorization. (e) Where it is shown that a permanently affixed nameplate is not desirable or is not feasible, an alternative method of positively identifying the equipment may be used if approved by the Commission. The proposed alternative method of identification and the justification for its use must be included with the application for equipment authorization. FCC ID:N6AFJEEJL0898 FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 8 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) 2.3 Information to User In accordance with Paragraph 18.213 of CFR 47; the user’s manual or instruction manual for an unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 29 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) MODIFICATIONS TO THE DEVICE FIG. 5.14 New capacitor C1 shown in side view. FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 30 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) MODIFICATIONS TO THE DEVICE FIG. 5.15 New capacitor C1 installed in Model JLC7-18, top view. FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 31 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) MODIFICATIONS TO THE DEVICE FIG. 5.16 New capacitor C1 installed in Model JLS, top view. FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 32 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) MODIFICATIONS TO THE DEVICE FIG. 5.17

FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 1 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) Measurement/Technical Test Report Report Number: 09/18/98-97CA01074D Fujian Joinluck Electronic Enterprise Co., Ltd. Cang Shan Industrial Area Cang Shan District Fuzhou, FUJIAN 350 JLC7-18 20W and JLS-26W FCC ID: N6AFJEEJL0898 September 18, 1998 This report concerns:Test Data Only Original Grant X Class II Change Class I Change Equipment type: Fluorescent lampholder adaptor; self ballasted lamp Report prepared by: Approved by: Tests Performed by: Douglas M. Smith Underwriters Laboratories Inc. 2600 NW Lake Road Camas, WA 360-817-5660 (phone) 360-817-6058 (fax) [email protected] Underwriters Laboratories Inc. authorizes the above named company to reproduce this Report, provided it is reproduced in its entirety. FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 2 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) Table of Contents 1 GENERAL INFORMATION 1.1 Product Description............................................................................................ 4 1.2 Related Submittal(s)/Grant(s) ............................................................................ 4 1.3 Tested System Details ........................................................................................ 5 1.4 Test Methodology............................................................................................... 6 1.5 Test Facility........................................................................................................ 6 1.6 Test Equipment .................................................................................................. 6 1.7 Traceability of Measurements ............................................................................ 6 2 PRODUCT LABELING AND USER INFORMATION 2.1 Label for Part 18 Compliance ............................................................................ 7 2.2 Location of label on EUT ................................................................................... 7 2.3 Information to User ............................................................................................ 8 3 SYSTEM TEST CONFIGURATION 3.1 Justification ........................................................................................................ 9 3.2 EUT Exercise Software ...................................................................................... 9 3.3 Special Accessories ............................................................................................ 10 3.4 Equipment Modifications ................................................................................... 10 3.5 Configuration of Tested System......................................................................... 10 Figure 3.1 Configuration of Tested System - Conducted ................................. 11 Figure 3.2 Configuration of Tested System - Radiated .................................... 11 4 BLOCK DIAGRAM OF MODEL JLC7-18 20W and JLS-26W 4.1 Block Diagram Description................................................................................ 12 Figure 4.1 Block Diagram of Model JLC7-18 and JLS .................................... 12 Figure 4.2 Wiring Diagram of Model JLC7-18 and JLS .................................. 13 Figure 4.3 Foil Diagram of Model JLC7-18 and JLS ....................................... 14 5 CONDUCTED AND RADIATED MEASUREMENT PHOTOS 5.1 Measurement Photo Index.................................................................................. 15 5.1 Photos ................................................................................................................. 16 6 CONDUCTED EMISSIONS 6.1 Conducted Emissions Test Procedure ................................................................ 33 6.2 Conducted Emissions Test Results .................................................................... 33 6.3 Conducted Emissions Test Data......................................................................... 34 FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 3 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) Table of Contents - Continued 7 RADIATED EMISSIONS 7.1 Radiated Emissions Test Procedure ................................................................... 42 7.2 Field Strength Calculations ................................................................................ 42 7.3 Radiated Emissions Test Results ....................................................................... 43 7.4 Radiated Emissions Test Data............................................................................ 44 8 PHOTOS OF TESTED EUT Photos ........................................................................................................................ 50 9 ADDITIONAL PRODUCT INFORMATION 9.1 User Manual ........................................................................................................ 51 FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 4 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) 1 GENERAL INFORMATION 1.1 Product Description • Series JL • Product Type - Energy saving lamp (Fluorescent lampholder adaptors; self ballasted lamp). • Product Components or Parts - The devices consist of an edison base male screw shell, for insertion into the standard incandescent edison base lampholder of a lighting fixture or portable lamp, thermalplastic housing; which contains a printed wiring board and circuitry for ballasting the integral fluorescent lamp. • Product Function - Provides general lighting. • Addi…

Text truncated - open the document above for the full version.

FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 33 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) 6 CONDUCTED EMISSIONS DATA 6.1 Conducted Emissions Test Procedure This test procedure was performed in accordance with the Conducted Voltage Emissions Test Procedure SOP-0179, in accordance with FCC/OET MP-5 (1986). The conducted emissions were measured using two steps: The initial, qualitative, survey of conducted emissions was performed using a spectrum analyzer scanning with peak detection. For this step, the frequency range was divided into four sub-ranges, and a separate scan was taken for each. For each sub-range scan, the spectrum analyzer was swept four times in max- hold mode to capture time varying emissions. The scans for each line were plotted and all the indicated emissions were marked. The final, quantitative, measurement was made on the configuration and mode of operation that produced the highest emission relative to the limit, on the emissions recorded as “marked traces.” These were exported to a spot frequency table which was used to automatically perform a quasi-peak measurement on each frequency. A 9 kHz bandwidth was used. 6.2 Conducted Emissions Test Results The emissions measurements made in this configuration are deemed to represent the worst case emissions for this system. The preliminary peak scans for each line are provided on the following pages. Emissions requiring quasi-peak measurements are marked numerically. Additional emissions may also be marked. The final quasi-peak compliance data for both lines is provided on a separate pages following the preliminary peak scans. FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 34 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) 6.3 Conducted Emissions Test Data MEASUREMENT OF CONDUCTED VOLTAGE EMISSIONS Temp./Humidity/Atm. Pressure:23 °C/ 58 %RH/ 29.5 in Hg Manufacturer:Fujian Joinluck Electronic Enterprise Co., Ltd. Equipment Under Test (EUT):Model JLC7-18 20W Fluorescent lampholder adaptor; self ballasted lamp Operating Mode:Energized with lamp on. Basic Standard / Class:CFR Title 47, Pt. 18 / Class B Detection Mode:Peak (pk) Bandwidth:200 Hz for measurements 9 kHz to 150 kHz 9kHz for measurements 150 kHz to 30 MHz Line:L1 FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 35 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) MEASUREMENT OF CONDUCTED VOLTAGE EMISSIONS Temp./Humidity/Atm. Pressure:23 °C/ 58 %RH/ 29.5 in Hg Manufacturer:Fujian Joinluck Electronic Enterprise Co., Ltd. Equipment Under Test (EUT):Model JLS 26W Fluorescent lampholder adaptor; self ballasted lamp Operating Mode:Energized with lamp on. Basic Standard / Class:CFR Title 47, Pt. 18 / Class B Detection Mode: Peak (pk) Bandwidth:200 Hz for measurements 9 kHz to 150 kHz 9kHz for measurements 150 kHz to 30 MHz Line:L1 FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 36 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) MEASUREMENT OF CONDUCTED VOLTAGE EMISSIONS Temp./Humidity/Atm. Pressure:23 °C/ 58 %RH/ 29.5 in Hg Manufacturer:Fujian Joinluck Electronic Enterprise Co., Ltd. Equipment Under Test (EUT):Model JLC7-18 20W Fluorescent lampholder adaptor; self ballasted lamp Operating Mode:Energized with lamp on. Basic Standard / Class:CFR Title 47, Pt. 18 / Class B Detection Mode:Quasi-peak (qpk) or Peak (pk) Bandwidth:200 Hz for measurements 9 kHz to 150 kHz 9kHz for measurements 150 kHz to 30 MHz Line:L1 Frequency MHz Meter Reading dB(μV) Cable Loss dB Trans- ducer Factor dB Measured Intensity dB(μV) Quasi- Peak Limit dB(μV) Margin dB(μV) 0.45365 43.40 pk .10 0.10 43.60* 48.00-4.4 0.50298 44.90 pk .10 0.00 45.00* 48.00-3 0.55962 42.90 pk .10 0.00 43.00* 48.00-5 0.500041.77 qpk .10 0.1041.97* 48.00-6.03 0.500341.73 qpk .10 0.0041.83* 48.00-6.17 0.555840.67 qpk .10 0.0040.77* 48.00-7.23 (*) Measurement data using peak or quasi-peak detection is under the quasi-peak lmit. (**)Measurement data using quasi-peak detection is under the quasi-peak limit and data using average detection is under the average limit. FCC ID: N6AFJEEJL0898 Model JLC7-18 20W and JLS 26WFCC Measurement/Technical Test ReportIssued: 9/18/98 Report No. 09/18/98-97CA01074DPage 37 of 51 Underwriters Laboratories Inc.: Camas, WA (Fax # 360-817-6000) MEASUREMENT OF CONDUCTED VOLTAGE EMISSIONS Temp./Humidity/Atm. Pressure:23 °C/ 58 %RH/ 29.5 in Hg Manufacturer:Fujian Joinluck Electronic Enterprise Co., Ltd. Equipment Under Test (EUT):Model JLS 26W Fluorescent lampholder adaptor; self ballasted lamp Operating Mode:Energized with lamp on. Basic Standard / Class:CFR Title 47, Pt. 18 / Class B Detection Mode:Quasi-peak (qpk) or Peak (pk) Bandwidth:200 Hz for measurements 9 kHz to 150 kHz 9kHz for measurements 150 kHz to 30 MHz Line:L1 Frequency MHz Meter Reading dB(μV) Cable Loss dB Trans- ducer Factor dB Measured Intensity dB(μV) Quasi- Peak Limit dB(μV) Margin dB(μV) .47010 48.00 pk .10 .10 48.20 48.000.2 .53769 46.70 pk .10 0.00 46.80* 48.00-1.2 .57606 43.90 pk .10 0.00 44.00* 48.00-4 .60529 43.10 pk .10 0.00 43.20* 48.00-4.8 .64183 44.20 pk .10 0.00 44.30* 48.00-3.7 .70760 42.30 pk .20 0.00 42.50* 48.00-5.5 .455145.14 qpk .10 .10 45.34* 48.00-2.66 .520444.57 qpk .10 0.00 44.67* 48.00-3.33 .584242.83 qpk .10 0.00 42.93* 48.00-5.07 .584442.85 qpk .10 0.00 42.95* 48.00-5.05 .648039.20 qpk .10 0.00 39.30* 48.00-8.7 .683138.89 qpk .20 0.00 39.09* 48.00-8.91 (*) Measurement data using peak or quasi-peak detection is under the quasi-peak limit. (**)Measurement data using quasi-peak detection is under the quasi-peak limit and data using average detection is under the av…

Text truncated - open the document above for the full version.
