NT132 RFID System Installation Manual Notices 2750.001.003 Revised June 1999 © 1999 AXCESS TM Inc. Notices Information provided in this manual is a result of the design and development of AXCESS TM INC. products and is subject to change without notice. It applies only to current AXCESS TM INC. RFID systems. No part of this manual may be reproduced, translated or transmitted, in any form or by any means, without the prior written consent of AXCESS TM INC. Responsibilities • AXCESS TM INC. declines all liability for any damage that might result from any errors or omissions in this document or from improper installation. • AXCESS TM INC. can only guarantee the correct operation of its products if they are used with the software programs, systems, and consumables supplied or authorized in writing by AXCESS TM INC. • AXCESS TM INC. recommends keeping the original packaging for transporting the equipment later. Registered Trademarks Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. Document Revisions NumberChangesAuthorDate 700.001.001Original IssueJerry HegdahlNov 1998 750.001.002UpdateJean MahoneyMar 1999 750.001.003UpdateJean MahoneyApr 1999 750.001.003UpdateJean MahoneyJuly 1999 Customer Service AXCESS TM INC. toll-free distributor support hotline is1-800-577- 6080. Representatives are available to answer your questions from 7:30 – 6:30 Central Standard Time. Table of Contents General Installation Information ................................................ 7 Safety................................................................................................................................. 7 Information Flags ...............................................................................................................7 Installation Tips .................................................................................................................. 8 Things to Consider.............................................................................................................9 Hand Tools, Equipment and Materials............................................................................. 10 NT132 System Overview........................................................... 13 History.............................................................................................................................. 13 NT132 System Components............................................................................................ 13 Tags ................................................................................................................................. 15 Reader ............................................................................................................................. 16 Antennas.......................................................................................................................... 17 Antenna Tuning Unit (ATU) ............................................................................................. 18 Reader Installation.................................................................... 19 Introduction ...................................................................................................................... 19 Required Materials........................................................................................................... 20 Mounting the Reader - All Types ..................................................................................... 21 Installation of a Serial Reader.......................................................................................... 22 Installation of a Wiegand Reader .................................................................................... 23 Installation of an FTT Reader System ............................................................................. 25 Connecting Power to the Reader – All Types .................................................................. 32 Configuring 3.x Reader Firmware............................................ 35 Required Materials........................................................................................................... 35 Connecting a Computer to the Reader ............................................................................ 35 Communicating with the Reader via HyperTerminal ....................................................... 37 Reader Commands ......................................................................................................... 38 Entering a Command....................................................................................................... 39 Toggling between reading 3.x Tags and reading 2.0 Tags.............................................. 40 Changing the Reader ID Number .................................................................................... 41 Toggling Between Default and Diagnostic Modes ........................................................... 42 Bypass Mode - Enabling Action on 254 Code ................................................................. 44 Unilon Reset Buttons ....................................................................................................... 45 Antenna Tuning Unit (ATU) Installation................................... 49 Introduction ...................................................................................................................... 49 Installation Considerations............................................................................................... 49 Required Materials........................................................................................................... 50 Prerequisite Tasks ........................................................................................................... 50 Mounting the ATU ............................................................................................................ 51 Cabling t…

Text truncated - open the document above for the full version.

Notices Information provided in this manual is a result of the design and development of AXCESS TM INC. products and is subject to change without notice. It applies only to current AXCESS TM INC. RFID systems. No part of this manual may be reproduced, translated or transmitted, in any form or by any means, without the prior written consent of AXCESS TM INC. Responsibilities • AXCESS TM INC. declines all liability for any damage that might result from any errors or omissions in this document or from improper installation. • AXCESS TM INC. can only guarantee the correct operation of its products if they are used with the software programs, systems, and consumables supplied or authorized in writing by AXCESS TM INC. • AXCESS TM INC. recommends keeping the original packaging for transporting the equipment later. Registered Trademarks Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. Customer Service AXCESS TM INC. toll-free distributor support hotline is1-800-577-6080. Representatives are available to answer your questions from 7:30 – 6:30 Central Standard Time. FCC ID XXXXX CAUTION This equipment may not be modified or changed unless expressly approved in writing by AXCESS Inc. Any changes affecting the transmission or receiving power of any equipment (Tag, ATU, Reader, Antenna or other associated equipment) are prohibited by part 15 of FCC rules and will void any warranty expressed or implied by AXCESS Inc. NeuroTag complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must not accept any interference received, including interference that may cause undesired operation.

Figure 1 A simple AXCESS NT132 System Reader ATU Transmitting Antenna Receiving Antenna Ta g Device (Computer, controller door strike, camera etc.) Low Frequency Wakeup Signal U H F T a g R e s p o n s e RX TX

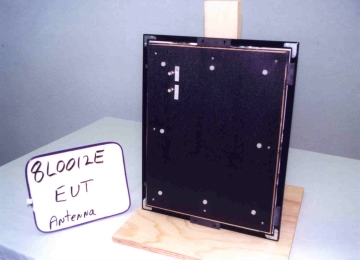

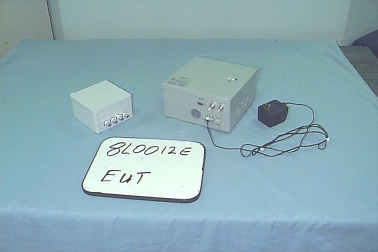

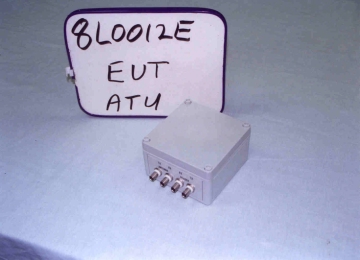

External Photographs: External Photographs (Continued): External Photographs (Continued):

RATED VOLTAGE: 24VDC, 0.7A MAX. Model No: NT132/315 READER LISTED ITE XXXX FCC ID: XXXXXXXXXXX 1.41 3.89 FCC ID.: This device complies with part 15 FCC O peration is subject to the following two (1) This device may not cause harmful (2) This device must accept any interference including interference that may cause reader 3.66 1.39

RATED VOLTAGE: 24VDC, 0.7A MAX. Model No: NT132/315 READER LISTED ITE XXXX FCC ID: XXXXXXXXXXX 1.41 3.89 FCC ID.: This device complies with part 15 FCC O peration is subject to the following two (1) This device may not cause harmful (2) This device must accept any interference including interference that may cause reader 3.66 1.39 N6E-132-RDS N6E-132-RDS

Internal Photographs: Internal Photographs (Continued):

Serial Reader The NT132 Serial Reader is the electronic “brain” of the AXCESS NeuroTag™ RFID System. The reader activates and reads NT132 tags and interfaces with host equipment via standard RS-232 format. Data is transferred at the rate of up to 1K bits per second. Advanced communication features include Multi-Tag read and Read/Write. The Reader can also be configured with add-on modules to facilitate stand alone operation and networking to other NT132 readers. AXCESS Inc. 3208 Commander Drive Carrollton, TX 75006 800.588.6080 Wiegand Reader The NT132 Wiegand Reader is the electronic “brain” of the AXCESS NeuroTag™ RFID System. The reader activates and reads NT132 tags and outputs data in SIA standard 26- bit format. Low Frequency operation minimizes interference and high speed data transfer is accomplished at up to 1K bits per second. Redundant tag reads are reported only once every 12 seconds. The reader can also be configured with add-on modules to facilitate stand alone operation and networking to other NT132 Readers. AXCESS Inc. 3208 Commander Drive Carrollton, TX 75006 800.588.6080

800.006.300 B RFID NT315RF AXCESS, Inc.3208 Comm ander DriveC a rro llt o n, TX 75 0 06B 11 Tuesday , February 09, 1999 Ti t leSize Docum ent Number Rev Date: Sheet of "PROPRIETARY"NOT FOR DISTRIBUTION! GNDGNDGND GNDGNDGNDGND DATA_OUT REC_ADJ REC_ADJ REC_ADJ DATA_OUT GND GNDGND REC_ADJ J3CON 2 12 C310 0 pf C410pf R4270 C839 0 pf R31K R133K C22.2pf L1 22nh L210uh C383.3pf VC 12-10pf C533pf C6390pf R5 56K R6 27K D1 MMBD4148 R76.8KR810K R19100 C71000pf C1110uf R126.8M C2810pf R910K R10100K R11100K C91000pf C10.1uf C15.1uf C3310pfR176.8M R1310KR1410K C14.1uf R15470K C60.1ufR3610 J2 CON16A 13579111315 2468 10121416 J1 CON16A 13579111315 2468 10121416 LED1LS S 2 60R37510 R210K R16100K Q2MMBR 901 1 23 Q1 MMBR 901 1 2 3 U1B LMC6482 OUT 7 + 5 - 6 VC C 8 GND 4 U1A LMC6482 OUT 1 + 3 - 2 VCC 8 GND 4

800.010.300 A RFID Ante nna Tuni ng Uni t AXCESS, Inc.3208 Comm ander DriveC a rro llt o n, TX 75 0 06B 11 Wednesday , October 14, 1998 Ti t leSize Docum ent Number Rev Date: Sheet of 315 Mhz Pass Thru 132 Khz Output 132 Khz InputFrom Reader To Loop Antenna From Dipole To Reader "PROPRIETARY"NOT FOR DISTRIBUTION! - + C8.01uF C9.001uF C10.001uF C11.001uF C12.001uF C13.001uF C14.001uF C15.001uF C16.001uF C7.01uF C6.01uF C17.001uF JP10JMP 2 1 3 JP1JMP 2 1 3 JP2JMP 2 1 3 JP3JMP 2 1 3 JP4JMP 2 1 3 JP5JMP 2 1 3 JP6JMP 2 1 3 JP7JMP 2 1 3 JP8JMP 2 1 3 JP9JMP 2 1 3 JP11JMP 2 1 3 R1200 C18.01uF T2TRANSFORMER 3 1 4 2 T1Current Sensor 31 42 D11N4148 21 M1METER V V 1 2 R21K D2 LE D D3 LE D D4 LE D D5 LE D D6 LE D R71K R61K R51K R41K R31K CON 3COAXCON 2 1 CON 1COAXCON 2 1 CON 4COAXCON 2 1 CON 2COAXCON 2 1

800.003.300 A RFID NT132TX AXCESS, Inc.32 08 Co mm an de r D riv eC arr ollt on, TX 75 00 6B 11 Tues da y , Ma rch 30 , 1 99 9 Tit l eSize Document Number Rev Date: Sheet of +24V "PROPRIETARY"NOT FOR DISTRIBUTION! GNDGNDGNDGND GNDGNDGNDGNDGND+24v +24vGND MDINMDINMDINMDINMDINMDIN MDIN MDIN C31u F C510uF C6.1uF R55K VR 1LM317T VIN 3 AD J 1 VO U T 2 C710uF R112 0R212 0R312 0 C4.01uF C2.47 J3CON 2 12 R7120K C1.0047 R462 0 R624 0 J2HEADER 8X2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 JX1HEADER 8X2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 D4 1N4001 12 D31N4001 1 2 D2 BYV95A 12 D11N 53 74 B 12 J1HEADER 8X2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 L297- 00 50- 1 4 7 1 9 10 6 L197- 00 49- 1 1 4 Q1IRF530 2 1 3 4

KTL Dallas, Inc. Safety - EMC - Telecom - ISO Guide 25 ENGINEERING TEST REPORT ON MODEL: NT 132 / 315 READER IN ACCORDANCE WITH: CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS TESTED FOR: AXCESS, INC. 3208 COMMANDER DRIVE CARROLLTON, TEXAS 75006 TESTED BY: KTL DALLAS, INC. 802 N. KEALY LEWISVILLE, TEXAS 75057-3136 NVLAP LAB CODE: 100426-0 AUGUST 1999 This document contains 37 pages including this one. KTL Dallas, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Dallas, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the item/s tested and does not constitute endorsement by the United States of America. KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 2 of 37 The equipment has been tested by KTL Dallas, Inc. for verification of compliance with CFR 47, Part 15, Subpart B for Class A requirements for Digital Devices. Each unit manufactured, imported or marketed will conform to the sample(s) tested within the variations that can be expected due to quantity production and testing on a statistical basis. BY:___________________________________ _______________________________ SIGNATURE PRINTED TITLE: COMPANY: Axcess, Inc. 3208 Commander Drive Carrollton, Texas 75006 DATE: KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 3 of 37 Section 1.Summary of Test Results General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR 47, Part 15, Subpart B, for Class A Digital Devices, Paragraph Numbers 15.107 and 15.109 & Subpart C, Paragraph Numbers 15.207, 15.209 and 15.231. The equipment was tested for conducted emissions from 0.45 MHz to 30 MHz using a 50 μh line impedance stabilization network (L.I.S.N.) as described in ANSI C63.4-1992. Peripheral equipment was also operated through a 50 μh L.I.S.N. The equipment was tested for radiated emissions from 30 MHz to 1000 MHz with extension to the 10 th harmonic of any fundamental clock frequency in accordance with the requirements of CFR 47, Part 15, Subpart B for Class A Digital Devices and Subpart C. Frequencies were initially identified in a large shielded room. Amplitude measurements were made on an outdoor Open Area Test Site. Details of the outdoor site are on file with the FCC. These tests were conducted using measurement procedures of ANSI C63.4-1992. Abstract (Subpart B): Name Of TestParagraph No.Results Conducted Emissions15.107Complies Radiated Emissions15.109Complies Abstract (Subpart C): Name Of TestParagraph No.Results Conducted Emissions15.207Complies Radiated Emissions15.209Complies KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 4 of 37 In the configuration tested, the E.U.T. complies with the requirements of CFR 47, Part 15, Subpart B, for Class A Digital Devices, Paragraph Numbers 15.107 and 15.109 & Subpart C, Paragraph Numbers 15.207, 15.209 and 15.231. THIS REPORT APPLIES ONLY TO THE ITEM(S) TESTED AND DOES NOT CONSTITUTE ENDORSEMENT BY THE UNITED STATES OF AMERICA. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE: NONE. NVLAP LAB CODE: 100426-0 TESTED BY:Mike SundstromDATE:05/06/99 Mike Sundstrom, Senior EMC Technician APPROVED BY:DATE: Dale L. Reynolds, EMC Division Manager KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 5 of 37 Section 2.Equipment Under Test (E.U.T.) Manufacturer:Axcess, Inc. Model No.:NT 132 / 315 Reader Serial No.:0101099017 Production UnitPre-Production Unit The E.U.T. was received on March 23, 1999, in good condition. Description of E.U.T.: The E.U.T. is a metal, NEMA Enclosure with PCB’s and wall mount power supply. The E.U.T. is used to receive information transmitted to and from the TAG and decode and utilize it for security purposes. Clock, Oscillator, Highest Frequencies Utilized: (1)5 MHz (2) 132 kHz (RX) (3) 315 MHz (TX) KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 6 of 37 E.U.T. Photographs: KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 7 of 37 E.U.T. Photographs (Continued): KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 8 of 37 E.U.T. Photographs (Continued): KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 9 of 37 Modifications Incorporated in E.U.T.: To achieve compliance the following change(s) were made by KTL Dallas, Inc. and Axcess Inc. during compliance testing: MOD 1: A ferrite was added, (Fair Rite P/N 2643665702 torroid) to the DC power line (common mode) reader box. KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 10 of 37 Modification Photo: MOD. 1: KTL Dallas, Inc.CFR 47, PART 15, SUBPART B, CLASS A & SUBPART C REPORT NO.: 8L0012EUS EQUIPMENT: NT 132 / 315 READER Page 11 of 37 Justification: The E.U.T. was configured for testing as per typical installation. Position and bundling of cables were investigated to establish maximum amplitude of emissions. The following combinations were investigated to establish worst case configuration: (1) On, no Tag (Reader TX off). (2) On, with…

Text truncated - open the document above for the full version.

Test Setup Photos: Conducted Emissions (Subpart B and Subpart C) Radiated Emissions (Subpart B) Microwave Radiated Emissions (Subpart B) REAR VIEW: Radiated Emissions (Subpart C) Microwave Radiated Emissions (Subpart C)
