N8NLSD4BTP74MSTD1P-series BLE Module

Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519 LIERDA SCIENCE & TECHNOLOGY CO., LTD. Product Specification Product Name：P-series BLE Module Document version：V1.02 Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519 Contents Chapter 1 Feature ............................................................................................................................................ 1 Chapter 2 Parameters ...................................................................................................................................... 2 Chapter 3 Product Specification ..................................................................................................................... 3 3.1 boundary dimension ............................................................................................................................. 3 3.2 Pin Definition ....................................................................................................................................... 3 3.3 real product show ................................................................................................................................. 4 Chapter 4 Typical Circuit ................................................................................................................................ 5 Chapter 5 Pakge .............................................................................................................................................. 6 Appendix One BLE Profile brief introduction .............................................................................................. 8 Notes to users ................................................................................................................................................... 11 Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519 Page 1 Chapter 1 Feature Lierda P-Series Low Power Consumption High performance Bluetooth transceiver Module is designed based on TI CC2541 chip. The Module has ceramic integrate antenna, and adopts SMT attachment interface. It has a complete open port which reduces hardware design difficulties and also provide high structural and software flexibility for users. The module has low power consumption, a compact size and have high resistance to disturbance. Based on different kinds of application firmware, Product Model offered as sheet 1-1. Sheet 1-1 Product Model Product Name Model number Remark P-series BLE Module-hardware only LSD4BT-P74MSTD1 No software, user development by themselves。 P-series BLE Module-unvarnished transmission master LSD4BT-P74MMST2 Lierda BLE application in unvarnished transmission,the master device P-series BLE Module-unvarnished transmission slave LSD4BT-P74MLSP2 Lierda BLE application in unvarnished transmission,the slave device Lierda P-series Module can be applicable to many occasions： ÿ 2.4GHz low power consumption Bluetooth system ÿ PC, Tablet and other BLE Handheld devices (HID device, Remote Control) ÿ Consumers electronics such as physical, medical and so on ÿ Wireless network system such as Smart meters and data collection Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519 Page 2 Chapter 2 Parameters Sheet 2-1 Module Parameters Item Parameters Remarks Supply voltage 2.0 ~ 3.6 V（classic 3.3V） Low power may cause failure. Over power may damage device frequency 2402 ~ 2480 MHz Power consumption Emitting ≤ 25 mA @0dBm , MCU-32MHz Receiving ≤ 25 mA @MCU-32MHz Sleep ≤ 1 uA Sleep Mode Emission power (-23dBm ~0dBm) ±1dBm Programmable Operating ambient temperature range -20°C ~ 70 °C Storage temperature range -40°C ~ 85 °C channel 40 3 broadcast channel and 37 data transmission channel modulation format GFSK Aaptive frequency hopping Communication BLE standrd I/O Control 0 ~ VCC Air baud rate 1Mbps Transmission distance ≈20m Open and visual environment Port type 1.27 mm Single row* 3 SMT gain of Antenna 2 dBi (Typical) Application Refer the appendix one Operating Humidity range 30%~70% All the parameters are tested at the environment of 25°C±3°C Transmission distance is affected by the temperature and humidity and is only for reference Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519 Page 3 Chapter 3 Product Specification 3.1 outline dimensional drawing Figure 3-1 Module dimension and interface *Size tolerance which not be marked according to GB/T1804-m standards 3.2 Pin Definition Sheet 3-1 Pin Definition Number Name 功能 备注 1 ANT Be used for the external antenna Selected through capacitance 2 VCC Power IN 3 GND Ground All Grounding needed 4 P0.0-P0.7 I/O port 5 P1.0-P1.7 I/O port Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519 Page 4 Number Name 功能 备注 6 P2.1-P2.2 I/O port 7 SCL_UP I2C port SCL 8 SDA_UN I2C port SDA 10 REST_N Reset Active Low More detail for the IO type and load capacity could be found in “CC2540/41 System-on-Chip Solution for 2.4-GHz Bluetooth® low energy Applications”, this module lead them directly. P – Series Module did not set Reset-cicuit for the REST_N pin. please refer to the chapter 4 when you design. 3.3 real product show 图3-1 real product *Pictures are for reference only, there may be differences according to different versions Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519 Page 5 Chapter 4 Typical Circuit ANT 1 GND 2 P2.2 3 P2.1 4 GND 5 P1.7 6 P1.6 7 SCL_UP 8 SDA_UN 9 GND 10 VUSB_NC 11 P1.5 12 P1.4 13 P1.3 14 P1.2 15 P1.1 16 GND 17 VCC 18 P1.0 19 P0.7 20 P0.6 21 P0.5 22 P0.4 23 P0.3 24 GND 25 P0.2 26 P0.1 27 P0.0 28 RESET_N 29 * P系列 BLE模块 VCC GND GND GND GND 47K 1nF 2.7K GND VCC Figure 4-1 Typical application circuit This is min-application circuit ,other circuit could be found in “<xxx> application user guide”. Module is connected to GND pin is internal, in order to ensure the c…

Text truncated - open the document above for the full version.

Lierda Science & Technology Group Co., LTD Product Name: P‐series BLE Module FCC ID: N8NLSD4BTP74MSTD1 Request for Modular Approval In accordance with FCC Part 15, we, Lierda science& Technology Group Co., Ltd, hereby request a modular level approval as outlined in FCC document DA 00 – 1407, for the device listed above. In support of the limited Modular Transmitter Approval, the following is stated: 1) The module does have buffered modulation / data inputs. 2) The module does regulate its own power supply. 3) The module does have a Ceramic antenna 4) The module can be tested as a stand‐alone device. 5) The module is labeled with the proper FCC ID, and labeling instructions are provided to OEM end users for external product labels. 6) The module does have instruction for proper use. 7) The module does meet the FCC RF regulations. 8) The module does not have its own RF shielding. Signature: Company Name ：Lierda science& Technology Group Co., Ltd Address：Lierda Building, 425 Dengyun Rd, Hangzhou, China Contact Person ：Jimmy He Title ：Product Manager Tel： 0571‐89908723 Fax：0571‐88256108

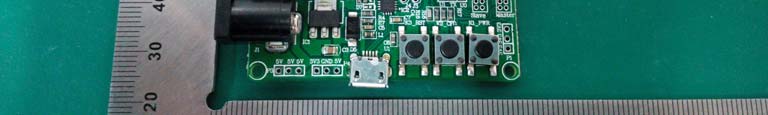

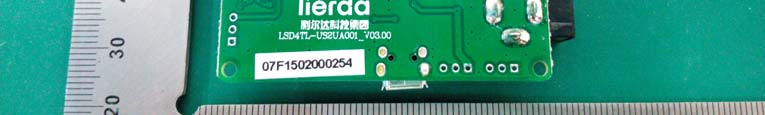

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT with Base board front side EUT with Base board Back side

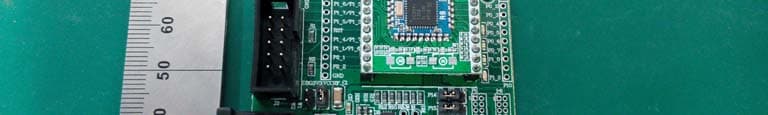

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT with Base board front side EUT with Base board Back side EUT and Base board Base board EUT Front side EUT Back side

Circuit Description.txt Module uses 3.3V power ,before into the module must pass the filter capacitor.uses two kinds of crystal 32.768k and 32M.RF signal transmitted by the external filter ceramic antenna or an external antenna out;The Module has SMT attachment interface.

1 1 2 2 3 3 4 4 DD CC BB AA Product Name: Size:A4 Page 1 of 1 Product Number: DVDD2 10 DVDD1 39 NC 1 SCL_UP 2 SDA_UN 3 NC 4 P2_0 36 P2_1 35 P2_2 34 P1_0 11 P1_1 9 P1_2 8 P1_3 7 P1_4 6 P1_5 5 P1_6 38 P1_7 37 P0_0 19 P0_1 18 P0_2 17 P0_3 16 P0_4 15 P0_5 14 P0_6 13 P0_7 12 RESET_N 20 AVDD5 21 AVDD3 24 AVDD2 27 AVDD1 28 AVDD4 29 AVDD6 31 RF_P 25 P2_4XOSC32K_Q1 32 P2_3XOSC32K_Q2 33 RF_N 26 XOSC_Q1 22 XOSC_Q2 23 DCOUPL 40 RBIAS 30 GND 0 U1 CC2541F256 R9 1 1 3 3 2 2 4 4 32MHz X2 VCC SCL_UP SDA_UN P2_0 P2_1 P2_2 P1_0 P1_1 P1_2 P1_3 P1_4 P1_5 P1_6 P1_7 P0_0 P0_1 P0_2 P0_3 P0_4 P0_5 P0_6 P0_7 RESET_N C391C101C211C241C271C281C311 C13 C14 C401 C18C19 Unbal 1 GND 2 BAL_N 3 BAL_P 4 GND 5 GND 6 U2 balun R8 C291 P2_2 P1_0 P1_1 P1_2 P1_3 P1_4 P1_5 P1_6 P1_7 P0_0 P0_1 P0_2 P0_3 P0_4 P0_5 P0_6 P0_7 RESET_N P2_1 P2_0 SDA_UN SCL_UP SCL_UP P2_0 SDA_UN P2_1 P2_2 P1_0 P1_1 P1_2 P1_3 P1_4 P1_5 P1_6 P1_7 P0_0 P0_1 P0_2 P0_3 P0_4 P0_5 P0_6 P0_7 RESET_N GND VCCVCC 32.768KHz X1 VUSB_NC VUSB_NC VUSB_NC 1 ANT 1 2 3 4 5 6 7 8 9 J1 PIN1 1 2 3 4 5 6 7 8 9 10 J2 PIN10 SCL_UP SDA_UN VUSB_NC P1_5 P1_4 P1_3 P1_2 P1_1 VCC RESET_N P0_0 P0_1 P0_2 P0_3 P0_4 P0_5 P0_6 P0_7 P1_0 P2_2 P2_1 P1_7 P1_6 1 2 3 4 5 6 7 8 9 10 J3 PIN10 ANT ANT NC R7 C17 P-Series BLE Module LSD4BT-P74MSTD1 Frequency :2.4 GHz ～ 2.5GHz Gain : 2 dBi (Typical) VSWR : 2 max Polarization: linear Impedance :50 Ω Rated Power ： 3 Watts max Operation Temperature： -20 ~70 °C

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.247 TEST REPORT For Lierda Science & Technology Group Co., Ltd Lierda Building, 425 Dengyun Rd, Hangzhou, China FCC ID: N8NLSD4BTP74MSTD1 Report Type: Original Report Product Type: P-series BLE Module Test Engineer: Matt Yao Report Number: RKS150216001-00A Report Date: 2015-02-16 Reviewed By: Jesse Huang EMC Mana ger Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) Chenghu Road,Kunshan Development Zone No.248,Kunshan, Jiangsu, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKS150216001-00A FCC Part 15.247 Page 2 of 34 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC§15.247 (i), §1.1310& §2.1091 –MAXIMUM PERMISSIBLE ............................................................................... 8 EXPOSURE (MPE) ........................................................................................................................................................ 8 APPLICABLE STANDARD .............................................................................................................................................. 8 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT UNCERTAINTY .................................................................................................................................. 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 11 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 MEASUREMENT UNCERTAINTY .................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions Below 1GHz Above 1GHz
