User Manual: Please read this user manual carefully before installation. Keep user manual for further reference. Technical Data: Model Rated Voltage Input Frequency Rated Wattage Rated Current Lamp Cap EU-13W 120V 60Hz 13W 175mA GU24 Treatment of the lamp - Please don't drop the lamp or push against it. - Please don't disassemble the lamp, don't make alterations. Installation - Can't be used in dimming circuit. - Don't install inside a recessed area in the wall. - Don't use lids without ventilation openings. - Don't cover with a glass bowl. - For lamps with a weight significantly higher than that of the lamps for which they are a replacement, attention should be drawn to the fact that the increased weitht may reduce the mechanical stability of certain luminaire. Electrical connection - Use only in indoor areas at an ambient temperature 25°C. - Don't use as emergency lighting. - To avoid electrical shock, don't install in damp or wet locations. Remarks - Don't touch the lamp directly with your hand or face when it is in use to avoid burns. - If the lamp is damaged, replace it by a new one and don't try to repair it in order to avoid hazards. - If this lamp should be replaced by a heavier one, please take care that the mechanical stability of the luminaire could be impaired by the increased weight. - Energy saving lamps containing a small amount of quicksilver/mercury (ca. 5 mg). Nevertheless the toxicity of this small amount requires a disposal as hazarduse waste. - In the case a lamp breaks, there is no direct risk for the healthiness, but don’t touch powdery substances, improve air ventilation. Keep children away. Warnings - This product complies with Part 18 of the FCC Rules but may cause interference to TV, radio, wireless remote control or maritime safety communication equipment or other critical navigation or communication equipment operating between 0.45---30 MHZ. If interference would occur, move the lamp away from the appliance a distance of three feet or more, or plug the lamp or the appliance into a different outlet.

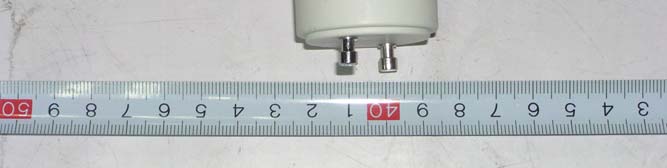

External Photos EUT –Front View EUT- Back View

ID Label Label FCC ID: N8WEU13GU

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. EU-13W-GU24

Internal Photos EUT- Uncovered View EUT–PCB Front View EUT–PCB Back View

Bill of Material Model No. EU-13W 110-130V 60Hz Item Parts and Locations Specification Qty Manufacturer / Supplier 1 Printed Circuit Board ST-3302 1 ZhaoYuan Jinbao Electronics Co.,Ltd. 2 Carbon Film Resistor (R1 、 R2) 560K Ω 1/4W 2 3 Carbon Film Resistor (R3, R4) 12 Ω 1/4W 2 Hangzhou Hangzhu Electronics Co., Ltd Ningbo Heda Electronics Co.,Ltd. 4 Electrolytic Capacitor (C2) 10μF/200V 1 Tianjin Matsushita Electronic Components Co.,Ltd. Nichicon Electronics Co.,Ltd. Yiyang Zijiang Electronic Co., Ltd. 5 Polyester Film Capacitor (C1 、 C5) 0.1 μ F/250V 1 6 Polyester Film Capacitor (C3) 0.00047 μ F/630V 1 7 Polyester Film Capacitor(C4) 0.022 μ F/100V 2 8 Polyester Film Capacitor (C6) 0.0047 μ F/1000V 1 YangzhouGaoqiang Electronics Co., Ltd. Zhuji Wufeng Electuonics Co.,Ltd. Sichuan zhongxing Electuonics Co.,Ltd. 9 Transistor (Q1, Q2) 13003 V6D 2 WuxiHuajing Matroelectronics Co., Ltd. Ningbo Mingxin Matroelectronics Co.,Ltd. 10 Diode (D1~D5) 1N4007 5 Changzhou Galaxy Electronics Co., Ltd. Ningbo Yongjin Electronics Co., Ltd. 11 Trigger Diode (D6) DB3 1 Jinnan Jingheng Electronics Co., Ltd 12 Inductor (L1) I Type60uH, Φ 6x8 1 Changzhou Fuda Electronics Co., Ltd. Shangyu Dongguan Electronics Co.,Ltd. Haining Lianfeng Magne Co.,Ltd. 13 Inductor (L2) EE13 Type 1.6mHX 1 Shaoxing Chengtian Electronics Co., Ltd. Shanghai Shunci Electronics Co., Ltd. 14 Coil (RK) Coil Transformer 3KB 3:3:3 1 Hebei Laici&Quest Magne Co.,Ltd. Shanghai Shunci Electronics Co.,Ltd. Sichuan Deyang Boyi Magne Co.,Ltd. 15 FS 0.75A 250V 36ES 1 Sleek co.,ltd 16 Fluorescent Tube Φ 10mm LX-13W 1 Hangzhou Xinlian Enterprise Ltd. Yangzhou Gaoguang Ligting Appliances Co., Ltd 17 Power Wire AW1015#26 Wire UL(E212811) 1 Yuyao Donghai Special wire Factory 18 Pin (J1~J4) Copper Pin 4 Jiangsu Riyue Electric Co., Ltd. 19 Lamp Base Brass GU24 1 Philips Lighting Bielsko-biala. Don gwuan Kaisheng Lampholder Industrial Co.,Ltd. 20 Plastic Enclosure/Inductor Frame EW-17/2 Φ38 PBT4308G30 UL (E139063) 1 Super Trend Lighting Ltd. 21 Sleeving E173547 1 Standard Luse Co.,Ltd.

ST-EN-GY-082 A ST-3302 61 ST-3302 R1 R4R3 R2 Q1Q2 RK-b RK-a RK-c L1 L2 C2 C4 C3 C5 D5 D6 N L 120V AC 50Hz/60Hz F. LAMP C1 D1 D2 D3 D4 C6 J1 J2 J3 J4 RFS D8D7

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Super Trend Lighting Limited Rm 302-306, Hewlett Centre, 54 Hoi Yuen Road, Kwun Tong, Kowloon, H.K. FCC ID: N8WEU13GU August 26, 2006 This Report Concerns: Original Report Equipment Type: CFL Test Engineer: Simon Mo Report Number: RSZ06081952 Test Date: August 23, 2006 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, GuangDong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Super Trend Lighting Limited FCC ID: N8WEU13GU Report # RSZ06081952 Page 2 of 10 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSION...........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................8 PLOT(S) OF TEST DATA................................................................................................................................................8 Super Trend Lighting Limited FCC ID: N8WEU13GU Report # RSZ06081952 Page 3 of 10 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Super Trend Lighting Limited’s model: EU-13W-GU24, or the “EUT” as referred to in this report is a CFL which measures approximately 9 cm L x 5 cm W x 5 cm H, rated input voltage: AC 120V/60Hz. * The test data gathered are from production sample, serial number: 0601107. Provided by the manufacturer, we received EUT on 2006-8-19. Objective The following test report is prepared on behalf of Super Trend Lighting Limited in accordance with Part 2, Subpart J, and Part 18, Subparts A, B and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to determine compliance with FCC Part 18 limits. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All measurement was performed at Bay Area Compliance Lab Corp. (ShenZhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. Test Facility The Test site used by Bay Area Compliance Lab Corp. (ShenZhen) to collect radiated and conducted emission measurement data is located in the 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, GuangDong 518038, P.R.China. Test site at Bay Area Compliance Lab Corp. (ShenZhen) has been fully described…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission - Front View Conducted Emission - Side View
