N8WTRENDEnergy Saving Lamp

User Manual: Please read this user manual carefully before installation. Keep user manual for further reference. Technical Data: Model Rated Voltage Input Frequency Rated Wattage Rated Current Lamp Cap EB-3W 110-130V 60Hz 3 40 E26 EG-3W 110-130V 60Hz 3 40 E26 EU-5W 110-130V 60Hz 5 70 E26 EF-5W 110-130V 60Hz 5 70 E26 EG-7W 110-130V 60Hz 7 95 E26 Treatment of the lamp - Please don't drop the lamp or push against it. - Please don't disassemble the lamp, don't make alterations.2 Installation - Can't be used in dimming circuit. - Don't install inside a recessed area in the wall. - Don't use lids without ventilation openings. - Don't cover with a glass bowl. - For lamps with a weight significantly higher than that of the lamps for which they are a replacement, attention should be drawn to the fact that the increased weight may reduce the mechanical stability of certain luminaire. Electrical connection - Use only in indoor areas at an ambient temperature 25°C. - Don't use as emergency lighting. - To avoid electrical shock, don't install in damp or wet locations. Remarks - Don't touch the lamp directly with your hand or face when it is in use to avoid burns. - If the lamp is damaged, replace it by a new one and don't try to repair it in order to avoid hazards. - If this lamp should be replaced by a heavier one, please take care that the mechanical stability of the luminaire could be impaired by the increased weight. - Energy saving lamps containing a small amount of quicksilver/mercury (ca. 5 mg). Nevertheless the toxicity of this small amount requires a disposal as hazarduse waste. - In the case a lamp breaks, there is no direct risk for the healthiness, but don’t touch powdery substances, improve air ventilation. Keep children away. Warnings This product complier with Part 18 of the FCC rules but may cause interference to televisions, radios, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or plug the lamp or the compliance into a different outlet.

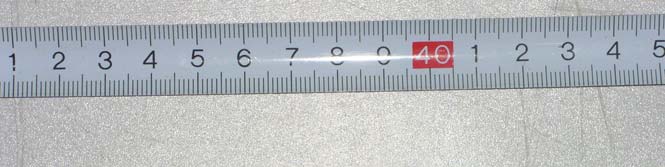

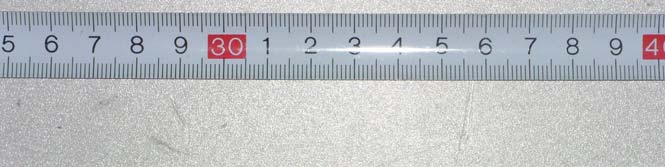

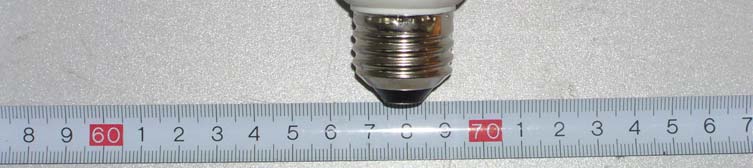

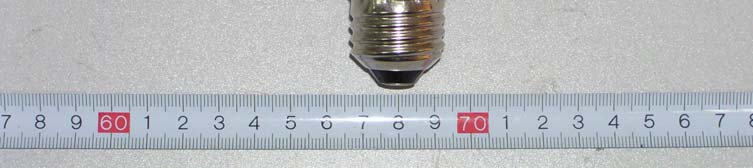

External Photos EUT- Front View (Model: EB-3W) EUT- Back View (Model: EB-3W) EUT- Front View (Model: EF-5W) EUT- Back View (Model: EF-5W) EUT- Front View (Model: EG-3W) EUT- Back View (Model: EG-3W) EUT- Front View (Model: EG-7W) EUT- Back View (Model: EG-7W) EUT- Front View (Model: EU-5W) EUT- Back View (Model: EU-5W)

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. Model: EB-3W Model: EF-5W Model: EG-3W Model: EG-7W Model: EU-5W

ID Label Label FCC ID: N8WTREND

Internal Photos EUT-Uncovered View (Model: EB-3W) EUT-PCB Front View (Model: EB-3W) EUT-PCB Back View (Model: EB-3W) EUT-Uncovered View (Model: EF-5W) EUT-PCB Front View (Model: EF-5W) EUT-PCB Back View (Model: EF-5W) EUT-Uncovered View (Model: EG-3W) EUT-PCB Front View (Model: EG-3W) EUT-PCB Back View (Model: EG-3W) EUT-Uncovered View (Model: EG-7W) EUT-PCB Front View (Model: EG-7W) EUT-PCB Back View (Model: EG-7W) EUT-Uncovered View (Model: EU-5W) EUT-PCB Front View (Model: EU-5W) EUT-PCB Back View (Model: EU-5W)

APPLICANT Super Trend Lighting Ltd. PRODUCT ENERGY SAVING LAMP MODEL EB-3W DATE May, 09, 2006 COMPONENT MANUFACTUR ER MODEL RATINGS UL FILE No. 1 Fuse Sleek co.,ltd 36ES 2A 250V E149907 2 Enclosure JIANGYIN JIHUA NEW MATERIAL CO LTD PBT4308G30 130C, V-0 UL (E139063) 3 PCB ZHAOYUAN JINBAO ELECTRONICS CO LTD. XMZ-1 125C, V-0 E250425 4 Silicone sealant SHEN ZHEN JI XI SELICONE MATERIAL CO.,LTD GS-102 -50-200°C No 5 Heat shrinkable tube SHENZHEN WOER HEAT-SHRINKA BLE MATERIAL CO LTD RSFR-x 600V, 125C E203950 6 Magnetic wire Shanghai Asia Pacific Eelctric Co. Ltd. MW79 155 E214423 7 Bobbin JIANGYIN JIHUA NEW MATERIAL CO LTD PBT4308G30 130C, V-0 UL (E139063) 8 Insulation tape SUZHOU JINGYI SPECIAL ADHESIVE TAPE CO LTD JY312 130C E188295 9 Input wire Yuyao Donghai Special wire Factory 1015 24AWG E212811 1 0 1 1 1 2

Circuit Schematic D5 D2D1 D4D3 C4 C3 C1 C5 C2 FS R2 R4 R5R3 R6 R1 T2 T1 L2 L1 AC AC J4J3 J2J1 2 2 1 1 D6 C6 2 2 1 1 4 4 5 5 6 6 3 3 RK

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Super Trend Lighting Limited Rm 302-306, Hewlett Centre, 54 hoi Yuen Rosd, Kwun tong, Kowloon, H.K. FCC ID: N8WTREND November 3, 2006 This Report Concerns: Original Report Equipment Type: Energy Saving Lamp Test Engineer: Simon Mo Report Number: RSZ06081951 Test Date: October 31, 2006 Reviewed By: EMC Engineer: Boni Baniqued Prepared By: Bay Area Compliance Laboratory Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, GuangDong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Super Trend Lighting Limited FCC ID: N8WTREND Report # RSZ06081951 Page 2 of 21 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSION...........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 PLOT(S) OF TEST DATA..............................................................................................................................................11 Super Trend Lighting Limited FCC ID: N8WTREND Report # RSZ06081951 Page 3 of 21 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Super Trend Lighting Limited’s model: EB-3W, EG-3W, EG-7W, EF-5W, EU-5W, or the “EUT” as referred to in this report is a Energy Saving Lamp which measures approximately EB-3W: 11.0 cm L x 4.0 cm W, EG-7W: 11.0 cm L x 6.0 cm W, EF-5W: 12.0 cm L x 6.5 cm W, EU-5W: 10.0 cm L x 4.2 cm W, rated input voltage: AC 120V/60Hz. * The test data gathered are from production sample, serial number: 0601106, 0601112, 0601113, 0601114. Provided by the manufacturer, we received EUT on 2006-08-19. Objective The following test report is prepared on behalf of Super Trend Lighting Limited in accordance with Part 2, Subpart J, and Part 18, Subparts A, B and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to determine compliance with FCC Part 18 limits. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All measurements were performed at Bay Area Compliance Laboratory Corp. (Shenzhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. Test Facility The Test site used by Bay Area Compliance Laboratory Corp. (Shenzhen) to collect radiated and conducted emission measurement data is located in t…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission-Front View Conducted Emission-Side View
