© 2001 Firstech, Inc. Page 1 Two-Way FM Remote USER’S GUIDEUSER’S GUIDE By Firstech, Inc. Website: www.compustar.org © 2001 Firstech, Inc. Page 2 TABLE OF CONTENTSTABLE OF CONTENTS Safety Information...............................................................Page 3 Remote-Pager: 2WFMR w/LCD......................................................3 CompuGLO color LCD (Liquid Crystal Display)..................................4 Remote-Pager Button Functions................................................... 5 Remote-Pager Learn Routine...................................................... 6 Alarm Mode...............................................................................6 Dual Stage Shock Sensor............................................................ 7 Auto-start Function..................................................................... 7 Reservation Mode......................................................................8 Trunk Release .....................................................................10 Query Function ..........................................................................10 Panic Mode..............................................................................10 Valet Mode ...............................................................11 Timer Start Mode...........................................................................11 Safety Shutdown Features.............................................................12 RPS (Remote Paging System).........................................................12 Optional Programmable Features ...................................................12 Ignition Lock ...........................................................................12 Auto Arming ...........................................................................12 Passive Arming.........................................................................13 Turbo Mode...........................................................................13 Optional Installation Features.........................................................14 Cold Start Mode .....................................................................14 Optional Auxiliary 1 & Auxiliary 2................................................14 Warranty.....................................................................14 Important Information: This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This Device may not cause harmful interference,, and (2) This Device must accept any interference received, Including interference that may cause undesired operation Caution: Charges or modifications could void the User’s authority to operate this device. © 2001 Firstech, Inc. Page 3 Safety Information Safety Information Please take these safety precautions under the following conditions: 1. Servicing the vehicle When servicing (i.e. changing the oil, washing your car) your automobile, the CompuStar system should be in Valet Mode. There is a safety shutdown switch under the hood that deactivates the remote starter function if the hood is open. However, if the switch has been damaged or the switch has been installed improperly, the vehicle may start when Button II is pressed for 2 seconds even if the hood is open. 2. Loaning your vehicle to others Whenever you loan your vehicle to an individual who is not familiar with Compustar, please put the vehicle in Valet mode. This will prevent the vehicle loaner from accidentally activating the CompuStar auto-security system. 3. For manual transmission vehicles If the Compustar 2WSSR is installed in a manual transmission vehicle, extra precautions are required because the Compustar does not monitor the gear shift: Important! Under normal circumstances, Reservation Mode is cancelled when a door or hatchback opens. Please verify if the opening of any door or hatchback cancels Reservation Mode. If any of the doors or hatchback is not monitored by CompuStar because of improper installation or a faulty dome light switch, do not use the CompuStar and take your vehicle to the dealer immediately for repair. Do not set Reservation Mode when the window(s) are open or if there is anyone inside of the vehicle including animals. RemoteRemote--Pager: 2WFMR w/LCDPager: 2WFMR w/LCD The model name, 2WFMR, stands for Two Way Frequency Modulation Remote with Liquid Crystal Display. This transmitter that allows you to © 2001 Firstech, Inc. Page 4 activate multiple functions by pressing a combination of 4 buttons on the unit in order to transmit signals. CompuGLO color LCDCompuGLO color LCD The remote-pager comes with CompuGLO which is a unique color LCD display that visually tells the vehicle owner the security status of your car at all times. There are differing icons that will appear on your CompuGLO LCD indicating what your vehicle is currently doing. Icon Explanation Auto N/A Turbo IndicateS if Turbo Mode is on or off. Timer Indicates if Timer Start Mode is on or off. Passive Indicates if Passive Arming Mode is on or off. Hammer Indicates that the first or second stage shock sensor has been triggered. Remote Vibration Indicates that Shock sensor is by-passed or not. Zzzz Indicates if you are in Valet Mode. Parking Lights Indicates if your car parking lights are flashing. Car Siren Indicates that your car siren is turned on or off when you lock or unlock the vehicle. Phone Indicates that someone is paging you from your vehicle. Lock/Unlock Displays if your car is armed or disarmed. Transmitting Indicates if your remote-pager is transmitting signals to the controller unit. Battery Displays remaining battery life. Blinking Battery while engine running Displays running time left – each bar represents 25% of the running time. Door Displays if your door is open. Exhaust Fumes Displays if your vehicle has auto-started properly or ignition on. Trunk Displays if your trunk is open. Hood Displays if your hood is open. © 2001 Firstech, …

Text truncated - open the document above for the full version.

801 E. 82nd St., Unit 1, Anchorage, Alaska 99518 USA Phone (907) 563-8648 ~ Fax (907) 563-8642 [email protected] www.compustar.org CONFIDENTIALITY REQUEST LETTER FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: N99J2WFMR To Whom it May Concern: In accordance with §0.459 of CFR 47, Firstech, Inc. requests confidentiality for the following items: 1. Block Diagram 2. Schematic Diagrams 3. Theory of Operation These items contain detailed system and equipment description and related information about the product which Firstech, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Firstech, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best regards, Ken H. Lee Design Engineer

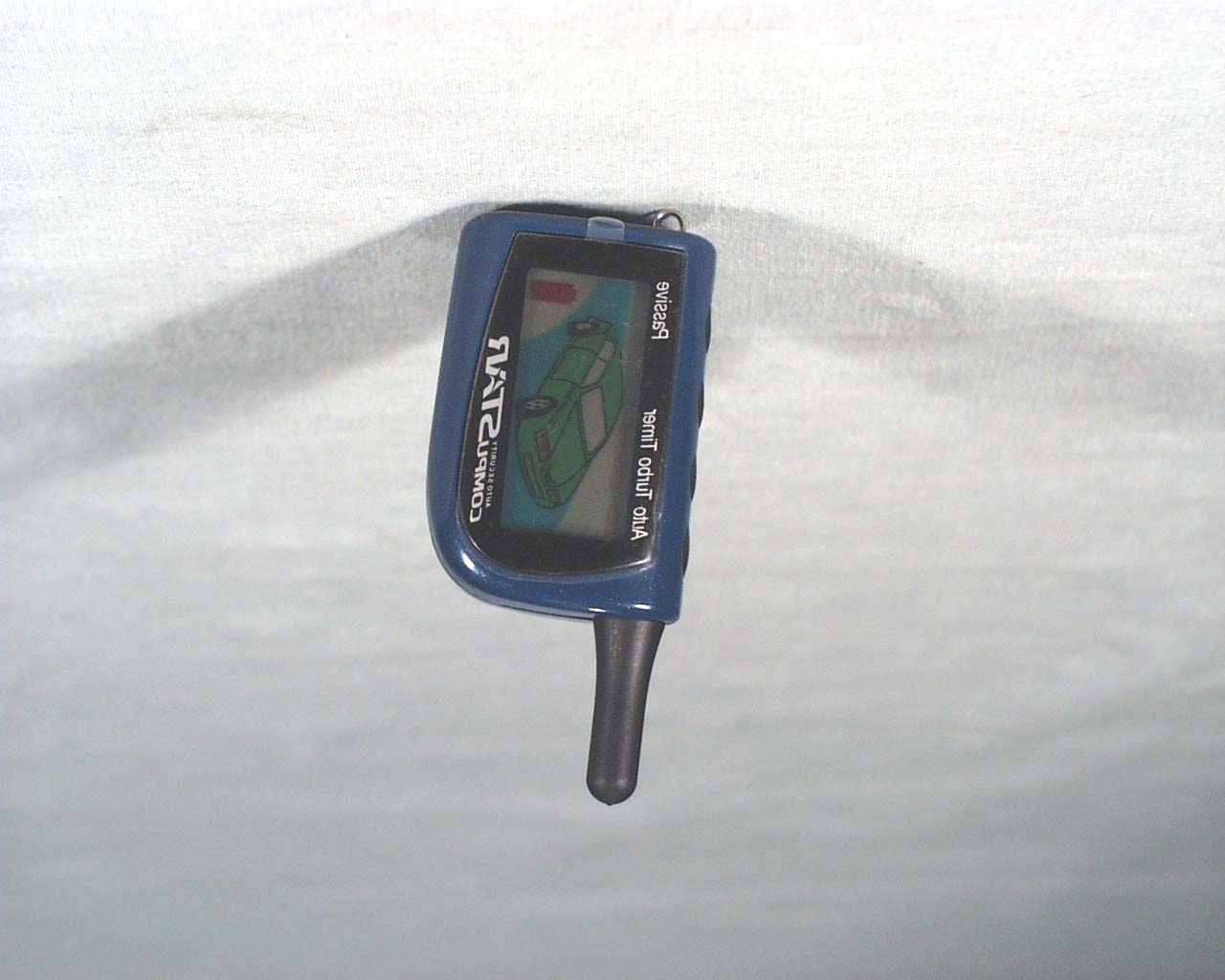

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7645 FCC ID: N99J2WFMR Page 23 of 31 Front View Of The EUT COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7645 FCC ID: N99J2WFMR Page 24 of 31 Back View Of The EUT COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7645 FCC ID: N99J2WFMR Page 25 of 31 Side View Of The EUT Showing The Buttons

FCC ID : N99J2WFMR Remote Bot tom View FCC Label Locat ion FCC ID : N99J2WFMR Other required text to be provided in the user manual

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7645 FCC ID: N99J2WFMR Page 26 of 31 Front View Of the LCD PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7645 FCC ID: N99J2WFMR Page 27 of 31 Back View Of The LCD PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7645 FCC ID: N99J2WFMR Page 28 of 31 Front View Of The Antenna Daughter Board COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7645 FCC ID: N99J2WFMR Page 29 of 31 Back View Of The Antenna Daughter Board

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7645 FCC ID: N99J2WFMR Page 21 of 31 PPENDIX 2 Photographs: A Front View Of The Radiated Test Setup COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7645 FCC ID: N99J2WFMR Page 22 of 31 Back View Of The Radiated Test Setup
