N99J2WFMRSremote for car start/alaarm system

© 2001 Firstech, Inc. Page 1 Two-Way FM Remote USER’S GUIDEUSER’S GUIDE By Firstech, Inc. Website: www.compustar.org © 2001 Firstech, Inc. Page 2 Safety Information Safety Information Please take these safety precautions under the following conditions: 1. Servicing the vehicle When servicing (i.e. changing the oil, washing your car) your automobile, the CompuStar system should be in Valet Mode. There is a safety shutdown switch under the hood that deactivates the remote starter function if the hood is open. However, if the switch has been damaged or the switch has been installed improperly, the vehicle may start when Button II is pressed for 2 seconds even if the hood is open. 2. Loaning your vehicle to others Whenever you loan your vehicle to an individual who is not familiar with Compustar, please put the vehicle in Valet mode. This will prevent the vehicle loaner from accidentally activating the CompuStar auto-security system. 3. For manual transmission vehicles If the Compustar 2WSSR is installed in a manual transmission vehicle, extra precautions are required because the Compustar does not monitor the gear shift: Important! Under normal circumstances, Reservation Mode is cancelled when a door or hatchback opens. Please verify if the opening of any door or hatchback cancels Reservation Mode. If any of the doors or hatchback is not monitored by CompuStar because of improper installation or a faulty dome light switch, do not use the CompuStar and take your vehicle to the dealer immediately for repair. Do not set Reservation Mode when the window(s) are open or if there is anyone inside of the vehicle including animals. RemoteRemote--Pager: 2WFMR w/LEDPager: 2WFMR w/LED The model name, 2WFMR, stands for Two Way Frequency Modulation Remote with L.E.D. This transmitter that allows you to activate multiple functions by pressing a combination of 4 buttons on the unit in order to transmit signals. © 2001 Firstech, Inc. Page 3 Remote-Pager Button Functions Button Pressed For Function 1. I 1/2 sec Lock/Unlock 2. II 1/2 sec Auxiliary Option 1 3. III 1/2 sec Auxiliary Option 2 4. IV 1/2 sec Query Function 5. I - 2 sec N/A 6. II - 2 sec Auto-start Function - on/off 7. III - 2 sec Trunk Release – on/off 8. IV - 2 sec N/A. 9. (I+II) 1/2 sec N/A 10. (I+III) 1/2 sec Valet Mode – on/off 11. (II+III) 1/2 sec N/A 12. (II+IV) 1/2 sec Timer Start Mode - on/off 13. (III+IV) 1/2 sec Turbo Mode - on/off 14 (I+III) - 2 sec N/A 16. (I+II) - 2 sec Programming Menu 1 – Installer Only 17. (I+IV) - 2 sec Programming Menu 2 – Installer Only Note: - meand pressing the button for 2 seconds. ( ) means simultaneously pressing the buttons ( ) – means simultaneously pressing the buttons for 2 seconds Remote Button Functions Button Press ed For Function 1. I Lock/Unlock © 2001 Firstech, Inc. Page 4 2. II - 2 sec Auto-start Function - on/off 3. III - 2 sec Trunk Release – on/off 4. IV Query Function 5. (I+III) Valet Mode – on/off 6. (II+III) Passive Locking – on/off 7. (II+IV) Timer Start Mode - on/off 8. (III+IV) Turbo Mode – On/Off 9. (I+II) - 2 sec Programming Menu 1 – Installer Only 10. (I+IV) - 2 sec Programming Menu 2 – Installer Only Note: ( ) means simultaneously pressing the buttons Remote Learn Routine Remote Learn Routine If you replace or add additional remotes, you can program up to three remotes, please perform the following procedure: Step 1: Activate Valet/Programming mode by manually turning the ignition on and off five times (between Acc and On) with car key within a 10 second period. The parking light will flash once with successful completion of this step. Step 2: Within a 10 second period after cycling the ignition for the 5 th time, press button I. The car parking lights will flash once to confirm that the transmitter has been programmed. Continue program the additional remotes. The parking lights will flash two times when the programming mode is expired. Keyless EntreeKeyless Entree You can lock or unlock by pressing Button I for a ½ second. © 2001 Firstech, Inc. Page 5 AutoAuto--Start FunctionStart Function Press Button II for 2 seconds to auto-start an automatic transmission engine. Remember that a manual key in the ignition is required to drive the car. In addition, the anti-grind circuit (this maybe an optional feature provided by your installer) prevents you from re-cranking the starter on a remote-started vehicle. Press Button II for 2 seconds in order to turn off an auto-started car. For manual transmission vehicles, please use reservation mode. The engine will run 15 or 25 minutes (25 or 40 min for diesel) depending on preset options at the time of installation and then shut off. If your remote has a problem starting the vehicle, CompuStar will try 2 additional times. If the engine does not start after the third attempt, please call your authorized CompuStar dealer. Continuation Mode: While your vehicle is running with your key, if you press button II for 2 seconds, you are now in the continuation mode. Your engine will continue running for the preset time even if you take your key from the ignition. With this mode, the engine will continue running without key during your quick stop at, for example, a grocery store. Diagnosing problems with Auto-Start If there is a problem in auto-starting your car, wait for few seconds and the cause for the error will be indicated by the number of times the car parking lights flash. Error Number (# of times the car chirps & parking lights flash) Error Reason 1 Engine On 2 Key On 3 Door Open 4 Trunk Open 5 Brake/E-Brake On 6 Hood Open 7 Reservation Off (Manual Transmission Only) Reservation Mode (manual transmisReservation Mode (manual transmission sion only)only) © 2001 Firstech, Inc. Page 6 In order to auto-start your manual transmission car, you must first set the CompuStar system to Reservation Mode before leaving your vehicle. The purpose of Reservation Mode is to leave the transmission gear in the neutral position when you leave your vehicle. Reservation…

Text truncated - open the document above for the full version.

801 E. 82nd St., Unit 1, Anchorage, Alaska 99518 USA Phone (907) 563-8648 ~ Fax (907) 563-8642 [email protected] www.compustar.org CONFIDENTIALITY REQUEST LETTER FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: N99J2WFMRS To Whom it May Concern: In accordance with §0.459 of CFR 47, Firstech, Inc. requests confidentiality for the following items: 1. Block Diagram 2. Schematic Diagrams 3. Theory of Operation These items contain detailed system and equipment description and related information about the product which Firstech, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Firstech, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best regards, Ken H. Lee Design Engineer

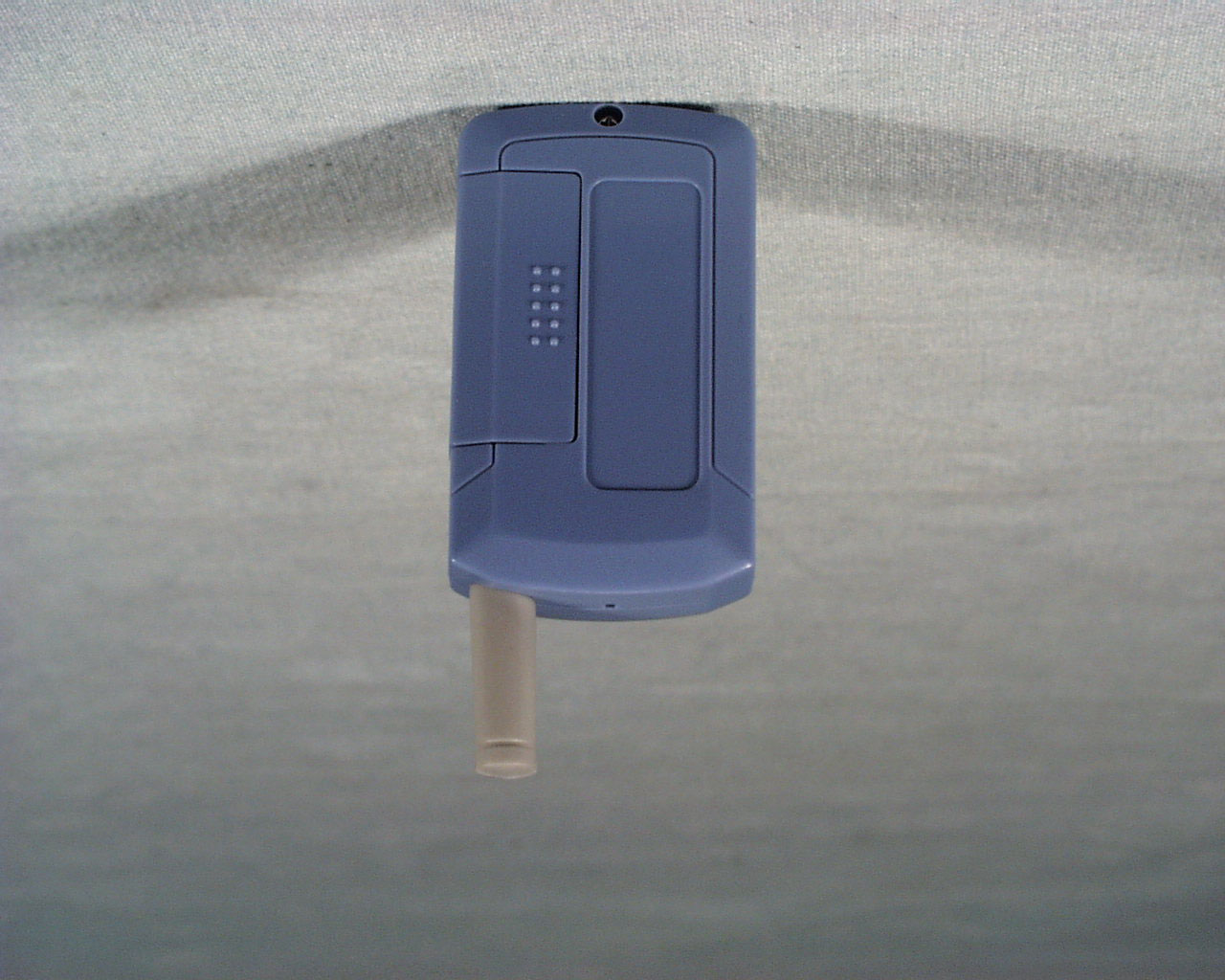

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 22 of 29 Front View Of The EUT COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 23 of 29 Back View Of The EUT

FCC ID : N99J2WFMRS Remote Bottom View FCC ID : N99J2 WFM R S Proposed Label Location Other required text to be provided in the user manual

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 24 of 29 Front View Of the Antenna PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 25 of 29 Back View Of The Antenna PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 26 of 29 Front View Of The Daughter Board COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 27 of 29 Back View Of The Daughter Board

TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: 2WFMRS FCC ID: N99J2WFMRS To FCC PART 15, Subpart C Section 15.231 Test Report Serial No: 73-7646 Applicant: Firstech Inc. 801 E. 82 nd Ave. Unit #1 Anchorage, AK 99518 Date of Test: November 27 - 28, 2001 Issue Date: November 29, 2001 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 2 of 29 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the certification requirements of FCC Part 15, Subpart C Section 15.231. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Firstech, Inc. - Manufacturer: Youngshin Electronics Co., LTD - Trade Name: CompuStar - Model Number: 2WFMRS - FCC ID: N99J2WFMRS On this 29 th day of November 2001, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, NVLAP does not endorse the product described in this report. COMMUNICATION CERTIFICATION LABORATORY Checked by: Scott B. Earl Vice President Tested by: Kirk P. Thomas Project Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 3 of 29 TABLE OF CONTENTS SECTION 1.0 CLIENT INFORMATION..................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT)..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES............6 SECTION 5.0 SUMMARY OF TEST RESULTS............................11 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESUTLS.....12 APPENDIX 2 Photographs:........................................20 APPENDIX 3 PART 15, Subpart B:.................................28 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 4 of 29 SECTION 1.0 CLIENT INFORMATION 1.1 Client Information: Company Name: Firstech Inc. 801 East 82 nd Avenue Unit #1 Anchorage, AK 99518 Contact Name: Jason Lee Title: President 1.2 Manufacturer: Company Name: YOUNGSHIN ELECTRONICS CO., LTD. 4FL Hirun Town Bldg 536-3. Unhaeng-Dong. Sihung, Kyungki-Do, KOREA 429-060 Contact Name: Young T1 Change Title: President COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 5 of 29 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name: CompuStar Model Name or Number: 2WFMRS Serial Number: N/A Options Fitted: N/A Country of Manufacture: Korea 2.2 Description of EUT: The 2WFMRS is a hand-held transceiver for an auto start system. The 2WFMRS has 4 buttons and an LED indicator. By pressing a button, or a combination of buttons on the 2WFMRS, an RF signal is transmitted to another transceiver, which is installed in a vehicle. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 6 of 29 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15). Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Purpose of Test: The tests were performed to demonstrate Initial compliance. 3.2 Methods & Procedures: 3.2.1  15.231 (a) The provision of this section are restricted to periodic operation within the band 40.66-40.70 MHz and above 70 MHz. Except as Shown in paragraph (e) of this section, the intentional radiator is restricted to the transmission of a control signal such as those used with alarm systems, door openers, remote switches, etc. Radio control of toys in not permitted. Continuous transmissions, such as voice or video, and data transmissions are not permitted. The prohibition against data transmissions does not preclude the use of recognition codes. Those codes are used to identify the sensor that is activated or to identify the particular component as being part of the system. The following conditions shall be met to comply with the provisions for this periodic operation: (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. (2) A transmitter activated automatically shall cease transmission within 5 seconds after activation. (3) Periodic transmissions at regular predetermined intervals are not permitted. However, polling or supervision transmission to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. (4) Intentional radiators which are employed for radio control COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 7 of 29 purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operated during the pendency of the alarm condition. (b) In addition to the provisions of  15.205, the field strength of emission from intentional radiators operated under this section shall not exceed the following: Fundamental frequency (MHz) Field strength of fundamental (microvolts/meter) Field strength of spurious emissions (microvolts/meter) 40.66 - 40.70 2,250 225 70 –130 1,250 125 130 – 174 1,250 to 3,750 ** 125 to 375 ** 174 – 260 3,750 375 260 – 470 3,750 to 12,500 ** 375 to 1,250 ** Above 470 12,500 1,250 ** Linear interpolations (1) the above field strength limits are specified at a distance of 3 meters. The tighter limits apply at the band edges. (2) Intentional radiators operating under the provisions of this …

Text truncated - open the document above for the full version.

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 20 of 29 PPENDIX 2 Photographs: A Front View Of The Radiated Test Setup COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7646 FCC ID: N99J2WFMRS Page 21 of 29 Back View Of The Radiated Test Setup
