N99SSTMwindshield mounted portion of remote car starting

© 2001 Firstech, Inc. Page 1 By Firstech, Inc INSTALLATION AND USER’S INSTALLATION AND USER’S GUIDEGUIDE website: www.compustar.org © 2001 Firstech, Inc. Page 2 FCC/ID NoticeFCC/ID Notice –– N99SSTM N99SSTM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ß Reorient or relocate the receiving antenna. ß Increase the separation between the equipment and receiver. ß Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ß Consult your Authorized CompuStar dealer. ANTENNA MODULEANTENNA MODULE CompuStar 2WSSM is an antenna module (hereinafter called Antenna Module) with the FCC ID N99SSTM. Antenna Module is installed on the windshield horizontally for the maximum transmitting distance with Remote-Pager. © 2001 Firstech, Inc. Page 3 When Antenna Module receives a radio frequency signal from the hand- held transceiver (hereinafter called “Remote Pager”), the signal is demodulated to digital codes and then send it to Controller, then sends confirmation to Remote Pager. The typical electrical function of this Controller is attached in this manual as a wiring diagram. The Controller is connected to Antenna Module by wires. If Controller sends digital codes to Antenna Module through the connecting wires, the codes are modulated to radio frequency signal and sent to Remote Pager.

801 E. 82nd St., Unit 1, Anchorage, Alaska 99518 USA Phone (907) 563-8648 ~ Fax (907) 563-8642 [email protected] www.compustar.org CONFIDENTIALITY REQUEST LETTER FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: N99 STTM To Whom it May Concern: In accordance with §0.459 of CFR 47, Firstech, Inc. requests confidentiality for the following items: 1. Block Diagram 2. Schematic Diagrams 3. Theory of Operation These items contain detailed system and equipment description and related information about the product which Firstech, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Firstech, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best regards, Ken H. Lee Design Engineer

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 48 OF 51 Front View Of The SSTM COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 49 OF 51 Back View Of The SSTM

’

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 50 OF 51 Front View Of The SSTM PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 51 OF 51 Back View Of The SSTM PCB

Portable Spread Spectrum transmitter for authoriztion under §15.247. The transmitter operates in a single frequency band and it is not a module that operates as part of another product or device. The device does not operate in conjunction with another transmitter and its antenna is not co-located with other antennas. The device and its antenna may operate at less than 2.5 cm from a person’s body. The peak conducted with peak radiated (EIRP) output power are less than 25 mW. The device operates only in the 900 MHz band. Peak conducted output power is 7.9mW, and the antenna gain is 0 dBi. The antenna is directly attached to the device, no installation instructions are needed. The device is not a modular transmitter. Given these considerations, no instructions to the user are needed in the manual.

TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: SSTM FCC ID: N99SSTM To FCC PART 15.247, Subpart C Test Report Serial No: 73-7474 Applicant: Firstech Inc. 801 Eeast 82 nd Avenue Unit #1 Anchorage, AK 99518 Date(s) of Test: June 19 - 20, 2001 Issue Date: August 1, 2001 Equipment Receipt Date: June 19, 2001 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 1 OF 51 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the requirements of FCC PART 15.247, Subpart C. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Firstech Inc. - Manufacturer’s: YOUNGSHIN ELECTRONICS CO., LTD. - Brand Name: CompuStar - Model Number: SSTM - FCC ID: N99SSTM On this 1 st day of August 2001, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. COMMUNICATION CERTIFICATION LABORATORY Tested by: Kirk P. Thomas Project Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 2 OF 51 TABLE OF CONTENTS PAGE SECTION 1. CLIENT INFORMATION AND MANUFACTURER:............3 SECTION 2. EQUIPMENT UNDER TEST (EUT)......................4 SECTION 3. TEST SPECIFICATION, METHODS & PROCEDURES........6 SECTION 4. OPERATION OF EUT DURING TESTING................12 SECTION 5. SUMMARY OF TEST RESULTS:.......................13 SECTION 6. MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS:...............................................14 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT..............38 APPENDIX 2 PhOTOGRAPHS.....................................46 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 3 OF 51 SECTION 1. CLIENT INFORMATION AND MANUFACTURER: 1.1 Client Information: Company Name: Firstech Inc. 801 Eeast 82 nd Avenue Unit #1 Anchorage, AK 99518 Contact Name: Jason Lee Title: President 1.2 Manufacturer: Company Name: YOUNGSHIN ELECTRONICS CO., LTD. 4FL Hirun Town Bldg 536-3. Unhaeng-Dong. Sihung, Kyungki-Do, KOREA 429-060 Contact Name: Young Tl Change Title: President COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 4 OF 51 SECTION 2. EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name: Firstech Inc. Model Name or Number: SSTM Serial Number: N/A Options Fitted: None Country of Manufacture: Korea 2.2 Description of EUT: The SSTM is the windshield-mounted portion of a remote automobile pager system. The SSTM talks to the SSTR, handheld pager, and allows for remote monitoring and control of an automobiles alarm system, doors, lights, and engine starter. The SSTM transceiver operates in the 900 MHz range. This report covers the transmitter only. The receiver is covered under a separate verification report. 2.3 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. 2.4 EUT and Support Equipment: The FCC ID numbers for both the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number FCC ID Number Description Name of Interface Ports / Interface Cables BN: Firstech Inc. (1) MN: SSTM N99SSTM Transceiver See Section 2.5. BN: Firstech Inc. MN: SS900 N99SYSTM Remote Control Sytem Control / 2 foot 4 Conductor COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 5 OF 51 Note: (1) EUT. (2) Interface port connected to EUT (See Section 2.5) (3) Mouse cable permanently attached. The support equipment listed above was not modified in order to achieve compliance with this standard. 2.5 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT. Cable Descriptions/Length Antenna 1 Soldered directly to EUT Control 1 4 conductor /2 feet COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 6 OF 51 SECTION 3. TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15.247, Subpart C (47 CFR 15). Limits and methods of measurement of radio interference characteristics of radio frequency devices. Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. Purpose of Test: The tests were performed to demonstrate Initial compliance. 3.2 Methods & Procedures: 3.2.1 § 15.247 (a) Operation under the provisions of this section is limited to frequency hopping and direct sequence spread spectrum intentional radiators that comply with the following provisions: (1) Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudorandomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. (i) For frequency hopping systems operating in the 902–928 MHz band: if the 20 dB bandwidth of the hopping channel is less than 250 kHz, the system shall use at least 50 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 20 second period; if the 20 dB bandwidth of the hopping channel is 250 kHz or greater, the system shall use at least 25 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds wi…

Text truncated - open the document above for the full version.

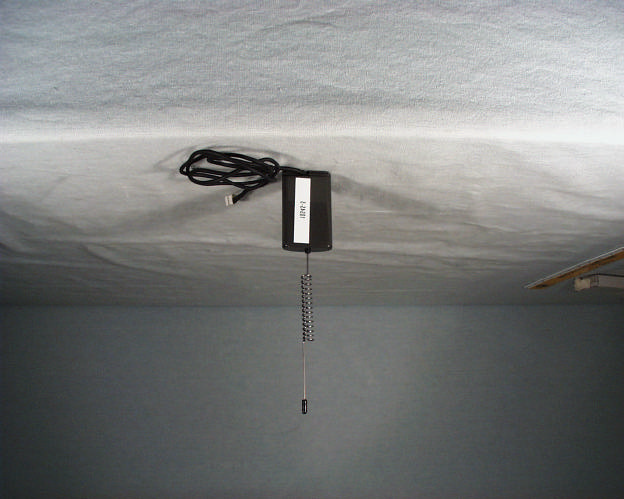

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 46 OF 51 APPENDIX 2 PhOTOGRAPHS Front View of Radiated Test Setup COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7474 FCC ID: N99SSTM Page 47 OF 51 Back View Of Radiated Test Setup
