N9KRCSS-129Remote Control Scary Sounds

Remote Control Scary Sound Manaul Install 4 x AAA batteries into Receiver Ture on and hide Scary Sound Machine Press remote button control button to activate sounds To mount the Scary Sounds Machine under a chair to table etc., apply double faced tape to back.

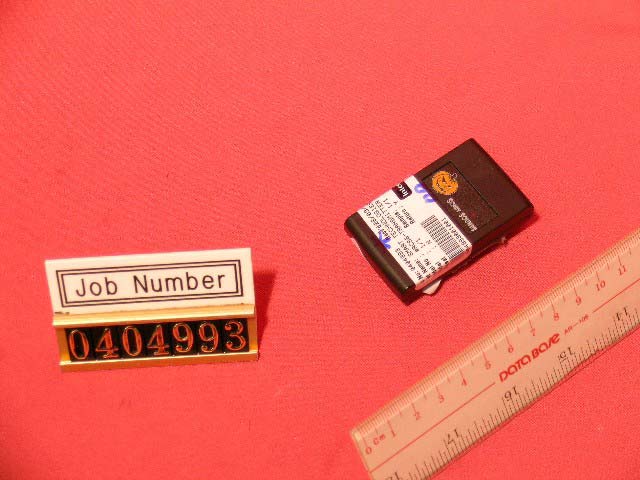

INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 External Photo Front View Rear View

Model: RCSS-129

INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 Internal Photo Photo-1 Photo-2 INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 Internal Photo Photo-3

Model: RCSS-129 Tx: The product is a LC oscillation circuit (Q1, C3, VC1 & L2 Coil layout on printed PCB) controlled transmitter for a Scary Sounds Machine operating at RF 315MHz. The product is powered by a 12V battery (1×23A12V battery). When the on/off button is pressed, a 400Hz digital signal will be generated by Q2 & Q3 and the associated circuit to Q1. The Q1 will modulate the digital signal with the oscillation circuit of C3, L2 & VC1. The RF energy will be generated by the internal antenna.

FILE CODE DESIGNED CHECKED BY PERMITED BY MODEL NAME DATE CAT NO REV DWG BY TX-FCC RCSS 1.0 LICY R1 2.2K R2 1.5M R3 4.7K R4 330K R5 330K R6 4.7K Q1 2SC2714(QY) Q2 3904 Q3 3904 LED RED D=3MM L2 1UH EC24 VC1 2-5P CVN505 C1 6.8P NPO C2 NPO 2p C3 6.8P NPO C4 103J C5 103J C6 470pfB1 12VBATT S1 T-03 R7 200R SMART TECHNOLOGIES & INVESTMENT LTD. SMART ELECTRONIC INDUSTRIAL (SHENZHEN) CO.,LTD.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Smart Technologies & Investment Ltd. Application For Certification (FCC ID: N9KRCSS-129) Transmitter 0404993 DL/ Sandy Lee May 25, 2004 INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 ii MEASUREMENT/TECHNICAL REPORT Smart Technologies & Investment Ltd. MODEL: SCARY SOUNDS MACHINE RCSS-129 FCC ID: N9KRCSS-129 May 25, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 11 3.3 Radiated Emission Data ................................................................................... 12 4.0 Equipment Photographs ................................................................................... 15 5.0 Product Labelling.............................................................................................. 17 6.0 Technical Specifications................................................................................... 19 7.0 Instruction Manual ............................................................................................ 21 8.0 Miscellaneous Information ............................................................................... 23 8.1 Measured Bandwidth........................................................................................ 24 8.2 Discussion of Pulse Desensitization.................................................................. 25 8.3 Calculation of Average Factor........................................................................... 26 8.4 Emissions Test Procedures .............................................................................. 27 INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a transmitter for remote controlled scary sounds machine operating at 315.2MHz. The EUT is powered by 12V battery (1 x “23A” battery). When the on/off button is pressed, a RF signal would be send out to correspondin…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES FCC ID: N9KRCSS-129 Radiated Emissions Test Setup Front View Rear View
