N9SGV1000-2DRemote Transmitter

TOYO ELECTRIC MFG. CO., LTD.
Remote Transmitter - FCC ID N9SGV1000-2D - TOYO ELECTRIC MFG. CO., LTD.
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Jul 01, 2012
Application Purpose
Original Equipment
Date of Application
Jul 01, 2012
Equipment Note
Remote Transmitter
Frequency Range
433.92000000 - 433.92000000
Company
TOYO ELECTRIC MFG. CO., LTD.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TY‐16F Remote Control Page 1 User Manual Battery Installation 1. Remove the remote control and battery from the poly bag. 2. Open the battery cover on the back of the remote by sliding the cover towards the bottom of the remote 3. Clean the battery contacts and also those of the device prior to battery installation. 4. Use only 12V battery type 23A for replacement, use of other batteries may damage remote. 5. Insert negative (‐) end of the battery (see marking on battery) into the spring side of the battery holder and insert positive (+) end of the battery into other side. 6. Close battery cover by sliding back into place. Remote Control Operation: 1. The remote has two buttons on the front side: a. ON/OFF – this is the larger button. Press to turn the set OFF. Press again to turn the set ON. Note: even when the lights are off, the set still has power to all lamps, to disconnect power, you must unplug the set. 1. FUNCTION – this is the smaller button. Press to change the light pattern to the next function mode. NOTES: 1. Light set must be plugged into working outlet for remote to function. 2. When using the remote to turn your set ON, there may be a slight delay before the light pattern starts working. 3. To change the light pattern, it is recommended to wait a few seconds after pressing the FUNCTION button until you reach the desired pattern. 4. If the lights do not change function or the set does not turn on or off with the remote, see the trouble shooting section. 5. If there is a power interruption, including if used on a switched outlet, on a timer, or power failure, the system’s memory will retain the last light pattern displayed. 6. The effective operating distance of the remote is up to 150 feet (45.72 meters). TY‐16F Remote Control Page 2 WARNING: Do not expose remote to moisture. Remove battery when not used for extended period of time, or when depleted. Dispose of batteries properly by following directions on batteries. Use only 12V battery type 23A for replacement, use of other batteries may damage remote. CAUTION: Replace only with 23A Alkaline type batteries. Troubleshooting Instructions: If lights do not change function or turn off or on when a button is pushed: 1. Check that the light on the remote is illuminating and not dim: a. Check that battery is inserted properly (+ and ‐) and making contact (typically LED would not be illuminating in this condition). b. Cl ean battery and remote terminals c. Replace battery 2. Make sure antenna is up. 3. Make sure you are close enough to the light set control box. 4. Move away from other items that may cause interference, such as cell phones, 2‐way radios, microwave ovens, computers, etc. 5. Make sure lig ht string has power: a. Make sure power is on at the outlet (try a different product on the outlet to ensure power is on) b. Make sure outlet is not powered by a dimmer (move to a different outlet) c. Make sure outlet is not on a timer (more to a di fferent outlet) d. Reset Ground Fault Circuit Interrupter (GFCI) in case it accidentally tripped. 6. Unplug light string plug for 1 minute and plug back into powered outlet and retry. 7. If used on a timer controlled circuit, make sure the timer is rated for use with Com pact Fluorescent bulbs (CFL) as some timers will not work properly with electronics. If sets do not turn on when power is turned on to the set (when plugged in, timer turns on, or switch controlling the outlet is turned on), try pushing the “On/Off” button as it may have been turned off via the remote the last time it was used (remember, this product will remember the last function it was turned off at, including if the remote was used to turn the set off). TY‐16F Remote Control Page 3 installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesirable operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not FCC Information

External Photos

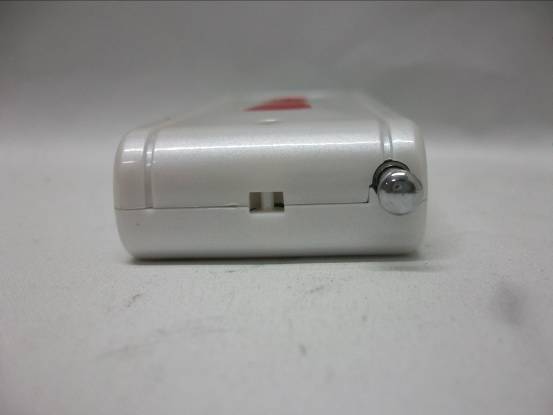

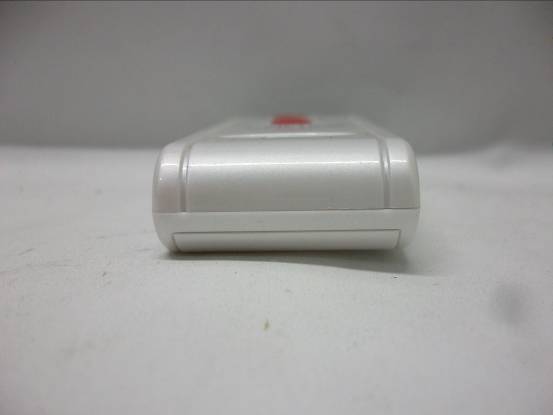

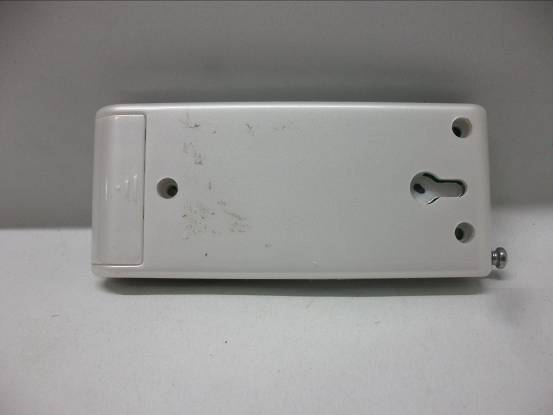

FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE

ID Label/Location Info

FCC ID: N9SGV1000-2D

Internal Photos

INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2

Test Report

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : TOYO Electric MFG. Co., Ltd. Address : 9 th ,FL 30 SEC 3 Renai Rd Daan District, Taipei 106 Taiwan Product Name : Remote Transmitter Model Name : GV1000-2D Brand Name : TOYO FCC ID : N9SGV1000-2D Report No. : MTE/EAH/D12060780 Date of Issue : Jun. 29, 2012 Issued by :Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: N9SGV1000-2D Report No.: MTE/EAH/D12060780 Page 2 of 21 TABLE OF CONTENTS 1.VERIFICATION OF CONFORMITY ........................................................................................ 3 2. GENERAL INFORMATION....................................................................................................... 4 2.1 Product Information ................................................................................................................ 4 2.2 Objective ................................................................................................................................ 5 2.3 Test Standards and Results .................................................................................................... 5 2.4 Environmental Conditions....................................................................................................... 5 3. TEST METHODOLOGY ........................................................................................................... 6 3.1 TEST FACILITY...................................................................................................................... 6 3.2 GENERAL TEST PROCEDURES .......................................................................................... 6 4 SETUP OF EQUIPMENT UNDER TEST .................................................................................. 7 4.1 SETUP CONFIGURATION OF EUT............................................................................................................. 7 4.2 SUPPORT EQUIPMENT.............................................................................................................................. 7 4.3 TEST EQUIPMENT LIST ............................................................................................................................. 8 5. 47 CFR Part 15 C Requirements.............................................................................................. 9 5.1 Radiated Emission ................................................................................................................. 9 5.1.1 Definition ............................................................................................................................. 9 5.1.2 Test Configuration.............................................................................................................. 10 5.1.3 Test Description ..................................................................................................................11 5.1.4 Test Result..........................................................................................................................11 5.2 20dB Bandwidth ................................................................................................................... 15 5.2.1 Requirement...................................................................................................................... 15 5.2.2 Test Description ................................................................................................................. 15 5.2.3 Test Result .....................................................................................................................15 5.3 Transmission Cease Time ....................................................................................................16 5.3.1 Requirement...................................................................................................................... 16 5.3.2 Test Description ................................................................................................................. 16 5.3.3 Test Result......................................................................................................................... 16 5.4 Antenna Requirement........................................................................................................... 18 5.4.1 Definition ........................................................................................................................... 18 5.4.2 Evaluation Procedure ........................................................................................................ 18 5.4.3 Evaluation Criteria ............................................................................................................. 18 5.4.4 Evaluation Results............................................................................................................. 18 APPENDIX 1 .............................................................................................................................. 19 PHOTOGRAPHS OF TEST SETUP........................................................................................... 19 FCC ID: N9SGV1000-2D Report No.: MTE/EAH/D12060780 Page 3 of 21 1.VERIFICATION OF CONFORMITY Equipment Under Test: Remote Transmitter Brand Name: TOYO Model Number: GV1000-2D FCC ID: N9SGV1000-2D TOYO Electric MFG. Co., Ltd. Applicant: 9 th ,FL 30 SEC 3 Renai Rd Daan District, Taipei 106 Taiwan T&Y Electric(Shen…

Text truncated - open the document above for the full version.

Test Setup Photos

CONDUCTED TEST SETUP RE TEST SETUP

Contact Information

Applicant

Dennis Wang(Manager)
[email protected]00886-2-27026037Fax: 00886-2-27026037

Test Firm

Most Technology Service Co., Ltd.Mark Wen
[email protected]86-755-86170306Fax: 86-755-86170310

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.92 MHz - 433.92 MHz-
Confidentiality
Long Term
