N9STY-R-2400REMOTE TRANSMITTER

User Instructions for Model TY-R-2400, TY-T4 and TY-S-2400 Battery Installation 1. Remove the remote control and battery from the poly bag. 2. Open the battery cover on the back of the remote by sliding the cover towards the bottom of the remote 3. Clean the battery contacts and also those of the device prior to battery installation. 4. Use only 12V Alkaline battery type 23A for replacement, use of other batteries may damage remote. 5. Insert negative (-) end of the battery (see marking on battery) into the spring side of the battery holder and insert positive (+) end of the battery into other side. 6. Close battery cover by sliding back into place. Remote Control Operation: The remote has three buttons on the front side to operate the controller with 2422MHz receiver and conneced light set: a. ON/OFF – this is the upper button. Press to turn the set OFF. Press again to turn the set ON. Note: even when the lights are off, the set still has power to all lamps, to disconnect power, you must unplug the set. b. FUNCTION – this is the second button. Press to change the light pattern to the next function mode. After reaching last function, the set can be returned to Function 1 by pressing the function button again. For best results, pause for a few seconds before pushing the “FUNCTION” button again for the next function. c. DIMMER – this is the third button. Press to change the brighteness of a certain lighting pattern. d. SENSOR – this is a lowest button. Press to change the controller working under “ Sensor “ Mode. Controller Installation: FOR WALL MOUNTING Fasten the screws(pre-attached in the upper section of enclosure) and hook the unit to a wall ; Make sure the unit fits securely against the wall. FOR GROUND STAKIING Slide the ground stake into the slot on the base of the unit.Carefully press the stake into the ground. Plug your Christmas light strings or decorative lighting outfits into the outlets of main controllers TY-T4 and satellite controller TY-S-2400 (MAX 420 Watts total). Plug the main power cord into a power outlet (recommended to plug into a receptacle or extended receptacle protected by GFCI). Features: Remote Control Functions a) Regular mode 16 Pre-programmed Settings ( Note: The sequence of Settings may be veried) , the default setting when powered is steady on; 1. Combination Light Show (Cycles through functions) 2. Fast Chasing right to left from one light set to the other + - 3. Fast Chasing left to right from one light set to another 4. Slow to fast chasing right to left from one light set to another. 5. Slow to fast chasing left to right from one light set to another. 6. Flashing/Chasing combination 7. Alternating flashing 8. Bi-Directional Pulsing 9. Bi-directional Chasing 10. Strobing 11. Random Flashing 12. Bi-directional chasing with flashing 13. Pulsing to Strobing feature. 14. Bi-Directional Strobing 15. Fade in / Fade out 16. Steady on (b) Sensor mode As music plays through the speaker with blue tooth feather or memory card, the lights will dance and flash to the rhythm of the music. Press the button “ Sensor “ on the panel of remote controller. Insert the Memory card to the slot, Power on the speaker and the light indicator on the panel is red, the controller can work under SD card Mode; pressing the button “ Mode” and the light indicator is blue, the controller cand work under “ blue tooth” Mode, the speaker can play music sent from your mobile phone or ipod. Press the “volume” control bar to adjust the volume level as you desire. Change the songs just press the backward or forward button. NOTES: 1. Light set must be plugged into working outlet for remote control to function. 2. The remote control unit is the only way to change the function setting of this product. 3. When using the remote to turn your set ON, there may be a slight delay before the light pattern starts working. 4. To change the light pattern, it is recommended to wait a few seconds after each time you press the “FUNCTION” button until you reach the desired pattern/function. 5. If the lights do not change function or the set does not turn on or off with the remote, see the trouble shooting section. 6. If there is a power interruption, including if used on a switched outlet, on a timer, or power failure, the system’s memory will retain the last light pattern displayed. 7. The operating distance of the remote is up to 100 feet ( 30meters). Distance may vary due to other radio transmitters in the area (cell phones, Wi-Fi signals, wireless phones, intercoms, baby monitor, etc.), microwave ovens, computers, materials used in the construction of your home, trees, hills, bushes and other items that may attenuate the radio signal. 8. The battery in the remote will drain and become depleted very quickly if the remote is place where one (or both) of the buttons on the remote are continually pushed (such as placing an item on top of them, or storing the remote upside down). NOTES: A. When multiple light sets are lighted, pressing the FUNCTION button will change all sets to the next pattern. If the set are preprogrammed, then they should all change to the same next pattern. B. These are Radio Frequency controlled devices. All sets within the effective range will be affected and controlled using any one remote. C. If used with a mechanical / digital timer, only one timer must control all sets. In this case, do not turn sets off using the remote or the sets will not turn on with the timer. D. Due to component tolerances, there will be cycle time differences between sets. WARNING: • Do not expose the remote control to moisture. • Remove battery when not used for extended period of time, or when depleted. • Dispose of batteries properly by following directions on batteries. • Use only 12V Alkaline battery type 23A for replacement, use of other batteries may damage remote. Troubleshooting Instructions: • If lights do not change function or turn off or on when a button is pushed: 1. Check that the light on the…

Text truncated - open the document above for the full version.

Letter for Confidentiality Federal Communications Commission Authorization and Evaluation Division Date: Mar.15,2013 Confidentiality Request regarding application for certification of FCC ID: N9STY-R-2400 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1.Schematic 2.Theory of Operation 3.Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, We do not want these documents to be accessible to the general public. Sincerely, (签名人英文名): Dennis Wang (签名人职称):manager TOYO ELECTRIC MFG. CO., LTD. Tel: 00886-2-27026037 Fax: 00886-2-27026037 E-mail:[email protected]

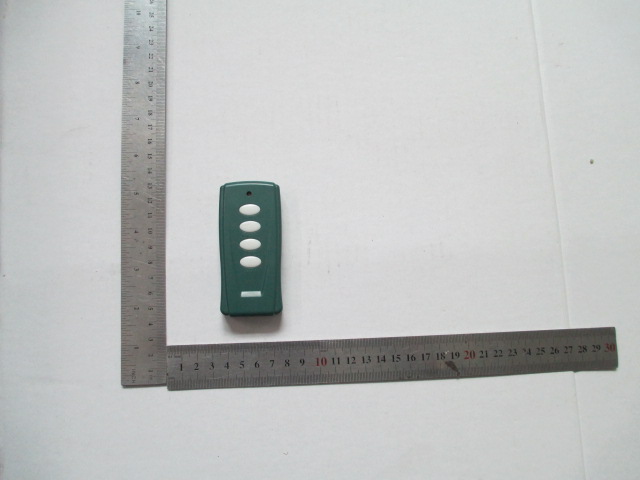

External Photos

Model: TY-R-2400 Date Code: 0513 Power Supply: 12V Type 23A Batteries Module Use Frequency Range: 2432MHz TOYO Electric Mfg. Co., Ltd FCC ID: N9STY-R-2400

Internal Photos

FCC TEST REPORT 47 CFR FCC Part 15 Subpart C 15.249 Report Reference No......................: FCC ID..............................................: TRE13010036 R/C:76145 N9STY-R-2400 Compiled by ( position+printed name+signature)..: File administrators Eric Zhang Supervised by ( position+printed name+signature)..: Test Engineer Tim Zhang Approved by ( position+printed name+signature)..: Manager Wenliang Li Date of issue.....................................: Mar 15, 2013 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address.............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: TOYO ELECTRIC MFG. Co., LTD Address.............................................: 9TH,FL 30 SEC 3 RENAI RD DAAN DISTRICT, TAIPEI 106 TAIWAN Manufacturer’s name.....................: T&Y ELECTRIC(SHENZHEN)Co., LTD Address.............................................: ANLIANG INDUSTRIAL ZONE, HENGGANG, LONGGANG DISTRICT,GD,CHINA Test specification: Standard..........................................: 47 CFR FCC Part 15 Subpart C & 15.249 ANSI C63.10: 2009 TRF Originator ..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment Under Test .................. : REMOTE TRANSMITTER Trade Mark .......................................: / Model/Type reference.......................: TY-R-2400 Listed Models ..................................: / Modulation ........................................: GFSK Result................................................: Complied Report No.: TRE13010036 Page 2 of 24 Issued: 2013-03-15 FCC ID: N9STY-R-2400 Shenzhen Huatongwei International Inspection Co., Ltd T E S T R E P O R T Test Report No. : TRE13010036 Mar 15, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : REMOTE TRANSMITTER Model /Type : TY-R-2400 Listed Models : / Applicant : TOYO ELECTRIC MFG. Co., LTD Address : 9TH,FL 30 SEC 3 RENAI RD DAAN DISTRICT, TAIPEI 106 TAIWAN Manufacturer : T&Y ELECTRIC(SHENZHEN)Co., LTD Address : ANLIANG INDUSTRIAL ZONE, HENGGANG, LONGGANG DISTRICT,GD,CHINA Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE13010036 Page 3 of 24 Issued: 2013-03-15 FCC ID: N9STY-R-2400 Shenzhen Huatongwei International Inspection Co., Ltd Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. Related Submittal(s) / Grant (s) 5 2.6. Modifications 5 3. TEST ENVIRONMENT............................................................... 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Statement of the measurement uncertainty 7 3.4. Summary of standards and result 7 3.5. Environmental conditions 7 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. ANTENNA REQUIREMENT 9 4.2. Conducted Emissions Test (Not Applicable) 10 4.3. Radiated Emission Test 11 4.4. Out of band emissions 16 4.5. 20dB Bandwidth Measurement 17 5. TEST SETUP PHOTOS OF THE EUT .......................................... 18 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 20 Report No.: TRE13010036 Page 4 of 24 Issued: 2013-03-15 FCC ID: N9STY-R-2400 Shenzhen Huatongwei International Inspection Co., Ltd 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Rules Part 15.249: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. ANSI C63.10: 2009 – American National Standard for Teating Unlicensed Wireless Devices Report No.: TRE13010036 Page 5 of 24 Issued: 2013-03-15 FCC ID: N9STY-R-2400 Shenzhen Huatongwei International Inspection Co., Ltd 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Jan 08, 2013 Testing commenced on : Jan 10, 2013 Testing concluded on : Mar 15, 2013 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 12V from battery 2.3. Short description of the Equipment under Test (EUT) 2432MHz REMOTE TRANSMITTER (M/N: TY-R-2400) For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: N9STY-R-2400 filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules. 2.6. Modifications No modifications were implemented to meet testing criteria. Report No.: TRE13010036 Page 6 of 24 Issued: 2013-03-15 FCC ID: N9STY-R-2400 Shenzhen Huatongwei International Inspection Co., Ltd 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan …

Text truncated - open the document above for the full version.

Test photos
