N9STY-T2MAIN CONTOLLER

User Instructions for Model TY-R-433 Remote Controller and Controller TY-T2 Battery Installation 1. Remove the remote control and battery from the poly bag. 2. Open the battery cover on the back of the remote by sliding the cover towards the bottom of the remote 3. Clean the battery contacts and also those of the device prior to battery installation. 4. Use only 12V Alkaline battery type 23A for replacement, use of other batteries may damage remote. 5. Insert negative (-) end of the battery (see marking on battery) into the spring side of the battery holder and insert positive (+) end of the battery into other side. 6. Close battery cover by sliding back into place. Remote Control Operation: The remote has three buttons on the front side to operate the controller with 433MHz receiver and conneced light set: a. ON/OFF – this is the larger button. Press to turn the set OFF. Press again to turn the set ON. Note: even when the lights are off, the set still has power to all lamps, to disconnect power, you must unplug the set. b. FUNCTION – this is the smaller button. Press to change the light pattern to the next function mode. After reaching last function, the set can be returned to Function 1 by pressing the function button again. For best results, pause for a few seconds before pushing the “FUNCTION” button again for the next function. c. DIMMER – this is the lowest smaller button. Press to change the brighteness of a certain lighting pattern. Controller TY-T2 Installation: FOR WALL MOUNTING Fasten the screws(pre-attached in the upper section of enclosure) and hook the unit to a wall ; Make sure the unit fits securely against the wall. FOR GROUND STAKIING Slide the ground stake into the slot on the base of the unit.Carefully press the stake into the ground. Plug your Christmas light strings or decorative lighting outfits into the outlets; (MAX 420 Watts total). Plug the main power cord into a power outlet (recommended to plug into a receptacle or extended receptacle protected by GFCI). Remote Control Functions Regular mode - 16 Pre-programmed Settings ( Note: The sequence of Settings may be veried) , the default setting when powered is steady on; 1. Combination Light Show (Cycles through functions) 2. Fast Chasing right to left from one light set to the other 3. Fast Chasing left to right from one light set to another 4. Slow to fast chasing right to left from one light set to another. 5. Slow to fast chasing left to right from one light set to another. 6. Flashing/Chasing combination + - 7. Alternating flashing 8. Bi-Directional Pulsing 9. Bi-directional Chasing 10. Steady on 11. Strobing 12. Random Flashing 13. Bi-directional chasing with flashing 14. Pulsing to Strobing feature. 15. Bi-Directional Strobing 16. Fade in / Fade out NOTES: 1. Light set must be plugged into working outlet for remote control to function. 2. The remote control unit is the only way to change the function setting of this product. 3. When using the remote to turn your set ON, there may be a slight delay before the light pattern starts working. 4. To change the light pattern, it is recommended to wait a few seconds after each time you press the “FUNCTION” button until you reach the desired pattern/function. 5. If the lights do not change function or the set does not turn on or off with the remote, see the trouble shooting section. 6. If there is a power interruption, including if used on a switched outlet, on a timer, or power failure, the system’s memory will retain the last light pattern displayed. 7. The operating distance of the remote is up to 100 feet (30 meters). Distance may vary due to other radio transmitters in the area (cell phones, Wi-Fi signals, wireless phones, intercoms, baby monitor, etc.), microwave ovens, computers, materials used in the construction of your home, trees, hills, bushes and other items that may attenuate the radio signal. 8. The battery in the remote will drain and become depleted very quickly if the remote is place where one (or both) of the buttons on the remote are continually pushed (such as placing an item on top of them, or storing the remote upside down). NOTES: A. When multiple light sets are lighted, pressing the FUNCTION button will change all sets to the next pattern. If the set are preprogrammed, then they should all change to the same next pattern. B. These are Radio Frequency controlled devices. All sets within the effective range will be affected and controlled using any one remote. C. If used with a mechanical / digital timer, only one timer must control all sets. In this case, do not turn sets off using the remote or the sets will not turn on with the timer. D. Due to component tolerances, there will be cycle time differences between sets. WARNING: • Do not expose the remote control to moisture. • Remove battery when not used for extended period of time, or when depleted. • Dispose of batteries properly by following directions on batteries. • Use only 12V Alkaline battery type 23A for replacement, use of other batteries may damage remote. Troubleshooting Instructions: • If lights do not change function or turn off or on when a button is pushed: 1. Check that the light on the remote is illuminating and not dim: a. Check that battery is inserted properly (+ and -) and making contact (typically LED would not be illuminating in this condition), see page 1 for battery installation details. b. Clean battery and remote terminals. c. Replace battery, see page 1 for battery replacement details. 2. Make sure antenna is up and fully extended. 3. Move away from other items that may cause interference, such as cell phones, 2-way radios, microwave ovens, computers, Wi-Fi access points, etc. 4. Make sure you are close enough to the light set control box. 5. Make sure light string has power: a. Make sure power is on at the outlet (try a different product on the outlet to ensure power is on) b. Make sure outlet is not powered by a dimmer (move to a different outlet) c. Make sure ou…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID: N9STY-T2 Date: Mar.15,2013 To whom it may concern: We, the undersigned, hereby authorize Shenzhen Huatongwei International Co.,Ltd of China to act on our behalf, as our agent in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification, Any act carried out by Shenzhen Huatongwei International Co.,Ltd. within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, (签名人英文名): Dennis Wang (签名人职称):manager TOYO ELECTRIC MFG. CO., LTD. Tel: 00886-2-27026037 Fax: 00886-2-27026037 E-mail:[email protected]

Letter for Confidentiality Federal Communications Commission Authorization and Evaluation Division Date: Mar.15,2013 Confidentiality Request regarding application for certification of FCC ID: N9STY-T2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1.Schematic 2.Theory of Operation 3.Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, We do not want these documents to be accessible to the general public. Sincerely, (签名人英文名): Dennis Wang (签名人职称):manager TOYO ELECTRIC MFG. CO., LTD. Tel: 00886-2-27026037 Fax: 00886-2-27026037 E-mail:[email protected]

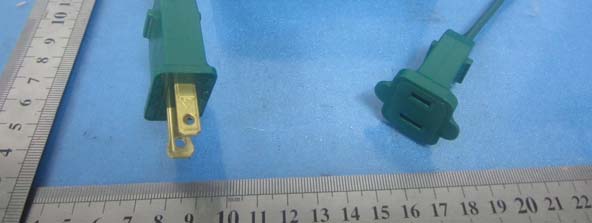

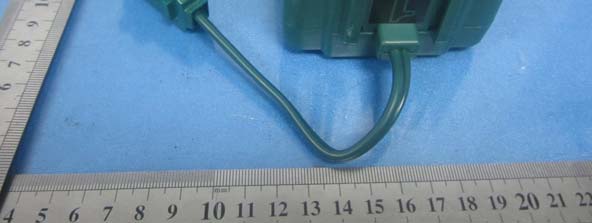

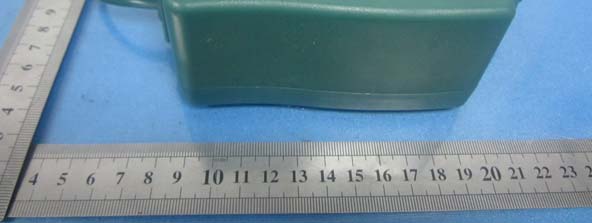

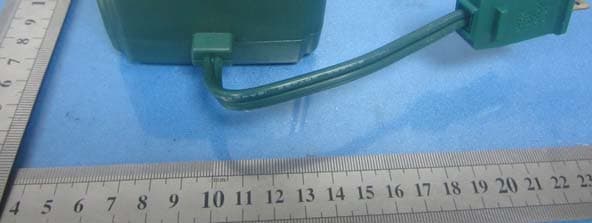

External Photos

Model: TY-T2 Date Code: 0513 120V AC 60Hz , 3.5 A, 420 Watts Module Use Frequency Range: 433.9MHz TOYO Electric Mfg. Co., Ltd FCC ID: N9STY-T2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

FCC PART 15 SUBPART B TEST REPORT FCC PART 15 B Report Reference No......................: TRE13010037 R/C:53635 FCC ID..............................................: N9STY-T2 Compiled by ( position+printed name+signature)..: File administrators Eric Zhang Supervised by ( position+printed name+signature)..: Test Engineer Tim Zhang Approved by ( position+printed name+signature)..: Manager Wenliang Li Date of issue.....................................: Mar 15, 2013 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: TOYO ELECTRIC MFG. Co., LTD Address ............................................: 9TH,FL 30 SEC 3 RENAI RD DAAN DISTRICT, TAIPEI 106 TAIWAN Manufacturer’s name.....................: T&Y ELECTRIC(SHENZHEN)Co., LTD Address ............................................: ANLIANG INDUSTRIAL ZONE, HENGGANG, LONGGANG DISTRICT,GD,CHINA Test specification: Standard ...........................................: FCC Part 15 B- Unintentional Radiators TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: MAIN CONTROLLER Trade Mark .......................................: / Model/Type reference.......................: TY-T2,TY-T1 Listed Models ..................................: / Result................................................: Positive Report No.: TRE13010037 Page 2 of 23 Issued:2013-03-15 T E S T R E P O R T Test Report No. : TRE13010037 Mar 15, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : MAIN CONTROLLER Model /Type : TY-T2,TY-T1 Listed Models : / Applicant : TOYO ELECTRIC MFG. Co., LTD Address : 9TH,FL 30 SEC 3 RENAI RD DAAN DISTRICT, TAIPEI 106 TAIWAN Manufacturer T&Y ELECTRIC(SHENZHEN)Co., LTD Address ANLIANG INDUSTRIAL ZONE, HENGGANG, LONGGANG DISTRICT,GD,CHINA Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE13010037 Page 3 of 23 Issued:2013-03-15 Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. Configuration of Tested System 5 2.5. EUT configuration 6 2.6. EUT operation mode 6 2.7. Related Submittal(s) / Grant (s) 6 2.8. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Statement of the measurement uncertainty 8 3.5. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. Conducted Emissions Test 10 4.2. Radiated Emission Test 13 5. TEST SETUP PHOTOS OF THE EUT .......................................... 19 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 21 Report No.: TRE13010037 Page 4 of 23 Issued:2013-03-15 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15 Subpart B - Unintentional Radiators ANSI C63.4-2009: American National Standard for Methods of Measurement of Radio-Noise Emissions From Low Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz. Report No.: TRE13010037 Page 5 of 23 Issued:2013-03-15 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Jan 08, 2013 Testing commenced on : Jan 10, 2013 Testing concluded on : Mar 15, 2013 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ● 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ○ Other (specified in blank below) AC 120V/60Hz 2.3. Short description of the Equipment under Test (EUT) The EUT is a MAIN CONTROLLER,the Sample models are as follow: Serial number: Prototype 2.4. Configuration of Tested System Fig. 2-1 Configuration of Tested System 1.0 Meter 1.5 Meter Non-Conducting Table 80 cm above Ground Plane Transmitter Light EUT(Receiver) Report No.: TRE13010037 Page 6 of 23 Issued:2013-03-15 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● supplied by the manufacturer ○ - supplied by the lab Support Equipment List and Details Manufacturer Description Model Serial Number FCC ID TOYO REMOTE TRANSMITTER TY-R-433 N/A N9STY-R-433 2.6. EUT operation mode The EUT has been tested under typical operating condition. 2.7. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID:N9STY-T2 filing to comply with the FCC Part 15, Subpart B Rules. 2.8. Modifications No modifications were implemented to meet testing criteria. Report No.: TRE13010037 Page 7 of 23 Issued:2013-03-15 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26715686 Fax: 86-755-26748089 The sites are constructed in conformance with the…

Text truncated - open the document above for the full version.
